Compact metal desktop switch with five RJ45 ports

TP-Link

TP-Link TL-SG1005P-PD 5-port Gigabit PoE+ network switch

SKU CH-DRGJ-WMQH5 MPN TL-SG1005P-PD

Five-port Gigabit switch draws PoE++ input to power four PoE+ devices with up to 66 W budget and extends cable runs to 250 m

  • FormatDesktop
  • StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 8
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Primary Port Type1 x 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.
  • Fanless design gives silent operation in any setting
  • PoE++ input powers four PoE+ ports without a separate adapter
  • Extend mode pushes PoE+ signals up to 250 m for distant cameras
  • Auto recovery restarts frozen PoE devices automatically
  • Metal chassis supports desktop or wall mounting in tough environments

5-Port Gigabit PoE+ Desktop Switch

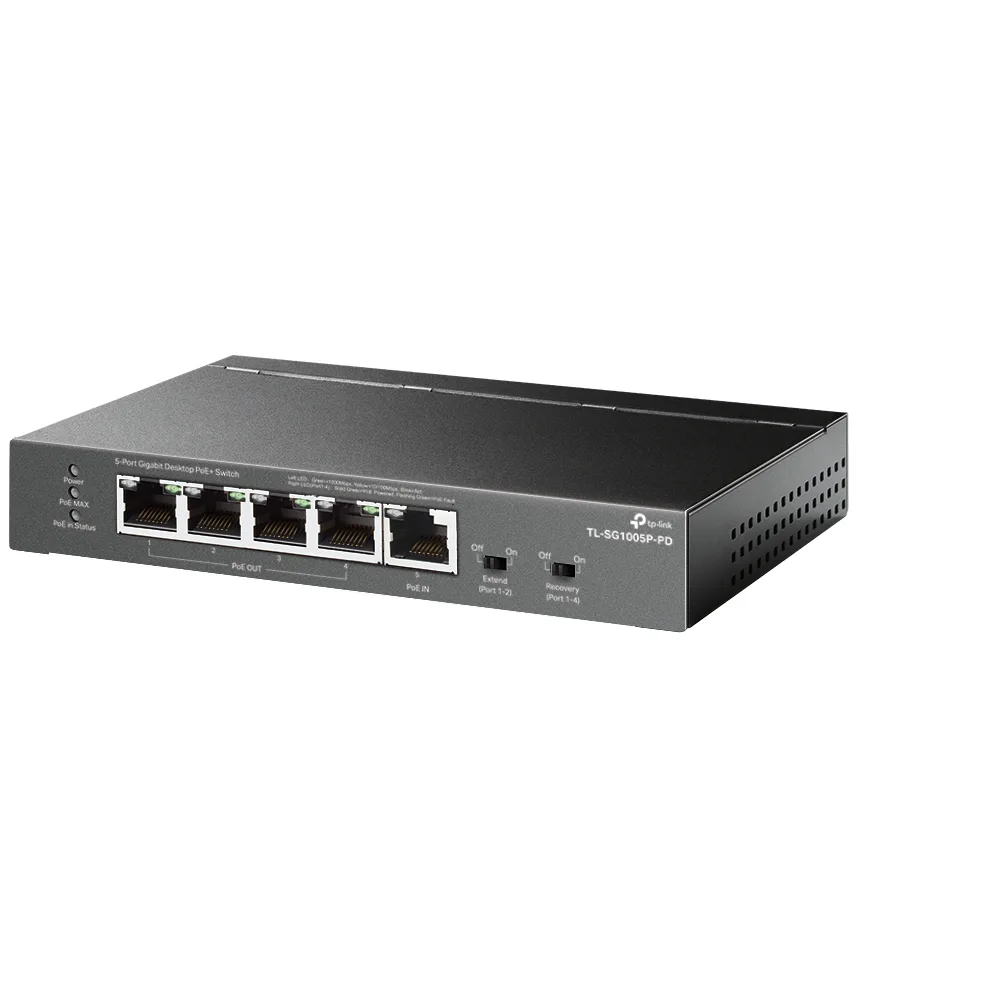

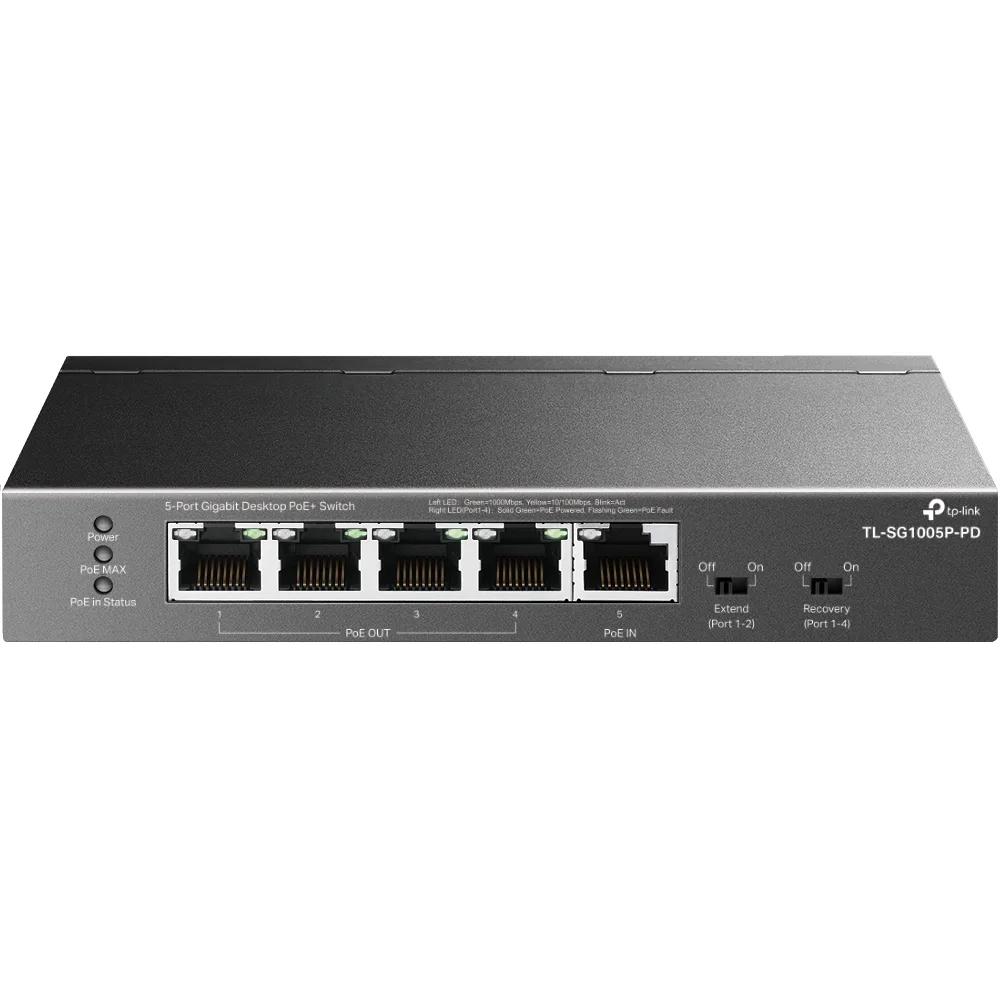

The TL-SG1005P-PD is an unmanaged desktop switch with five RJ45 ports operating at 10/100/1000 Mbps. It draws power from a single PoE++ input on port five and delivers PoE+ output on ports one through four. The metal casing supports desktop or wall mounting and runs without a fan for silent operation.

Suits installers needing remote PoE devices

This switch suits installers who need to power cameras, access points or VoIP phones from a single upstream PoE++ link without a local mains outlet. It is not for networks that require VLANs, link aggregation or any managed features. Buyers who need AC or DC power input should look elsewhere because the unit only accepts PoE power.

Check your upstream PoE class and cable runs

Verify that your upstream PSE can supply 802.3bt Type 4 for the full 66 W budget, Type 3 for 47 W, 802.3at for 21 W or 802.3af for 9 W. Confirm that connected devices accept 802.3af/at PoE+ on the four output ports. Ensure cable lengths stay within 250 m when using Extend Mode for long-range deployments.

Highlights

  • Fanless design gives silent operation in any setting
  • PoE++ input powers four PoE+ ports without a separate adapter
  • Extend mode pushes PoE+ signals up to 250 m for distant cameras
  • Auto recovery restarts frozen PoE devices automatically
  • Metal chassis supports desktop or wall mounting in tough environments

Specifications

BrandTP-Link
ModelTL-SG1005P-PD
FormatDesktop
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port Type1 x 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
4 x 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
MAC Address Table2K
Packet Forwarding Rate7.44 Mpps
PoEPoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
PoE Out Ports: Ports 1-4, compliance with 802.3af/at
PoE Power Budget:
- 66 W when powered by 802.3bt Type 4 (90 W)
- 47 W when powered by 802.3bt Type 3 (60 W)
- 21 W when powered by 802.3at (30 W)
- 9 W when powered by 802.3af (15.4 W)
PowerOnly Powered by PoE Device
2.68 W (90W PoE In, with no PD connected)
68.59 W (90W PoE In, with 66 W PD connected)
Dimensions6.2" x 4.0" x 1.0"
TemperatureOperating Temperature: -30 - 70 °C (-22 - 158 °F);
Storage Temperature: -40 - 70 °C (-40 - 158 °F)
HumidityOperating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Package ContentsTL-SG1005P-PD
Installation Guide
Shipping weight0.46 kg
Package size196 × 131 × 52 mm

Questions about this item

What PoE standard must the upstream switch or injector support to deliver the 66 W budget to the four PoE+ out ports?

The upstream device must comply with IEEE 802.3bt Type 4 (90 W) on the PoE++ in port to enable the full 66 W output budget across ports 1–4.

Will this switch negotiate gigabit speed with an older 10/100 Mbps camera connected to one of the PoE+ out ports?

Yes, each RJ45 port auto-negotiates 10, 100 or 1000 Mbps, so legacy 10/100 cameras will link at their rated speed while still receiving PoE+ power.

How can I confirm the switch is forwarding traffic at wire speed after connecting the PoE++ source and powered devices?

The front-panel LEDs show link/activity per port; solid green indicates a 1000 Mbps link and blinking confirms packet forwarding at the 7.44 Mpps switching capacity.
