White rectangular desktop network switch with five RJ45 ports on the front

TP-Link

TP-Link TL-SF1005D 5-port 10/100 Mbps network switch

SKU CH-J5FK-DH7ZM MPN TL-SF1005D

A 5-port desktop switch adds wired connections for laptops, consoles or printers with plug-and-play setup and fanless quiet operation

  • FormatDesktop
  • StandardsIEEE802.3, IEEE802.3u, IEEE 802.3x
  • Network Management TypeUnmanaged
  • Uplink PortsNone
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100Mbps
  • Plug-and-play setup requires no configuration or software
  • Five 10/100 Mbps RJ45 ports expand wired connectivity
  • Fanless design runs silently on any desktop
  • Energy-efficient technology cuts power use by up to 60%
  • Auto-MDI/MDIX removes the need for crossover cables

Desktop 5-port Fast Ethernet switch

The TL-SF1005D adds five 10/100 Mbps RJ45 ports to a router or modem, giving wired connections to laptops, consoles or printers. It draws power from a 100-240 VAC supply and operates silently thanks to a fanless design. The compact 4.1" x 2.8" x 0.9" case sits on any desk or shelf. No configuration is required before use.

Plug-and-play with auto-negotiation

Every port supports Auto-MDI/MDIX so straight-through or crossover cables both work without manual setup. IEEE 802.3x flow control manages full-duplex traffic while backpressure handles half-duplex links. The store-and-forward switching method checks each packet before forwarding. Energy-efficient technology reduces consumption by up to 60% based on link status and cable length.

Suits basic wired expansion

Home or small-office users who need extra Ethernet ports for 10/100 Mbps devices will find it adequate. Buyers requiring Gigabit speeds, VLAN segmentation, PoE power or managed features should look at a different switch. The unmanaged Layer 2 design offers no configuration interface or traffic prioritisation. Operating temperature ranges from 0°C to 40°C.

Highlights

  • Plug-and-play setup requires no configuration or software
  • Five 10/100 Mbps RJ45 ports expand wired connectivity
  • Fanless design runs silently on any desktop
  • Energy-efficient technology cuts power use by up to 60%
  • Auto-MDI/MDIX removes the need for crossover cables

Specifications

BrandTP-Link
ModelTL-SF1005D
FormatDesktop
StandardsIEEE802.3, IEEE802.3u, IEEE 802.3x
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports5 x RJ45
Primary Port Speed10/100Mbps
Switching MethodStore and Forward
VLAN SupportNo
ProtocolsTCP/IP
PoENo
LayerLayer 2 Only
LEDsPower, Link/Act
Power100~240VAC, 50/60Hz

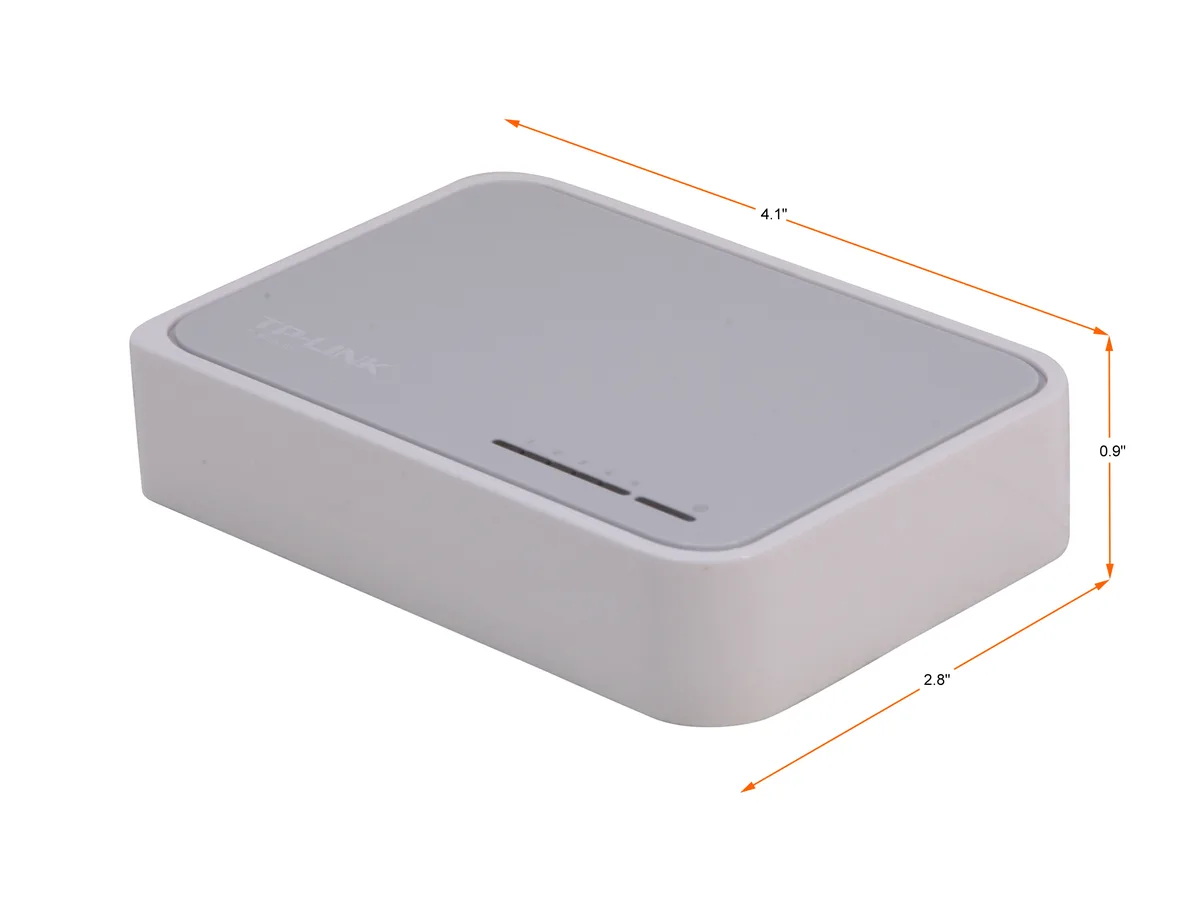

Dimensions4.1" x 2.8" x 0.9"
Weight0.4
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesInnovative energy-efficient technology saves power up to 60%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Fanless design ensures quiet operation
Desktop design
Plug and Play design simplifies installation

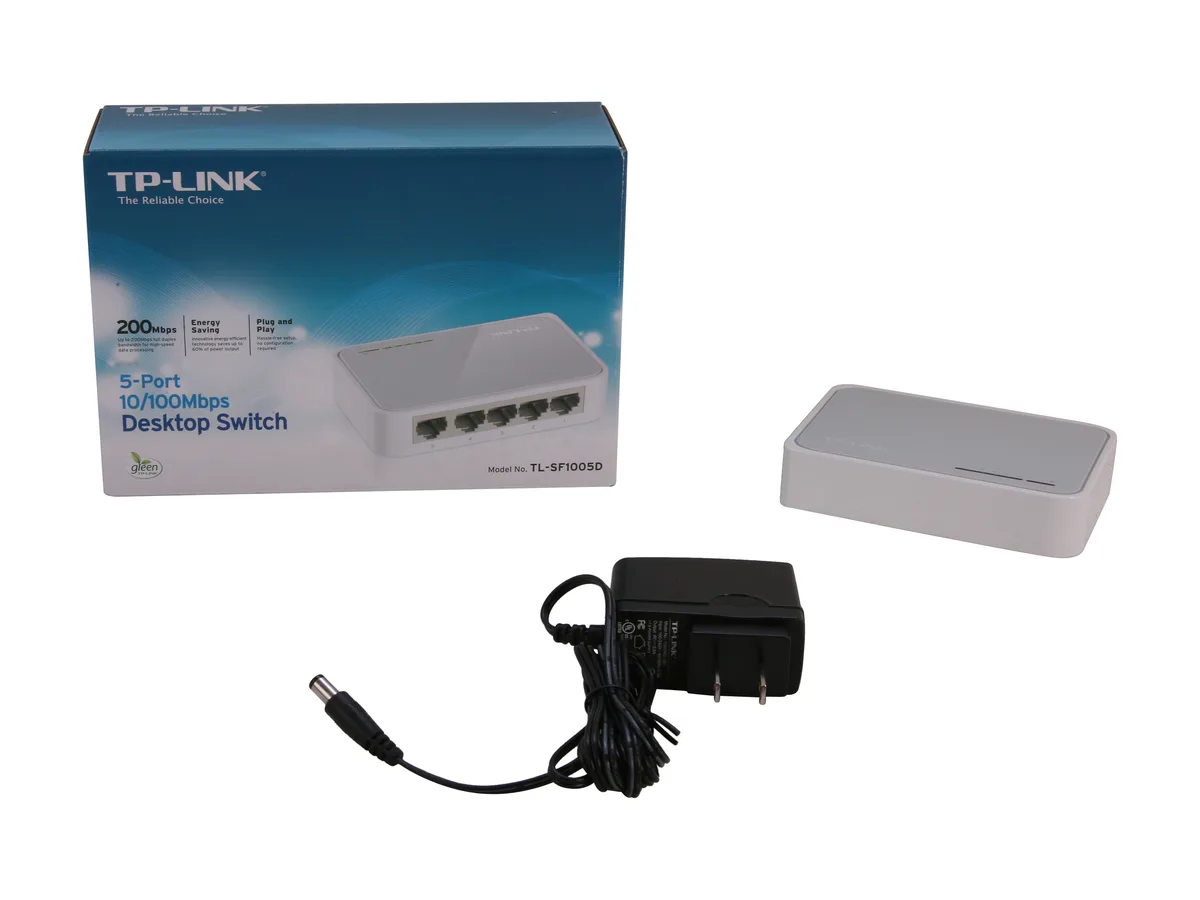

Package Contents5-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide
Shipping weight0.25 kg
Package size185 × 132 × 64 mm

Questions about this item

Does the fanless design mean any parts will need replacement over time?

The switch has no moving parts and no fan, so there are no components that wear out or require scheduled replacement.

What is the first bottleneck when all five 10/100 Mbps ports run at full duplex continuously?

Each port caps at 200 Mbps full-duplex throughput, so the 10/100 Mbps link speed is the limiting factor before the non-blocking fabric saturates.

How much heat and power does the unit produce when left on 24/7?

It draws power from a 100~240 VAC supply, uses energy-efficient technology that can cut consumption by up to 60 %, and operates silently at 0 °C to 40 °C.
