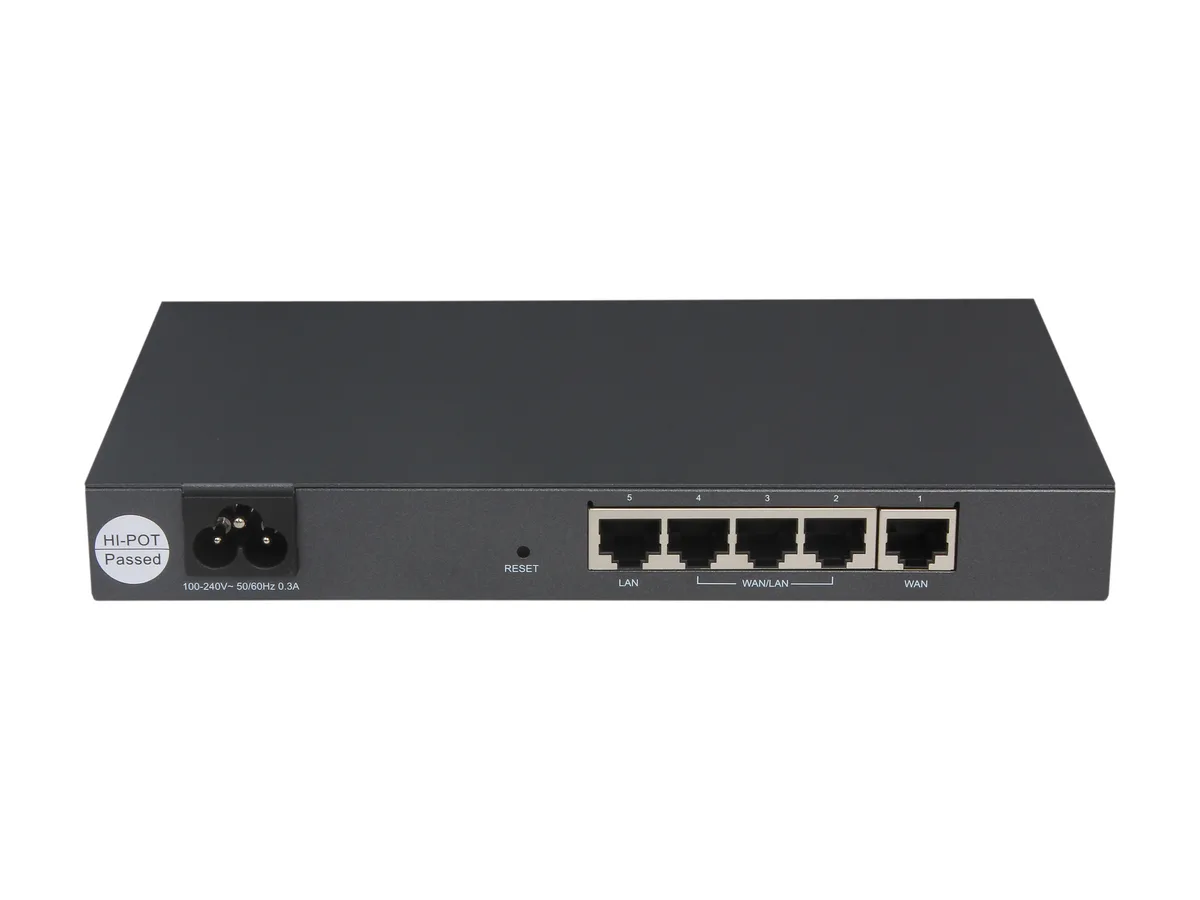

Rectangular metal box with five Ethernet ports and reset button

TP-Link

TP-Link TL-R470T+ 10/100Mbps Load Balance Firewall Appliance

SKU CH-1AP0-C2ME8 MPN TL-R470T+

A load-balancing firewall appliance with one fixed WAN, one fixed LAN and three configurable ports for small offices and internet cafés

  • StandardsIEEE 802.3, IEEE 802.3u,IEEE 802.3x
  • ProtocolsTCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
  • Speed10/100Mbps
  • SecurityFirewall Security: IP Address Filtering MAC Address Filterin
  • WAN Ports1 x 10/100Mbps
  • LAN Ports1 x Fixed LAN, 3 x Changeable WAN/LAN
  • Load balance across up to four WAN connections
  • 10/100 Mbps wired throughput for small-office traffic
  • SPI firewall with IP, MAC and domain filtering
  • DoS defence plus VPN pass-through for secure remote access
  • Operates from 0 °C to 40 °C with internal universal power supply

Purpose-built load-balance router

The TP-Link TL-R470T+ is a 10/100Mbps firewall appliance designed for small offices and internet cafés. It provides one fixed WAN port, one fixed LAN port and three changeable WAN/LAN ports that can be configured for up to four WAN connections. Load balancing distributes traffic across active links while a built-in firewall adds IP, MAC and domain filtering with DoS protection.

Suited to multi-line sites, not gigabit needs

This unit fits environments that aggregate several broadband lines and require basic bandwidth control, port mirroring, DDNS, UPnP and VPN pass-through. It operates between 0°C and 40°C with 10% to 90% non-condensing humidity. Buyers who need gigabit throughput, wireless connectivity or advanced intrusion-prevention features should look at higher-specification appliances.

Four-WAN capacity with 100Mbps headroom

The four configurable ports comfortably handle multiple 10/100Mbps WAN links for load balancing and failover. Internal bandwidth is limited to 100Mbps per port, so aggregate throughput cannot exceed that ceiling. The compact metal case includes an internal universal power supply accepting 100-240V AC at 50/60Hz, and the package supplies a power cord, Ethernet cable, guide and resource CD.

Highlights

  • Load balance across up to four WAN connections
  • 10/100 Mbps wired throughput for small-office traffic
  • SPI firewall with IP, MAC and domain filtering
  • DoS defence plus VPN pass-through for secure remote access
  • Operates from 0 °C to 40 °C with internal universal power supply

Specifications

BrandTP-Link
ModelTL-R470T+
StandardsIEEE 802.3, IEEE 802.3u,IEEE 802.3x
ProtocolsTCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Speed10/100Mbps
SecurityFirewall Security:
IP Address Filtering
MAC Address Filtering
Domain Name Filtering
DoS Protection
WAN Ports1 x 10/100Mbps
LAN Ports1 x Fixed LAN, 3 x Changeable WAN/LAN
Temperature0°C - 40°C
Humidity10% - 90%, Non-condensing
FeaturesButton: Reset Button
Power Supply: Internal Universal Power Supply, AC100-240V~ 50/60Hz Input
WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP, BigPond Cable
Basic Function:
DHCP Server, DHCP Client
MAC Address Modify/Clone, VPN Pass-through
Static Routing, Dynamic DNS
Multi-WAN Function:
WAN Load Balancing
Detecting Online
Quality of Service:
IP and Port Based Bandwidth Control
Session Limit
Port Forwarding:
Virtual Server
Port Triggering
DMZ Host
UPnP
Dynamic DNS: Dyndns, No-IP, PeanutHull, Comexe
Access Control:
Parental Control, Local Management Control,
Host List, Access Sched
Weight2.05

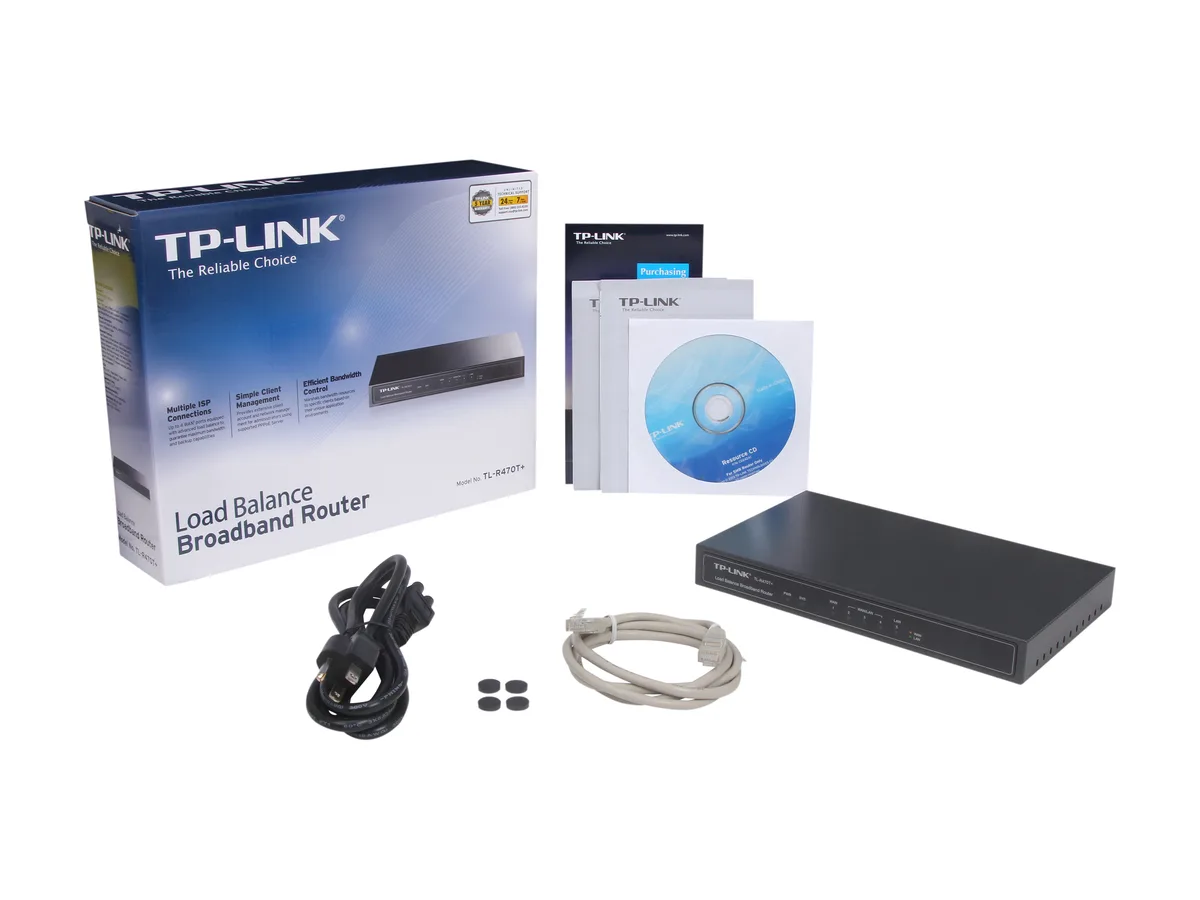

Package ContentsTL-R470T+
Power cord
RJ-45 Ethernet Cable
WAN/LAN Ports Configuration Guide
Resource CD
Shipping weight1.02 kg
Package size279 × 226 × 69 mm

Questions about this item

Do I need a separate modem for each WAN connection I plan to use with the TL-R470T+?

Yes, each of the four WAN ports requires its own modem or upstream gateway to provide an internet feed.

Can I keep my existing 10 Mbps hubs and NICs when connecting them to the LAN ports?

Yes, the LAN ports follow IEEE 802.3 and 802.3u so they negotiate 10/100 Mbps with legacy 10BASE-T equipment.

How can I confirm the load-balancing firewall is actively distributing traffic after setup?

Watch the front-panel LEDs; each WAN port LED blinks when that link carries data, showing balanced utilisation across active lines.
