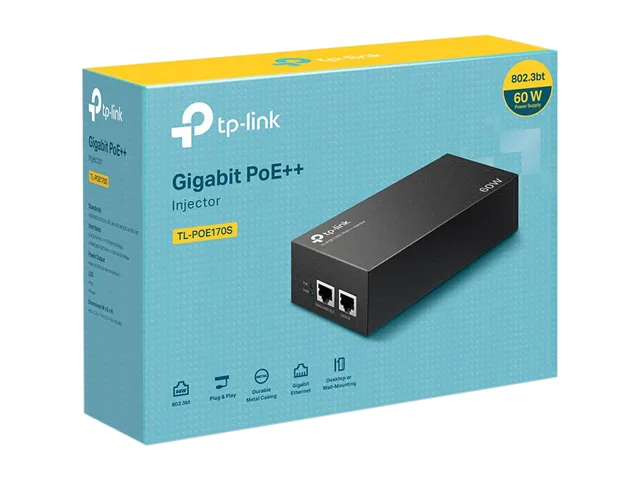

Black rectangular PoE++ injector with two Gigabit Ethernet ports and integrated power supply

TP-Link

TP-Link TL-PoE170S PoE++ Injector 60W Gigabit

SKU CH-NPHE-V3HTX MPN TL-PoE170S

Supplies up to 60W PoE++ power and Gigabit data over a single Ethernet cable up to 100 metres, with auto-detect for 802.3af/at/bt devices and a durable metal case

  • TypePoE++ Injector
  • ColorBlack
  • SpecificationsStandards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab
  • Features2 Gigabit ports ensure faster transmission Complies with IEE
  • Supplies up to 60W for PoE++ devices
  • Backwards compatible with 30W PoE+ and 15.4W PoE
  • Delivers power and data up to 100 meters (328 ft.)
  • Two Gigabit ports enable faster wired transmission
  • Plug & Play setup requires no software configuration

PoE++ Injector with 60W Output

The TP-Link TL-PoE170S is a single-port PoE++ injector that delivers up to 60W of power alongside Gigabit data over one Ethernet cable. It targets installers adding IP cameras, wireless access points or VoIP phones where no mains socket exists. The integrated power supply and metal casing suit both desktop and wall-mount deployment in commercial environments.

Compatibility Check Before Ordering

Verify that the powered device accepts IEEE 802.3af, 802.3at or 802.3bt input and does not exceed the 60W budget. The unit will not work with TP-Link EAP235, EAP225 or EAP225-Outdoor models; those require a different injector. Ensure your Ethernet cable run stays within 100 metres and that the site temperature remains between 0°C and 45°C during operation.

Upgrade Path and When It Makes Sense

This injector replaces a separate power brick and nearby outlet for any 802.3af (15.4W), 802.3at (30W) or 802.3bt PoE++ device, cutting cabling cost and installation time. The jump is worthwhile when you need Gigabit throughput and up to 60W on a single cable run up to 328 ft, especially in retrofit projects where adding AC circuits is impractical.

Highlights

  • Supplies up to 60W for PoE++ devices
  • Backwards compatible with 30W PoE+ and 15.4W PoE
  • Delivers power and data up to 100 meters (328 ft.)
  • Two Gigabit ports enable faster wired transmission
  • Plug & Play setup requires no software configuration

Specifications

BrandTP-Link
ModelTL-PoE170S
TypePoE++ Injector
ColorBlack
SpecificationsStandards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
Certification: FCC, CE, RoHS
Environment: Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material: Metal Casing
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 ohm STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 ohm STP (maximum 100 m)
1000BASE-T: UTP category 5,
Features2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
Durable metal casing
Shipping weight0.92 kg
Package size250 × 190 × 95 mm

Questions about this item

What comes in the box with the TL-PoE170S and what must I buy separately?

The injector has an integrated power supply and two Gigabit Ethernet ports. You only need to supply the Ethernet cables and the PoE device you want to power.

Which PoE standard version should I choose for a device that needs 60 W?

The TL-PoE170S supports IEEE802.3bt PoE++ and delivers up to 60 W, with automatic fallback to 30 W (802.3at) or 15.4 W (802.3af) for compatible devices.

What does the 328 ft distance figure mean for a real installation?

It is the maximum cable run of 100 metres (328 ft) at Gigabit speed while delivering power, suitable for IP cameras or access points far from mains outlets.
