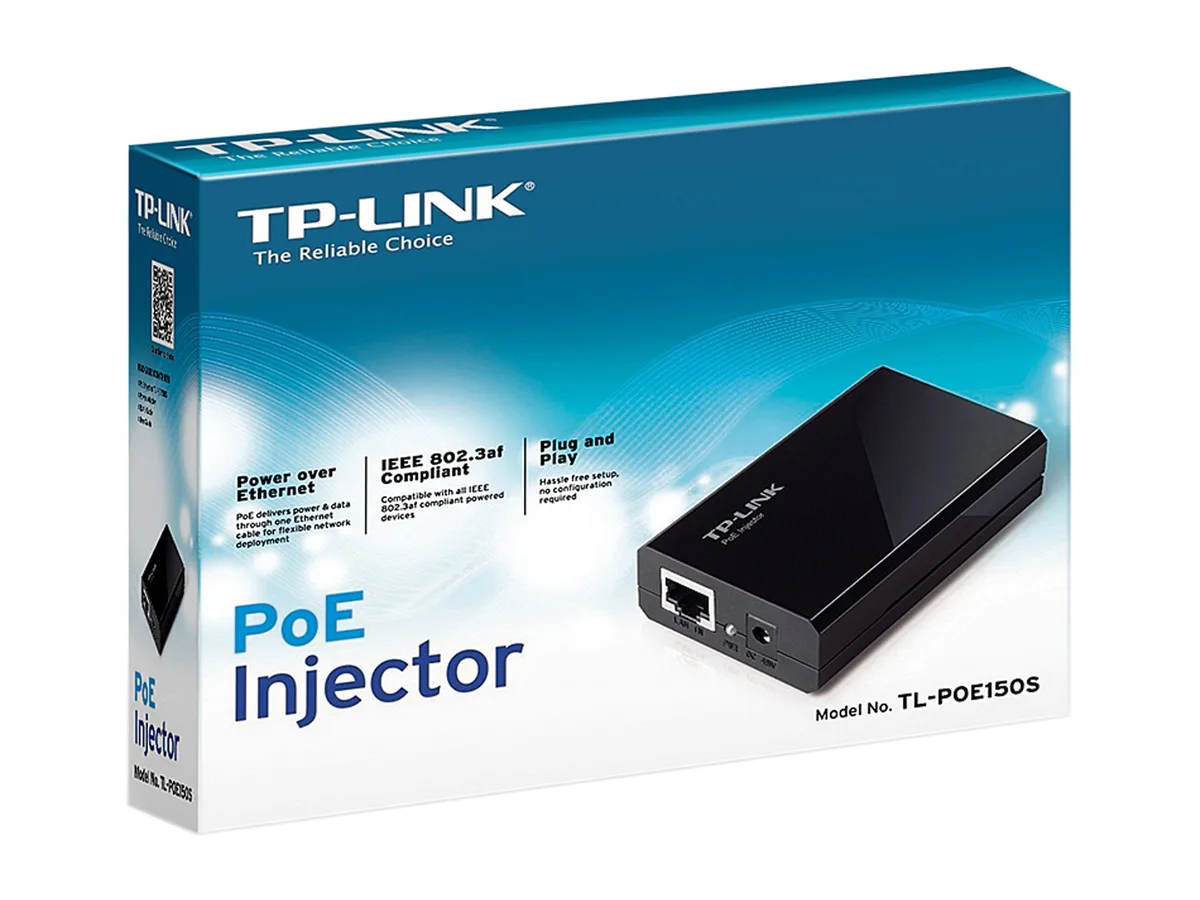

Black rectangular PoE injector with two RJ45 ports and power input

TP-Link

TP-Link TL-PoE150S 802.3af Gigabit PoE Injector 15.4W

SKU CH-H3P3-1EGAB MPN TL-PoE150S

Adds 15.4 W of IEEE 802.3af power over Gigabit Ethernet up to 100 metres with plug-and-play simplicity

  • TypePoE Injector
  • ColorBlack
  • SpecificationsInterface: 2 x 10/100/1000Mbps RJ45 Port, AUTO Negotiation/A
  • FeaturesIEEE 802.3af compliant Delivers power up to 100 meters Auto-
  • Option1-Pack
  • Delivers power up to 100 metres using standard Ethernet cabling
  • Supports Gigabit speeds through two auto-negotiating RJ45 ports
  • IEEE 802.3af compliant with auto-detection of required power
  • Plug-and-play operation requires no software configuration
  • Expands network reach to areas without power outlets

PoE Injector for Gigabit Networks

The TP-Link TL-PoE150S is a single-port IEEE 802.3af compliant injector that adds Power over Ethernet to a standard Gigabit link. It accepts 48 V DC input and delivers up to 15.4 W to a powered device over one RJ45 port while passing data through a second. The unit is plug-and-play with no software configuration required.

Ideal for IP Cameras and Access Points

This injector suits installers who need to power a single PoE device up to 100 metres from a network switch without local mains power. It is not for deployments that require PoE+ or higher power budgets, nor for sites needing multi-port or managed power distribution. Builders without an external 48 V supply must source one separately.

15.4 W Over 100 Metres

The injector comfortably handles one IEEE 802.3af device such as a basic IP camera or wireless access point at full Gigabit speed across the full 100 metre cable run. It runs out when the attached device demands more than 15.4 W or when the installation requires powering multiple endpoints from a single unit.

Highlights

  • Delivers power up to 100 metres using standard Ethernet cabling
  • Supports Gigabit speeds through two auto-negotiating RJ45 ports
  • IEEE 802.3af compliant with auto-detection of required power
  • Plug-and-play operation requires no software configuration
  • Expands network reach to areas without power outlets

Specifications

BrandTP-Link
ModelTL-PoE150S
TypePoE Injector
ColorBlack
SpecificationsInterface:
2 x 10/100/1000Mbps RJ45 Port, AUTO Negotiation/AUTO MDI/MDIX
1 x 48VDC POWER INPUT PORT
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Basic Function:
Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements
Dimensions: 3.2" x 2.1" x 0.9"
LED Indicator: PWR
Power Supply: 15.4W (Max. 48VDC)
Certification: FCC, CE, RoHS
System Require
FeaturesIEEE 802.3af compliant
Delivers power up to 100 meters
Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, requires no configuration
External power adapter supply
Option1-Pack
Shipping weight0.34 kg
Package size201 × 164 × 69 mm

Questions about this item

What cable type do I need to connect the injector's two 10/100/1000Mbps RJ45 ports to my network?

Use UTP category 3, 4, or 5 cable for 10BASE-T, or EIA/TIA-568 100-ohm STP for 100BASE-TX, up to 100 metres.

Will the injector's 15.4W 48VDC output safely power an older IEEE 802.3af access point?

Yes, it auto-detects the required power and complies with 802.3af, so legacy devices receive only what they need.

How do I confirm the injector is delivering power to my IP camera after plugging it in?

The PWR LED indicator lights up when the injector is powered and supplying up to 15.4W over the Ethernet cable.
