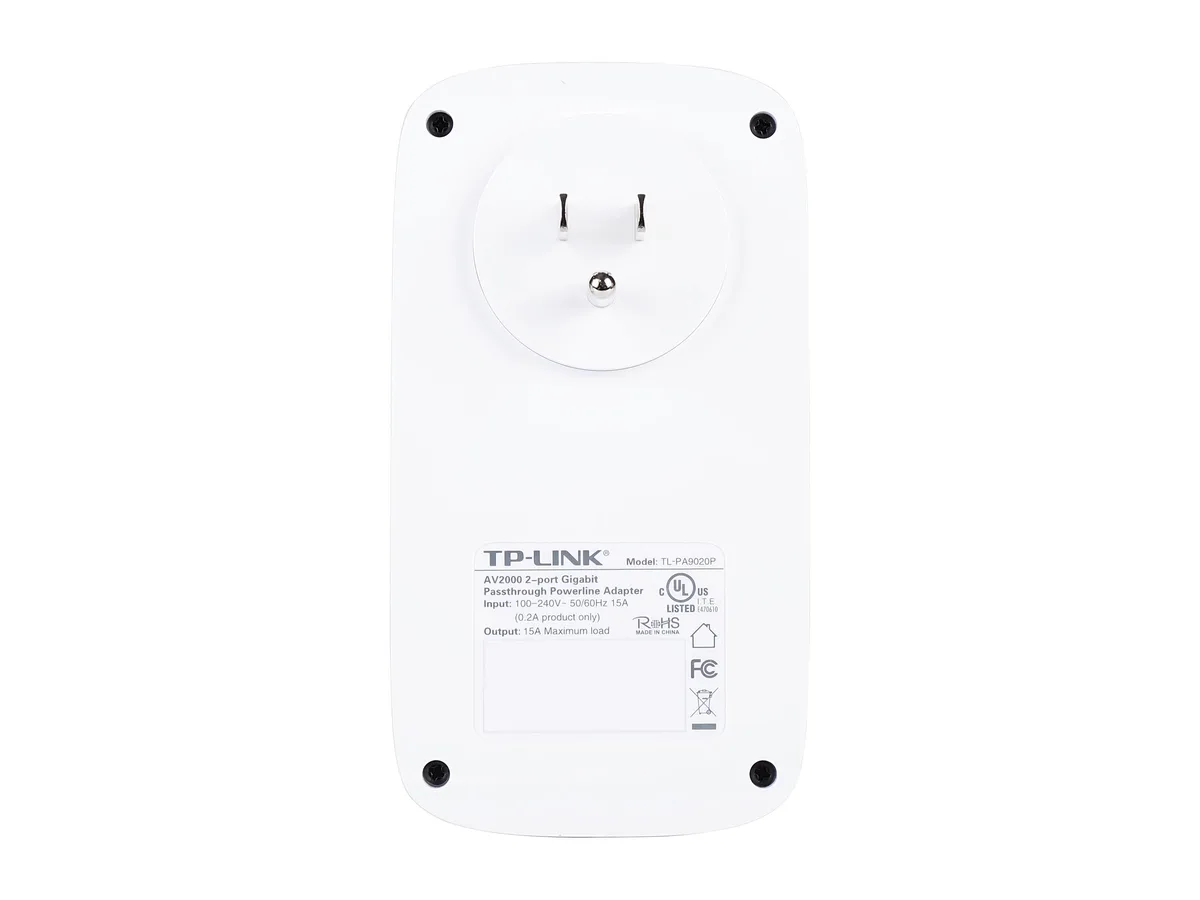

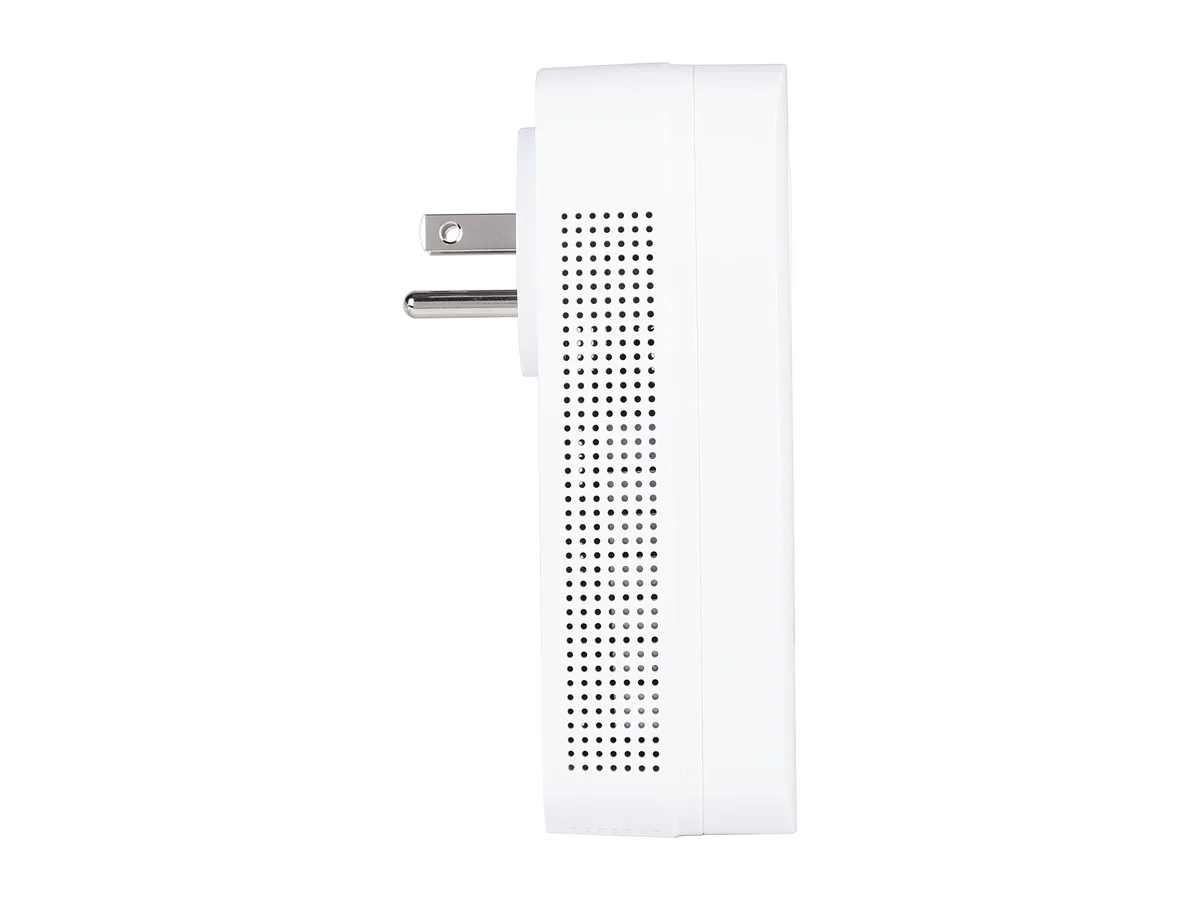

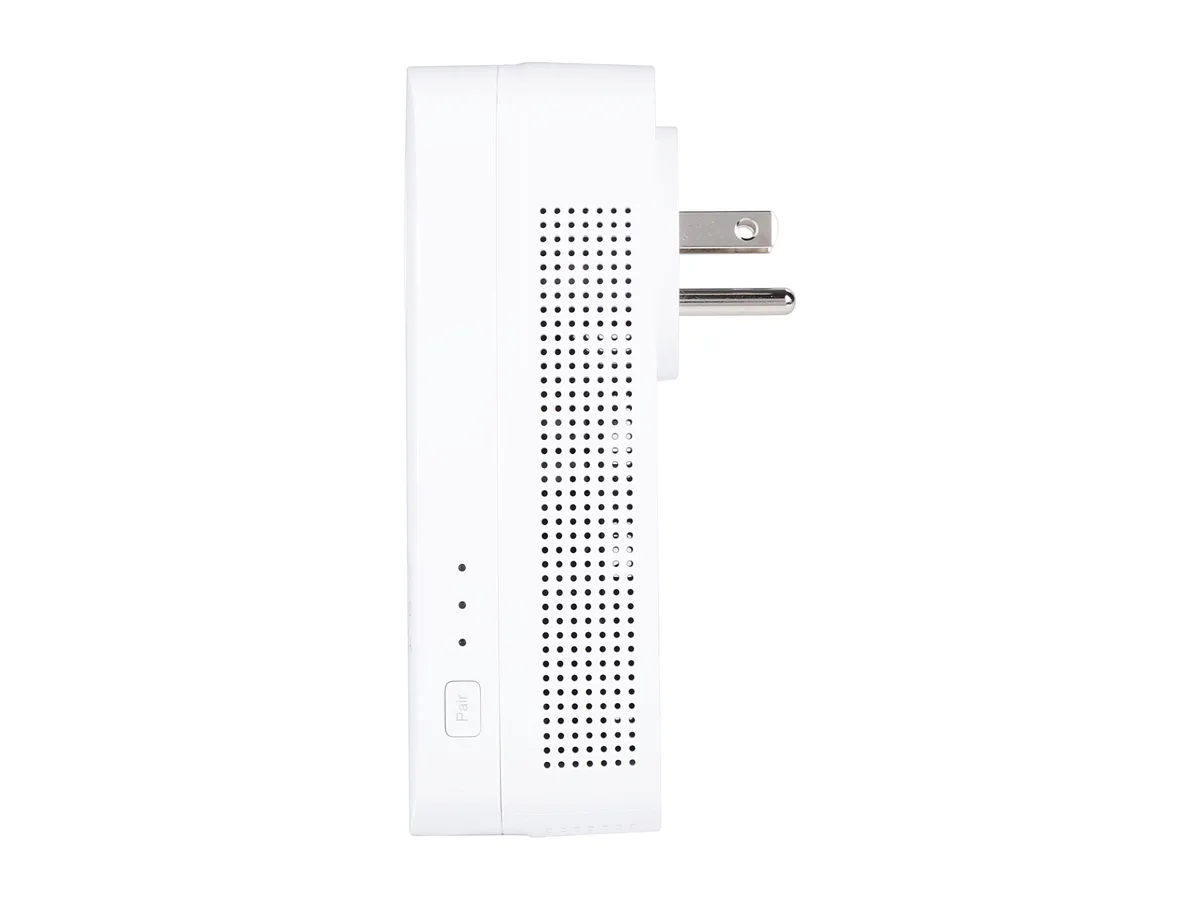

Two white rectangular powerline adapters with integrated passthrough sockets and gigabit Ethernet ports

TP-Link

TP-Link TL-PA9020P KIT AV2000 powerline networking

SKU CH-MTMG-KC2ST MPN TL-PA9020P KIT

Adds two Gigabit Ethernet ports over electrical wiring with up to 2000 Mbps powerline speed and 128-bit AES encryption

  • StandardsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3
  • Encryption128-bit AES Encryption
  • Ports2 x Gigabit Ethernet Port, Power Socket
  • LEDsPower, Powerline, Ethernet
  • CertificationsCE, RoHS, FCC, UL
  • Powerline SpeedsUp to 2.0Gbps
  • Up to 2.0Gbps powerline speed extends wired reach through electrical wiring
  • Two Gigabit Ethernet ports deliver full 10/100/1000M throughput to devices
  • Plug & Play setup with 128-bit AES encryption secures the network instantly
  • Power-saving mode cuts consumption by up to 85% during idle periods
  • Integrated passthrough socket keeps the wall outlet available for other equipment

Powerline AV2000 kit for wired Ethernet

The TP-Link TL-PA9020P KIT uses HomePlug AV2 over existing electrical wiring to deliver up to 2.0 Gbps powerline throughput. Two Gigabit Ethernet ports on each adapter connect PCs, consoles or smart TVs without new cabling. Plug-and-play setup works on Windows, Mac and Linux with 128-bit AES encryption.

Upgrade from slower powerline or Wi-Fi dead zones

Replaces AV1200, AV1000, AV600, AV500 or AV200 kits when higher throughput is needed for 4K streaming or large file transfers. The jump is worth it if your current adapters saturate at 1000 Mbps or if wireless coverage fails through thick walls. Adapters remain backward-compatible with existing HomePlug AV devices on the same circuit.

Handles gigabit broadband

Two 10/100/1000 Mbps ports pass full line-rate internet and LAN traffic across circuits up to 300 metres. MIMO with beamforming sustains two spatial streams for heavier loads. Throughput drops when circuit noise, phase separation or poor wiring degrade the signal below the physical-layer ceiling.

Highlights

  • Up to 2.0Gbps powerline speed extends wired reach through electrical wiring
  • Two Gigabit Ethernet ports deliver full 10/100/1000M throughput to devices
  • Plug & Play setup with 128-bit AES encryption secures the network instantly
  • Power-saving mode cuts consumption by up to 85% during idle periods
  • Integrated passthrough socket keeps the wall outlet available for other equipment

Specifications

BrandTP-Link
ModelTL-PA9020P KIT
StandardsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Encryption128-bit AES Encryption
Ports2 x Gigabit Ethernet Port, Power Socket
LEDsPower, Powerline, Ethernet
CertificationsCE, RoHS, FCC, UL
Powerline SpeedsUp to 2.0Gbps
Connection TypeRJ45
Connection Speeds10/100/1000M
Kit TypeHub + Adapter
Power SupplyMaximum: 5.8 W (230V / 50Hz)
Standby: 0.5 W (230V / 50Hz)
System RequirementWindows 2000 / XP / 2003 / Vista, Windows 7 / 8 / 8.1 / 10, Mac, Linux
TemperatureOperating Temperature: 0 degree C ~ 40 degree C (32 degree F ~ 104 degree F)
Storage Temperature: -40 degree C ~ 70 degree C (-40 degree F ~ 158 degree F)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
FeaturesHomePlug AV2 standard compliant, high-speed data transfer rates of up to 2000 Mbps, supports all your online needs
2x2 MIMO with Beamforming establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
2 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
Integrated power socket ensures no power outlet goes to waste
Plug and play, no configuration required
Patented Power-Saving Mode automatically reduces power consumption by up to 85%
Dimensions1.70" x 5.20" x 2.80"
Package ContentsAV2000 2-port Gigabit Passthrough Powerline Adapter, TL-PA9020P x 2
2-meter RJ-45 Ethernet Cable x 2
Quick Installation Guide
Shipping weight0.89 kg
Package size231 × 193 × 104 mm

Questions about this item

What physical space does each adapter need at a wall outlet?

Each adapter measures 1.70" x 5.20" x 2.80" and includes a built-in passthrough socket so the outlet remains usable for other devices.

How do I install the kit and what step is often missed?

Plug both adapters directly into wall sockets, connect the included RJ45 cables to your router and device, then press the pair button on each unit within two minutes to enable 128-bit AES encryption.

What ongoing maintenance or replacement should I expect?

The adapters have no user-serviceable parts; keep vents clear, operate within 0–40 °C, and replace a unit only if the Power, Powerline or Ethernet LEDs indicate a permanent fault.
