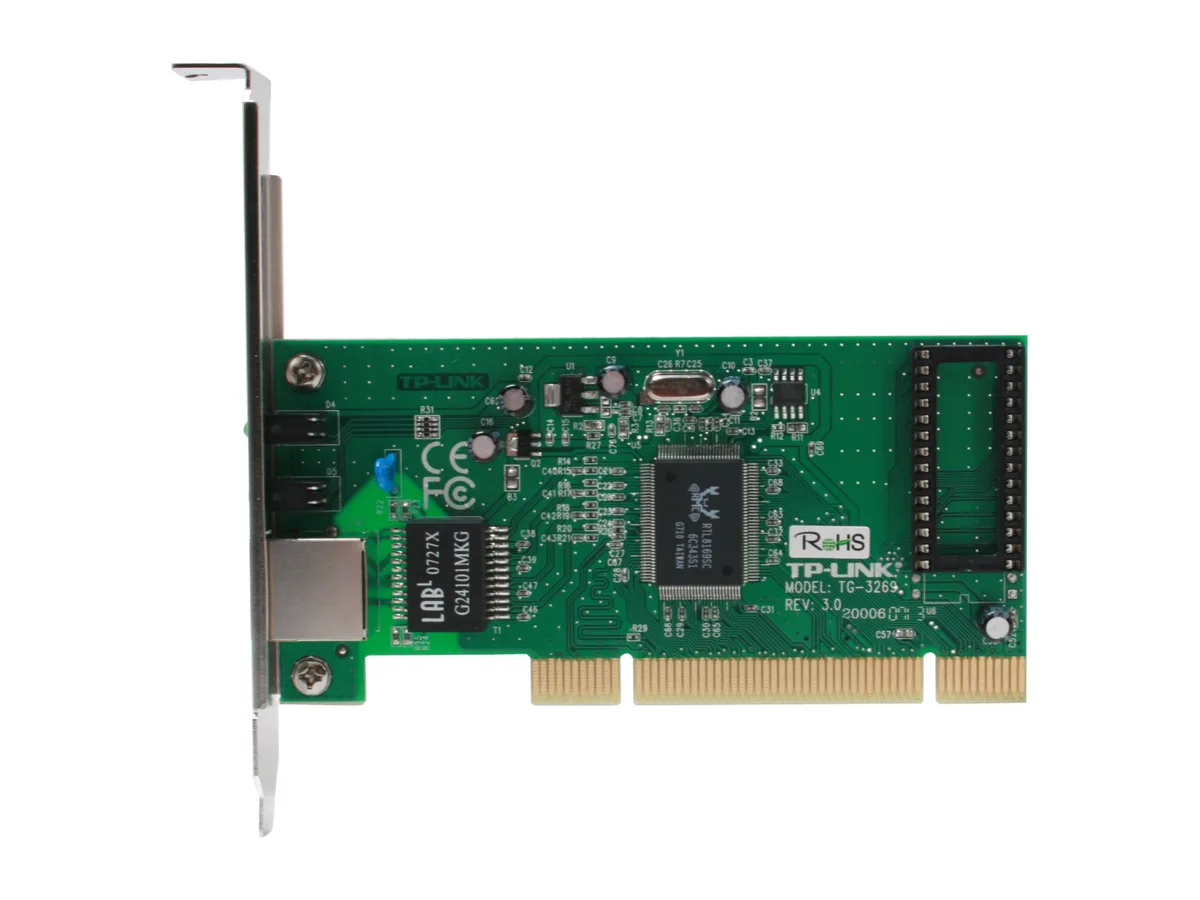

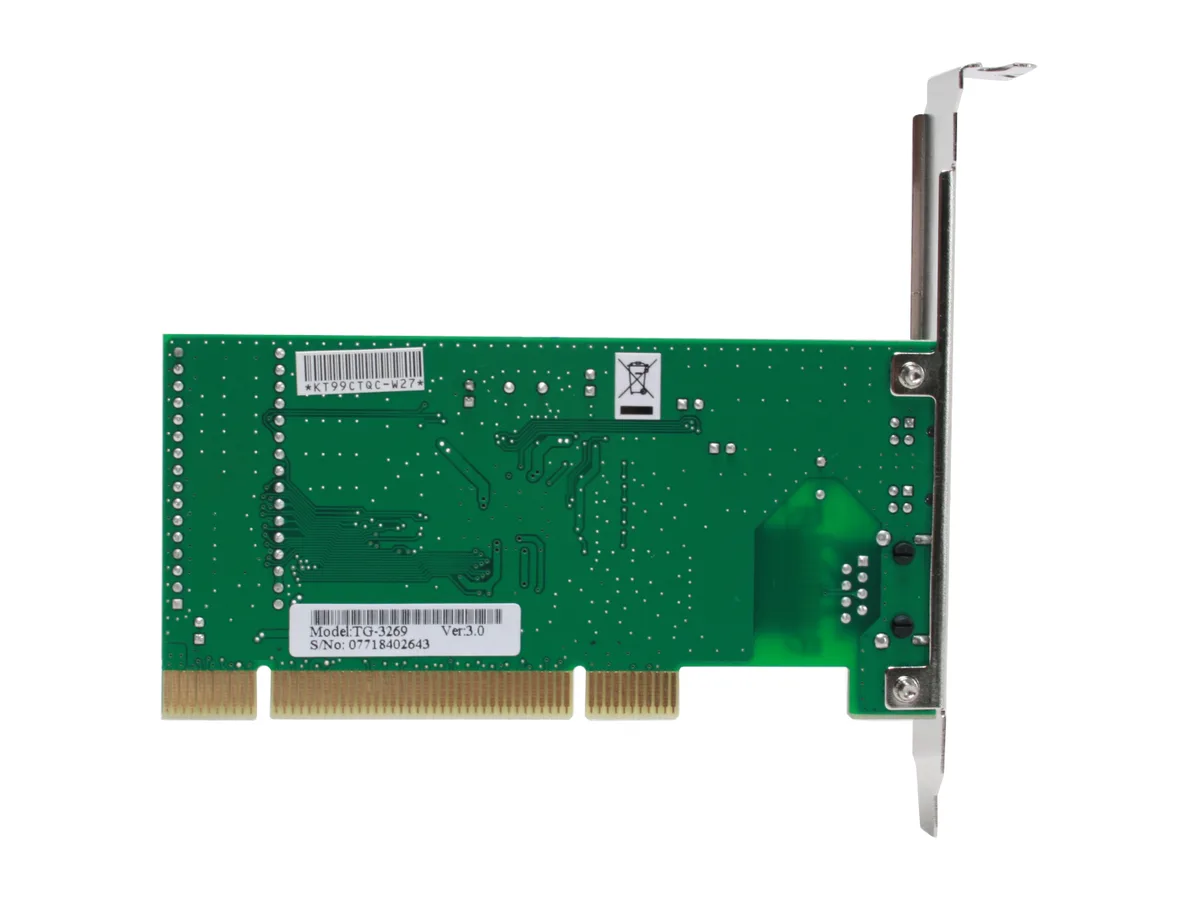

Green rectangular PCI network card with single RJ45 port and metal bracket

TP-Link

TP-Link TG-3269 32-bit PCI network card

SKU CH-BKEV-Q77NN MPN TG-3269

Adds a 10/100/1000 Mbps RJ45 port via 32-bit PCI with IEEE 802.3x flow control and VLAN support

  • StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
  • Speed10/100/1000Mbps
  • Connectors1 x RJ45
  • InterfacePCI
  • BUS32-bit PCI
  • LEDs1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act, Duplex
  • Gigabit wired speeds up to 1000 Mbps with auto-negotiation
  • Reliable 32-bit PCI interface fits standard desktop expansion slots
  • IEEE 802.3x flow control and 802.1Q VLAN tagging for managed networks
  • Jumbo Frame support reduces CPU overhead on large transfers
  • Operates from 0 °C to 40 °C in 10–90 % humidity

Gigabit PCI Network Adapter

The TP-Link TG-3269 is a 32-bit PCI network interface card that adds a single RJ45 port to a desktop computer. It operates at 10, 100 or 1000Mbps and supports IEEE 802.3, 802.3u and 802.3ab standards. The card includes LEDs for link speed and duplex status. Drivers are available for Windows and Linux systems.

Suitable for older desktops

This adapter suits owners of legacy desktops that have a free 32-bit PCI slot and need a wired Gigabit Ethernet connection. It supports VLAN tagging, Jumbo Frames and IEEE 802.3x flow control. Buyers whose motherboards lack a conventional PCI slot or who need more than one Ethernet port should consider a different solution.

32-bit PCI interface

The decisive specification is the 32-bit PCI bus interface, which determines whether the card fits the target motherboard. The adapter requires an available 32-bit PCI expansion slot and does not work with PCI Express slots. Verify the slot type before purchase.

Highlights

  • Gigabit wired speeds up to 1000 Mbps with auto-negotiation
  • Reliable 32-bit PCI interface fits standard desktop expansion slots
  • IEEE 802.3x flow control and 802.1Q VLAN tagging for managed networks
  • Jumbo Frame support reduces CPU overhead on large transfers
  • Operates from 0 °C to 40 °C in 10–90 % humidity

Specifications

BrandTP-Link
ModelTG-3269
StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
Speed10/100/1000Mbps
Connectors1 x RJ45
InterfacePCI
BUS32-bit PCI
LEDs1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act, Duplex
Temperature0°C ~ 40°C
Humidity10 % ~ 90 % (Non-condensing)
FeaturesSystem Requirements: Me/NT/2000/XP/Vista/7,Linux/Novell Netware
Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
Supports IEEE 802.1P, IEEE 802.1Q VLAN tag
Supports Jumbo Frame
Provides Bootrom slot, supporting remote boot
Supports ACPI, PCI power management
Contain two large independent receive and transmit FIFOs
One STP/UTP connector
Weight2
Package ContentsNetwork Adapter
Resource CD
Quick Installation Guide
Shipping weight0.12 kg
Package size180 × 133 × 25 mm

Questions about this item

Does the TG-3269 need a 32-bit PCI slot on the motherboard?

Yes, the card is a 32-bit PCI device and must be installed in an available 32-bit PCI slot.

Will the 10/100/1000Mbps adapter run at 100Mbps if my switch only supports Fast Ethernet?

The card auto-negotiates down to 100Mbps full or half duplex when connected to a 100Mbps link partner.

How can I confirm the TG-3269 is operating at 1000Mbps after installing the driver?

The 1000Mbps Link/Act LED on the bracket will light solid or blink when a gigabit link is active.
