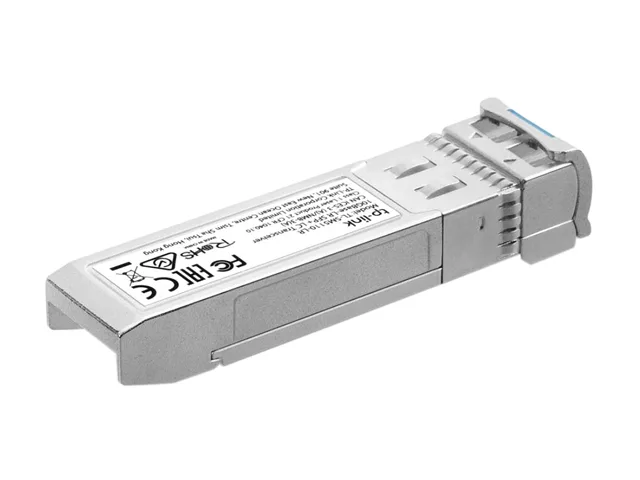

Small rectangular metal module with LC duplex port and gold edge connector

TP-Link

TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver

SKU CH-54WE-713CW MPN SM5110-LR

Single-mode SFP+ transceiver delivers 10 Gbps over 10 km with LC connector and digital diagnostic monitoring

  • Device TypeTransceiver
  • Max Distance10 km
  • Transfer Rate10 Gbps
  • TemperatureOperating Temperature: 0 - 70 °C (32 - 158 °F) Storage Tempe
  • HumidityOperating Humidity: 10-90% RH, Non-Condensing Storage Humidi
  • FeatureSingle-mode SFP+ LC Transceiver Hot-Pluggable with maximum f
  • 10 Gbps fiber links reach 10 km over single-mode cable
  • Hot-pluggable SFP+ module installs without powering down the switch
  • Digital Diagnostic Monitoring reports real-time link health and power levels
  • SFP+ MSA compliance ensures interoperability with multi-vendor 10G ports
  • Operates reliably from 0 to 70 °C with under 1.5 W power draw

10 km single-mode SFP+ transceiver

The TP-Link SM5110-LR is a 10GBase-LR SFP+ LC transceiver built for single-mode fiber links up to 10 km. It delivers a 10 Gbps transfer rate at 1310 nm wavelength over 9/125 µm fiber and operates from 0 to 70 °C. The module is hot-pluggable and supports Digital Diagnostic Monitoring for real-time link health.

Capacity and headroom at 10 Gbps over 10 km

At 10 Gbps the module handles full-duplex Ethernet across campus or metro spans up to 10 km without speed loss. Power draw stays below 1.5 W, leaving headroom in dense switch deployments. The operating humidity range of 10-90 % RH non-condensing and storage range of -40 to 85 °C suit standard indoor equipment rooms. It is not suited for links longer than 10 km or multi-mode fiber installations.

SFP+ MSA compliance decides fit

The single specification that determines compatibility is compliance with the 10G SFP+ Multi-Source Agreement. The transceiver works with switches that provide standard 10G SFP+ ports, such as the JetStream TL-SG3428X and TL-SG3428XMP, and with other MSA-compliant gear. Buyers whose equipment uses proprietary or non-MSA SFP+ slots cannot use this module.

Highlights

  • 10 Gbps fiber links reach 10 km over single-mode cable
  • Hot-pluggable SFP+ module installs without powering down the switch
  • Digital Diagnostic Monitoring reports real-time link health and power levels
  • SFP+ MSA compliance ensures interoperability with multi-vendor 10G ports
  • Operates reliably from 0 to 70 °C with under 1.5 W power draw

Specifications

BrandTP-Link
ModelTL-SM5110-LR
Device TypeTransceiver
Max Distance10 km
Transfer Rate10 Gbps
TemperatureOperating Temperature: 0 - 70 °C (32 - 158 °F)
Storage Temperature: -40 - 85 °C ( -40 - 185 °F)
HumidityOperating Humidity: 10-90% RH, Non-Condensing
Storage Humidity: 5-90% RH, Non-Condensing
FeatureSingle-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Shipping weight0.05 kg
Package size127 × 81 × 38 mm

Questions about this item

Will this 10GBase-LR transceiver link with my existing 10G SFP+ switch ports?

Yes, it complies with the SFP+ MSA and is confirmed compatible with switches such as the TL-SG3428X and TL-SG3428XMP that have 10G SFP+ slots.

How can I verify the module is operating correctly once installed?

The transceiver supports Digital Diagnostic Monitoring, letting you read live temperature, voltage, laser bias current and optical power levels from the switch management interface.

Does the package include the single-mode fiber patch cords or must I buy them separately?

Only the transceiver module is supplied; you will need to purchase 9/125 µm single-mode LC duplex patch cables to complete the 10 km link.
