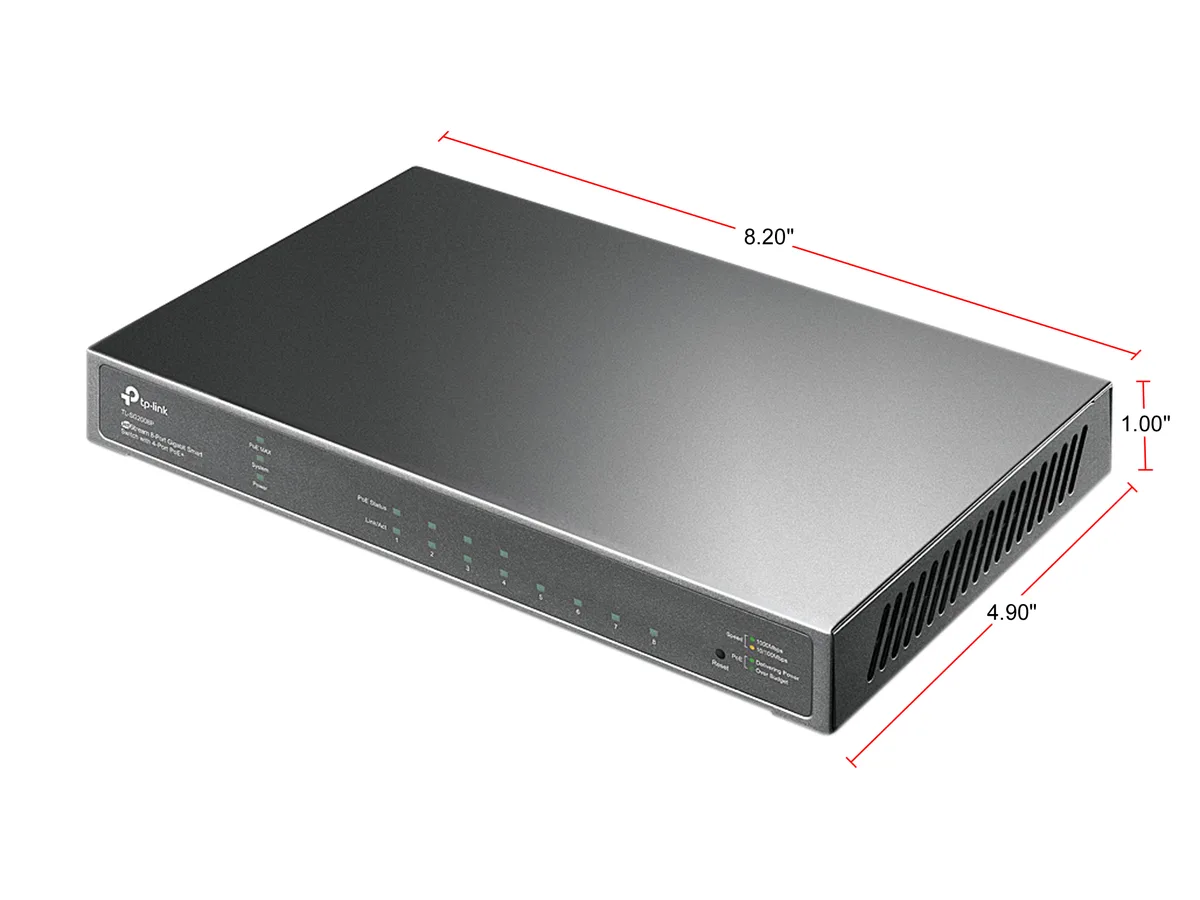

Compact metal desktop switch with eight RJ45 ports, four PoE+ labelled, external power adapter included

TP-Link

TP-Link SG2008P 8-port Gigabit smart managed PoE+ switch 62W

SKU CH-BBRN-2DSWZ MPN SG2008P

An 8-port Gigabit smart managed switch with four PoE+ ports sharing a 62 W budget and Omada SDN integration

  • Switch Typeethernet
  • FormatDesktop
  • StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 8
  • Network Management TypeSmart
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Powers four devices with 30W per port and 62W total budget
  • Manages traffic through 802.1p CoS/DSCP priority with eight queues
  • Integrates into Omada SDN for centralised hardware, software or cloud control
  • Operates silently at 7.9W idle and 79.2W full load with external 53.5V adapter
  • Fits tight spaces at 8.20 x 4.90 x 1.00 inches desktop format

8-port Gigabit smart managed PoE+ switch

The TP-Link SG2008P is an 8-port Gigabit smart managed PoE+ switch built for small offices and growing networks that need both data and power on the same cable. It suits installers who want centralised control without a full command-line stack. Four ports deliver PoE+ while four remain data-only for uplinks or non-powered devices.

62 W total PoE budget with 30 W per port

The single spec that decides fit is the 62 W PoE budget across the first four RJ45 ports, each capped at 30 W under IEEE 802.3at. If your access points, cameras or VoIP phones draw more than 62 W combined, this switch cannot power them all at once. Buyers who need a higher aggregate budget should look elsewhere.

Desktop form factor with external 53.5 VDC adapter

The unit ships in a desktop metal enclosure measuring 8.20" x 4.90" x 1.00" and runs from an included external power adapter rated at 53.5 VDC and 1.3 A. It requires a standard AC outlet and operates from 0 to 40 °C. No rack ears or internal PSU are included, so plan shelf or wall space accordingly.

Highlights

  • Powers four devices with 30W per port and 62W total budget
  • Manages traffic through 802.1p CoS/DSCP priority with eight queues
  • Integrates into Omada SDN for centralised hardware, software or cloud control
  • Operates silently at 7.9W idle and 79.2W full load with external 53.5V adapter
  • Fits tight spaces at 8.20 x 4.90 x 1.00 inches desktop format

Specifications

BrandTP-Link
ModelTL-SG2008P
Switch Typeethernet
FormatDesktop
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Network Management TypeSmart
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps

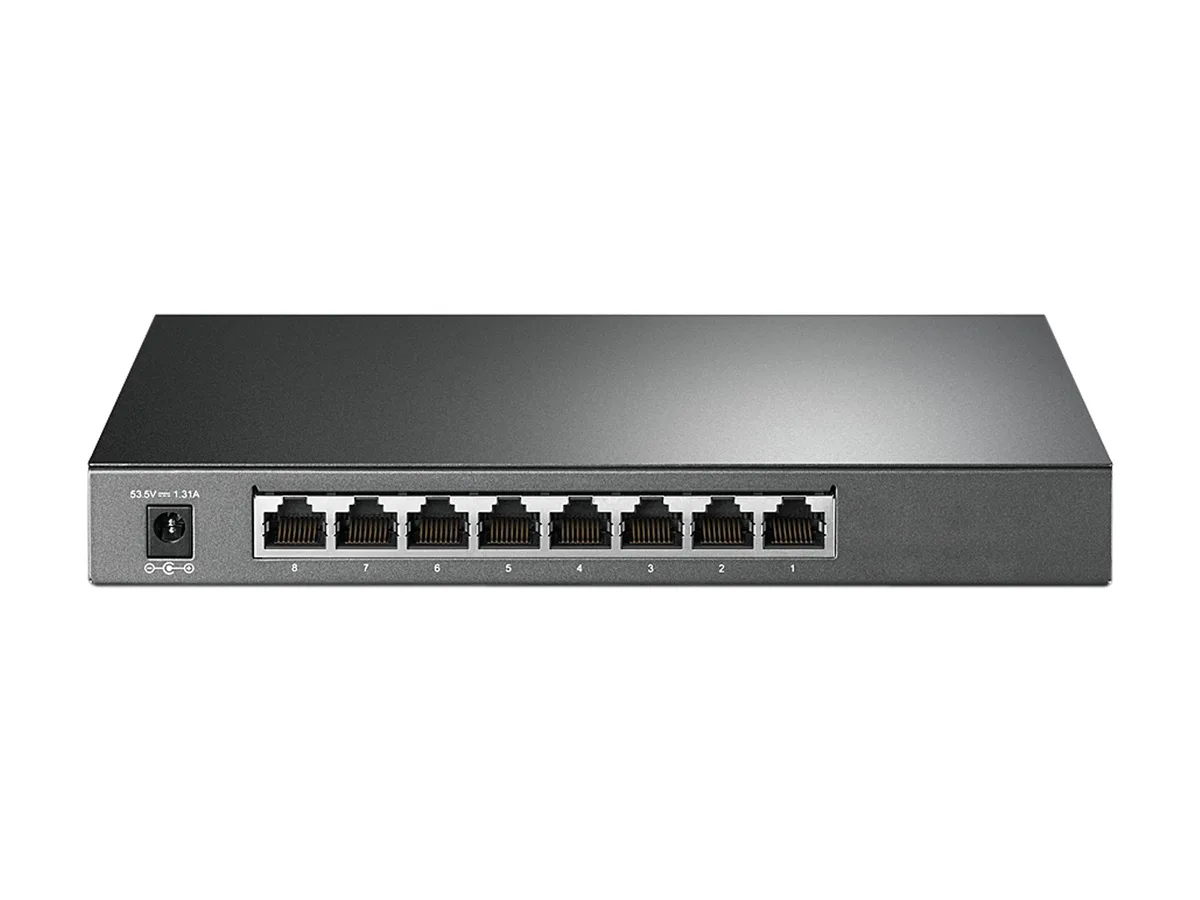

Primary Port Type8 x 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX
MAC Address Table8K
Jumbo Frames9KB
SNMPYes
QoS802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow-based Rating Limit
Smoother Performance
Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
Layer2
Port MirroringYes
PowerPower Supply : External Power Adapter (Output: 53.5 VDC/ 1.3 A)
Power Consumption
- 7.9 W (no power device connected)
- 79.2 W (with 62 W power devices connected)
Dimensions8.20" x 4.90" x 1.00"
TemperatureOperating Temperature: 0 - 40 °C (32 - 104 °F)
Storage Temperature: -40 - 70 °C (-40 - 158 °F)
HumidityOperating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Package ContentsTL-SG2008P
Power Adapter
Installation Guide
Rubber Feet
Shipping weight1.26 kg
Package size318 × 241 × 70 mm

Questions about this item

How much power can the four PoE+ ports deliver to connected devices in total?

The four PoE+ ports share a 62 W power budget, with each port capable of up to 30 W under IEEE 802.3at.

What management standards does the switch support for VLANs and traffic prioritisation?

It supports IEEE 802.1Q VLAN tagging and IEEE 802.1p CoS/DSCP priority with eight queues and strict-priority or weighted-round-robin scheduling.

What are the physical dimensions and mounting format of the unit?

The desktop enclosure measures 8.20" x 4.90" x 1.00" and ships with rubber feet for flat-surface placement.
