TP-Link
TP-Link RE650 AC2600 wireless range extender
Dual-band Wi-Fi extender delivers up to 1733 Mbps on 5 GHz and 800 Mbps on 2.4 GHz with four external antennas covering up to 14,000 sq ft and a Gigabit Ethernet port for wired devices
- StandardsIEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEE
- Frequency Band2.4 GHz / 5.0 GHz
- Wireless Data Rates5 GHz: Up to 1733 Mbps 2.4 GHz: Up to 800 Mpbs
- Security64 / 128-bit WEP WPA-PSK / WPA2-PSK
- Antenna4 x external
- Transmit Power<20 dBm (2.4 GHz) <23 dBm (5 GHz)

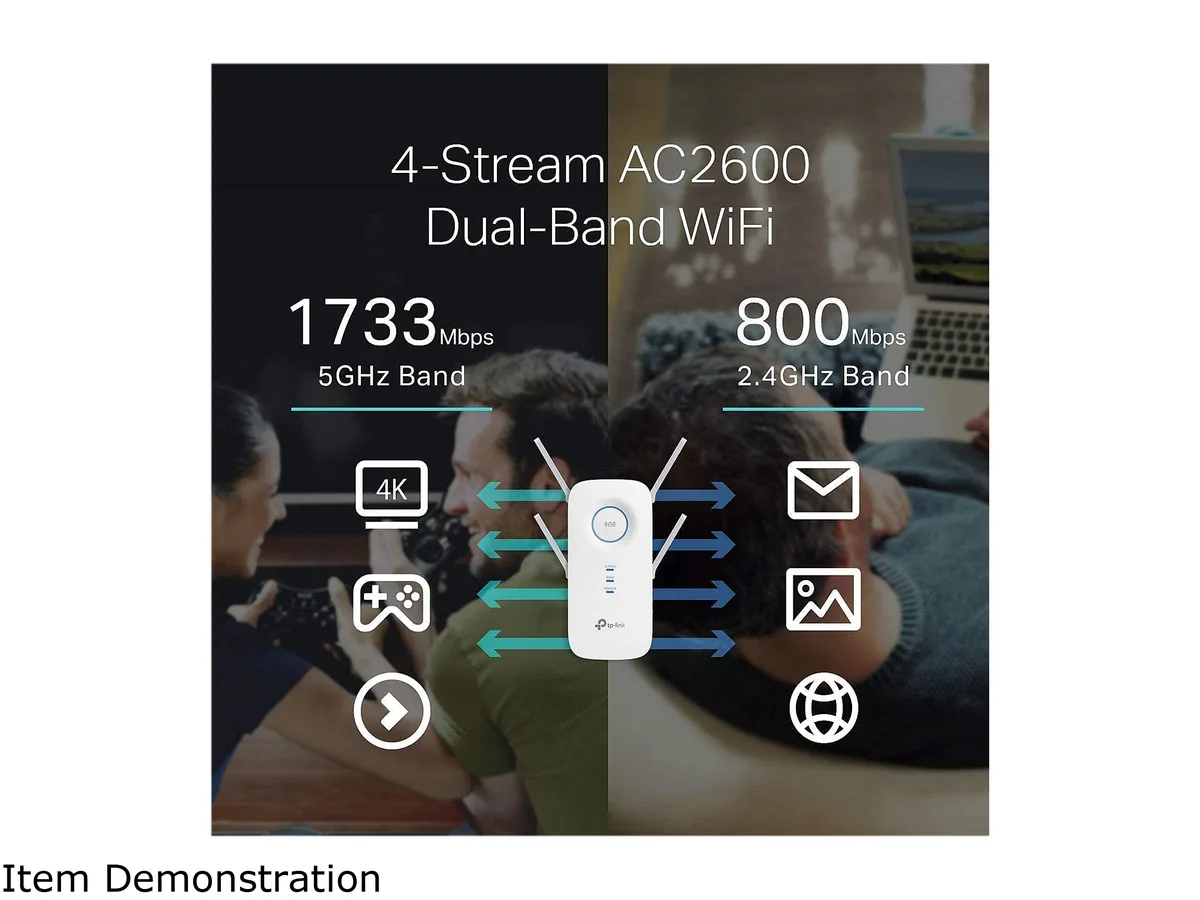

- Dual-band AC2600 delivers up to 1733 Mbps on 5 GHz and 800 Mbps on 2.4 GHz for faster coverage
- Four fixed external antennas extend Wi-Fi reach up to 14000 sq. ft. for whole-home signal
- 4x4 MU-MIMO serves multiple devices simultaneously for smoother streaming and gaming
- Gigabit Ethernet port connects wired devices at up to 1000 Mbps for reliable wired links

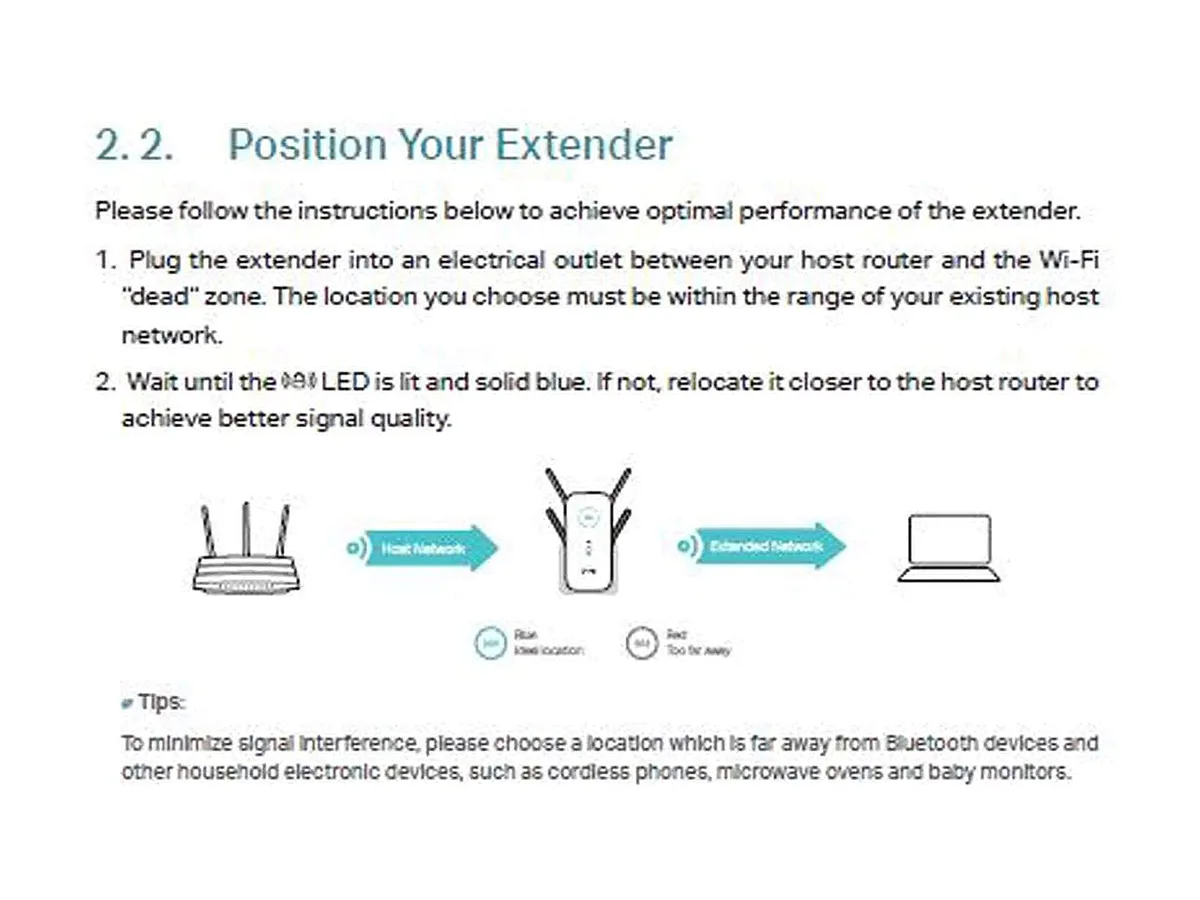

- Smart signal indicator lights guide optimal placement between router and dead zones for best performance
Dual-band AC2600 range extender with four antennas

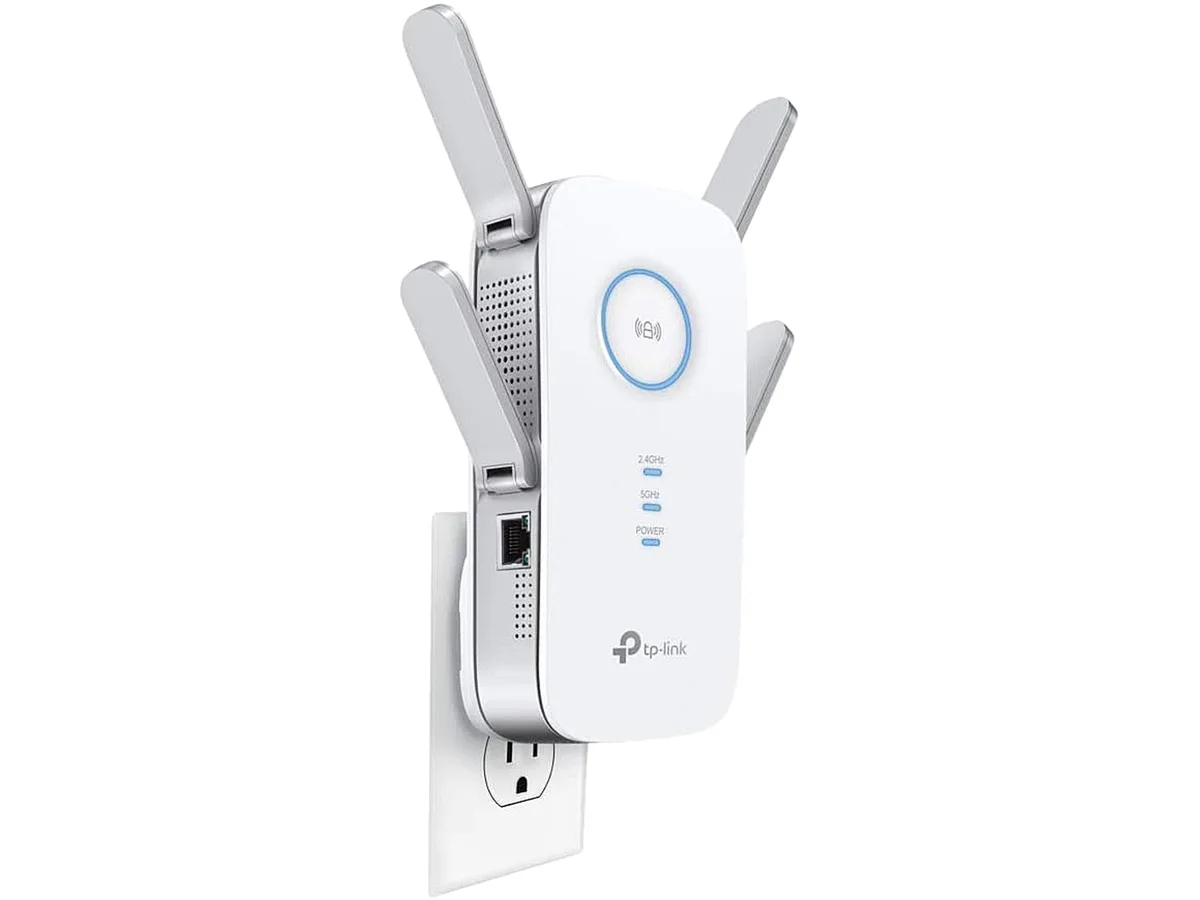

The TP-Link RE650 plugs into a wall socket and repeats 2.4 GHz and 5 GHz signals simultaneously, reaching up to 800 Mbps and 1733 Mbps respectively. It supports IEEE 802.11ac, n, g, b and a standards and works with any router, gateway or access point. Four fixed external antennas and 4x4 MU-MIMO let the unit serve multiple devices at once, while beamforming focuses the signal toward connected clients. The device is aimed at homes or small offices that need broader Wi-Fi coverage without running cables.
Gigabit Ethernet port adds wired connectivity

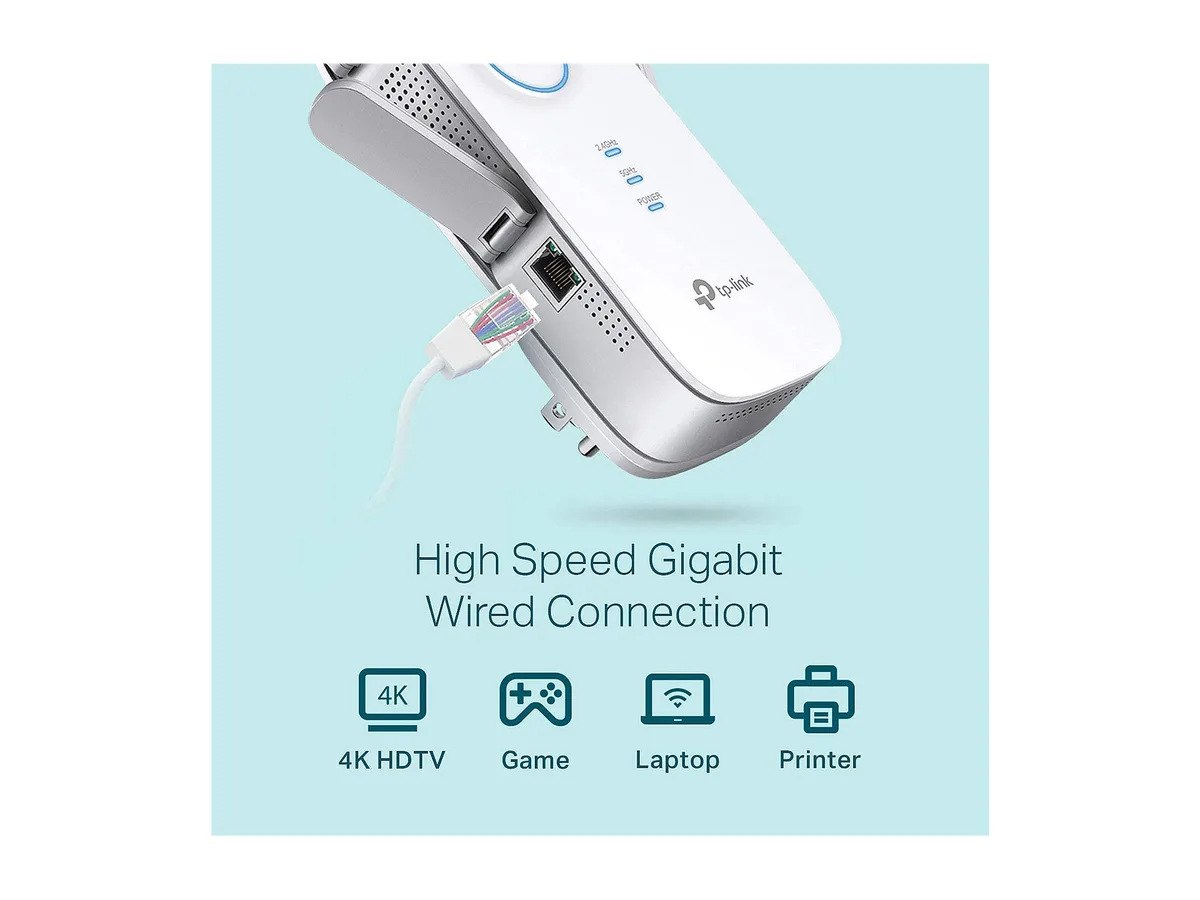

A single 10/100/1000M RJ45 port lets you connect a desktop PC, smart TV, game console or retail POS terminal directly to the extender for a stable wired link. The package includes only the unit and a quick installation guide; no extra cables or mounting hardware are supplied. LED indicators show signal strength to help you find the best position between the main router and the target area. A dedicated LED on/off button and a power button allow silent night-time operation.
Extender cannot raise the speed of the original link
Wireless repeaters relay the existing connection, so throughput is limited by the quality of the backhaul between the router and the RE650. The 2.4 GHz band tops out at 800 Mbps and the 5 GHz band at 1733 Mbps under ideal conditions, but real-world rates drop with distance, walls and interference. Security is limited to WEP, WPA-PSK and WPA2-PSK; WPA3 is not supported. Maximum power draw is 12 W, and operating humidity must stay between 10 % and 90 % non-condensing.
Highlights
- Dual-band AC2600 delivers up to 1733 Mbps on 5 GHz and 800 Mbps on 2.4 GHz for faster coverage
- Four fixed external antennas extend Wi-Fi reach up to 14000 sq. ft. for whole-home signal
- 4x4 MU-MIMO serves multiple devices simultaneously for smoother streaming and gaming
- Gigabit Ethernet port connects wired devices at up to 1000 Mbps for reliable wired links
- Smart signal indicator lights guide optimal placement between router and dead zones for best performance
Specifications
| Brand | TP-Link |
|---|---|
| Model | RE650 |
| Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Frequency Band | 2.4 GHz / 5.0 GHz |
| Wireless Data Rates | 5 GHz: Up to 1733 Mbps 2.4 GHz: Up to 800 Mpbs |
| Security | 64 / 128-bit WEP WPA-PSK / WPA2-PSK |
| Antenna | 4 x external |
| Transmit Power | <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
| Receiving Sensitivity | 5 GHz: 11a 6 Mbps: -96 dBm @ 10% PER 11a 54 Mbps: -78 dBm @ 10% PER 11ac HT20 mcs8: -69 dBm @ 10% PER 11ac HT40 mcs9: -66 dBm @ 10% PER 11ac HT80 mcs9: -63 dBm @ 10% PER 2.4 GHz 11g 54M: -79 dBm @ 10% PER 11n HT20 mcs7: -77 dBm @ 10% PER 11n HT40 mcs7: -74 dBm @ 10% PER |
| Interface | 1 x 10/100/1000M Ethernet Port (RJ45) |
| Button | WPS Button, Reset Button, LED Button, Power Button |
| Power | 12W (max power consumption) |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux |
| Dimensions | 1.60" x 6.40" x 3.40" |
| Features | Superior Extended Range - Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft. 4-Stream for AC2600 Dual Band Wi-Fi - Simultaneous 800 Mbps on 2.4 GHz + 1733 Mbps on 5 GHz 4x4 MU-MIMO - Simultaneously transfers data to multiple devices for 4x faster performance Beamforming Technology - Send targeted Wi-Fi signal to individual devices for stronger connections Gigabit Ethernet Port - Provide faster wired connections to smart TVs, computers and gaming consoles Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating th |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Package Contents | AC2600 Wi-Fi Range Extender RE650 Quick Installation Guide |
| Shipping weight | 0.61 kg |
| Package size | 206 × 122 × 99 mm |
Questions about this item
How often do the four external antennas need any adjustment or replacement?
The four fixed external antennas are built into the unit and have no moving parts, so they do not require periodic adjustment or replacement under normal use.
What limits throughput first when the extender runs continuously at high load?
The Gigabit Ethernet port caps wired backhaul at 1000 Mbps, while the wireless link can reach 1733 Mbps on 5 GHz, so the port is the first bottleneck for sustained traffic.
How much heat and noise does the RE650 produce when it operates all day?
Maximum power draw is 12 W with no fan, so the device runs silently and generates only modest warmth during continuous operation.
