TP-Link
TP-Link RE505X AX1500 WiFi 6 wireless range extender
Extends WiFi 6 coverage to 1500 sq ft with dual-band speeds up to 1.5 Gbps, a gigabit Ethernet port and OneMesh compatibility
- StandardsIEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
- Frequency Band2.4 GHz - 2.5 GHz
- Wireless Data Rates300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
- WPA/WPA264/128-bit WEP, WPA/WPA-PSK2 encryptions
- Antenna2 External Antennas
- Transmit PowerCE: 2.4GHz =20dBm, 5GHz =30dBm
- WiFi 6 dual-band speeds up to 1.5 Gbps for smoother streaming and gaming
- Two high-gain external antennas eliminate dead zones across 1500 sq ft
- Gigabit Ethernet port delivers wired reliability for smart TVs or consoles
- OneMesh compatibility creates a single seamless network with supported routers
- TP-Link Tether app enables quick setup and management from your phone
AX1500 WiFi 6 range extender
The TP-Link RE505X is a dual-band wireless range extender built on WiFi 6 technology. It targets households that need to push a reliable signal into rooms the main router cannot reach. The unit supports up to 25 connected devices across both bands.
Two external antennas and a gigabit port

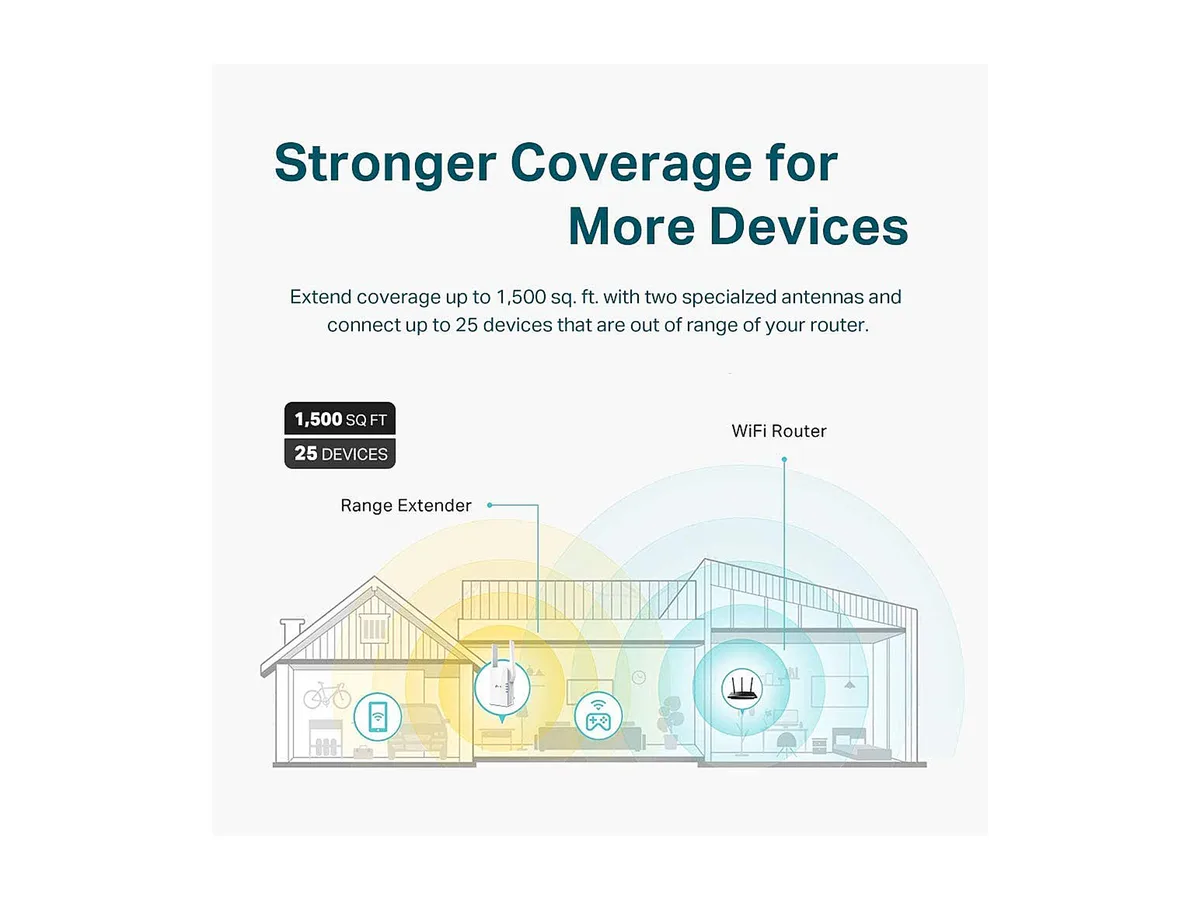

Two adjustable external antennas provide the high-gain coverage quoted at 1500 sq. ft. A single gigabit ethernet port allows a wired device such as a smart TV or games console to join the extended network at full line speed. The extender draws 10 W and measures 2.90" x 1.80" x 4.90", so it plugs directly into a wall socket without blocking the adjacent outlet.
Check router compatibility and mode needs

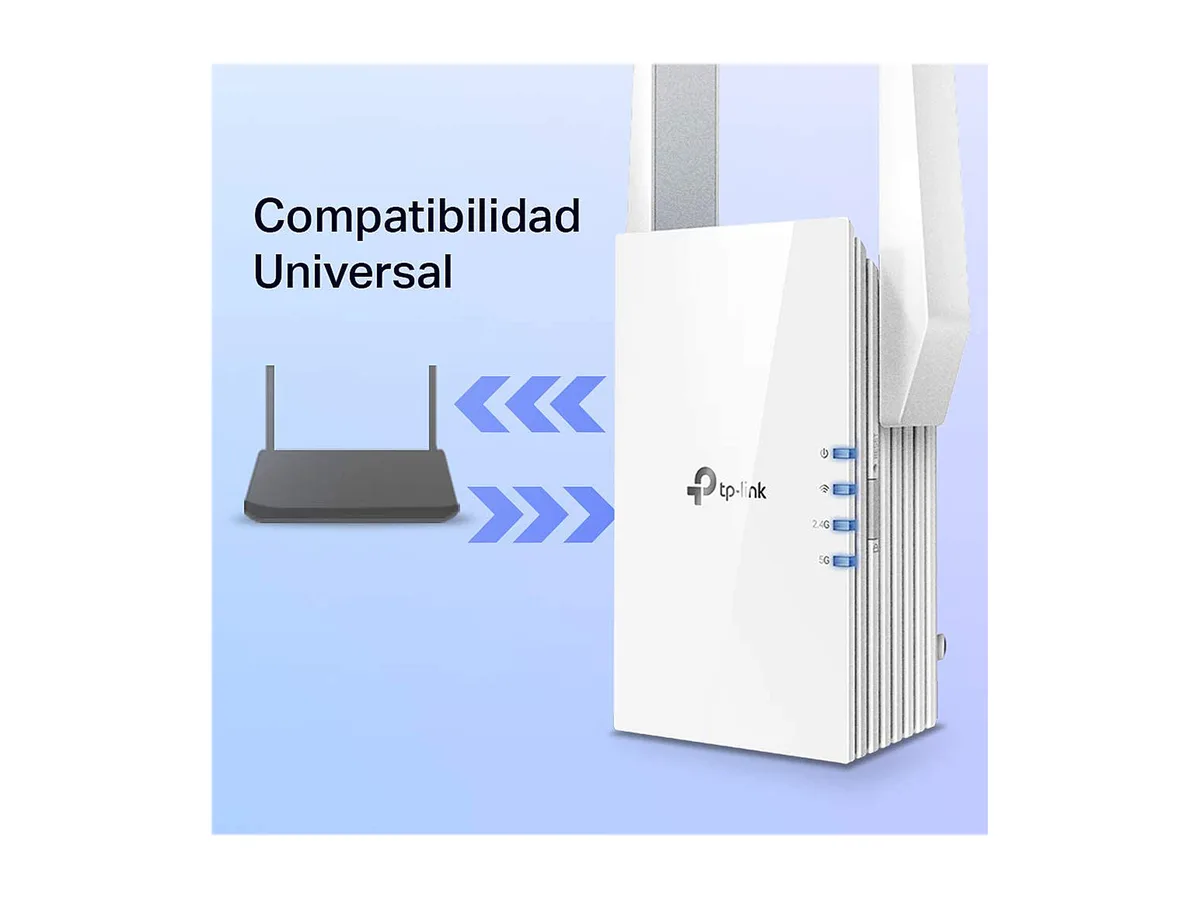

OneMesh roaming works only with compatible TP-Link routers such as the Archer A7; other brands will fall back to a separate extended SSID. Setup uses the Tether app on Android or iOS, so a smartphone is required for initial configuration. The device adds wireless capacity but cannot increase the broadband speed delivered by your ISP.
Highlights
- WiFi 6 dual-band speeds up to 1.5 Gbps for smoother streaming and gaming
- Two high-gain external antennas eliminate dead zones across 1500 sq ft
- Gigabit Ethernet port delivers wired reliability for smart TVs or consoles
- OneMesh compatibility creates a single seamless network with supported routers
- TP-Link Tether app enables quick setup and management from your phone
Specifications
| Brand | TP-Link |
|---|---|
| Model | RE505X |
| Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency Band | 2.4 GHz - 2.5 GHz |
| Wireless Data Rates | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| WPA/WPA2 | 64/128-bit WEP, WPA/WPA-PSK2 encryptions |
| Antenna | 2 External Antennas |
| Transmit Power | CE: 2.4GHz =20dBm, 5GHz =30dBm |
| Receiving Sensitivity | 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm |
| Interface | 1 x Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Power | 10W Consumption |
| Dimensions | 2.90" x 1.80" x 4.90" |
| Weight | 1 |
| Shipping weight | 1.95 kg |
| Package size | 204 × 128 × 3 mm |
Questions about this item
What wired speed does the single Gigabit Ethernet port on the RE505X actually deliver?
The port provides a 1 Gbps wired connection for devices such as smart TVs or game consoles, while the WiFi 6 link runs at up to 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
How much wall-outlet space do the external antennas and the unit itself need?
The extender measures 2.90" wide, 1.80" deep and 4.90" high with two adjustable external antennas that fold flat for tight sockets.
Which setup step in the Tether app do users most often miss when adding the RE505X to an existing network?
After the extender joins the host WiFi, the app asks you to confirm or rename the extended SSIDs; skipping this leaves the new network invisible to your devices.
