TP-Link

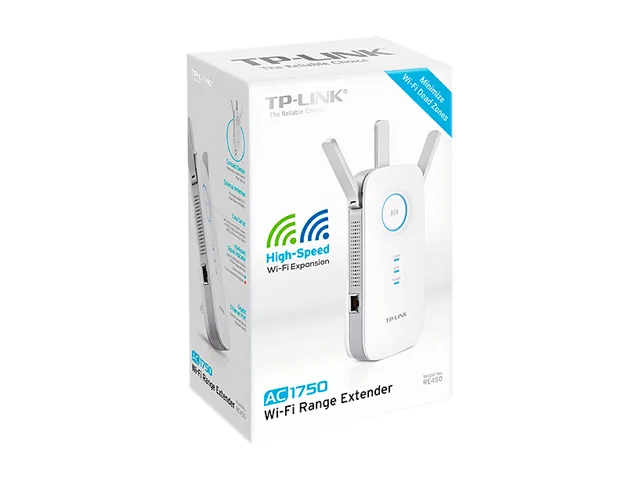

TP-Link RE450 AC1750 wireless range extender
Dual-band wall-plug extender delivers up to 1.75 Gbps with three adjustable external antennas and a gigabit Ethernet port
- StandardsIEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency Band2.4 GHz / 5.0 GHz
- Wireless Data RatesUp to 1.75Gbps
- Security64 / 128-bit WEP WPA-PSK / WPA2-PSK
- WPA/WPA2WPA2
- Antenna3 x external
- Dual-band 2.4 GHz and 5.0 GHz for flexible coverage
- Combined 1750 Mbps throughput with 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz
- Three adjustable external antennas for targeted signal strength
- Gigabit Ethernet port for wired backhaul or device connection
- Wall-plug design with power, LED and reset controls built in
What the RE450 does and who needs it
The RE450 is a dual-band wireless range extender that plugs directly into a wall socket. It supports 802.11ac and earlier Wi-Fi standards, delivering up to 1.75 Gbps combined throughput across 2.4 GHz and 5.0 GHz bands. Three adjustable external antennas help direct coverage toward weak spots. The unit includes a single gigabit Ethernet port for wired devices such as smart TVs or game consoles.
Practical limits of the AC1750 class
Maximum link rates reach 450 Mbps on 2.4 GHz and 1300 Mbps on 5.0 GHz, but real-world throughput is lower due to half-duplex relay traffic and interference. The 2.4 GHz radio operates below 20 dBm transmit power while the 5.0 GHz radio stays below 23 dBm. Receiving sensitivity drops to -61 dBm at the highest 5 GHz MCS9 rate, so distant clients will fall back to slower modulations. The single gigabit port caps wired backhaul at 1000 Mbps.
Installation steps and common pitfalls
Press the RE button to pair with the host router using WPS, or configure via web browser on Windows, Mac, Linux or legacy systems. The extender must be placed where the router signal is still strong enough to relay, typically within -70 dBm on 5 GHz. A frequent mistake is plugging the unit too far from the router, which yields a weak backhaul and slower extended coverage. The LED and power buttons help verify link status and reset the device if needed.
Highlights
- Dual-band 2.4 GHz and 5.0 GHz for flexible coverage
- Combined 1750 Mbps throughput with 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz
- Three adjustable external antennas for targeted signal strength
- Gigabit Ethernet port for wired backhaul or device connection
- Wall-plug design with power, LED and reset controls built in
Specifications
| Brand | TP-Link |
|---|---|
| Model | RE450_RE |
| Standards | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency Band | 2.4 GHz / 5.0 GHz |
| Wireless Data Rates | Up to 1.75Gbps |
| Security | 64 / 128-bit WEP WPA-PSK / WPA2-PSK |
| WPA/WPA2 | WPA2 |
| Antenna | 3 x external |
| Transmit Power | <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
| Receiving Sensitivity | 5 GHz: 11a 6 Mbps:-93 dBm @ 10% PER 11a 54 Mbps: -76 dBm @ 10% PER 11ac HT20 mcs8: -68 dBm @ 10% PER 11ac HT40 mcs9: -64 dBm @ 10% PER 11ac HT80 mcs9: -61 dBm @ 10% PER 2.4 GHz 11g 54M: -77 dBm @ 10% PER 11n HT20 mcs7: -73 dBm @ 10% PER 11n HT40 mcs7: -70 dBm @ 10% PER |
| Interface | Ethernet Port |
| Ports | 1 x 10/100/1000M |
| Button | RE (Range Extender) Button, Reset Button, LED Button, Power Button |
| Power | 9W (max power consumption) |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux. |
| Dimensions | 2.60" x 6.40" x 3.00" |
| Features | Expand Wi-Fi Network for Ultimate Performance Expanded 450 Mbps on 2.4 GHz + 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength Works with any Wi-Fi router or wireless access point |
| Operating Temperature | 0 ~ 30 degree Celsius (32 ~ 86 degree Fahrenheit) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
| Storage Humidity | 5%~90% non-condensing |
Questions about this item
Should I choose the 2.4 GHz or 5 GHz band for my devices?
The extender runs both bands simultaneously — 450 Mbps on 2.4 GHz for range and 1300 Mbps on 5 GHz for speed — so devices pick the best one automatically.
What does the AC1750 label mean for actual throughput in my home?
It combines 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz for a total 1750 Mbps link rate; real-world throughput will be lower due to overhead and signal conditions.
Will the gigabit Ethernet port limit my wired connection speed?
The single 10/100/1000M port caps wired clients at 1000 Mbps, so a wired device can use the full 5 GHz wireless backhaul without bottleneck.
