TP-Link

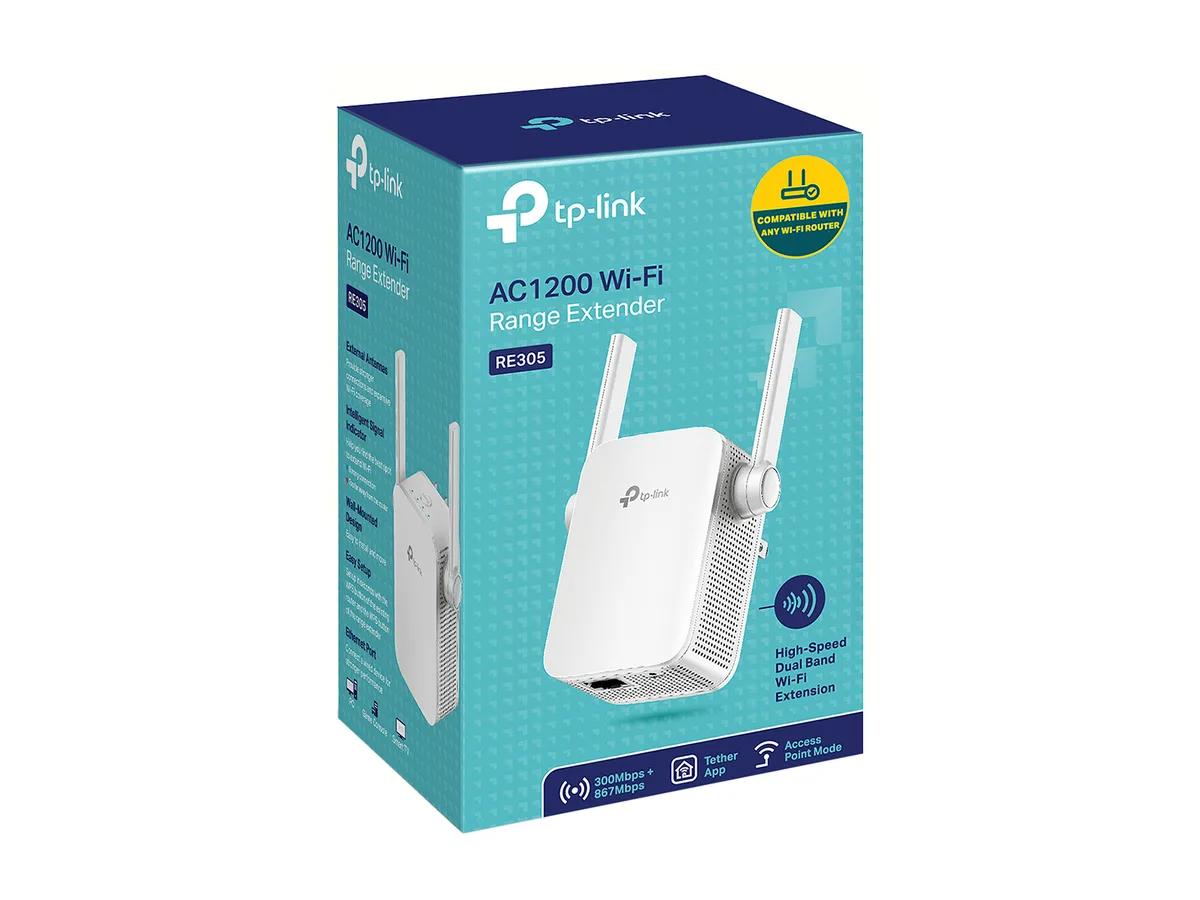

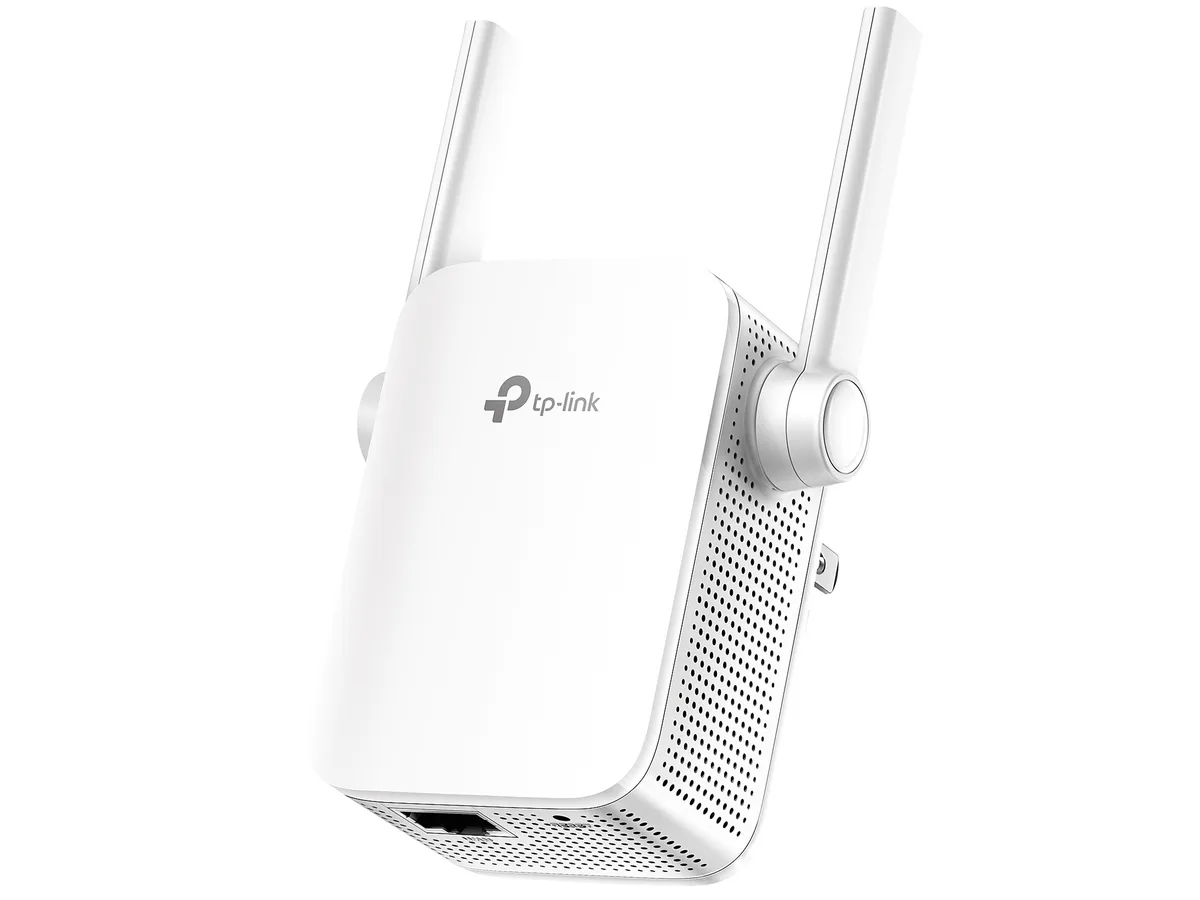

TP-Link RE305 AC1200 Wireless Range Extender
Dual-band Wi-Fi extender adds up to 1.2 Gbps combined speed and a 10/100 Ethernet port to eliminate dead zones
- StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
- Frequency Band2.4 GHz / 5.0 GHz
- Wireless Data Rates5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps
- Security64 / 128-bit WEP WPA-PSK / WPA2-PSK
- WPA/WPA2WPA2
- Antenna2 x External
- Eliminates dead zones with dual-band AC1200 speeds up to 1.2 Gbps
- 5 GHz band delivers 867 Mbps for HD streaming and gaming
- Intelligent signal indicator finds the optimal wall-plug location
- Ethernet port enables wired-device connection or access-point mode
- Free Tether app gives remote setup and network management from any phone
What this extender does

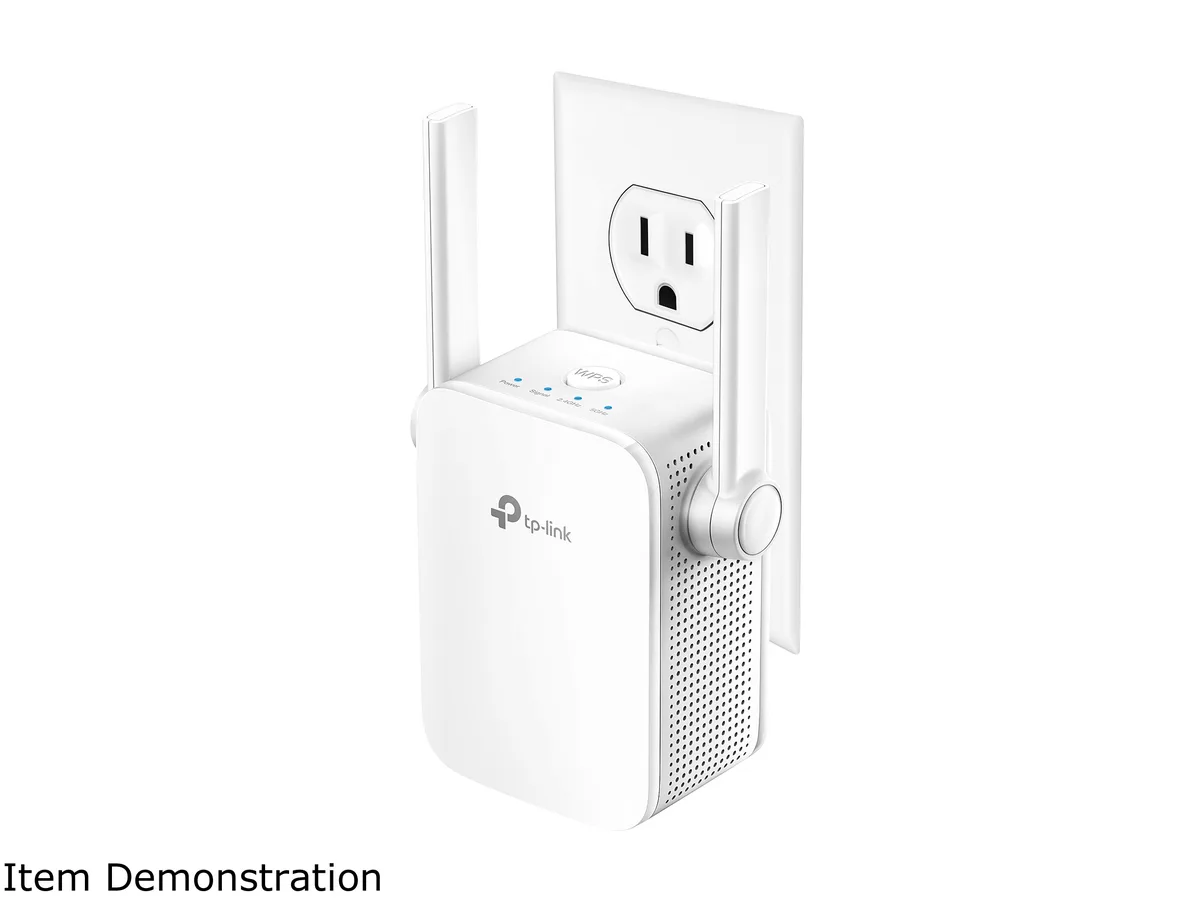

The TP-Link RE305 plugs into a wall socket and repeats an existing Wi-Fi signal, adding coverage in rooms where the router cannot reach. It suits homeowners and small offices that need a simple way to fill dead zones without running new cables.
Dual-band speed rating
The unit delivers up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band for a combined AC1200 rating. Buyers whose devices or router only support single-band 2.4 GHz will not see the 5 GHz throughput.
Ethernet port and app control
A single 10/100M RJ45 port lets the extender work as a wired access point or connect a nearby desktop, smart TV or game console. The Tether mobile app handles setup, signal-location guidance and basic network management from a phone.
Highlights
- Eliminates dead zones with dual-band AC1200 speeds up to 1.2 Gbps
- 5 GHz band delivers 867 Mbps for HD streaming and gaming
- Intelligent signal indicator finds the optimal wall-plug location
- Ethernet port enables wired-device connection or access-point mode
- Free Tether app gives remote setup and network management from any phone
Specifications
| Brand | TP-Link |
|---|---|
| Model | RE305 |
| Standards | IEEE 802.11ac, IEEE 802.11a/b/g/n |
| Frequency Band | 2.4 GHz / 5.0 GHz |
| Wireless Data Rates | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
| Security | 64 / 128-bit WEP WPA-PSK / WPA2-PSK |
| WPA/WPA2 | WPA2 |
| Antenna | 2 x External |
| Transmit Power | <17 dBm (2.4 GHz) <17 dBm (5 GHz) |
| Receiving Sensitivity | 5 GHz: 11a 6 Mbps:-91 dBm @ 10% PER 11a 54 Mbps: -74 dBm @ 10% PER 11ac HT20 mcs8: -68 dBm @ 10% PER 11ac HT40 mcs9: -63 dBm @ 10% PER 11ac HT80 mcs9: -59 dBm @ 10% PER 2.4 GHz 11g 54M: -79 dBm @ 10% PER 11n HT20 mcs7: -77 dBm @ 10% PER 11n HT40 mcs7: -74 dBm @ 10% PER |
| Interface | 1 x 10/100M Ethernet Port (RJ45) |
| Button | WPS Button, Reset Button |
| Power | Power Consumption: 7.3W (max power consumption) |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux. |
| Dimensions | 3.00" x 3.10" x 3.00" |
| Features | Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2 Gbps Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience Intelligent signal light helps to fi-nd the best location for optimal Wi-Fi coverage by showing the signal strength Works with any Wi-Fi router or wireless access point |
| Operating Temperature | 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Temperature | -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
| Storage Humidity | 5% ~ 90% non-condensing |
| Package Contents | AC1200 Wi-Fi Range Extender RE305 Quick Installation Guide |
| Shipping weight | 0.29 kg |
| Package size | 160 × 104 × 86 mm |
Questions about this item
What does the combined 1.2 Gbps speed mean when the extender is in use?
The 1.2 Gbps figure is the sum of the 5 GHz band at up to 867 Mbps and the 2.4 GHz band at up to 300 Mbps. Your device connects to one band at a time, so maximum single-link throughput is 867 Mbps on 5 GHz or 300 Mbps on 2.4 GHz.
The Ethernet port is listed as 10/100M — what does that limit in practice?
The single RJ45 port negotiates at either 10 Mbps or 100 Mbps full duplex. Wired devices plugged into the extender cannot exceed 100 Mbps, even though the wireless side can reach 867 Mbps on 5 GHz.
How much space does the wall-plug design need beside a socket?
The unit measures 3.00 inches by 3.10 inches by 3.00 inches. It plugs directly into a mains outlet, so allow roughly a 3-inch cube of clearance so adjacent sockets or furniture do not block the antennas.
