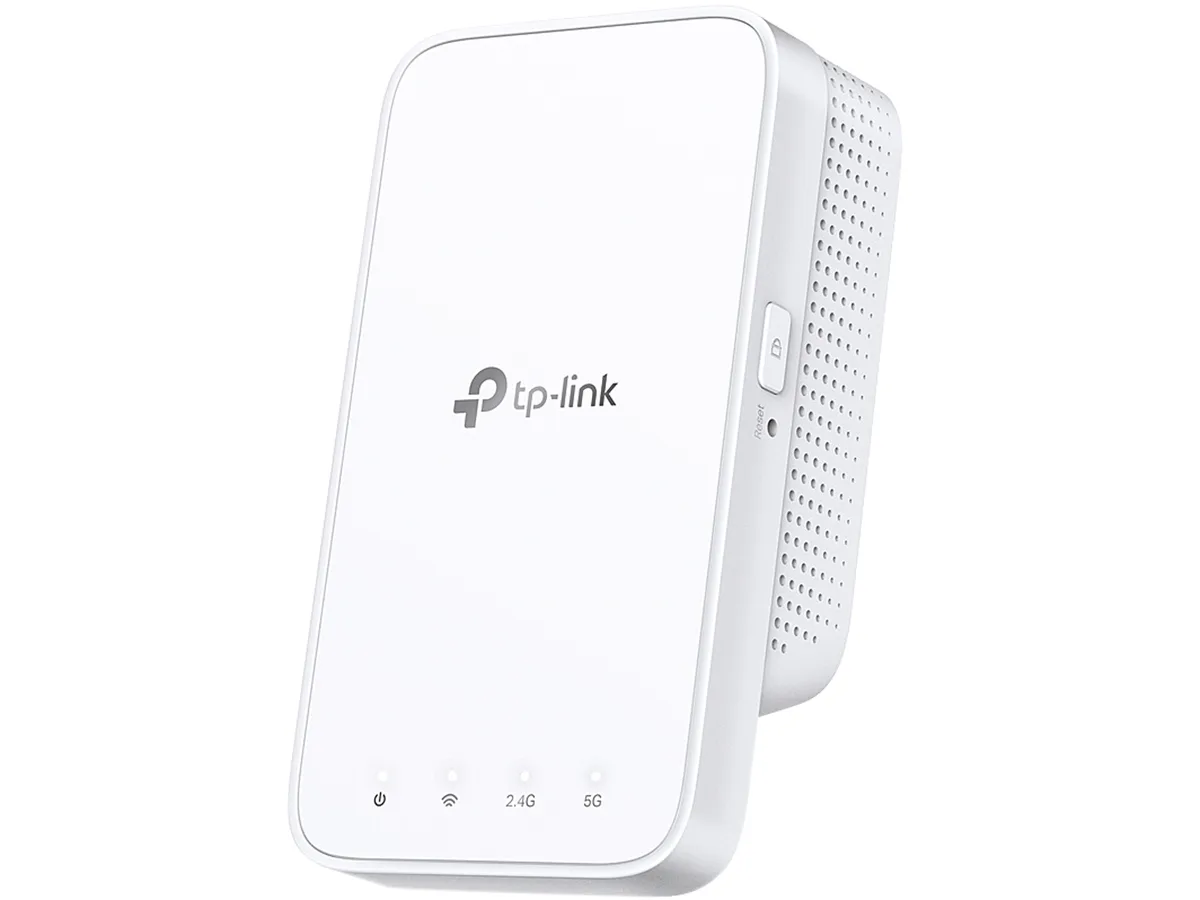

TP-Link RE300 AC1200 wireless range extender
Dual-band range extender covers up to 1500 sq ft and 25 devices at 1200 Mbps with OneMesh support
- StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
- Frequency Band2.4 GHz / 5.0 GHz
- Wireless Data Rates5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mpbs
- Security64 / 128-bit WEP WPA-PSK / WPA2-PSK
- WPA/WPA2WPA2
- Transmit Power<17 dBm (2.4 GHz) <17 dBm (5 GHz)

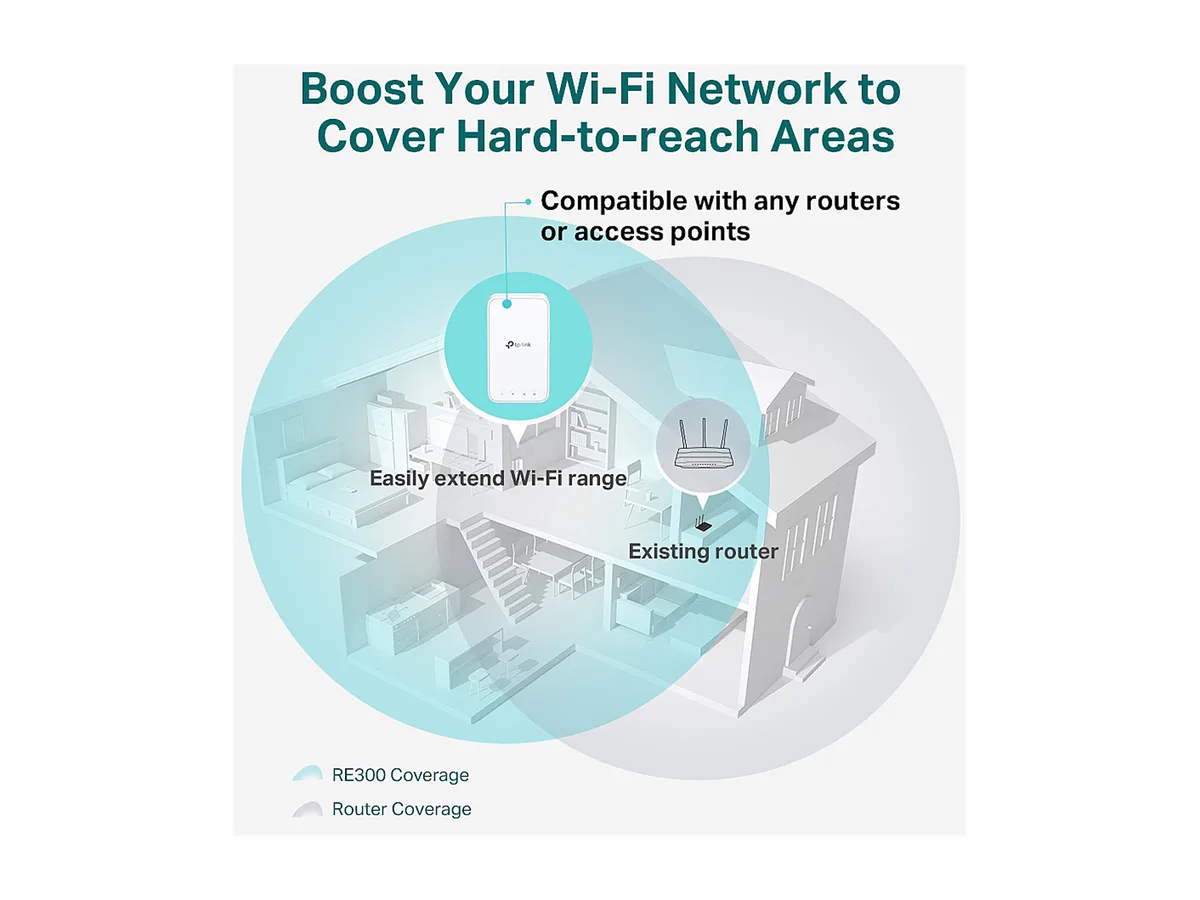

- Eliminate Wi-Fi dead zones across 1500 square feet with dual-band AC1200 coverage
- Connect up to 25 devices on 2.4 GHz 300 Mbps and 5 GHz 867 Mbps bands

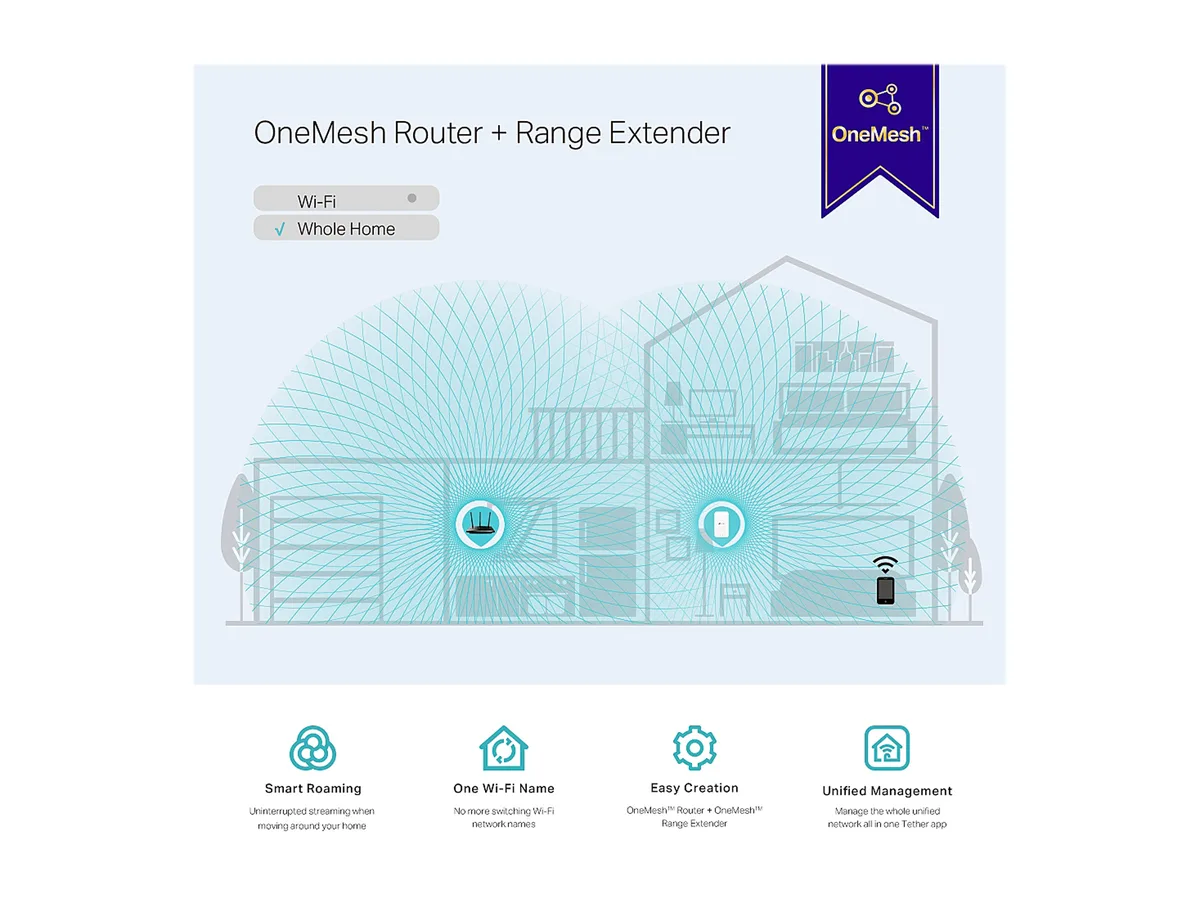

- Create a seamless OneMesh network when paired with a compatible router for whole-home roaming
- Smart signal indicator shows optimal placement for strongest extended Wi-Fi performance
- Simple WPS button setup gets the extender running in minutes without complex configuration
Coverage and capacity
The TP-Link RE300 AC1200 wireless range extender delivers dual-band Wi-Fi across areas up to 1500 square feet and supports up to 25 connected devices. It operates on 2.4 GHz at up to 300 Mbps and 5 GHz at up to 867 Mbps for a combined AC1200 rating. OneMesh compatibility allows it to form a seamless roaming network when paired with a supported router.
Upgrading from single-band or dead-zone setups
This unit replaces basic single-band repeaters that leave corners uncovered or drop connections under load. The jump is worth it when your current extender cannot serve both 2.4 GHz and 5 GHz clients simultaneously, or when smart-home devices exceed the device limit of older hardware. A smart signal indicator helps locate the optimal outlet for maximum throughput.
Suits homes needing mesh without new cabling
Ideal for households that want whole-home coverage without running Ethernet cables, especially where a OneMesh router is already in place. It is not suited for buyers who require a wired backhaul port, those needing outdoor-rated hardware, or installations that demand enterprise-grade security protocols beyond WPA2-PSK.
Highlights
- Eliminate Wi-Fi dead zones across 1500 square feet with dual-band AC1200 coverage
- Connect up to 25 devices on 2.4 GHz 300 Mbps and 5 GHz 867 Mbps bands
- Create a seamless OneMesh network when paired with a compatible router for whole-home roaming
- Smart signal indicator shows optimal placement for strongest extended Wi-Fi performance
- Simple WPS button setup gets the extender running in minutes without complex configuration
Specifications
| Brand | TP-Link |
|---|---|
| Model | RE300 |
| Standards | IEEE 802.11ac, IEEE 802.11a/b/g/n |
| Frequency Band | 2.4 GHz / 5.0 GHz |
| Wireless Data Rates | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mpbs |
| Security | 64 / 128-bit WEP WPA-PSK / WPA2-PSK |
| WPA/WPA2 | WPA2 |
| Transmit Power | <17 dBm (2.4 GHz) <17 dBm (5 GHz) |
| Receiving Sensitivity | 5 GHz: 11a 6 Mbps:-91 dBm @ 10% PER 11a 54 Mbps: -74 dBm @ 10% PER 11ac HT20 mcs8: -68 dBm @ 10% PER 11ac HT40 mcs9: -63 dBm @ 10% PER 11ac HT80 mcs9: -59 dBm @ 10% PER 2.4 GHz 11g 54M: -79 dBm @ 10% PER 11n HT20 mcs7: -77 dBm @ 10% PER 11n HT40 mcs7: -74 dBm @ 10% PER |
| Button | Reset, WPS |
| Power | 7.3W(max power consumption) |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux |
| Dimensions | 2.00" x 4.90" x 2.70" |
| Features | Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience. Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI Works with any Wi-Fi router or wireless access point |
| Operating Temperature | 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Temperature | -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
| Storage Humidity | 5% ~ 90% non-condensing |
| Package Contents | AC1200 OneMesh Wi-Fi Range Extender RE300 Quick Installation Guide |
| Shipping weight | 0.32 kg |
| Package size | 157 × 99 × 97 mm |
Questions about this item
Will the RE300 fit in a standard wall outlet without blocking the second socket?
The unit measures 2.00" x 4.90" x 2.70", a compact wall-plug design that typically leaves the adjacent outlet free for other devices.
Which button do I press first, WPS on the router or WPS on the extender, and how long do I wait?
Press the WPS button on your router, then within two minutes press the WPS button on the RE300; the smart signal indicator will then show the connection strength so you can adjust placement.
Does the RE300 have any user-replaceable parts or filters that need periodic service?
No, the extender has no replaceable components or filters; it is a sealed wall-plug device that only requires occasional dusting of the vents and a firmware check via the Tether app.
