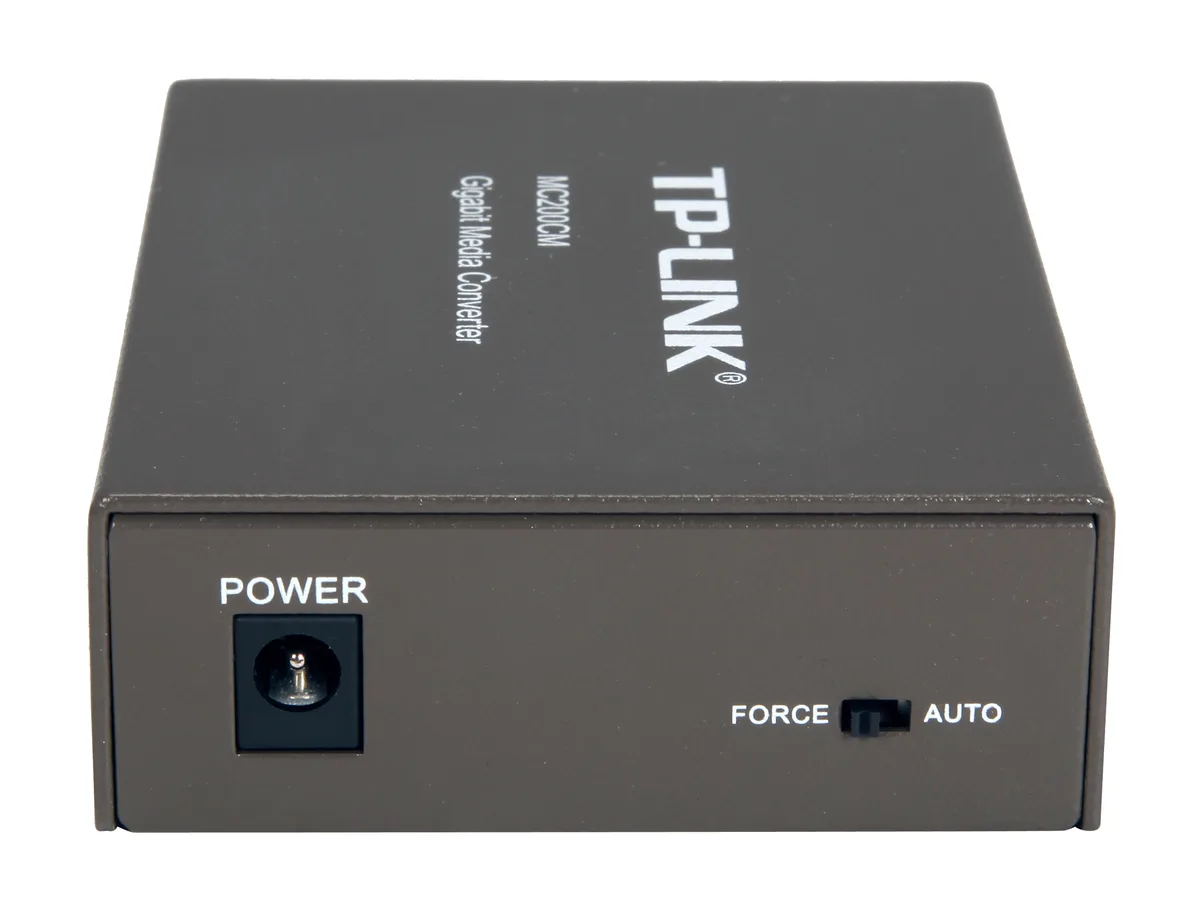

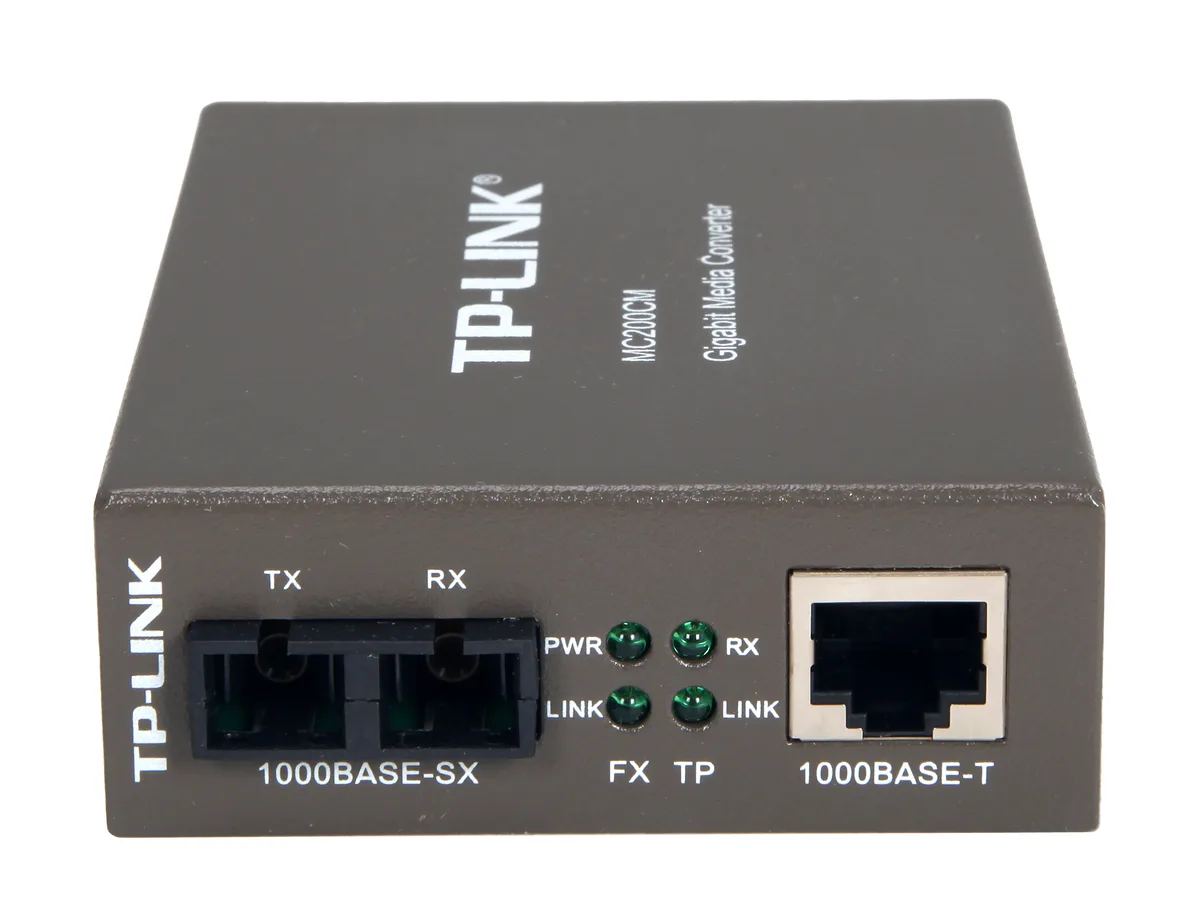

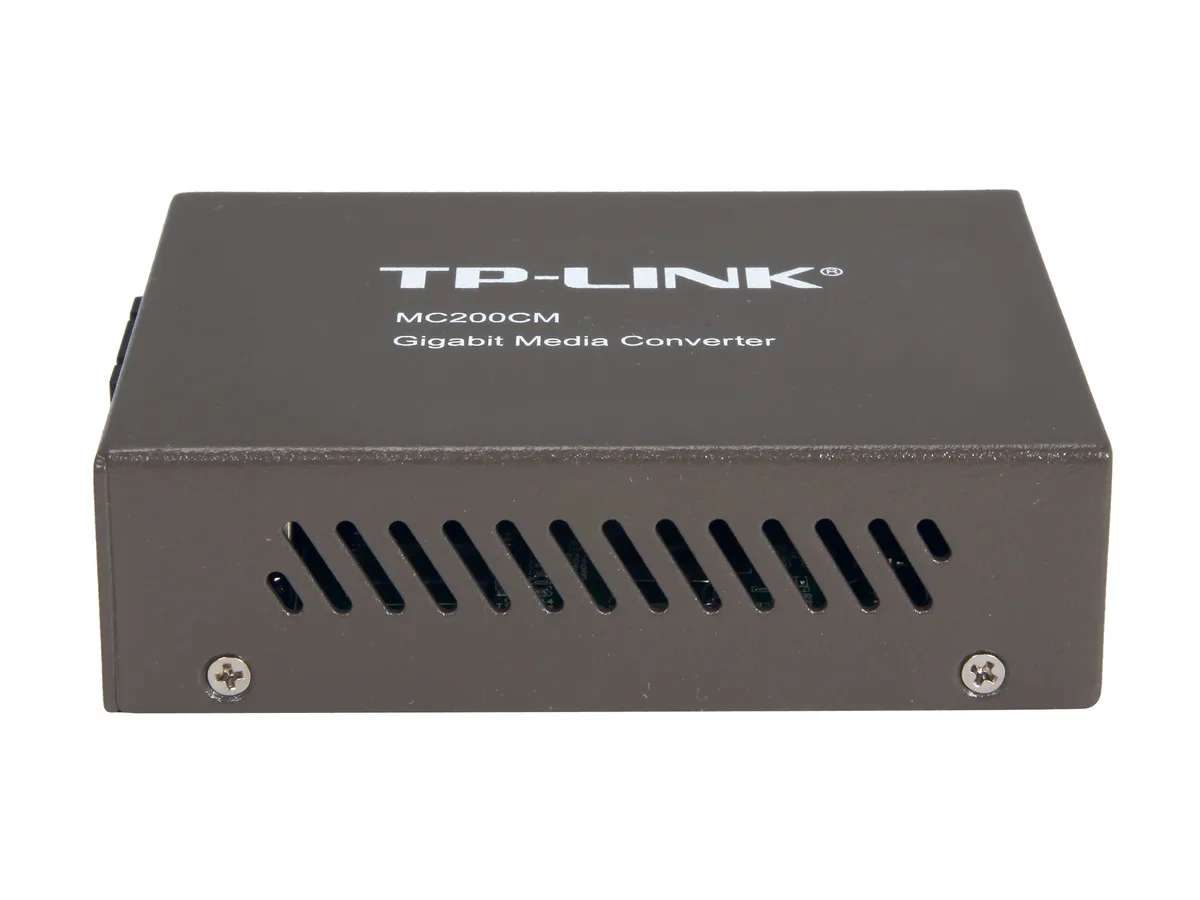

Black rectangular media converter with SC and RJ45 ports, LED indicators, external power adapter

TP-Link

TP-Link MC200CM 1000BASE-SX SFP transceiver 550m

SKU CH-8GVE-PDPPC MPN MC200CM

Converts 1000BASE-SX multi-mode fiber to 1000Base-T copper at 1 Gbps full-duplex over distances up to 550 metres using 50/125 µm fibre

  • StandardsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
  • Network MediaUTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100O ST
  • Fiber CableMulti-mode Fiber
  • ProtocolsTCP/IP
  • Ports1 x 1000M SC port 1 x 1000M RJ45 port (Auto MDI/MDIX)
  • Max DistanceUp to 0.5km
  • Converts 1000BASE-SX fiber to copper gigabit Ethernet via SC and RJ45 ports
  • Full-duplex 1 Gbps throughput on both fiber and copper interfaces
  • Extends multi-mode fiber links up to 550 metres with 50/125 µm cable
  • Auto MDI/MDIX on RJ45 plus selectable Force/Auto mode on fiber port
  • LED indicators for power, link and receive activity simplify monitoring

Media converter for gigabit fiber-to-copper

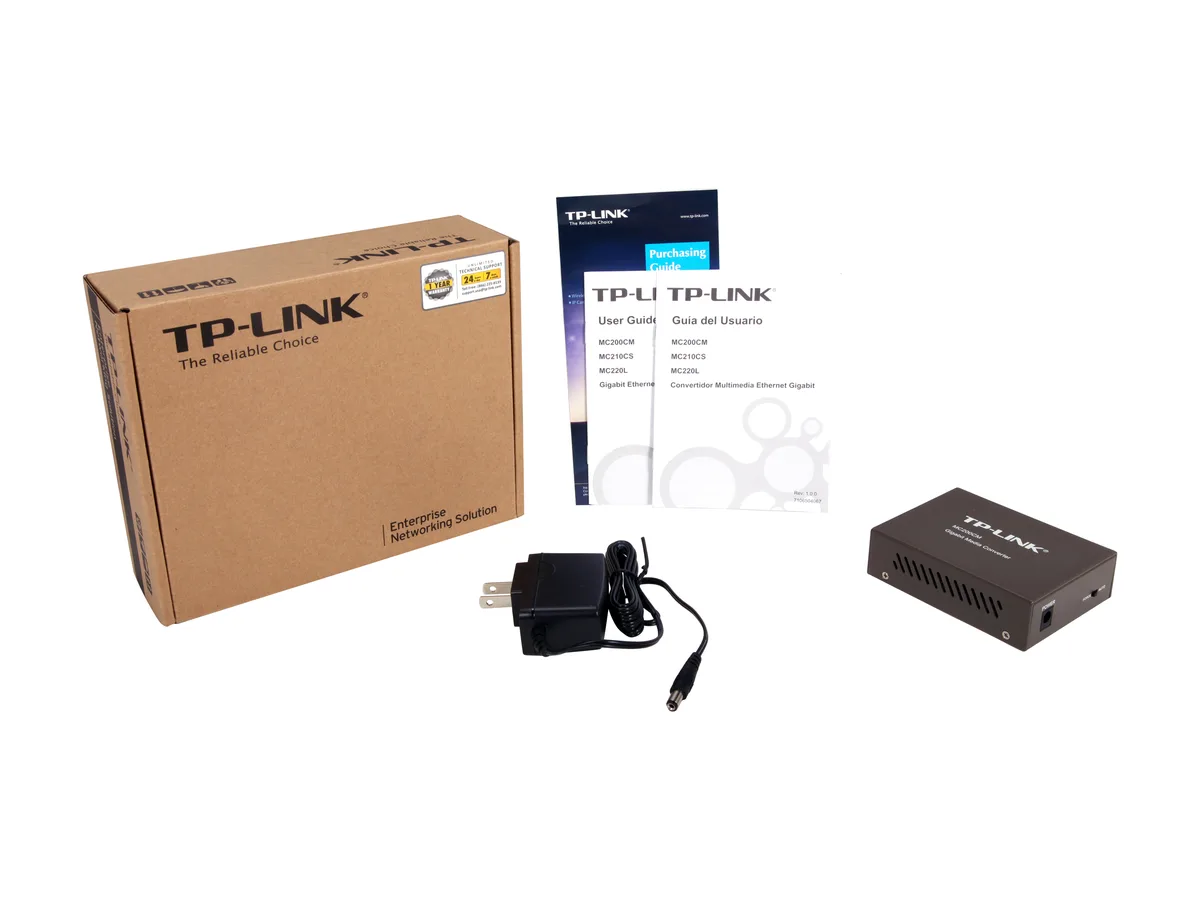

The TP-Link MC200CM converts 1000BASE-SX multi-mode fiber to 1000Base-T copper Ethernet. It provides one SC port and one RJ45 port with auto MDI/MDIX. The unit operates at 1 Gbps full-duplex and includes LED indicators for power, link and receive activity. An external power adapter is included.

Distance limits depend on fiber core size

Multi-mode fiber reach is capped by the cable specification used. With 50/125 µm fiber the link extends up to 550 m, while 62.5/125 µm fiber reduces the maximum to 220 m. Copper twisted-pair segments remain limited to 100 m per IEEE 802.3ab. The converter works at 850 nm wavelength on both transmit and receive paths.

SC connector type decides compatibility

The fiber port uses an SC interface, so only patch cables terminated with SC connectors will fit. Installations that require LC, ST or other connector types cannot use this converter directly. The RJ45 port accepts standard category 5, 5e or 6 UTP and STP cabling up to 100 m.

Highlights

  • Converts 1000BASE-SX fiber to copper gigabit Ethernet via SC and RJ45 ports
  • Full-duplex 1 Gbps throughput on both fiber and copper interfaces
  • Extends multi-mode fiber links up to 550 metres with 50/125 µm cable
  • Auto MDI/MDIX on RJ45 plus selectable Force/Auto mode on fiber port
  • LED indicators for power, link and receive activity simplify monitoring

Specifications

BrandTP-Link
ModelMC200CM
StandardsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Network MediaUTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100O STP (maximum 100m) -1000BASE-T
Multi-mode Fiber -1000BASE-FX
Fiber CableMulti-mode Fiber
ProtocolsTCP/IP
Ports1 x 1000M SC port
1 x 1000M RJ45 port (Auto MDI/MDIX)
Max DistanceUp to 0.5km
Transfer Rate1 Gbps
LEDsPWR, LINK, RX
Power AdapterExternal Power Adapter
Temperature0° ~ 40° C
Humidity10%~90% non-condensing
FeatureBasic Function:
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber
Extends fiber distance up to 0.22km using 2.5/125um fiber
Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports auto MID/MID-X for TX port
Provides switch configuration of Force /Auto transfer mode for FX port
Easy-to-view LED indicators provide status to monitor network activity easily
Dimensions3.7" x 2.9" x 1.1"
Weight0.8
Shipping weight0.45 kg
Package size203 × 170 × 69 mm

Questions about this item

Which fiber type gives the longest reach with this converter?

The MC200CM reaches up to 550m over 50/125um multi-mode fiber and up to 220m over 62.5/125um multi-mode fiber, so 50/125um cable provides the greater distance.

What does the 1 Gbps rate mean when the converter is installed?

Both the RJ45 and SC ports operate at 1000Mbps in full-duplex mode, so the link delivers a sustained 1 Gbps throughput in each direction simultaneously.

What does the SC interface cap in practice?

The SC port is limited to multi-mode fiber at 850nm and supports a maximum reach of 550m with 50/125um cable or 220m with 62.5/125um cable.
