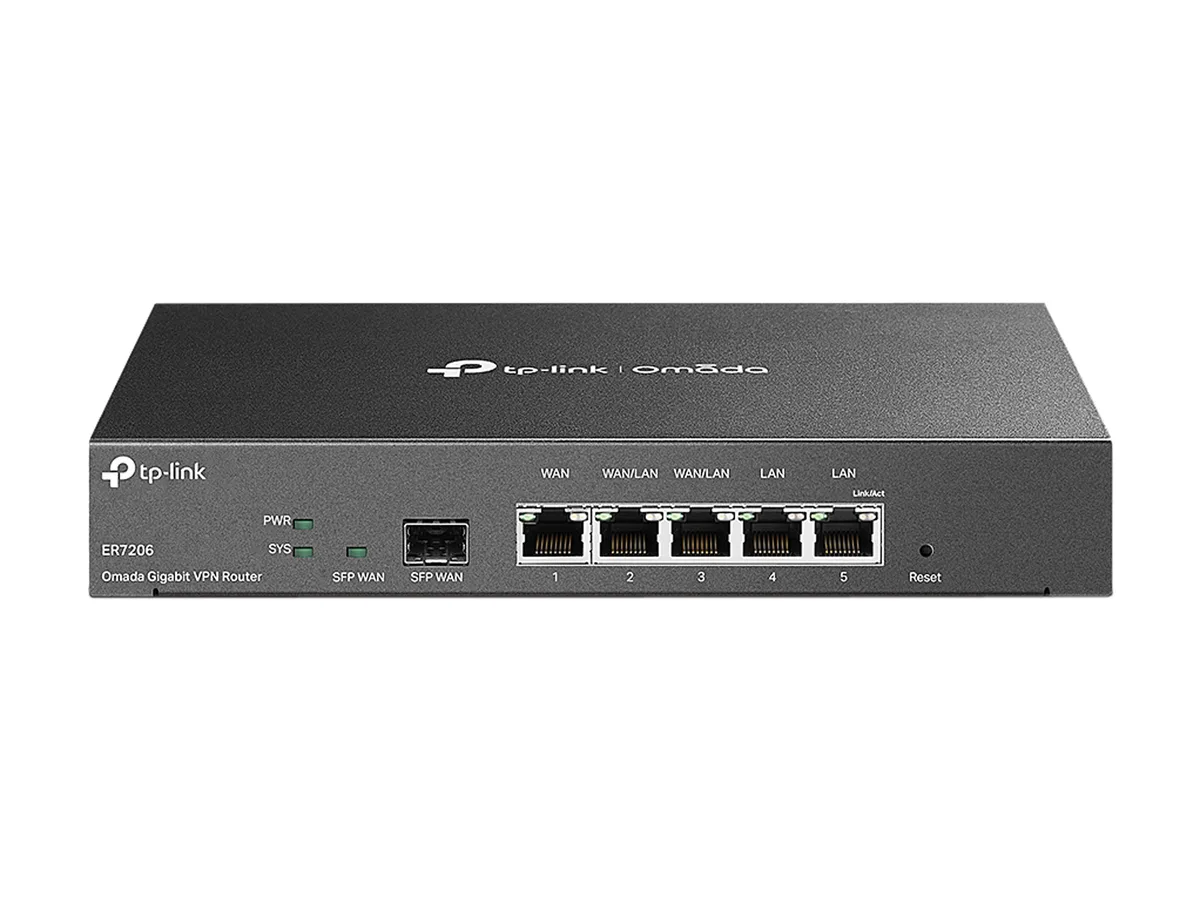

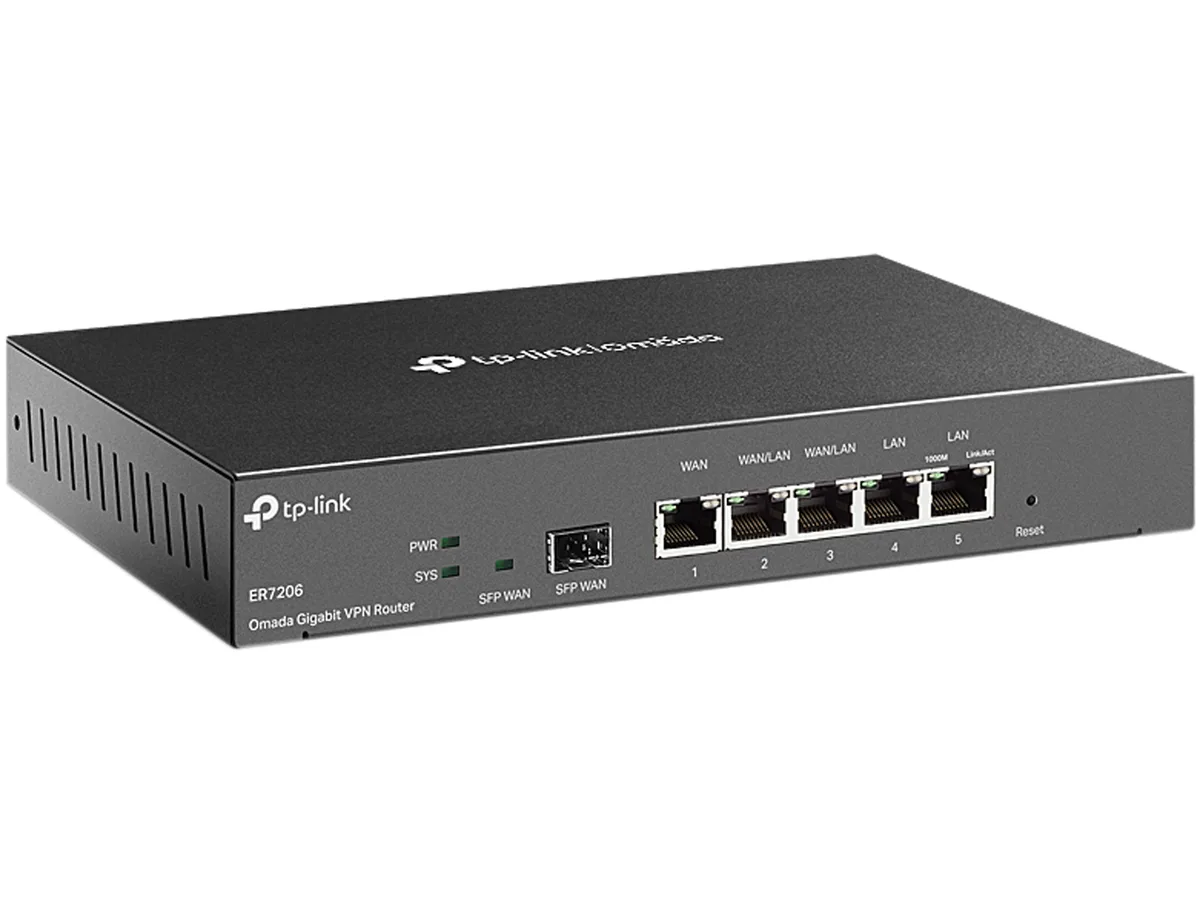

Compact metal box with five Gigabit ports and one SFP slot

TP-Link

TP-Link ER7206 (TL-ER7206) firewall appliance

SKU CH-PGZ7-BCJWM MPN ER7206 (TL-ER7206)

A multi-WAN VPN router with SPI firewall, up to four Gigabit WAN ports, IPsec support for 100 tunnels, and Omada SDN integration for centralised management

  • Speed10/100/1000Mbps
  • SecuritySPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG Do
  • WAN Ports1 x Fixed Gigabit SFP WAN Port 1 x Fixed Gigabit RJ45 WAN Po
  • LAN Ports2 x Fixed Gigabit RJ45 LAN Ports 2 x Changeable Gigabit RJ45
  • VPNIPsec VPN - 100 IPSec VPN Tunnels - LAN-to-LAN, Client-to-LA
  • TemperatureOperating Temperature: 0 - 40 °C (32 - 104 °F) Storage Tempe

Model ER7206

  • Flexible port mix with one SFP WAN, one fixed RJ45 WAN and two changeable WAN/LAN ports
  • Handles up to 150000 associated client devices and 700 maximum clients
  • Centralised Omada SDN management via hardware, software or cloud controller
  • 100 IPsec VPN tunnels with AES up to 256-bit and IKEv1/v2 support
  • Operates from 0 to 40 °C with built-in lightning protection

Multi-WAN VPN Router for Business Networks

The TP-Link ER7206 is a wired VPN router built for small to medium organisations that need secure, high-performance connectivity. It combines one fixed Gigabit SFP WAN port, one fixed Gigabit RJ45 WAN port and two changeable Gigabit RJ45 WAN/LAN ports with two fixed Gigabit LAN ports. This flexible port layout supports up to four WAN connections for load balancing and failover. The SPI firewall and DoS defence protect traffic at wire speed.

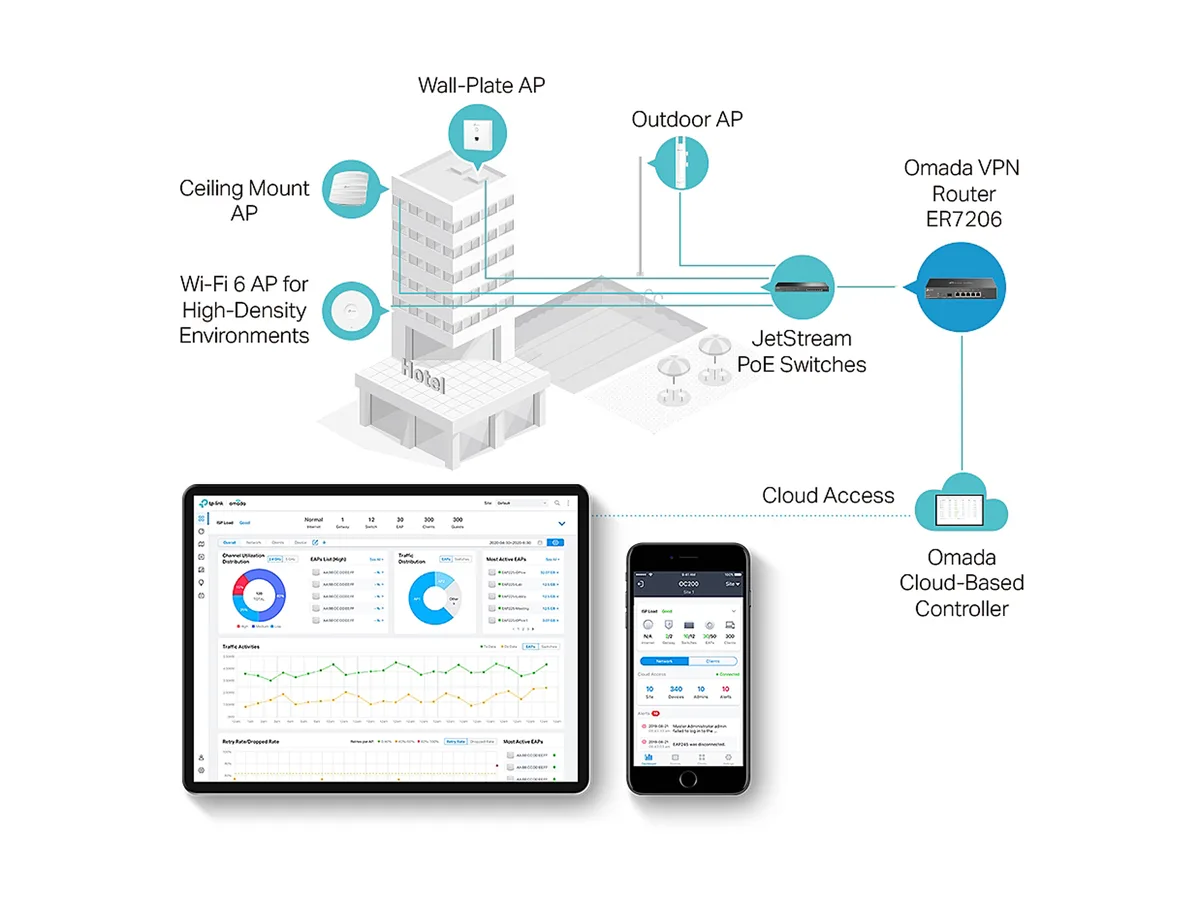

Omada SDN Integration and VPN Capabilities

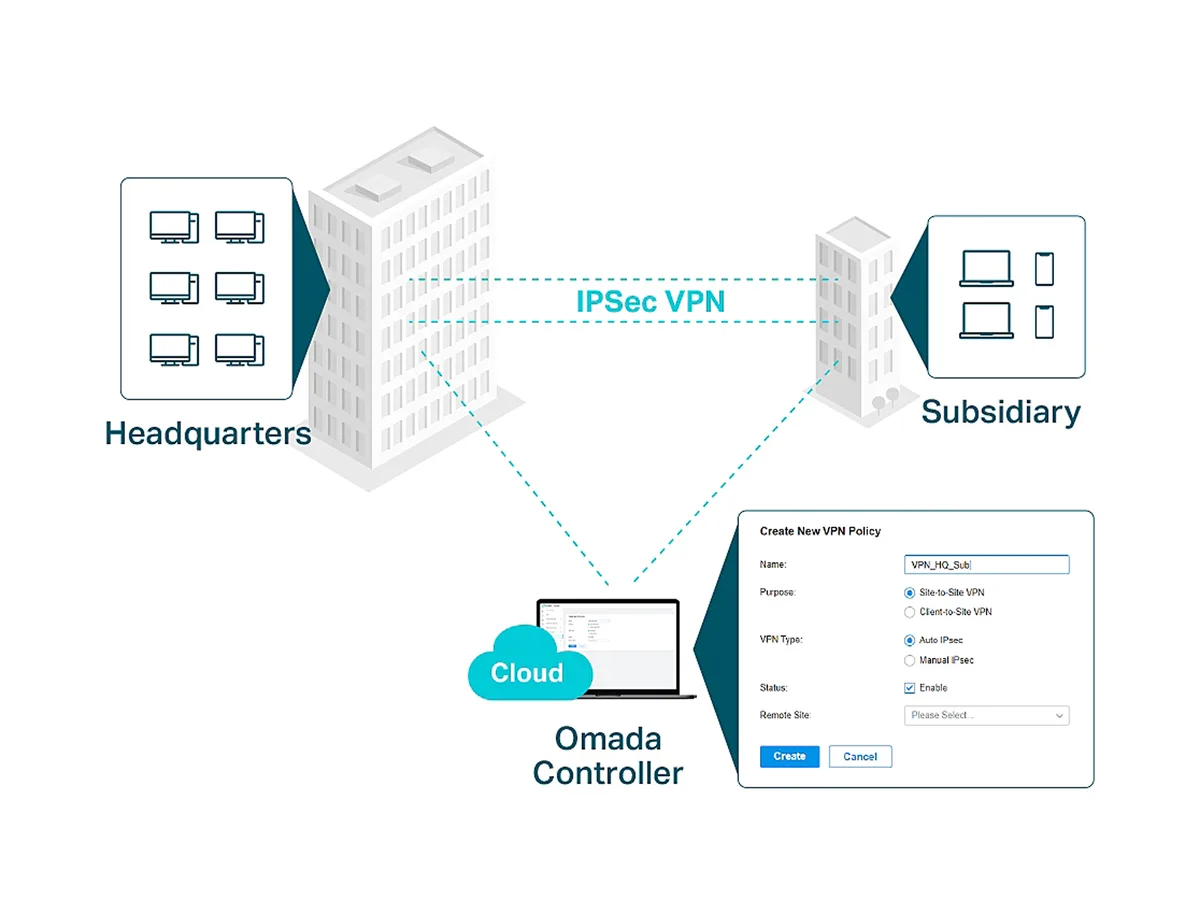

The appliance integrates with the Omada Software Defined Networking platform for centralised management via hardware controller, software controller or cloud-based controller. It supports up to 100 IPSec VPN tunnels with LAN-to-LAN and client-to-LAN modes, offering DES, 3DES, AES128, AES192 and AES256 encryption plus IKEv1/v2 negotiation. ALG support for FTP, H.323, PPTP, SIP and IPsec ensures application compatibility. The package includes the router, power cord and quick installation guide.

Suited for Multi-Site Offices Needing Centralised

This router fits businesses that require multiple WAN links, site-to-site VPN and a single pane of glass for gateways, switches and access points. It scales to 150,000 associated devices and 700 clients. Organisations without an Omada ecosystem or those needing wireless built into the gateway should consider alternative form factors. Operating temperature ranges from 0 to 40 °C with humidity tolerance of 10 to 90% non-condensing.

Highlights

  • Flexible port mix with one SFP WAN, one fixed RJ45 WAN and two changeable WAN/LAN ports
  • Handles up to 150000 associated client devices and 700 maximum clients
  • Centralised Omada SDN management via hardware, software or cloud controller
  • 100 IPsec VPN tunnels with AES up to 256-bit and IKEv1/v2 support
  • Operates from 0 to 40 °C with built-in lightning protection

Specifications

BrandTP-Link
ModelER7206
Speed10/100/1000Mbps
SecuritySPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
WAN Ports1 x Fixed Gigabit SFP WAN Port
1 x Fixed Gigabit RJ45 WAN Port
LAN Ports2 x Fixed Gigabit RJ45 LAN Ports
2 x Changeable Gigabit RJ45 WAN/LAN Ports
VPNIPsec VPN
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IKEv1/v2
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN
- PPTP VPN Server
- 10 PPTP VPN Clients
- 50 Tunnels
- PPTP with MPPE Encryption
L2TP VPN
- L2TP VPN Server
- 10 L2TP VPN Clients
- 50 Tunnels
- L2TP over IPSec
OpenVPN
- OpenVPN Server
- 10 OpenVPN Clients
- 50 OpenVPN Tunnels
TemperatureOperating Temperature: 0 - 40 °C (32 - 104 °F)
Storage Temperature: -40 - 70 °C (-40 - 158 °F)
HumidityOperating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

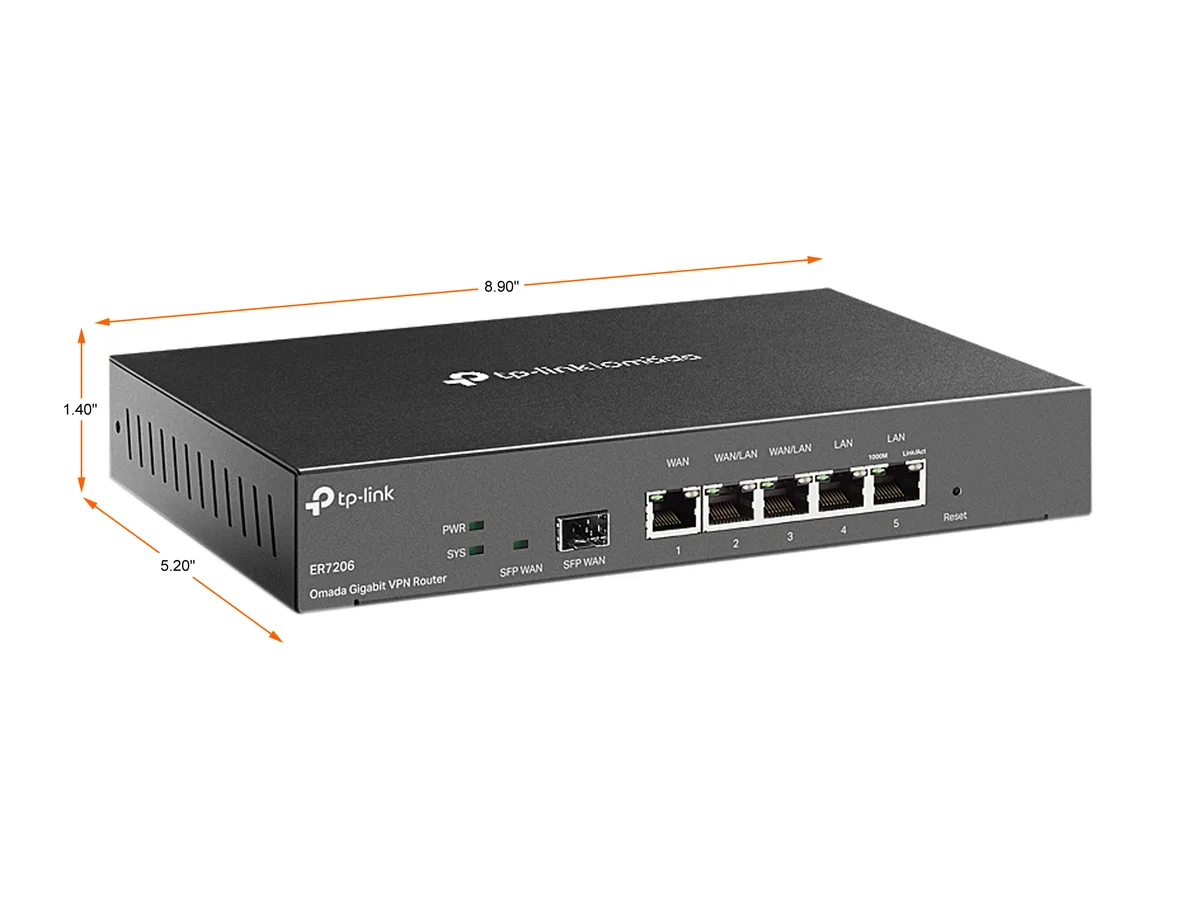

Dimensions1.40" x 8.90" x 5.20"
Package ContentsER7206
Power Cord
Quick Installation Guide
Shipping weight1.32 kg
Package size292 × 224 × 71 mm
