TP-Link
TP-Link EAP670 V1.26 Wi-Fi 6 AX5400 2.5G access point
A Wi-Fi 6 ceiling access point delivering AX5400 dual-band speeds with a 2.5G PoE+ port for high-density business networks
- WiFi GenerationWi-Fi 4
- Wireless Data RatesAX5400 / Up to 5.4Gbps
- Frequency Band2.4 GHz / 5 GHz
- WAN Ports1 x 10/100M
- InterfaceEthernet Port
- ColorWhite
- Dual-band Wi-Fi 6 up to 5400 Mbps
- 5 Gigabit Ethernet port with PoE+ support

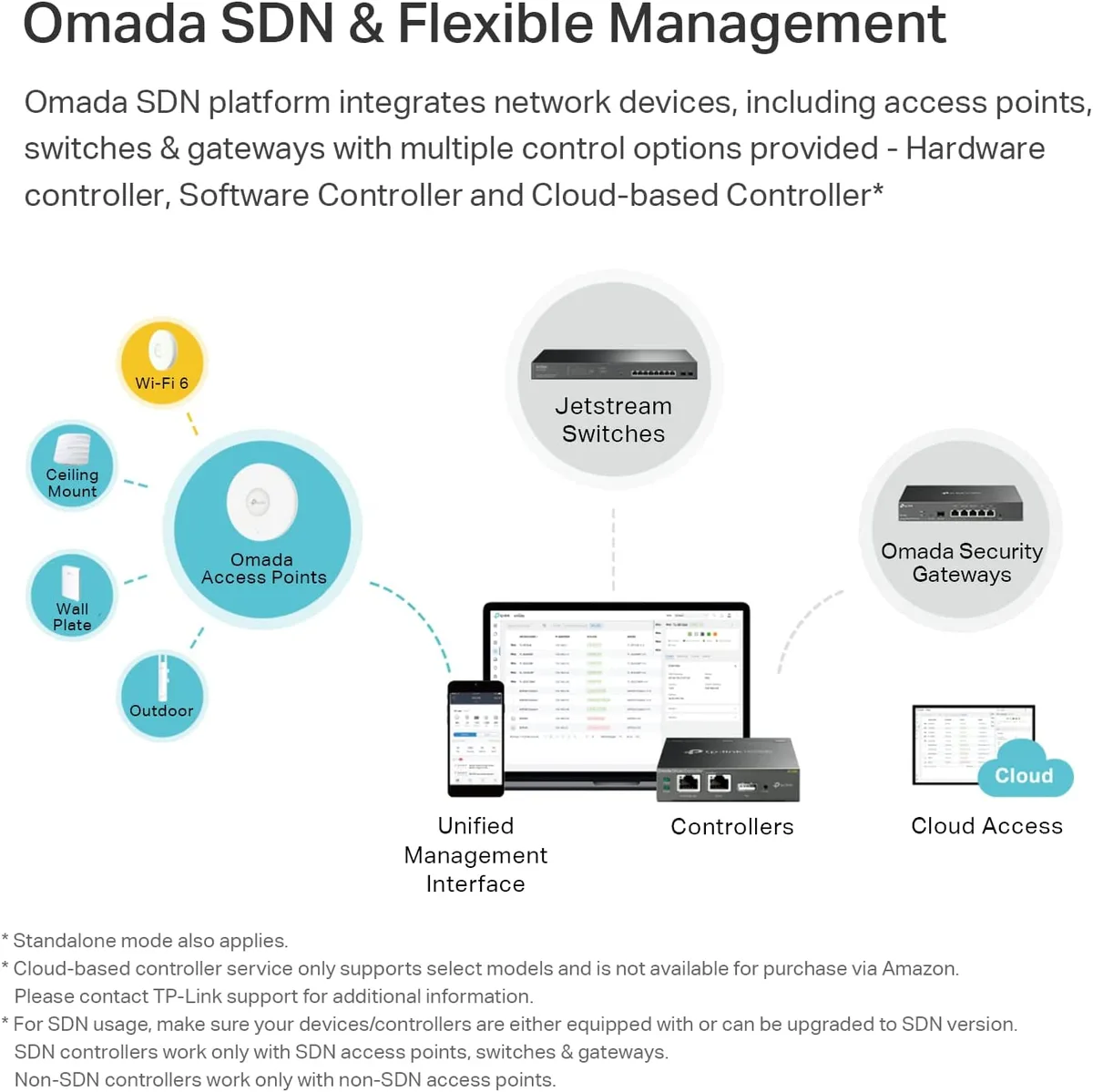

- Omada SDN centralised cloud or local management
- Seamless roaming and mesh for uninterrupted coverage
- 4804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
Ceiling-mount AX5400 access point
The TP-Link EAP670 V1.26 is a business-class Wi-Fi 6 access point designed for ceiling installation. It delivers dual-band AX5400 speeds and includes a 2.5 Gigabit Ethernet port with PoE+ support for flexible deployment. Integrated Omada SDN management allows centralised control via hardware, software or cloud controllers.
Suits high-density business Wi-Fi.
This unit fits offices, hospitality, education and retail venues that need high-capacity wireless with seamless roaming and mesh options. It is not a standalone router, so buyers who need WAN routing, NAT or a built-in modem should look at a dedicated gateway instead.

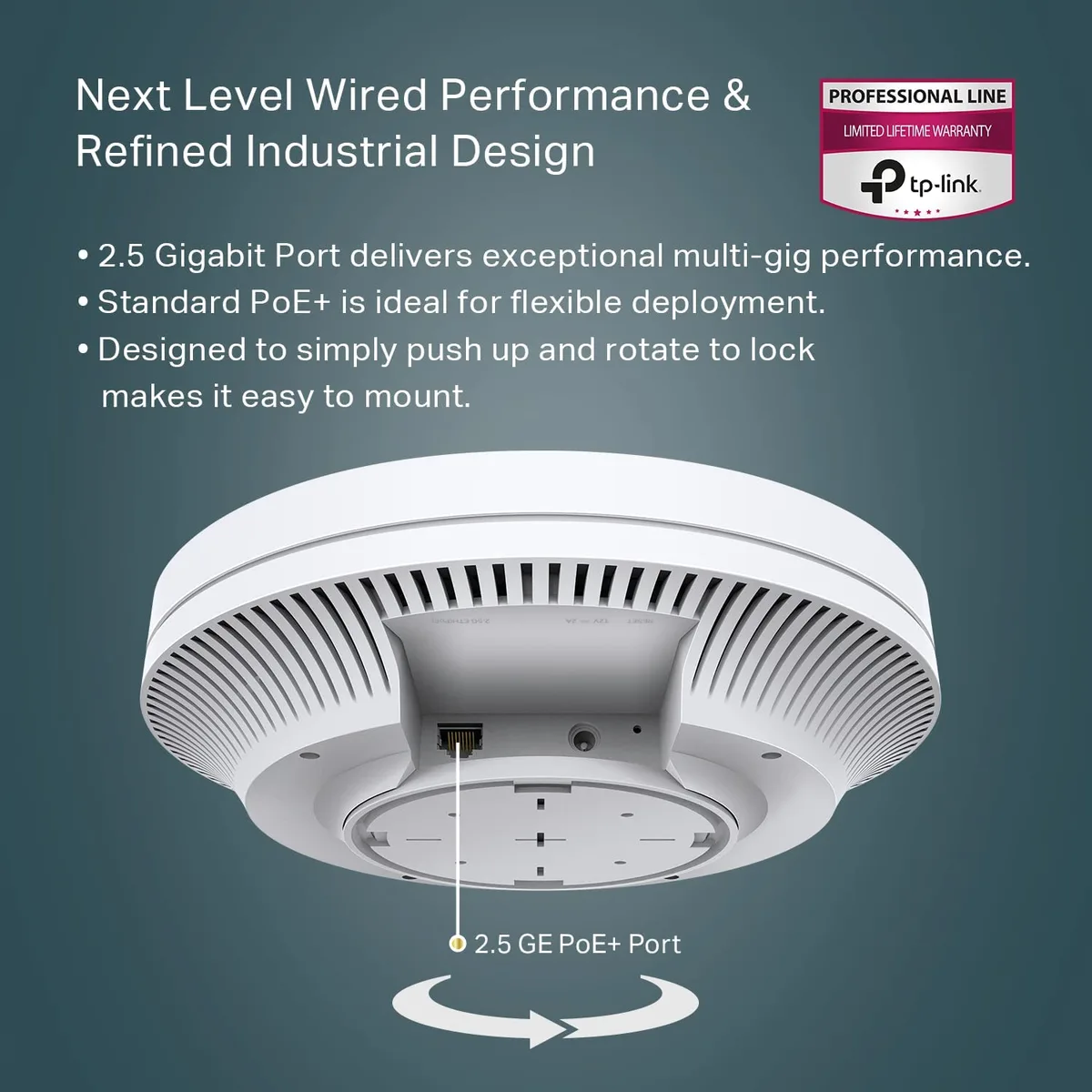

2.5 Gbps PoE+ uplink decides fit
The single 2.5 Gigabit Ethernet port with 802.3at PoE+ is the key specification: it sets the maximum wired backhaul speed and the power delivery method. If your switch infrastructure provides only 1 Gbps ports or lacks PoE+, you will need additional equipment to use this access point at its rated performance.
Highlights
- Dual-band Wi-Fi 6 up to 5400 Mbps
- 5 Gigabit Ethernet port with PoE+ support
- Omada SDN centralised cloud or local management
- Seamless roaming and mesh for uninterrupted coverage
- 4804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
Specifications
| WiFi Generation | Wi-Fi 4 |
|---|---|
| Wireless Data Rates | AX5400 / Up to 5.4Gbps |
| Frequency Band | 2.4 GHz / 5 GHz |
| WAN Ports | 1 x 10/100M |
| Interface | Ethernet Port |
| Color | White |
| Standards | IEEE 802.11ax/ac/n/g/b/a |
| Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Channels | 11 CH (US, Canada), 13 CH (EU), 14 CH (Japan) |
| Antenna | Internal Omni - 2.4 GHz: 2 x 4 dBi - 5 GHz: 4 x 5 dBi |
| Transmitted Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP) FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz) |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| LEDs | Power, Link |
| Buttons | Reset |

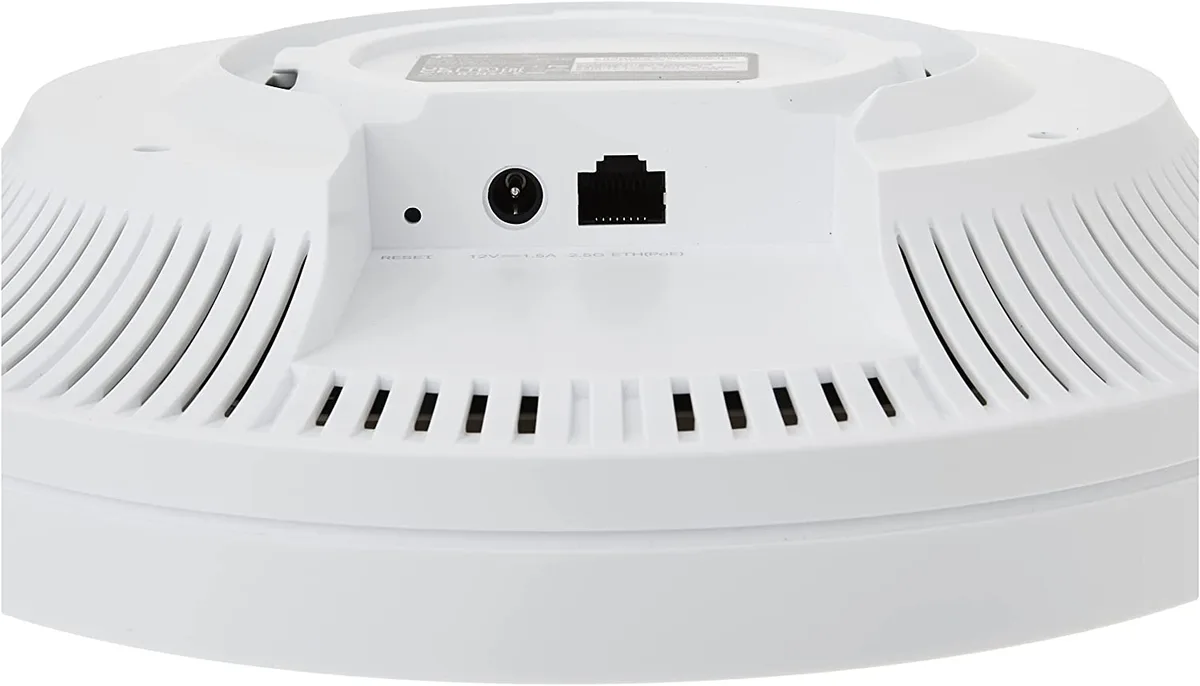

| LAN Ports | 1 x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Power Supply | DC 5V |
| Max Power Consumption | Power Adapter, 12 volts |
| Brand | TP-Link |
| Model | EAP670 |
| Part Number | EAP670 |
| Certifications | 2AXJ4EAP670, has_fcc_id, on_product_combined_cancer_reproductive |
| Compliance | on_product_combined_cancer_reproductive, has_fcc_id, 2AXJ4EAP670, not_applicable |
| Temperature | Operating Temperature: 0-40 °C (32-104 °F) Storage Temperature: -40-70 °C (-40-158 °F) |
| Humidity | Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing |
| Dimensions | 9.60" x 9.60" x 2.50" |
| Features | WPS, dual_band, 802_11_AX, Ethernet |

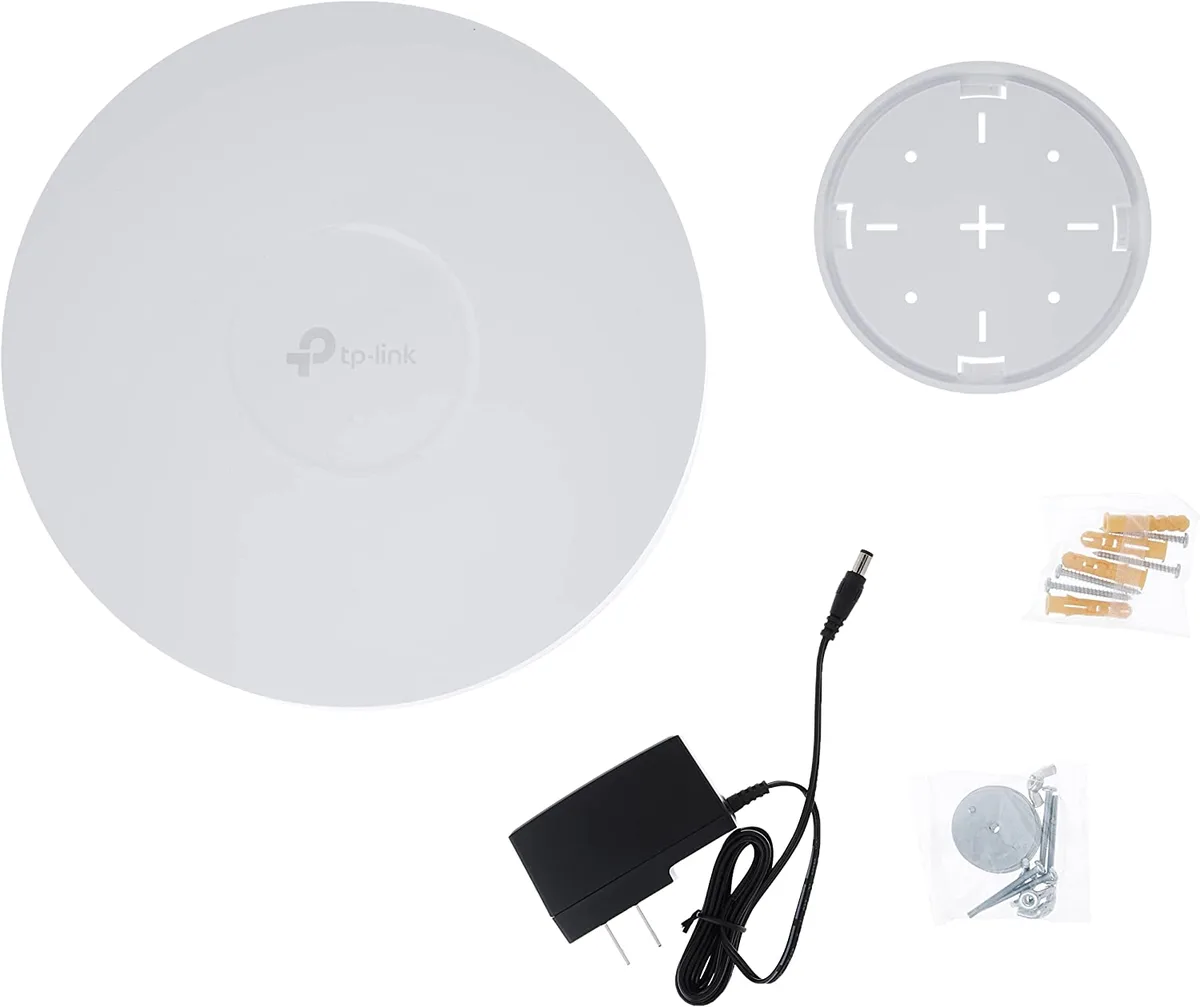

| Package Contents | EAP670 Power Adapter Ceiling/Wall Mounting Kits Installation Guide |
| Disclaimer | on_product_combined_cancer_reproductive, has_fcc_id, 2AXJ4EAP670 |
| Shipping weight | 1.29 kg |
| Package size | 305 × 305 × 84 mm |
Questions about this item
Which band delivers the higher speed, the 2.4 GHz or the 5 GHz radio?
The 5 GHz radio reaches up to 4804 Mbps while the 2.4 GHz radio tops out at 574 Mbps.
What real-world throughput can I expect from the AX5400 rating once the AP is mounted?
AX5400 is the combined theoretical ceiling of 4804 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz; actual client speeds will be lower due to overhead, distance and interference.
Does the 2.5 Gigabit Ethernet port limit the Wi-Fi 6 throughput in practice?
The 2.5 Gbps wired uplink caps total traffic leaving the AP, so aggregate wireless throughput cannot exceed that wired bottleneck.
