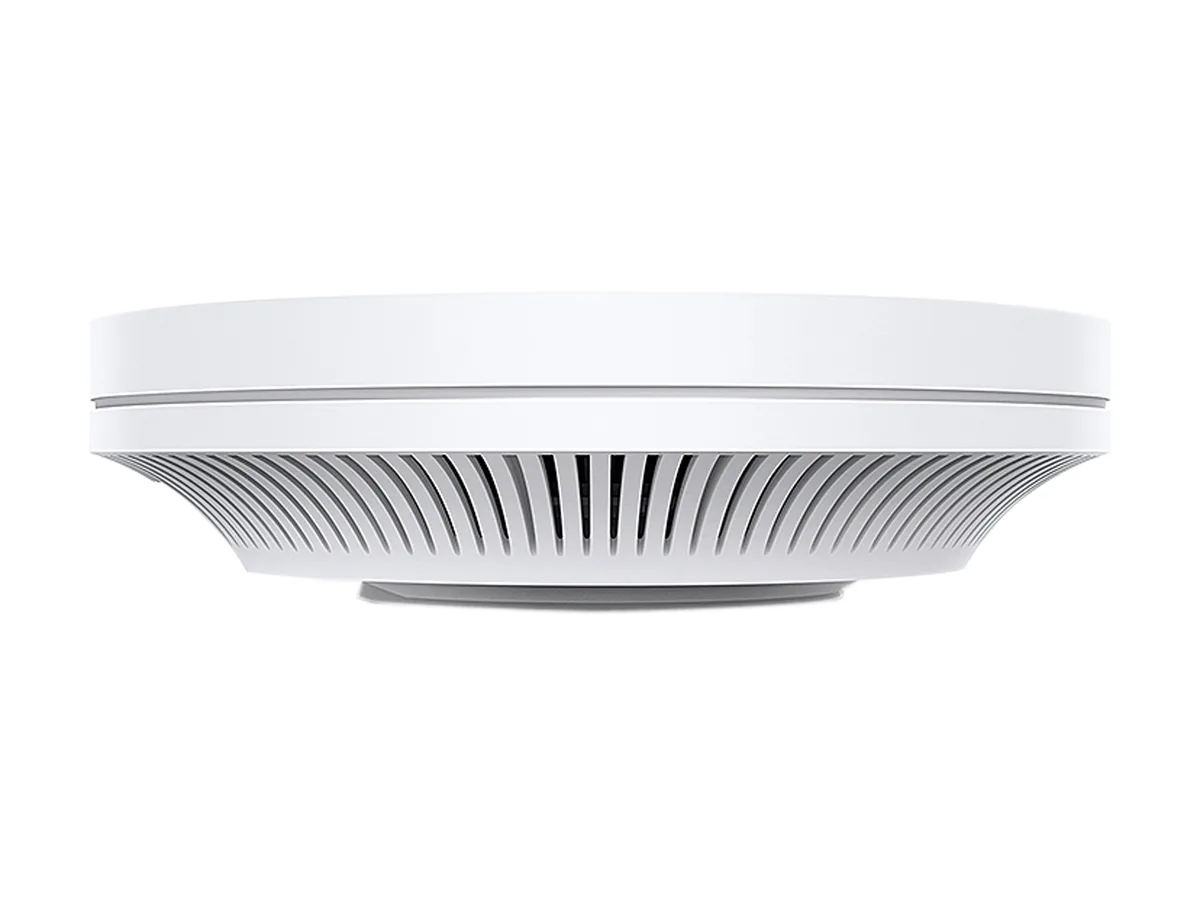

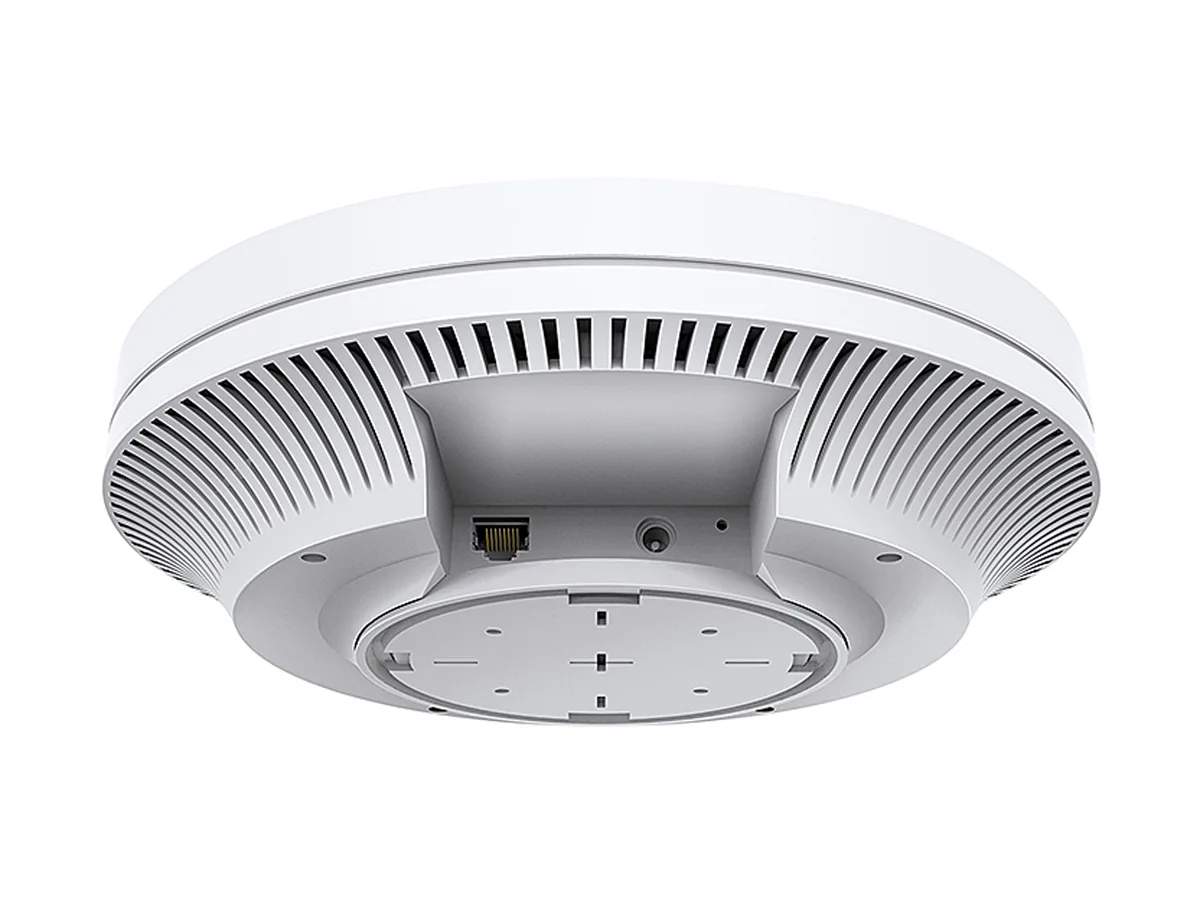

TP-Link EAP660 HD AX3600 Wi-Fi 6 access point
Wi-Fi 6 access point for high-density deployments with AX3600 speeds and a 2.5 Gbps PoE+ port
- StandardsIEEE 802.11ax/ac/n/g/b/a
- Wireless Data RatesAX3600 / Up to 3.6Gbps
- SecurityCaptive Portal Authentication Access Control Wireless Mac Ad
- Frequency Band2.4 GHz / 5 GHz
- AntennaInternal Omni - 2.4 GHz: 4 x 4 dBi - 5 GHz: 4 x 5 dBi
- Transmitted Power< 26 dBm (2.4 GHz) < 26 dBm (5 GHz)
- AX3600 dual-band Wi-Fi 6 delivers up to 3.6 Gbps for high-density environments
- OFDMA and MU-MIMO increase capacity fourfold so more devices connect simultaneously
- 5 Gbps Ethernet port with PoE+ enables flexible ceiling or wall mounting without extra cabling
- Omada SDN integration provides centralised management via hardware controller, software controller or cloud access
- Enterprise-grade security includes WPA3, captive portal, rogue AP detection and 802.1X authentication
High-Density Wi-Fi 6 Access Point
The TP-Link EAP660 HD is a ceiling-mount wireless access point built for environments where many devices connect simultaneously. It supports the 802.11ax standard with dual-band operation and a 2.5 Gbps Ethernet uplink. The unit is powered by 802.3at PoE+ or an included 12 V DC adapter, making it suitable for offices, schools and venues that need reliable coverage without local power outlets.
Bundled Mounting and Power Options
The package includes a power adapter plus ceiling and wall mounting kits so installers can choose the best position without extra parts. PoE+ support allows the AP to draw up to 21.5 W through the single 2.5 Gbps port, simplifying cabling in suspended ceilings. The reset button is recessed on the chassis for quick factory restores during deployment or troubleshooting.
Suits Managed Multi-AP Networks.
This model targets administrators who want centralised control through Omada SDN — hardware controller, software controller or cloud management — with features such as captive portal, VLAN mapping and rogue AP detection. Buyers needing a simple plug-and-play router for a single flat or a small network without a controller should look at a different class of device.
Highlights
- AX3600 dual-band Wi-Fi 6 delivers up to 3.6 Gbps for high-density environments
- OFDMA and MU-MIMO increase capacity fourfold so more devices connect simultaneously
- 5 Gbps Ethernet port with PoE+ enables flexible ceiling or wall mounting without extra cabling
- Omada SDN integration provides centralised management via hardware controller, software controller or cloud access
- Enterprise-grade security includes WPA3, captive portal, rogue AP detection and 802.1X authentication
Specifications
| Brand | TP-Link |
|---|---|
| Model | EAP660 HD |
| Standards | IEEE 802.11ax/ac/n/g/b/a |
| Wireless Data Rates | AX3600 / Up to 3.6Gbps |
| Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Frequency Band | 2.4 GHz / 5 GHz |
| Antenna | Internal Omni - 2.4 GHz: 4 x 4 dBi - 5 GHz: 4 x 5 dBi |
| Transmitted Power | < 26 dBm (2.4 GHz) < 26 dBm (5 GHz) |
| Interface | 1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) |
| Buttons | Reset |
| Power Supply | Power Supply: 802.3at PoE or 12 V DC Power Consumption: 21.5W |
| Temperature | Operating Temperature: 0 - 40 °C (32 - 104 °F) Storage Temperature: -40 - 70 °C (-40 - 158 °F) |
| Humidity | Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing |
| Dimensions | 9.60" x 9.60" x 2.50" |
| Package Contents | EAP660 HD Power Adapter Ceiling/Wall Mounting Kits Installation Guide |
| Shipping weight | 1.50 kg |
| Package size | 306 × 305 × 83 mm |
Questions about this item
Will the internal antennas or the 2.5 Gbps PoE+ port need replacement after extended use?
The unit uses internal omni antennas with no moving parts and a single 2.5 Gbps Ethernet port that supports IEEE 802.3at PoE+, so no antenna or port replacement is expected under normal operation.
What limits throughput first when the AP runs at full 3.6 Gbps capacity?
The single 2.5 Gbps Ethernet uplink caps total wired throughput, so sustained wireless traffic above 2.5 Gbps will be bottlenecked at the port.
How much heat and power does the EAP660 HD produce when powered via PoE+ all day?
Maximum power draw is 21.5 W, and the operating temperature range is 0 °C to 40 °C with passive cooling and no fan noise.
