TP-Link
TP-Link EAP650-DESKTOP AX3000 Wi-Fi 6 access point
Desktop Wi-Fi 6 access point delivers AX3000 dual-band speeds for 250-plus clients across 140 m² with four gigabit ports and PoE power
- WiFi GenerationWi-Fi 6
- Wireless Data RatesAX3000 / Up to 3.0Gbps
- Frequency Band2.4 GHz / 5 GHz
- ColorWhite
- # of Users250+
- StandardsIEEE 802.11ax
- Wi-Fi 6 delivers up to 3.0 Gbps dual-band throughput
- Supports 250+ concurrent clients for dense environments
- Four gigabit Ethernet ports plus an FXS port for wired flexibility
- 140 m² coverage with internal omni antennas
- 3 af/at/bt PoE or 12 V DC power options
Purpose-built desktop access point

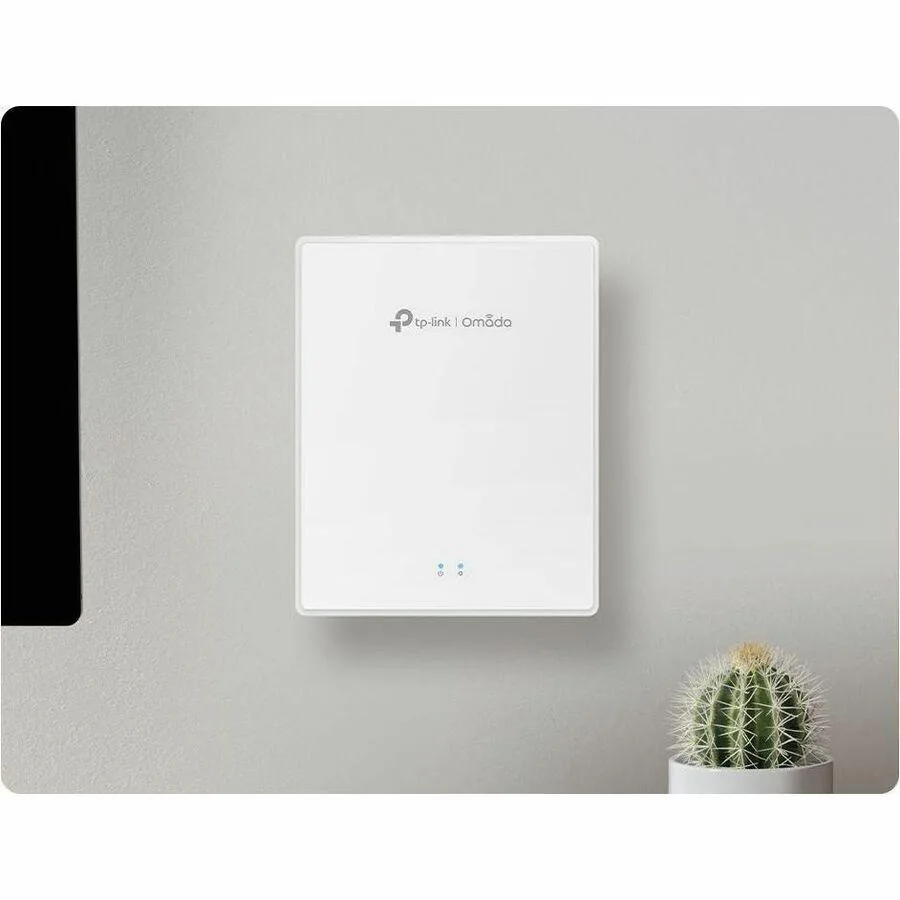

The TP-Link EAP650-DESKTOP is a Wi-Fi 6 access point designed for desktop or wall mounting with included kits. It delivers AX3000 dual-band throughput up to 3.0Gbps across 2.4 GHz and 5 GHz frequencies. The unit supports 250+ concurrent users and integrates with Omada controller platforms for centralised management.
Suited for small offices needing wired
This model fits environments that require four gigabit Ethernet ports plus an FXS port for analogue telephony. It offers 16 SSIDs with VLAN segmentation and enterprise-grade security including WPA3 and 802.1X. Buyers needing outdoor-rated hardware, higher PoE power budgets for attached devices, or ceiling-mount form factors should consider other product lines.
Sustained operation within 17.3W envelope
Under continuous load the access point draws a maximum of 17.3W when PoE output is disabled. It operates on 802.3 af/at/bt PoE or a 12V/1.5A DC supply, maintaining stable radio output within CE and FCC limits. Internal omni antennas provide coverage up to 140m2 without external moving parts or active cooling.
Highlights
- Wi-Fi 6 delivers up to 3.0 Gbps dual-band throughput
- Supports 250+ concurrent clients for dense environments
- Four gigabit Ethernet ports plus an FXS port for wired flexibility
- 140 m² coverage with internal omni antennas
- 3 af/at/bt PoE or 12 V DC power options
Specifications
| WiFi Generation | Wi-Fi 6 |
|---|---|
| Wireless Data Rates | AX3000 / Up to 3.0Gbps |
| Frequency Band | 2.4 GHz / 5 GHz |
| Color | White |
| # of Users | 250+ |
| Standards | IEEE 802.11ax |
| Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Antenna | Internal Omni - 2.4 GHz: 2 x 5 dBi - 5 GHz: 3 x 4.7 dBi |
| Transmitted Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP) FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) |
| Mounting Location | Desktop / Wall mouting (Kits included) |
| Operating Range | 140m2 (1500 ft2) |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Buttons | Reset, LED |
| LAN Ports | 4 x 1Gbps Ethernet Ports + 1 x FXS Port |
| Multiple SSIDs | 16 SSIDs, 8 on each band |
| VLAN | Yes |
| Power Supply | 802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply |
| Max Power Consumption | 17.3W (PoE Out Off) |
| Brand | Omada by TP-Link |
| Model | EAP650-Desktop |
| Part Number | EAP650-Desktop |
| Certifications | CE, FCC, RoHS, IC |
| Temperature | Operating Temperature: 0 - 40 °C (32 - 104 °F) Storage Temperature: -40 - 70 °C (-40 - 158 °F) |
| Humidity | Operating Humidity: 10 - 90% RH non-condensing Storage Humidity: 5 - 90% RH non-condensing |
| Dimensions | 6.9" x 5.5" x 1.3" |
| Weight | 452g |
| Features | 2x2 (2.4G & 5G) MU-MIMO HE160 (160 MHz Bandwidth) OFDMA Omada Mesh Seamless Roaming Multiple SSIDs (16 SSIDs, 8 on each band) Enable/Disable SSID Broadcast Enable/Disable Wireless Radio Guest Network Automatic Channel Assignment Beamforming Rate Limit (Based on SSID/Client) Band Steering Load Balance Airtime Fairness Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule and Statistics Static IP/Dynamic IP |
| Package Contents | EAP650-Desktop Desktop/Wall Mounting Kit Installation Guide Power Adapter |
| Shipping weight | 0.86 kg |
| Package size | 210 × 178 × 95 mm |
Questions about this item
Does the EAP650-Desktop need a PoE switch or injector to power it, or can it run from the 12V DC adapter?
It accepts 802.3 af/at/bt PoE or the included 12V/1.5A DC adapter; choose either source.
Will my older 802.11n laptops and phones connect to the AX3000 dual-band radios?
Yes, the 2.4 GHz and 5 GHz radios support legacy clients back to 802.11a/b/g/n while delivering Wi-Fi 6 speeds to newer devices.
How can I confirm the AP is delivering the advertised 3.0Gbps aggregate throughput after installation?
Run a local iperf3 test between a Wi-Fi 6 client on 5 GHz and a wired device on one of the four 1Gbps ports; combined band throughput should approach the AX3000 rating.
