White rectangular wall-plate access point with four Ethernet ports and reset button

TP-Link

TP-Link EAP615-Wall WiFi 6 access point

SKU CH-0QXK-89R65 MPN EAP615-Wall

A wall-plate WiFi 6 access point delivering 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with one PoE+ uplink, three gigabit downlinks and 13 W PoE pass-through

  • StandardsIEEE 802.11ax/ac/n/g/b/a
  • Wireless Data Rates5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps
  • Frequency Band2.4 GHz / 5 GHz
  • Antenna2 Dual-Band Antennas 2.4 GHz: 2x 3 dBi 5 GHz: 2x 4 dBi
  • Transmitted PowerCE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) FCC: < 2
  • InterfaceRJ-45
  • Dual-band WiFi 6 reaches 1.76 Gbit/s combined throughput
  • Four Gigabit ports include one PoE pass-through for powering a downstream device
  • Centralised cloud management via Omada SDN from a single interface
  • Slim 20 mm wall-plate design fits standard electrical boxes
  • Powered entirely by 802.3af/at PoE with no separate adapter needed

Wall-plate WiFi 6 access point

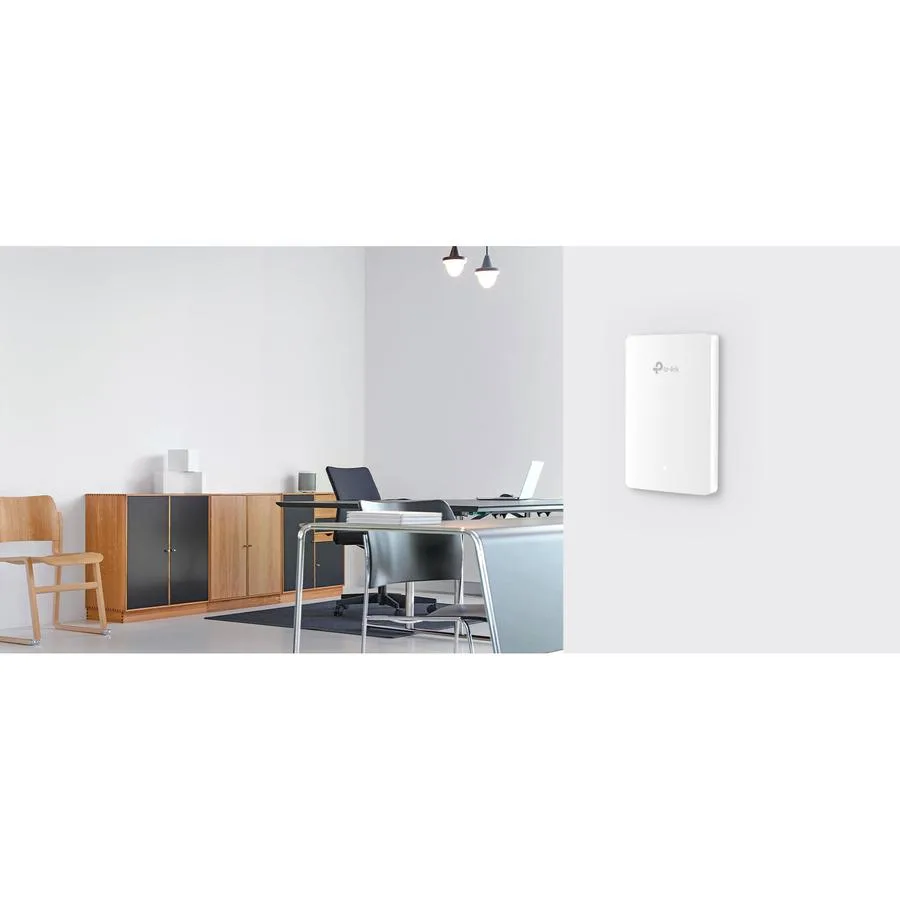

The TP-Link EAP615-Wall fits a standard wall-box and delivers dual-band WiFi 6 to hotel rooms, dormitories or small offices. It provides 5 GHz speeds up to 1201 Mbps and 2.4 GHz speeds up to 574 Mbps through two internal dual-band antennas. Three gigabit LAN ports connect wired devices such as IP phones or smart TVs.

PoE-powered installation

The unit draws power from an 802.3af or 802.3at PoE source on its single uplink port so no separate adapter is needed. One downlink port can pass PoE out at up to 13 W when the input is 802.3at PoE+. Mounting kits and a reset button are included for quick deployment.

Pre-install checklist

Verify that your switch or injector supplies 802.3af or 802.3at PoE on the cable run to the wall box. Confirm the wall box depth accommodates the 20 mm profile and that the existing cabling is Cat5e or better for gigabit throughput. Ensure the Omada controller is reachable if you plan centralised management.

Highlights

  • Dual-band WiFi 6 reaches 1.76 Gbit/s combined throughput
  • Four Gigabit ports include one PoE pass-through for powering a downstream device
  • Centralised cloud management via Omada SDN from a single interface
  • Slim 20 mm wall-plate design fits standard electrical boxes
  • Powered entirely by 802.3af/at PoE with no separate adapter needed

Specifications

BrandTP-Link
ModelEAP615-Wall
StandardsIEEE 802.11ax/ac/n/g/b/a
Wireless Data Rates5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Frequency Band2.4 GHz / 5 GHz
Antenna2 Dual-Band Antennas
2.4 GHz: 2x 3 dBi
5 GHz: 2x 4 dBi
Transmitted PowerCE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)
FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
InterfaceRJ-45
ButtonsReset Button
WAN PortsUplink: 1x 10/100/1000 Mbps Ethernet Port
LAN PortsDownlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Power Supply802.3af/at PoE
Dimensions143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)
Package ContentsAX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
Installation Guide
Mounting Kits
Shipping weight0.34 kg
Package size184 × 121 × 44 mm

Questions about this item

How can I confirm the EAP615-Wall is working after installation?

Check the LED indicators on the front panel; solid lights show power and active 2.4 GHz and 5 GHz radios. Then connect a device and verify speeds near 1201 Mbps on 5 GHz or 574 Mbps on 2.4 GHz.

What comes in the box and what must I buy separately?

The package includes the AX1800 wall-plate access point, an installation guide and mounting kits. You must supply a PoE switch or injector that delivers 802.3af/at power, plus Ethernet cables for the uplink and three downlink ports.

Which version should I choose for the PoE pass-through port?

Choose the EU version for a maximum 13 W PoE output or the US version for 12 W; both require an 802.3at PoE+ input to enable the downlink PoE port.
