TP-Link
TP-Link EAP613 AX1800 WiFi 6 access point
A ceiling-mount WiFi 6 access point delivering 1.8 Gbps combined speed and supporting over 250 users with PoE+ power options
- WiFi GenerationWi-Fi 6
- Wireless Data RatesAX1800 / Up to 1.8Gbps
- Frequency Band2.4 GHz / 5 GHz
- ColorWhite
- # of Users250+
- SecurityCaptive Portal Authentication Access Control Wireless Mac Ad
- Wi-Fi 6 delivers up to 1.8 Gbps combined throughput across both bands
- Supports 250-plus simultaneous users for dense business environments
- Centralised cloud management via Omada app or web UI from anywhere
- Flexible power options include 802.3at PoE+ passive PoE and 12 V DC
- Ultra-slim 160 mm diameter design fits discreetly on ceilings or walls

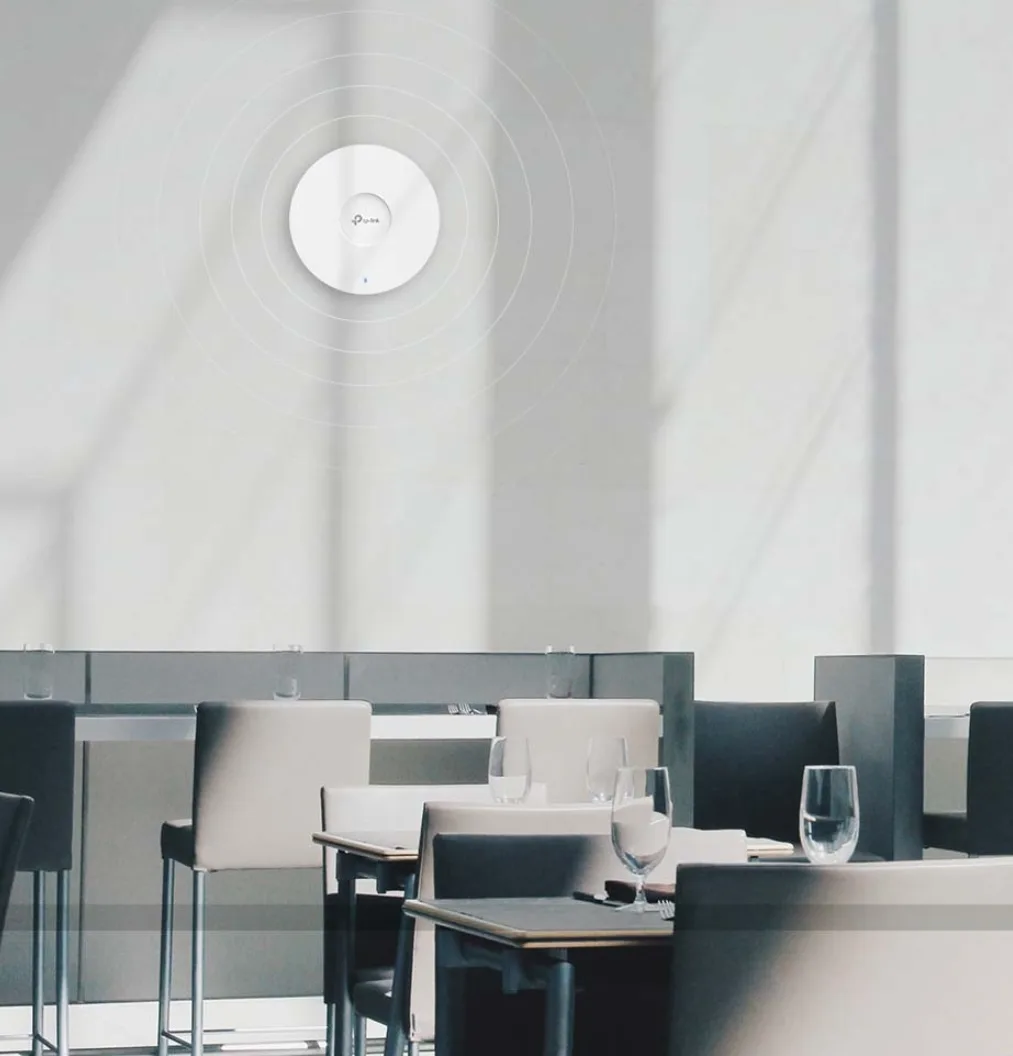

Ultra-Slim WiFi 6 Access Point

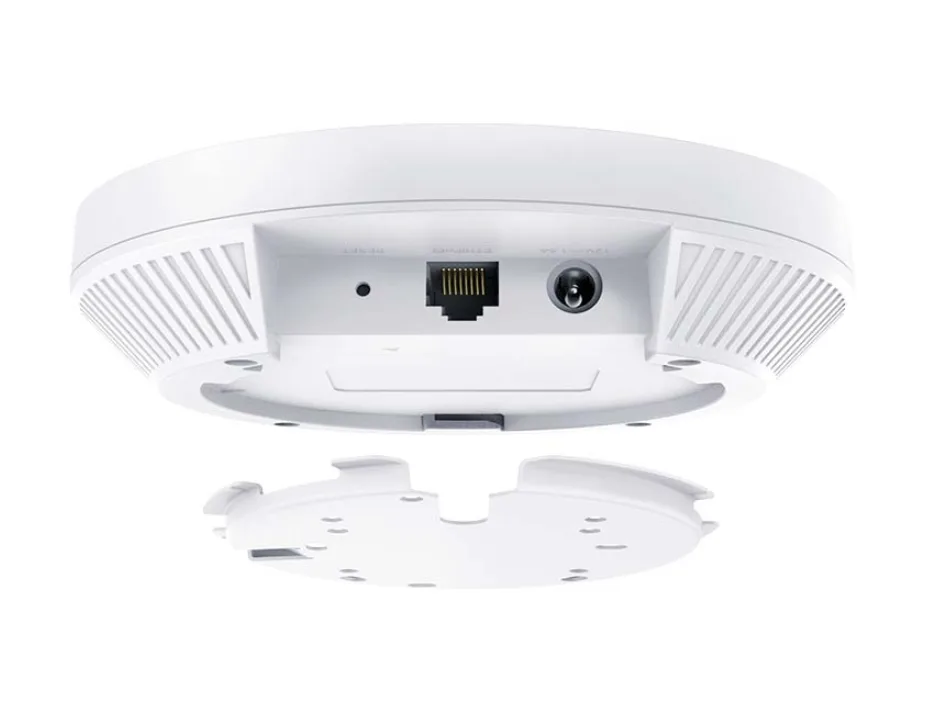

The TP-Link EAP613 is a ceiling-mount wireless access point delivering AX1800 dual-band WiFi 6 for business environments. It supports up to 250 plus concurrent users across a coverage area of 115 square metres. The unit draws a maximum of 11.0 watts via 802.3at PoE+ and includes mounting kits for ceiling, wall or junction-box installation. A 12 V DC power adapter is not included in the box.
Ideal for High-Density Offices.
This access point suits small to medium businesses needing centralised cloud management through the Omada platform, seamless roaming for voice and video, and flexible PoE+ or passive PoE deployment. It is not suited for networks that require multi-gigabit wired uplinks, as the single LAN port is limited to 1000 Mbps. Buyers wanting a bundled power supply or outdoor-rated hardware should consider other models.
AX1800 Capacity With Gigabit Bottleneck
The radio provides 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz for a combined 1775 Mbps wireless throughput, handling dense client loads with MU-MIMO and airtime fairness. The single gigabit Ethernet port caps wired backhaul at 1000 Mbps, so aggregate wireless traffic exceeding that rate will be constrained by the uplink. Operating temperature ranges from 0 to 40 °C with humidity up to 90 percent non-condensing.
Highlights
- Wi-Fi 6 delivers up to 1.8 Gbps combined throughput across both bands
- Supports 250-plus simultaneous users for dense business environments
- Centralised cloud management via Omada app or web UI from anywhere
- Flexible power options include 802.3at PoE+ passive PoE and 12 V DC
- Ultra-slim 160 mm diameter design fits discreetly on ceilings or walls
Specifications
| WiFi Generation | Wi-Fi 6 |
|---|---|
| Wireless Data Rates | AX1800 / Up to 1.8Gbps |
| Frequency Band | 2.4 GHz / 5 GHz |
| Color | White |
| # of Users | 250+ |
| Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Antenna | Internal Omni Antenna - 2.4 GHz: 2 x 4 dBi - 5 GHz: 2 x 5 dBi |
| Transmitted Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| Mounting Location | Ceiling /Wall Mounting (Kits included) Junction Box Mounting |
| Operating Range | 115 m2 (1250 ft2) |
| System Requirements | Operating System: Android |
| LAN Ports | 1 x 10/100/1000M |
| Power Supply | 802.3at PoE 48 V Passive PoE 12 V / 1 A DC (Power Adapter IS NOT included) |
| Max Power Consumption | 11.0W (For PoE); 9.9W (For DC) |
| Brand | TP-Link |
| Model | EAP613 |
| Temperature | Operating Temperature: 0 - 40 °C (32 - 104 °F) Storage Temperature: -40 - 70 °C (-40 - 158 °F) |
| Humidity | Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing |
| Dimensions | 6.3" x 6.3" x 1.3" |
| Shipping weight | 0.71 kg |
| Package size | 245 × 228 × 216 mm |
Questions about this item
Do I need a PoE+ switch or injector to power the EAP613 since no DC adapter is included?
Yes, the unit requires 802.3at PoE+ or 48 V passive PoE; a separate 12 V / 1 A DC adapter can be used instead, but it is not supplied in the box.
Will the single Gigabit Ethernet port limit throughput when I connect the AP to my existing Cat5e wiring?
The 10/100/1000M port supports up to 1 Gbps wired throughput, matching the AX1800 wireless aggregate rate of 1775 Mbps across both bands.
How can I confirm the AP is delivering the rated 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz after installation?
Use the Omada app or web UI to view real-time client link speeds and run a local throughput test between a WiFi 6 device and a wired endpoint on the same network.
