TP-Link
TP-Link EAP610_V2 AX1800 WiFi 6 access point
Dual-band Wi-Fi 6 access point delivers 1.8 Gbps total throughput with Mesh, seamless roaming and cloud management via PoE+ ceiling mount
- StandardsIEEE 802.11ax/ac/n/g/b/a
- Wireless Data RatesAX1800 / Up to 1.8Gbps
- SecurityCaptive Portal Authentication Access Control Wireless Mac Ad
- Frequency Band2.4 GHz / 5 GHz
- AntennaInternal Omni Antenna 2.4 GHz: 2 x 4 dBi 5 GHz: 2 x 5 dBi
- Transmitted PowerCE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25
- AX1800 WiFi 6 delivers up to 1.8 Gbps combined throughput
- Dual-band 574 Mbps on 2.4 GHz plus 1201 Mbps on 5 GHz
- Omada SDN enables centralized cloud management via app or browser
- Seamless roaming and mesh keep connections stable when moving between APs
- PoE+ and passive PoE power the unit through a single Gigabit Ethernet cable

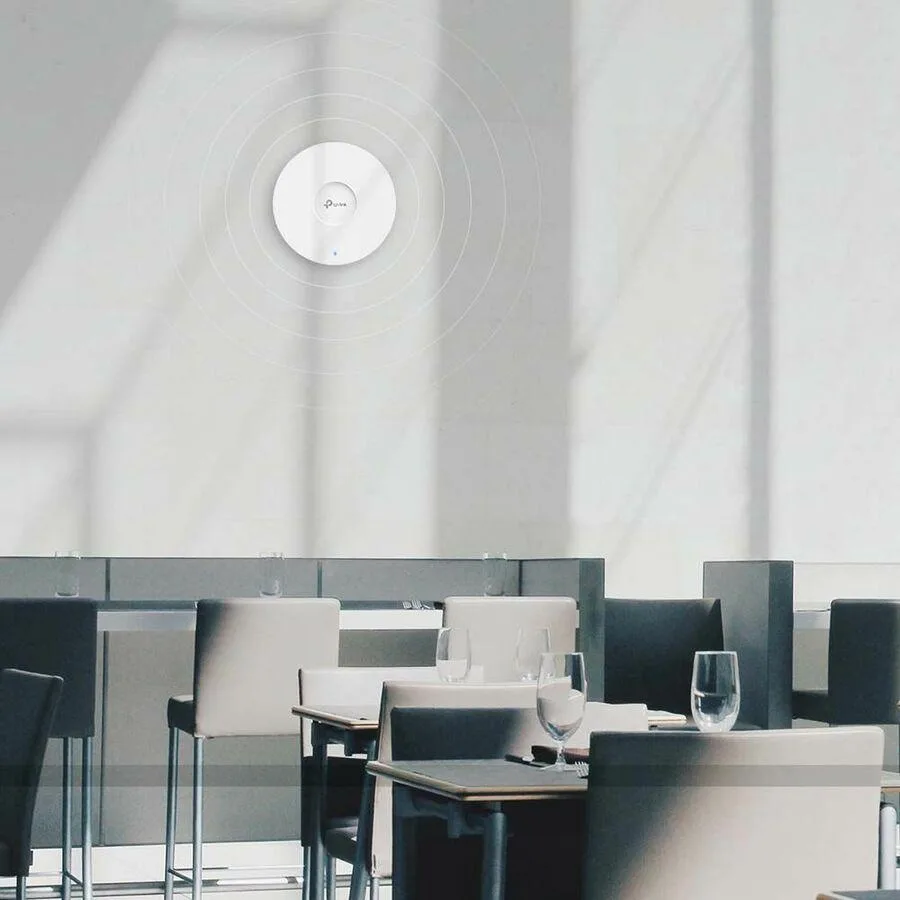

Ceiling-mount Wi-Fi 6 access point
The TP-Link EAP610_V2 is a dual-band AX1800 wireless access point designed for offices, hotels, classrooms or cafés that need fast Wi-Fi 6 coverage. It delivers up to 1.8 Gbps aggregate throughput with 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. The unit supports Mesh, seamless roaming, MU-MIMO and band steering for high-density environments.
PoE+ powered with single Gigabit port
The ultra-slim 160 mm diameter housing mounts flush to a ceiling and includes a reset button. A single RJ-45 port accepts IEEE 802.3at PoE+ or passive PoE, removing the need for a nearby power socket. Internal omni antennas provide 4 dBi gain at 2.4 GHz and 5 dBi at 5 GHz. Transmit power meets CE and FCC limits up to 25 dBm.
Check controller and cabling before ordering
Centralised management requires an Omada hardware controller, software controller or cloud account; Mesh and seamless roaming only function when the SDN platform is deployed. The access point operates from 0 to 40 °C and 10 to 90 % humidity non-condensing. Verify that your switch or injector supplies PoE+ power and that a Gigabit Ethernet cable run reaches the mounting location.
Highlights
- AX1800 WiFi 6 delivers up to 1.8 Gbps combined throughput
- Dual-band 574 Mbps on 2.4 GHz plus 1201 Mbps on 5 GHz
- Omada SDN enables centralized cloud management via app or browser
- Seamless roaming and mesh keep connections stable when moving between APs
- PoE+ and passive PoE power the unit through a single Gigabit Ethernet cable
Specifications
| Brand | TP-Link |
|---|---|
| Model | EAP610_V2 |
| Standards | IEEE 802.11ax/ac/n/g/b/a |
| Wireless Data Rates | AX1800 / Up to 1.8Gbps |
| Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Frequency Band | 2.4 GHz / 5 GHz |
| Antenna | Internal Omni Antenna 2.4 GHz: 2 x 4 dBi 5 GHz: 2 x 5 dBi |
| Transmitted Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Interface | 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
| Buttons | Reset |
| Dimensions | 6.30" x 6.30" x 1.30" |
| Temperature | Operating Temperature: 0 - 40°C (32 - 104°F) Storage Temperature: -40 - 70°C (-40 - 158°F) |
| Humidity | Operating Humidity: 10 - 90% RH non-condensing Storage Humidity: 5 - 90% RH non-condensing |
| Shipping weight | 0.82 kg |
| Package size | 240 × 230 × 62 mm |
Questions about this item
What speed does the single Gigabit Ethernet port cap real-world throughput at?
The RJ-45 port is a 1 Gigabit interface, so wired traffic cannot exceed 1 Gbps even though the radios can reach 1.8 Gbps combined.
What ceiling cut-out and clearance does the 160 mm × 33.6 mm body need?
The ultra-slim housing is 160 mm in diameter and 33.6 mm thick; it mounts flush with the supplied bracket and needs only the depth behind the ceiling tile.
Does the unit power up from a standard 802.3at PoE+ switch port without the DC adapter?
Yes — the access point supports IEEE 802.3at PoE+ and Passive PoE, so a compliant switch port alone will start it.
