TP-Link
TP-Link EAP610-OUTDOOR WiFi6 AX1800 Outdoor Access Point
Weatherproof WiFi 6 access point delivers 1.8 Gbps dual-band speeds with IP67 protection and PoE+ power for outdoor networks
- ColorWhite
- StandardsIEEE 802.11ax/ac/n/g/b/a
- Wireless Data RatesAX1800
- Security• Captive Portal Authentication • Access Control • Wireless
- Frequency Band2.4 GHz, 5 GHz
- Antenna• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
- Wi-Fi 6 reaches 1.8 Gbps across dual bands for fast outdoor coverage

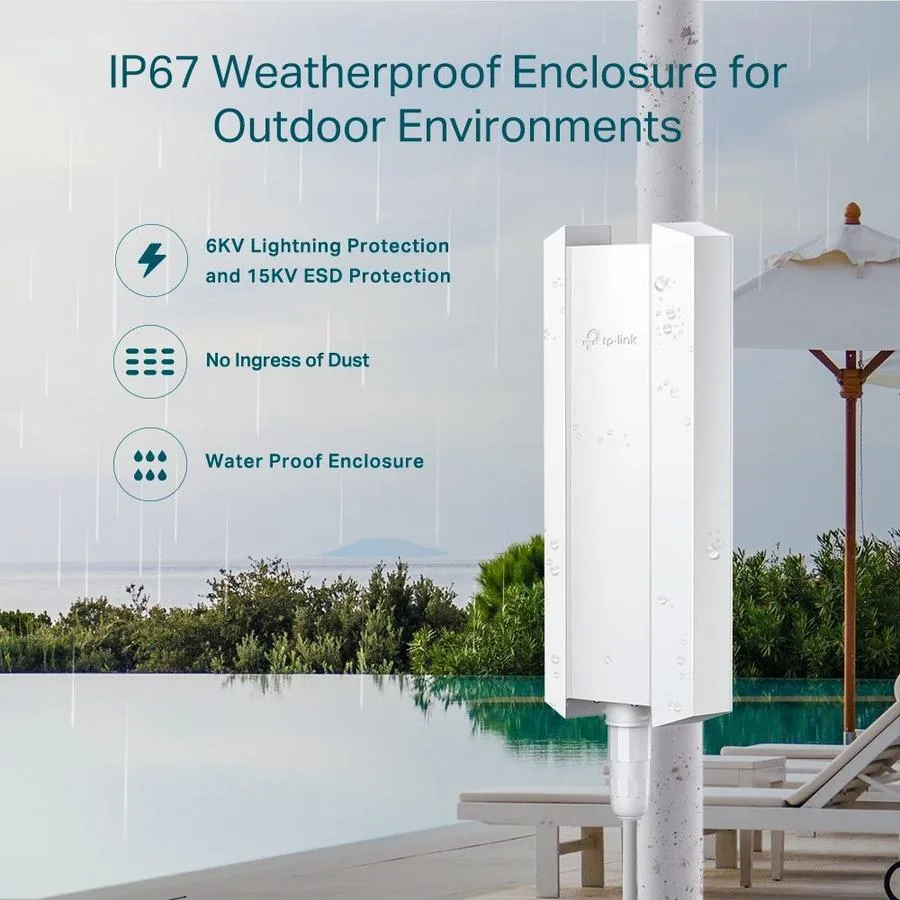

- IP67 enclosure protects the unit from rain dust and harsh weather
- PoE+ or 48 V passive PoE powers the AP over a single cable
- Omada SDN gives central cloud or on-premise control from one interface
- OFDMA and MU-MIMO serve dozens of clients at the same time
Outdoor WiFi6 Access Point
The TP-Link EAP610-Outdoor is a dual-band wireless access point built for exterior environments. It delivers AX1800 speeds across 2.4 GHz and 5 GHz bands using WiFi6 technology. The IP67-rated enclosure protects internal components from dust and water ingress. This unit suits installers who need managed connectivity for gardens, courtyards or open-air venues.
Sustained outdoor operation

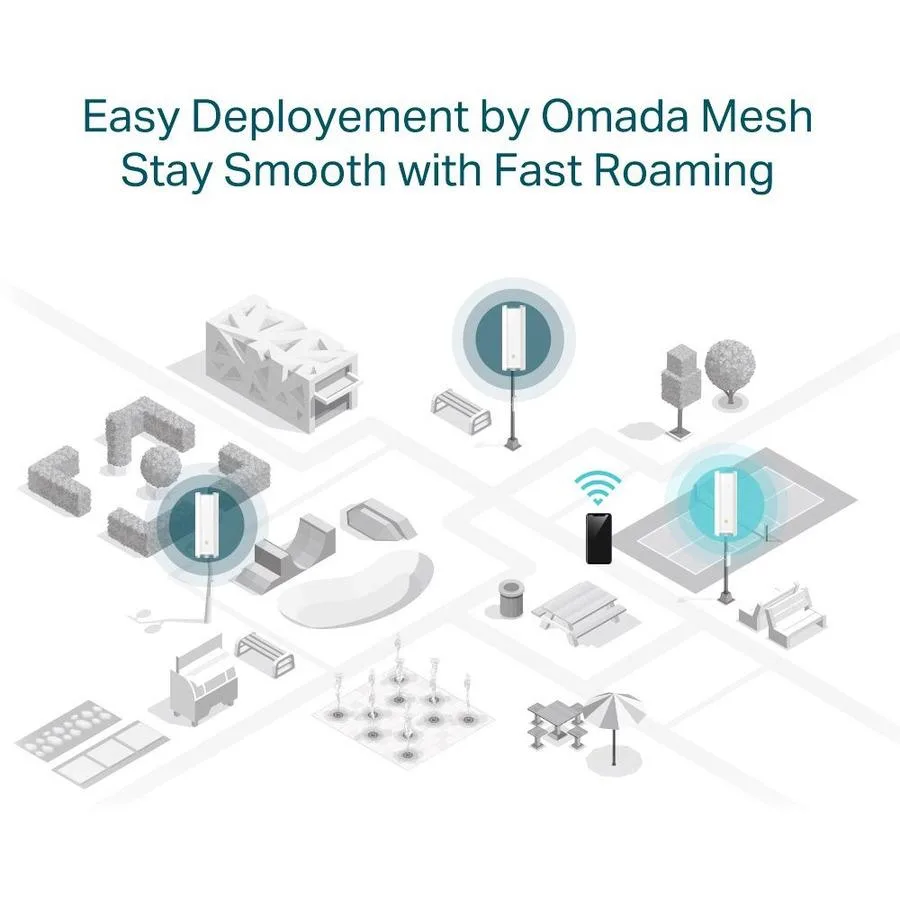

The weatherproof housing and high-gain antennas maintain signal quality during extended exposure to rain, heat or cold. OFDMA and MU-MIMO handle dozens of simultaneous clients without the throughput collapse seen in burst-only designs. Omada SDN integration allows central firmware updates and load balancing across multiple units. Mesh and seamless roaming functions require an Omada controller to operate.
Single Gigabit PoE port
The only wired interface is one RJ-45 port accepting 802.3at PoE+ or the included 48V passive PoE adapter. No second Ethernet port exists for daisy-chaining or a wired backhaul link. Buyers needing multi-port aggregation or fibre uplink capability must select a different model. Power and data share the single cable run.
Highlights
- Wi-Fi 6 reaches 1.8 Gbps across dual bands for fast outdoor coverage
- IP67 enclosure protects the unit from rain dust and harsh weather
- PoE+ or 48 V passive PoE powers the AP over a single cable
- Omada SDN gives central cloud or on-premise control from one interface
- OFDMA and MU-MIMO serve dozens of clients at the same time
Specifications
| Brand | TP-Link |
|---|---|
| Model | EAP610-Outdoor |
| Part Number | EAP610-Outdoor |
| Color | White |
| Standards | IEEE 802.11ax/ac/n/g/b/a |
| Wireless Data Rates | AX1800 |
| Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Frequency Band | 2.4 GHz, 5 GHz |
| Antenna | • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Buttons | Reset |
| LAN Ports | 1 |
| MIMO | Access Point Mode |
| Power Supply | • 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included) |
| Compliance | 2AXJ4EAP610OD |
| Dimensions | 280.4 in x 106.5 in x 56.8 in |
| Weight | 0.81 kilograms |
| Features | Access Point Mode |
| Package Contents | • Access Point EAP610-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Kits • Waterproof Antenna • Installation Guide |
| Shipping weight | 1.41 kg |
| Package size | 325 × 241 × 69 mm |
Questions about this item
How much power does the 802.3at PoE+ port draw when the EAP610-Outdoor runs 24/7?
The unit is powered by 802.3at PoE+ or the included 48 V passive PoE adapter; actual draw depends on traffic load and ambient temperature.
What cabling and mounting gear must I already have to install this access point outdoors?
You need a Cat5e or better Ethernet run to the mounting location and a pole or wall surface for the supplied brackets; the PoE adapter and waterproof kits are in the box.
Will the AX1800 dual-band radios work smoothly with older 802.11n devices on the same SSID?
Yes, the AP supports 802.11ax/ac/n/g/b/a simultaneously, so legacy clients connect at their rated speeds while WiFi6 devices use OFDMA and MU-MIMO.
