TP-Link
TP-Link EAP225 AC1350 Gigabit Wireless Access Point
Dual-band ceiling-mount access point delivering 1350 Mbps combined throughput with MU-MIMO, managed centrally via Omada SDN and powered by PoE
- StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
- Wireless Data RatesAC1350 / Up to 1.35Gbps
- SecurityCaptive Portal Authentication Access Control Wireless Mac Ad
- Frequency Band2.4 GHz / 5 GHz
- Antenna3 x Internal Omni 2.4 GHz: 4 dBi 5 GHz: 5 dBi
- Transmitted PowerCE: <= 20 dBm (2.4 GHz, EIRP) <= 23 dBm (5 GHz, EIRP) FCC: <
- Dual-band Wi-Fi reaches 1350 Mbps with MU-MIMO technology
- Single PoE cable delivers power and data without extra wiring
- Free controller software manages hundreds of access points centrally
- Ceiling-mount design fits standard junction boxes for clean installation
- Enterprise security includes captive portal, VLAN mapping and rogue AP detection

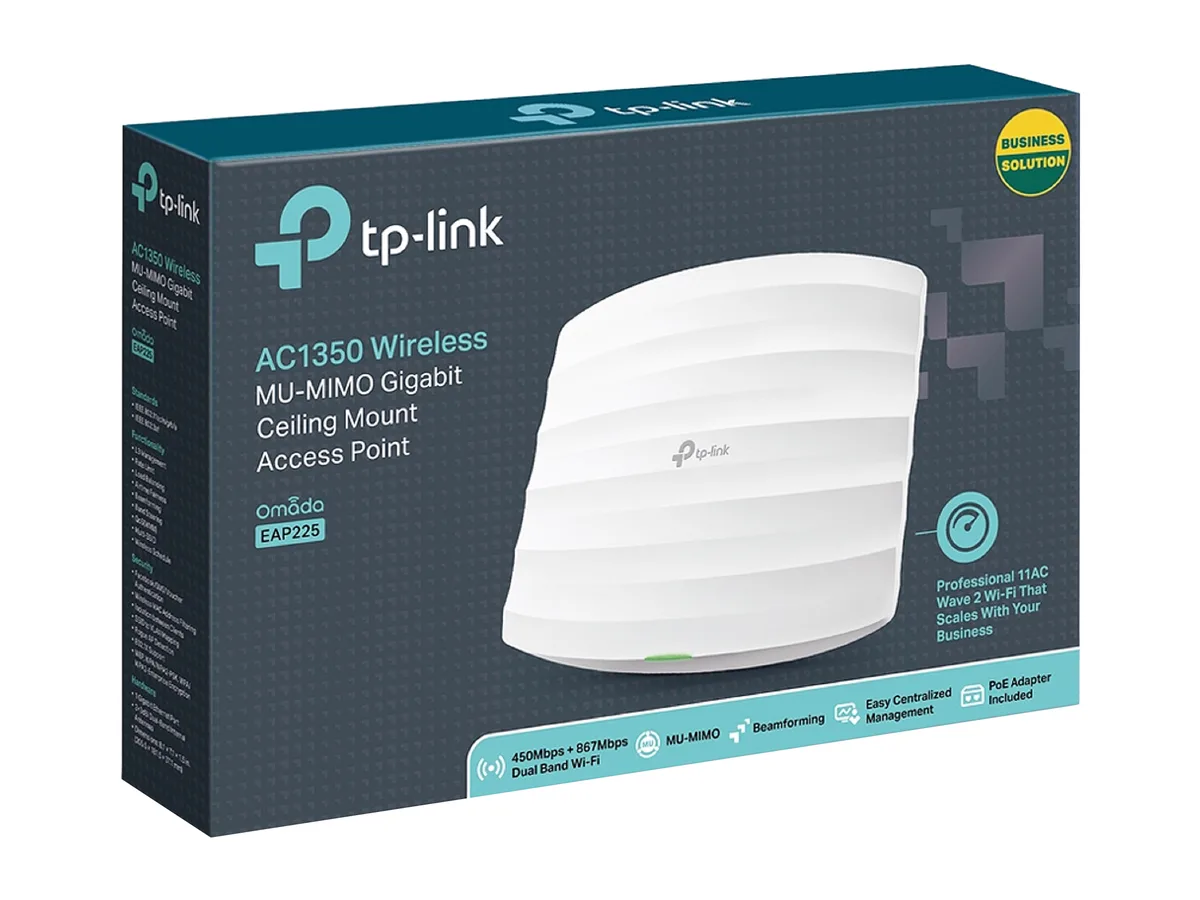

Ceiling-mount AC1350 access point
The TP-Link EAP225 is a dual-band wireless access point delivering up to 1350 Mbps combined throughput for business environments. It targets offices, schools and hospitality venues that need centralised Wi-Fi management without a dedicated hardware controller.
PoE-powered installation
A single Ethernet cable supplies both data and power through 802.3af or passive PoE, so no separate mains wiring is required. The package includes mounting brackets for standard 86 mm junction boxes and ceiling surfaces, though installers must verify cable reach before fixing the unit in place.
Gigabit uplink bottleneck
The single 1 Gbps Ethernet port caps total wireless throughput to wired-network speed, so aggregate client traffic cannot exceed that link. The 2.4 GHz and 5 GHz radios share the same backhaul, and the device operates only within the 0–40 °C temperature range specified for indoor use.
Highlights
- Dual-band Wi-Fi reaches 1350 Mbps with MU-MIMO technology
- Single PoE cable delivers power and data without extra wiring
- Free controller software manages hundreds of access points centrally
- Ceiling-mount design fits standard junction boxes for clean installation
- Enterprise security includes captive portal, VLAN mapping and rogue AP detection
Specifications
| Brand | TP-Link |
|---|---|
| Model | EAP225 |
| Standards | IEEE 802.11ac, IEEE 802.11a/b/g/n |
| Wireless Data Rates | AC1350 / Up to 1.35Gbps |
| Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Frequency Band | 2.4 GHz / 5 GHz |
| Antenna | 3 x Internal Omni 2.4 GHz: 4 dBi 5 GHz: 5 dBi |
| Transmitted Power | CE: <= 20 dBm (2.4 GHz, EIRP) <= 23 dBm (5 GHz, EIRP) FCC: <= 24 dBm (2.4 GHz) <= 22 dBm (5 GHz) |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Interface | 1 x Gigabit Ethernet (RJ-45) Port (Support IEEE 802.3af PoE and Passive PoE) |
| Buttons | Reset |
| Power Supply | Power Supply 802.3af PoE and passive PoE Power Consumption: EU: 10.5W US: 12.6W |
| Temperature | Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
| Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Dimensions | 1.50" x 8.10" x 7.10" |
| Features | Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds Free EAP Controller Software lets administrators easily manage hundreds of EAPs Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible Captive portal provides a convenient method for guest authentication Band Steering Automatically moves dual band devices onto the wider 5 GHz band for faster connections MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections Beamforming concentrates signal towards where you need it m |

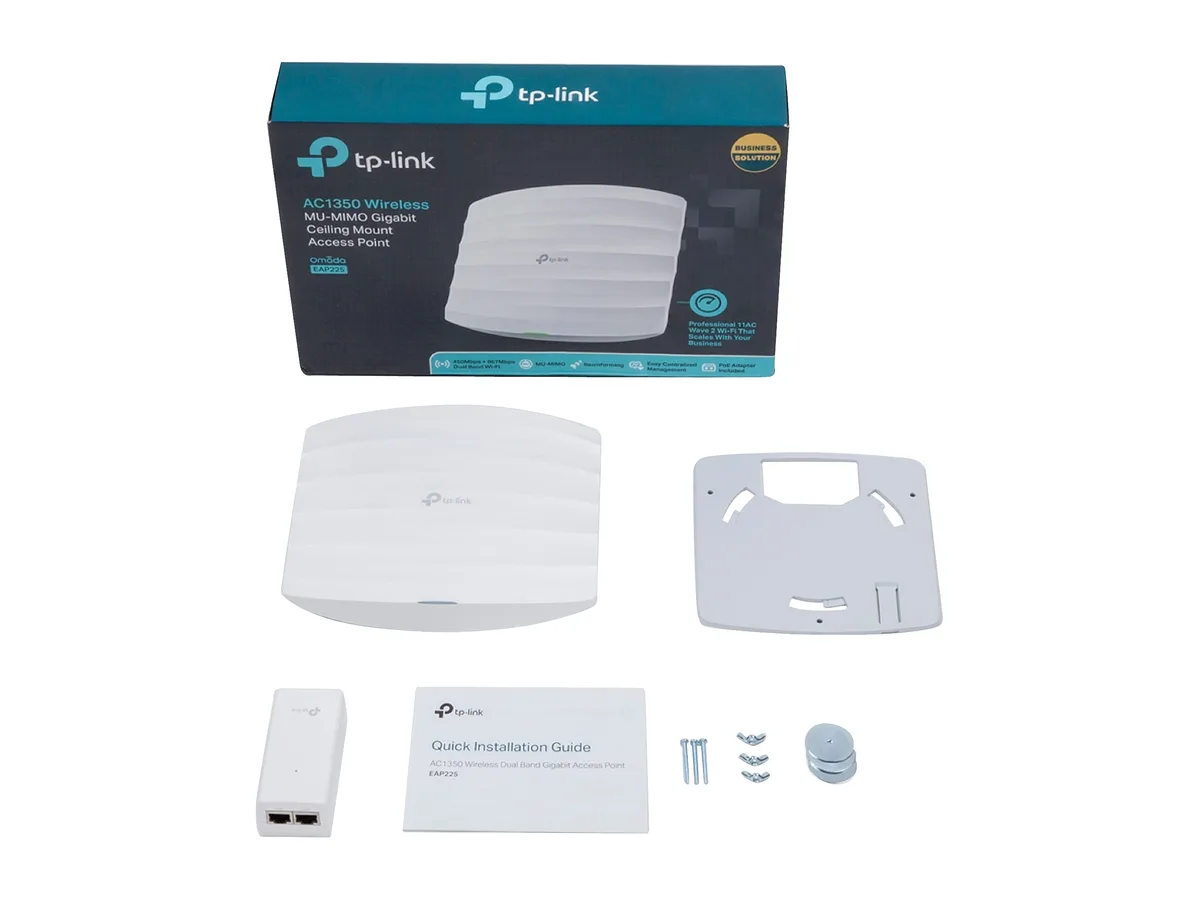

| Package Contents | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| Shipping weight | 0.89 kg |
| Package size | 340 × 229 × 66 mm |
Questions about this item
How do I confirm the EAP225 is delivering the stated 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz after installation?
Use the free EAP Controller Software to view real-time client throughput and run a local speed test from a device connected to each band; the dashboard shows per-band rates so you can verify the 450 Mbps and 867 Mbps figures.
What comes in the box and what must I supply separately for a PoE installation?
The package includes the EAP225 access point, a passive PoE adapter, a power cord and mounting kits; you only need to provide a Cat5e or better Ethernet cable and a PoE-capable switch or injector if you prefer 802.3af power instead of the bundled adapter.
Which version of the EAP225 should I choose for EU ceiling mounting with 802.3af PoE?
The single model EAP225 supports both EU and US wall boxes, operates at 10.5 W in the EU, and accepts IEEE 802.3af PoE, so the standard unit covers ceiling mounting and 802.3af power without a separate SKU.
