White rectangular outdoor access point with two external antennas and mounting bracket

TP-Link

TP-Link EAP110-Outdoor_V3 300 Mbps outdoor access point

SKU CH-H0AV-9HWB9 MPN EAP110-Outdoor_V3

Outdoor wireless access point delivering 300 Mbps on 2.4 GHz with weatherproof housing, passive PoE and centralised management

  • StandardsIEEE 802.11b/g/n
  • Wireless Data RatesUp to 300Mbps
  • SecurityCaptive Portal Authentication Access Control Wireless Mac Ad
  • Frequency Band2.4 GHz
  • Antenna2 x 3 dBi External Omni waterproof
  • Transmitted Power< 27 dBm
  • Delivers up to 300 Mbps Wi-Fi with 2x2 MIMO technology
  • Weatherproof enclosure operates from -30 °C to 65 °C

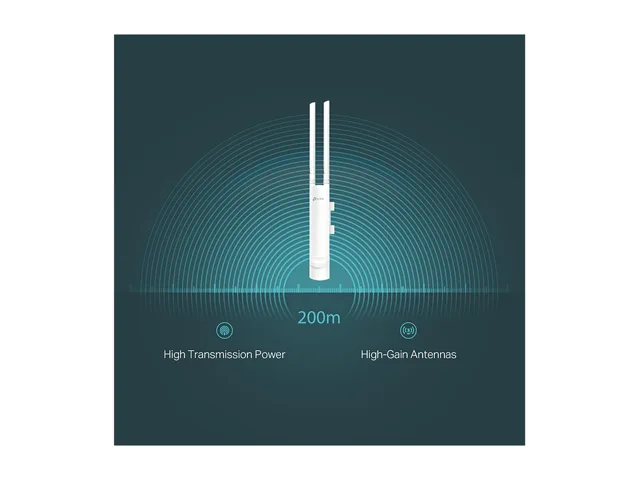

  • High-gain 3 dBi antennas extend outdoor coverage range
  • Powered by 24 V passive PoE with injector included
  • Centralised management via free Auranet Controller software

Outdoor wireless access point

The TP-Link EAP110-Outdoor V3 is a 2.4 GHz wireless access point built for outdoor Wi-Fi applications. It delivers up to 300 Mbps with 2x2 MIMO technology and includes a passive PoE injector for simplified cabling. A weatherproof enclosure rated for -30 to 65 °C operation ensures durability in exposed locations. Centralised management is available through the free Auranet Controller software.

Suitable uses and limits

This unit suits installers needing a cost-effective outdoor hotspot with captive portal guest authentication and VLAN mapping. It is not for buyers who require 5 GHz band support, repeater or bridge operation, or aggregate throughput beyond the single Fast Ethernet uplink. Sites demanding 802.11ac or ax performance should look at other models.

Deciding specification

The wireless standard is IEEE 802.11b/g/n with a maximum PHY rate of 300 Mbps on the 2.4 GHz band. This single figure determines whether the access point matches the bandwidth and compatibility needs of the deployment.

Highlights

  • Delivers up to 300 Mbps Wi-Fi with 2x2 MIMO technology
  • Weatherproof enclosure operates from -30 °C to 65 °C
  • High-gain 3 dBi antennas extend outdoor coverage range
  • Powered by 24 V passive PoE with injector included
  • Centralised management via free Auranet Controller software

Specifications

BrandTP-Link
ModelEAP110-Outdoor V3
StandardsIEEE 802.11b/g/n
Wireless Data RatesUp to 300Mbps
SecurityCaptive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64 / 128 / 152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Frequency Band2.4 GHz
Antenna2 x 3 dBi External Omni waterproof
Transmitted Power< 27 dBm
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Interface1 x Fast Ethernet (RJ-45) Port (Support Passive PoE)
ButtonsReset
Power SupplyPower Supply: 24V Passive PoE (+4, 5 pins; -7, 8 pins. PoE Adapter Included)
Power Consumption: 3.1W
TemperatureOperating Temperature: -30 ~ 65 degree Celsius (-22 ~ 149 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Dimensions1.70" x 8.20" x 3.70"
FeaturesBuilt for outdoor Wi-Fi applications
Up to 300 Mbps Wi-Fi with 2x2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Durable, weatherproof enclosure to withstand fair and foul weather
Passive PoE (Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Supports management vlan for an enhanced network management
Package Contents300 Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kit
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide
Shipping weight0.58 kg
Package size272 × 140 × 102 mm
