TP-Link

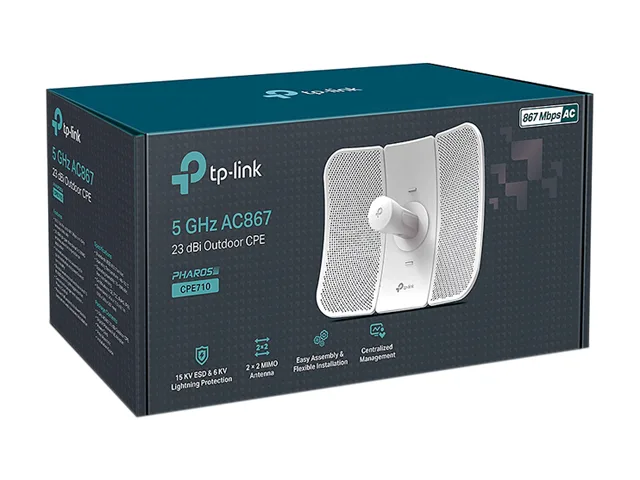

TP-Link CPE710 5 GHz 867 Mbps 23 dBi outdoor access point
5 GHz outdoor access point delivers 867 Mbps over long distances with a 23 dBi directional antenna and IP65 weatherproof enclosure
- StandardsIEEE 802.11ac
- Frequency Band5.15-5.85 GHz
- Transmitted PowerMax. 27 dBm (Adjustable power by 1dBm)
- Interface1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Eth
- ButtonsRemote Reset Button
- Power SupplyInput: 100-240VAC, 50/60Hz Output: 24VDC, 0.5A Max, +4, 5pin
- Speeds up to 867 Mbps with 256 QAM and 80 MHz bandwidth
- 23 dBi directional antenna for long-range point-to-point and point-to-multipoint links
- IP65 weatherproof enclosure with 15 kV ESD and 6 kV lightning protection
- Pharos Control centralised management for multiple devices from one PC
- Passive PoE powered up to 60 m with included 24 V injector
Outdoor long-range wireless CPE
The TP-Link CPE710 is a 5 GHz outdoor access point built for point-to-point and point-to-multipoint links. It delivers up to 867 Mbps using 256 QAM and an 80 MHz channel on the 5.15–5.85 GHz band. The integrated 23 dBi directional antenna focuses the signal for extended reach and noise immunity. Installers and ISPs use it to bridge buildings or serve remote sites without fibre.
Bundled PoE injector and pole mounts
A 24 V 0.5 A passive PoE adapter ships in the box, powering the unit over the shielded Ethernet cable up to 60 metres. Two Gigabit Ethernet ports separate power-plus-data from data-only cabling. Snap-lock pole-mounting kits and three-axis alignment simplify aiming on masts or walls. The package also includes an AC power cord and an installation guide for immediate deployment.
IP65 enclosure with surge protection
The weatherproof housing meets IP65 and operates from -40 °C to 70 °C with 10–90 % non-condensing humidity. Built-in 15 kV ESD and 6 kV lightning protection shield the radio and Ethernet ports from outdoor surges. A remote reset button allows power cycling without climbing the structure. Pharos Control software and the web-based PharOS interface provide centralised management for multi-site networks.
Highlights
- Speeds up to 867 Mbps with 256 QAM and 80 MHz bandwidth
- 23 dBi directional antenna for long-range point-to-point and point-to-multipoint links
- IP65 weatherproof enclosure with 15 kV ESD and 6 kV lightning protection
- Pharos Control centralised management for multiple devices from one PC
- Passive PoE powered up to 60 m with included 24 V injector
Specifications
| Brand | TP-Link |
|---|---|
| Model | CPE710 |
| Standards | IEEE 802.11ac |
| Frequency Band | 5.15-5.85 GHz |
| Transmitted Power | Max. 27 dBm (Adjustable power by 1dBm) |
| Interface | 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Buttons | Remote Reset Button |
| Power Supply | Input: 100-240VAC, 50/60Hz Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Temperature | Operating Temperature: -40°C~70°C (-40°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Dimensions | 3.30" x 1.70" x 1.20" |
| Package Contents | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide |
| Shipping weight | 1.59 kg |
| Package size | 330 × 159 × 159 mm |
Questions about this item
Will the 23 dBi directional antenna need periodic realignment or cleaning?
The antenna is fixed inside an IP65 weatherproof enclosure rated for -40 °C to 70 °C operation; no moving parts require adjustment, and the sealed housing protects the radiating elements from dust and moisture.
What limits throughput first during a continuous 867 Mbps link — the 10/100/1000 Ethernet port or the 80 MHz 5 GHz radio?
The single gigabit Ethernet port caps wired throughput at 1000 Mbps, while the 2×2 MIMO radio peaks at 867 Mbps; under sustained load the wireless link reaches its ceiling before the wired interface does.
How much heat and noise does the CPE710 produce when powered 24/7 via the 24 V 0.5 A passive PoE injector?
The unit has no fan and draws a maximum of 0.5 A at 24 V from the supplied injector; its IP65 metal enclosure passively dissipates heat across the -40 °C to 70 °C operating range with silent operation.
