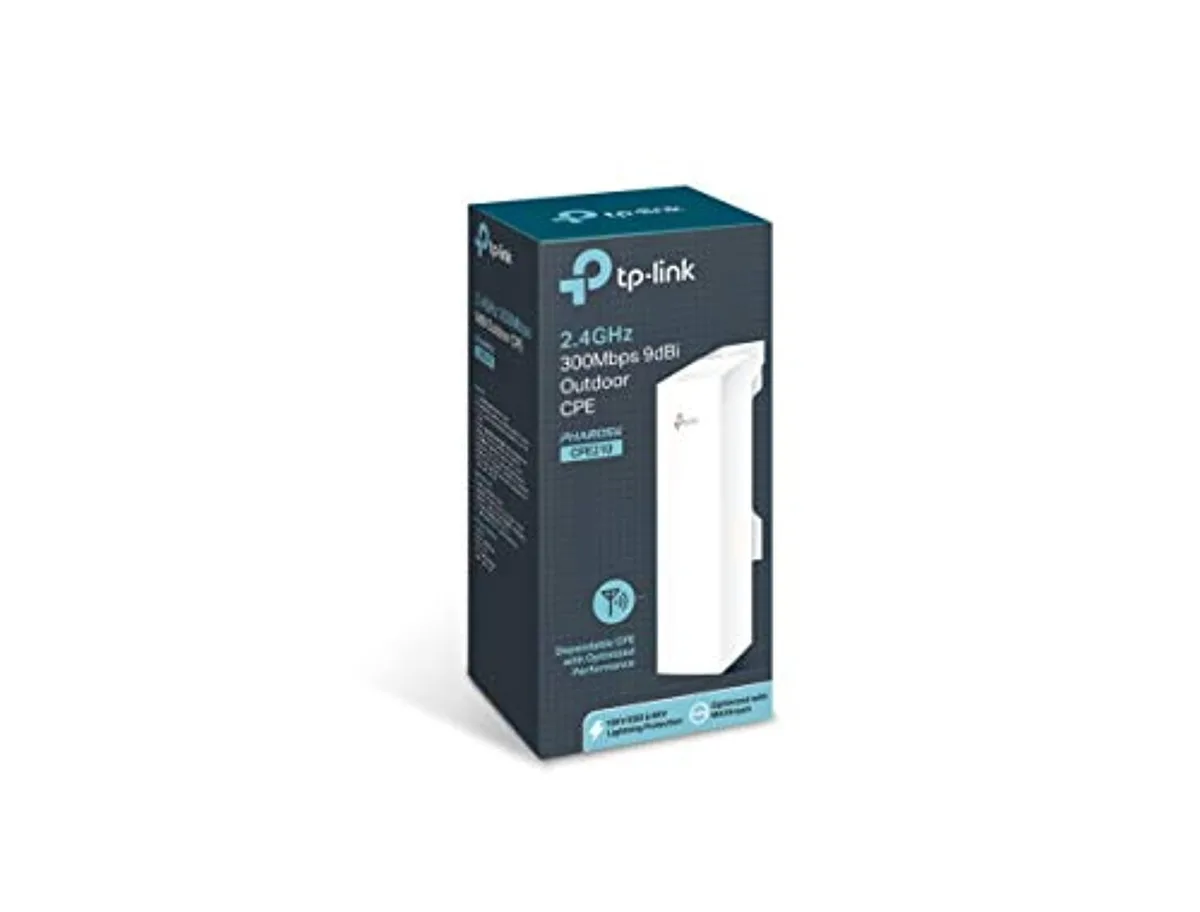

TP-Link CPE210 2.4GHz N300 9dBi Outdoor Wireless Range Extender
Outdoor 2.4 GHz N300 extender with a 9 dBi directional antenna for point-to-point or point-to-multipoint links up to 5 km, powered via passive PoE up to 60 metres
- 9dBi directional antenna focuses signal for long-range outdoor links
- Adjustable power up to 27dBm extends reach in noisy environments
- Pharos TDMA technology reduces latency and boosts throughput for PtP and PtMP
- Passive PoE supports 60 metre cable runs with remote reset capability
- Multiple operation modes cover AP, client, router and WISP deployments
Outdoor Wireless CPE for Long-Range Links
The TP-Link CPE210 is a 2.4 GHz N300 outdoor wireless range extender and media bridge built for point-to-point and point-to-multipoint transmission. It integrates a 9 dBi dual-polarised directional MIMO antenna and adjustable transmit power up to 27 dBm for links beyond five kilometres. The unit runs on a Qualcomm Atheros 560 MHz CPU with 64 MB DDR2 RAM and 8 MB Flash. Management is centralised through the Pharos Control system with TDMA scheduling.
Replaces Omnidirectional Gear for Focused Reach
This device upgrades installations that previously relied on omnidirectional antennas or indoor hardware by concentrating signal into a narrow beam. The jump is worthwhile when you need reliable throughput over hundreds of metres or several kilometres with clear line of sight. Passive PoE allows a single shielded Ethernet cable to carry both data and power up to 60 metres, simplifying mast or rooftop mounting and enabling remote reset.
Suits Installers Building PtP or PtMP Backbones
It fits installers creating wireless backbones, extending campus networks or bridging buildings where fibre is impractical. Buyers who need omnidirectional coverage for client access, 5 GHz operation, or gigabit Ethernet backhaul should look at other products. The single 10/100 Mbps port and 2.4 GHz radio limit peak throughput for high-density or high-bandwidth scenarios.
Highlights
- 9dBi directional antenna focuses signal for long-range outdoor links
- Adjustable power up to 27dBm extends reach in noisy environments
- Pharos TDMA technology reduces latency and boosts throughput for PtP and PtMP
- Passive PoE supports 60 metre cable runs with remote reset capability
- Multiple operation modes cover AP, client, router and WISP deployments
Specifications
No published specifications for this item yet.
Questions about this item
What mounting hardware is included for the 9dBi directional antenna?
The unit has a built-in 9dBi 2x2 dual-polarised MIMO antenna and includes a grounding terminal; the supplied passive PoE injector powers it over a shielded Ethernet cable up to 60 metres.
How do I power the CPE210 using the passive PoE injector, and what cable length is supported?
Connect the injector to the shielded Ethernet port marked Passive PoE in; the injector supports cable runs up to 60 metres (200 feet) and allows remote reset of the device.
When should I replace the passive PoE injector or the shielded Ethernet cable?
Replace the injector if the CPE210 no longer powers on or resets unreliably; replace the shielded Ethernet cable if the link drops or speed falls below the 10/100 Mbps port rating.
