TP-Link

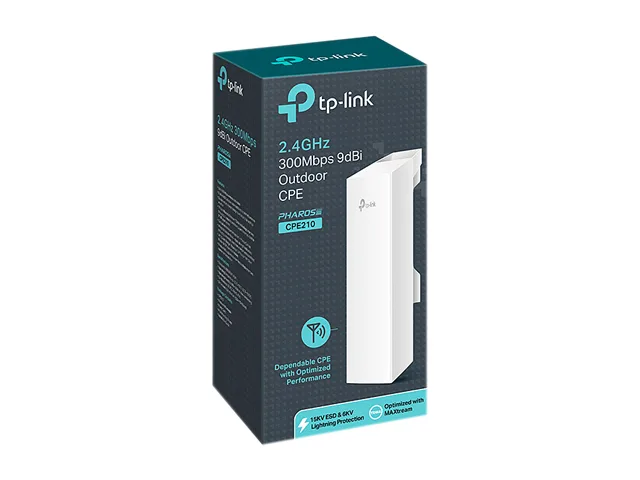

TP-Link CPE210 2.4 GHz 300 Mbps 9 dBi Outdoor Access Point
Outdoor wireless access point with a 9 dBi directional antenna for point-to-point or point-to-multipoint links up to 5 km at 300 Mbps, powered by a passive PoE injector
- StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
- Wireless Data RatesUp to 300Mbps
- Frequency Band2.4 GHz - 2.483 GHz
- AntennaBuilt-in 9 dBi 2x2 Dual-polarized Directional Antenna Beam W
- Transmitted Power27 dBm / 500mw (Adjustable power by 1 dBm) Note: Maximum tra
- System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, W
- Long-range links beyond 5 km with 9 dBi directional antenna
- Adjustable output up to 27 dBm for reliable outdoor coverage
- Centralised Pharos Control manages multiple units from one console
- Passive PoE injector powers device over 60 m of Ethernet cable
- Operates from -30 °C to 70 °C in harsh weather
Outdoor 2.4 GHz Point-to-Point Bridge
The TP-Link CPE210 is a 2.4 GHz outdoor wireless access point built for point-to-point and point-to-multipoint links up to 5 km. It delivers up to 300 Mbps using a built-in 9 dBi dual-polarized directional antenna with 65 degree horizontal and 35 degree vertical beam width. Adjustable transmit power reaches 27 dBm for long-range connectivity. The unit operates on passive PoE and includes a PoE injector for simplified deployment.
Thermals Noise and Power in Normal Use
The device operates from -30 to 70 degree Celsius and handles 10 to 90 percent non-condensing humidity for reliable outdoor performance. Maximum power consumption is rated at 10.5 watts, though passive PoE cable length increases draw at the source. A grounding terminal and shielded Ethernet port protect against static and surges. The passive PoE adapter supports cable runs up to 60 metres and includes a remote reset button for maintenance.
Bundled Accessories and Management Software
The package includes the outdoor CPE, a 24V 1A passive PoE adapter, pole mounting straps, an AC power cord and an installation guide. Pharos Control software enables centralised management of multiple devices across the network. TDMA technology improves throughput, capacity and latency for PtP and PtMP transmissions. Four operation modes cover AP, client, AP router and AP client router (WISP) configurations.
Highlights
- Long-range links beyond 5 km with 9 dBi directional antenna
- Adjustable output up to 27 dBm for reliable outdoor coverage
- Centralised Pharos Control manages multiple units from one console
- Passive PoE injector powers device over 60 m of Ethernet cable
- Operates from -30 °C to 70 °C in harsh weather
Specifications
| Brand | TP-Link |
|---|---|
| Model | CPE210 |
| Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Wireless Data Rates | Up to 300Mbps |
| Frequency Band | 2.4 GHz - 2.483 GHz |
| Antenna | Built-in 9 dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65 degree (H-Plane) / 35 degree (E-Plane) |
| Transmitted Power | 27 dBm / 500mw (Adjustable power by 1 dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Interface | 1 x 10/100 Mbps Shielded Ethernet Port (Passive PoE in) 1 x Grounding Terminal 1 x Reset Button PoE Adapter: 1 x AC Jack with Ground 1 x 10/100/1000Mbps Shielded Ethernet Port (Power + Data) |
| Buttons | PoE Adapter: Remote Reset Button |
| Temperature | Operating Temperature: -30 ~ 70 degree Celsius (-22 ~ 158 degree Fahrenheit) Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
| Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Dimensions | 2.36" x 8.82" x 3.11" PoE Adapter: 1.32" x 4.33" x 2.24" |
| Features | Built-in 9 dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 27 dBm / 500mw System-level optimizations for more than 5km long range wireless transmission TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications Centralized Management System - Pharos Control AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment a |
| Package Contents | Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Shipping weight | 0.82 kg |
| Package size | 269 × 135 × 107 mm |
Questions about this item
How do I mount the CPE210 and align its 9 dBi directional antenna correctly?
Use the included pole mounting straps to secure the unit to a mast, then aim the 65 degree horizontal and 35 degree vertical beam toward the remote site; the Pharos Control signal meter helps fine-tune alignment for the 5 km plus link.
What parts of the CPE210 kit may need replacement after years outdoors?
The passive PoE injector and AC power cord are the only active components; the CPE itself has no moving parts, but the shielded Ethernet cable and grounding terminal should be inspected for corrosion after prolonged exposure.
At what temperature does the CPE210 hit its operating limit during sustained use?
The rated operating range tops out at 70 degree Celsius (158 degree Fahrenheit); above that the radio may throttle or shut down to protect itself.
