TP-Link
TP-Link Archer TX20U plus AX1800 Wi-Fi 6 USB Adapter
Adds Wi-Fi 6 to a PC via USB 3.0 with dual high-gain antennas and AX1800 speeds
- TypeUSB Wi-FI Adapter
- ColorBlack
- StandardsIEEE 802.11a/b/g/n/ac/ax
- Wireless Data RatesAX1800 / Up to 1.8Gbps
- WiFi GenerationWi-Fi 6
- SecurityWEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
- Stream flawless video with 1800 Mbps Wi-Fi 6 speeds
- Connect on 2.4 GHz or 5 GHz for the best signal

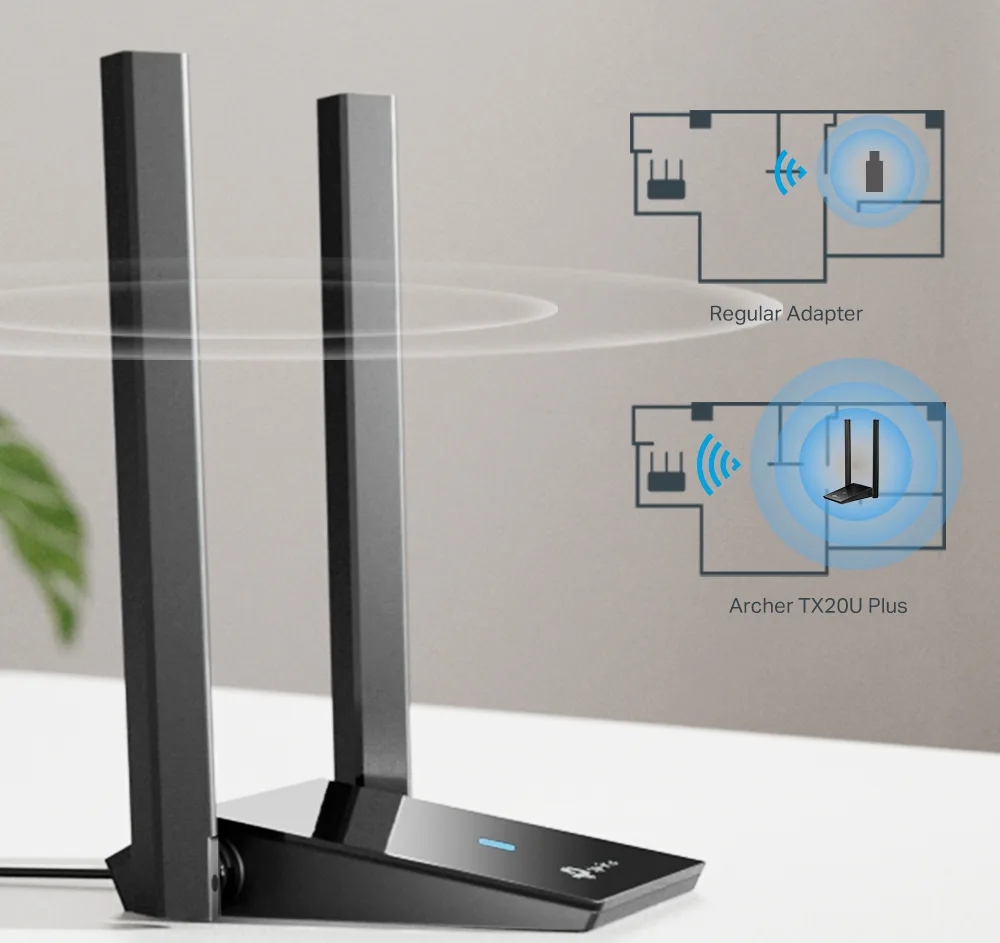

- Reach farther with two high-gain dual-band antennas
- Keep fast speeds when many devices share the network with MU-MIMO
- Cut latency for calls and games on busy networks with OFDMA
Wi-Fi 6 USB adapter for desktop PCs

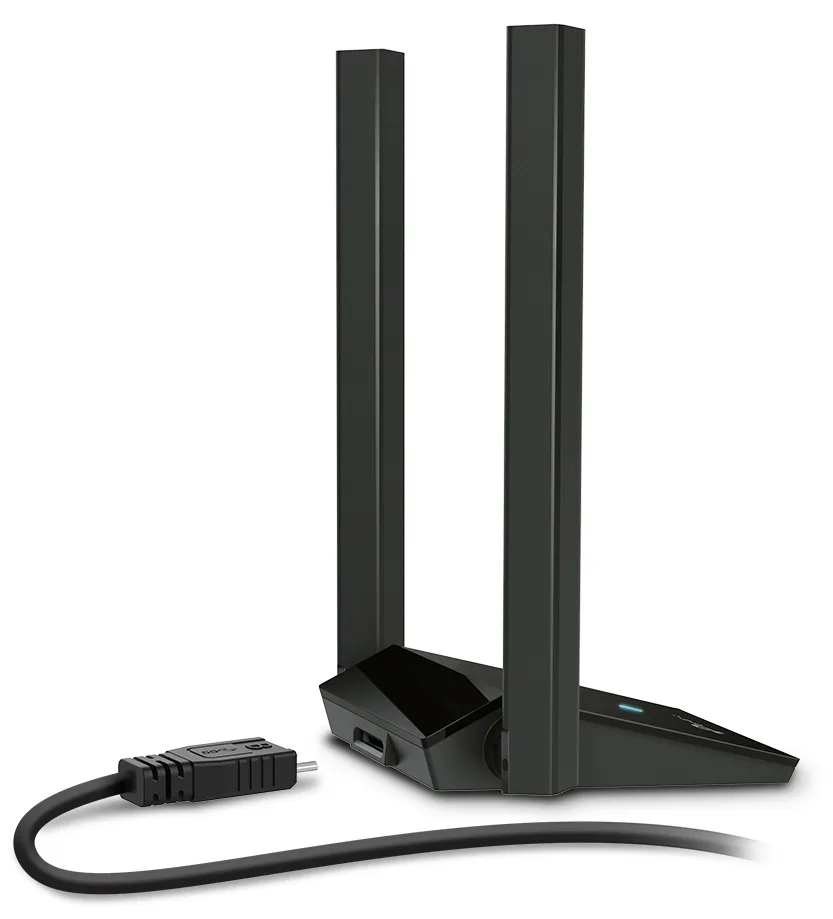

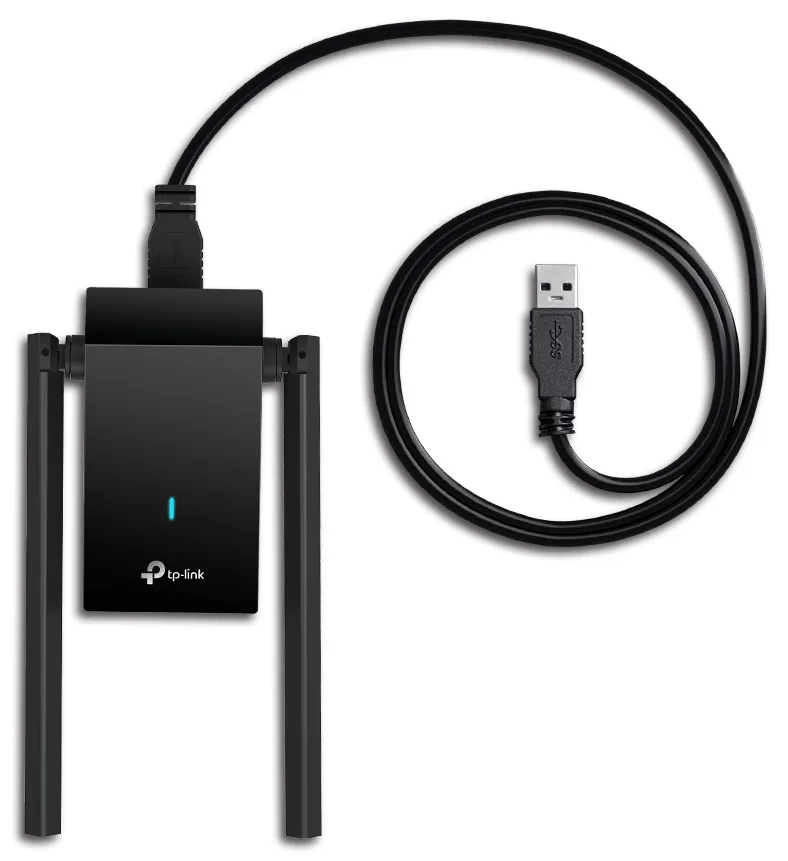

The TP-Link Archer TX20U plus is a USB wireless adapter that brings Wi-Fi 6 performance to a desktop or laptop. It supports dual-band operation at 2.4 GHz and 5 GHz with a combined data rate of up to 1800 Mbps. The device includes two high-gain antennas and a one-meter USB 3.0 cable for flexible placement.
Driver setup and antenna placement
Installation requires plugging the adapter into a USB 3.0 port and installing the driver on Windows 10 or 11. The external antennas screw onto the base and should be oriented vertically for best signal. A common issue is using a USB 2.0 port, which limits throughput to a fraction of the rated speed.
Port and operating system check
Verify that your computer has an available USB 3.0 Type-A port and runs Windows 10 or 11. The adapter does not support Linux or macOS according to the listed requirements. Ensure your router broadcasts on the 5 GHz band to use the higher 1201 Mbps link rate.
Highlights
- Stream flawless video with 1800 Mbps Wi-Fi 6 speeds
- Connect on 2.4 GHz or 5 GHz for the best signal
- Reach farther with two high-gain dual-band antennas
- Keep fast speeds when many devices share the network with MU-MIMO
- Cut latency for calls and games on busy networks with OFDMA
Specifications
| Brand | TP-Link |
|---|---|
| Model | Archer TX20U plus |
| Type | USB Wi-FI Adapter |
| Color | Black |
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Wireless Data Rates | AX1800 / Up to 1.8Gbps |
| WiFi Generation | Wi-Fi 6 |
| Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Frequency Band | 2.4 GHz / 5 GHz |
| LEDs | Status |
| Transmitted Power | 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) 2.4 GHz: 19dBm(FCC) / 14.5dBm(CE) (EIRP) |
| Antenna | 2 x High-Gain Dual-Band Antennas |
| System Requirements | Supported operating systems include Windows 10, 11 |
| Features | Lightning-Fast WiFi 6 - Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) Flexible Dual Band - Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands Dual High-Gain Antennas - Connect from farther away with high-quality signals and transmissions MU-MIMO - Maintain high download and upload speeds even when other devices are eating up your bandwidth OFDMA - Reduce your latency for impeccable conferencing and gameplay on crowded networks SuperSpeed USB 3.0 - Up to 10× faster transfer speeds than USB 2.0 Refined Security - Protec |
| Dimensions | 3.30" x 6.20" x 0.76" |
| Temperature | Operating Temperature: 0°C~40°C (32°F ~104°F) |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |

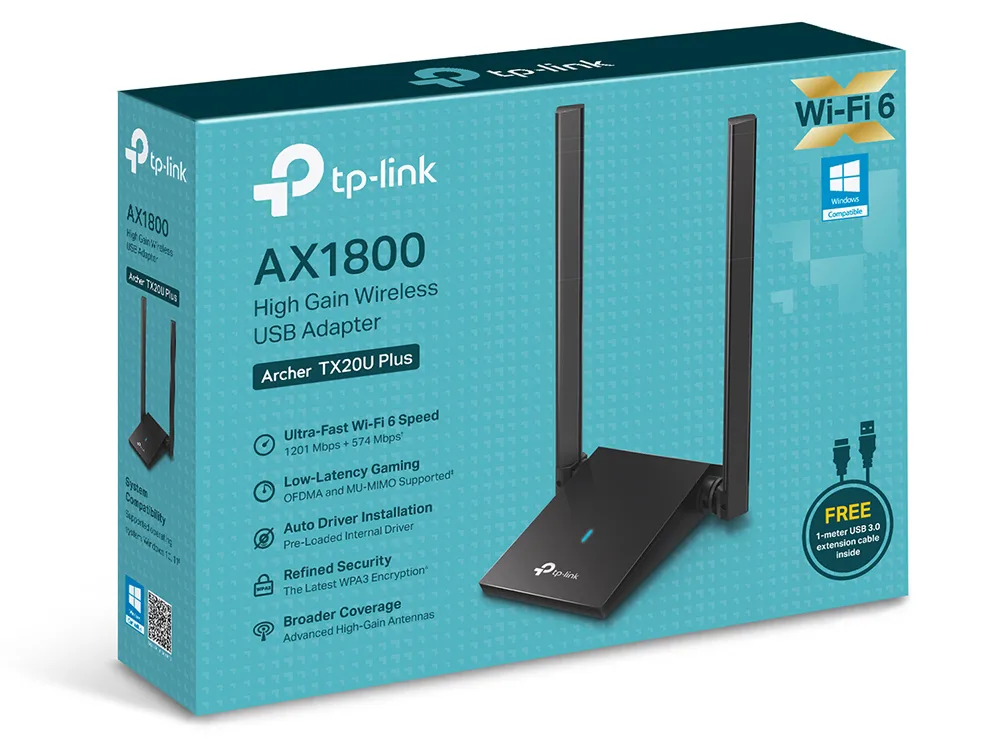

| Package Contents | AX1800 Dual Antennas High Gain Wireless USB Adapter Archer TX20U Plus Quick Installation Guide 1-meter USB 3.0 Cable |
| Shipping weight | 0.18 kg |
| Package size | 203 × 152 × 51 mm |
Questions about this item
How can I confirm the Archer TX20U plus is delivering the 1201 Mbps 5 GHz link after setup?
Connect the adapter via the included 1-meter USB 3.0 cable, install the driver on Windows 10 or 11, then check the wireless link speed in the OS network status or TP-Link utility — it should show up to 1201 Mbps on the 5 GHz band when associated with a compatible Wi-Fi 6 router.
What comes in the box and is any extra cable or antenna purchase required?
The package contains the Archer TX20U plus adapter with two fixed high-gain dual-band antennas, a quick installation guide and a 1-meter USB 3.0 cable; no additional cables or antennas are needed.
Which version of the Archer TX20U plus should I choose for the 1800 Mbps AX1800 rating?
The model listed is the single AX1800 version (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) with dual high-gain antennas and USB 3.0 — there are no other capacity or version options for this MPN.
