TP-Link
TP-Link Archer TBE550E Wi-Fi 7 BE9300 PCIe Wi-Fi adapter
Tri-band Wi-Fi 7 PCIe adapter reaching 5760 Mbps on 6 GHz with Bluetooth 5.4 and magnetised antenna base
- TypePCIE Wi-Fi Adapter
- StandardsIEEE 802.11a/b/g/n/ac/ax/be
- Wireless Data Rates6 GHz: 11be: Up to 5760 Mbps(dynamic) 11ax: Up t0 2402Mbps(d
- WiFi GenerationWi-Fi 7
- SecurityWPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
- InterfacePCI Express
- Tri-band Wi-Fi 7 reaches 5760 Mbps on 6 GHz
- Multi-Link Operation combines bands for 6452 Mbps throughput
- Two directional antennas with magnetic base optimise signal placement
- Bluetooth 5.4 improves security over Bluetooth 5.3
- Multicolor LED on antenna base shows connection status
Tri-Band Wi-Fi 7 PCIe Adapter

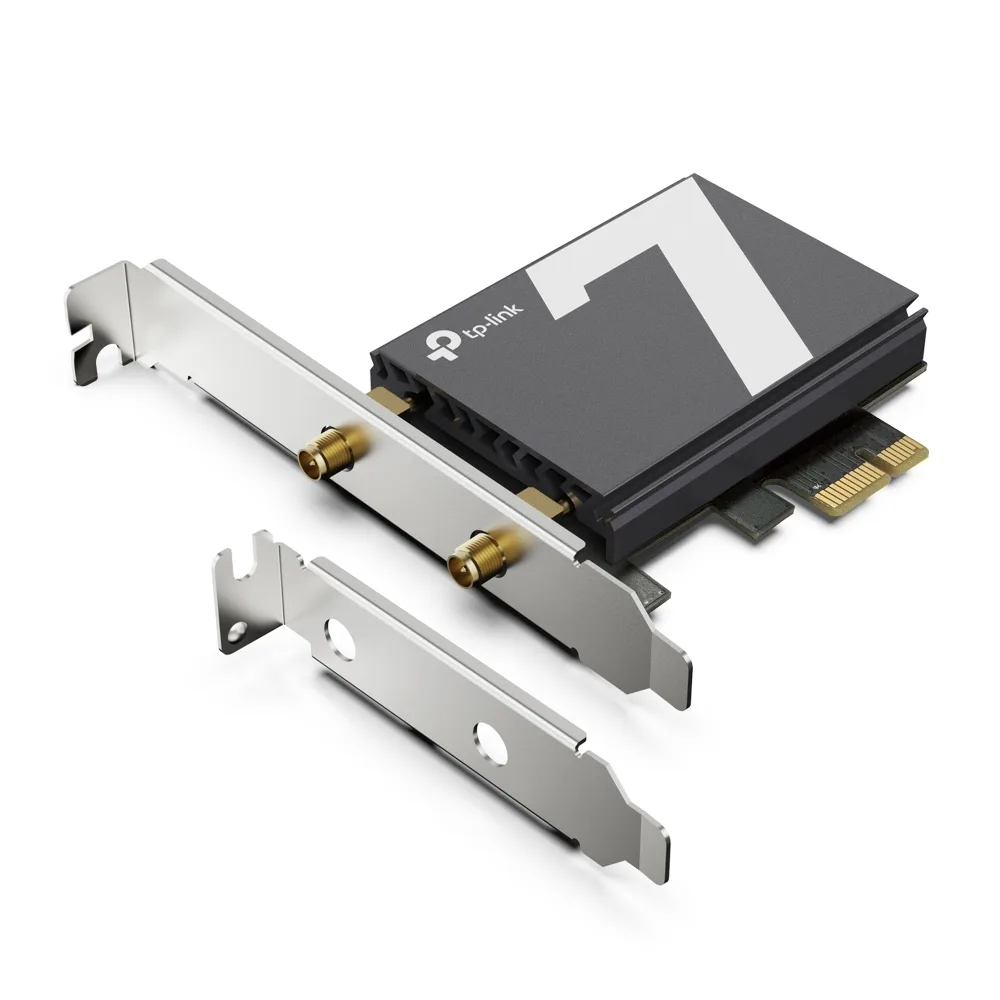

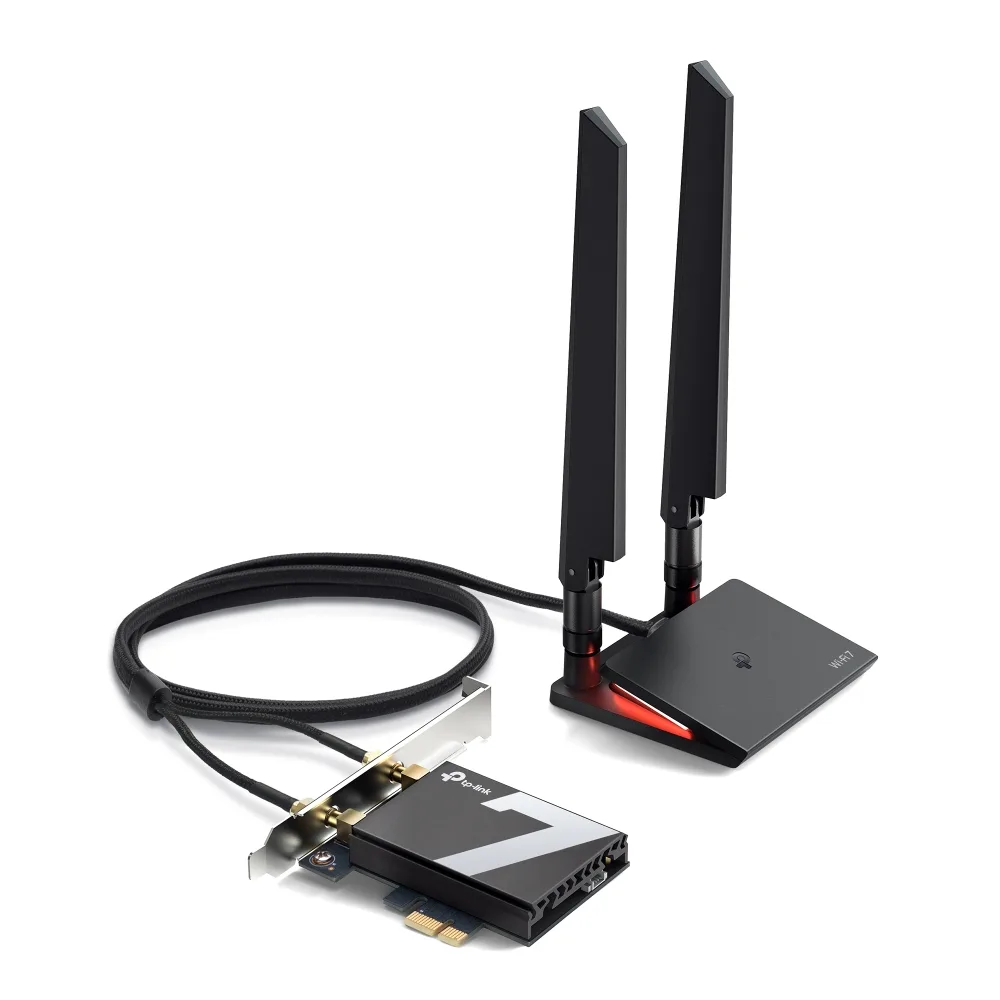

The TP-Link Archer TBE550E is a PCI Express wireless adapter that brings Wi-Fi 7 tri-band connectivity to a desktop PC. It operates across 2.4 GHz, 5 GHz and 6 GHz bands with maximum PHY rates of 688 Mbps, 2880 Mbps and 5760 Mbps respectively. The card also integrates Bluetooth 5.4 and includes a magnetised antenna base with two high-performance antennas, a low-profile bracket and a resource USB driver drive. Windows 11 64-bit is the only supported operating system.
Desktop Builders Needing 6 GHz Access
This adapter suits owners of a compatible Wi-Fi 7 router who want to add 6 GHz capability and Multi-Link Operation to an existing tower without replacing the motherboard. The magnetised base allows flexible antenna placement for better reception. Buyers running Windows 10, Linux or macOS cannot use this card because the supplied drivers only support Windows 11 64-bit. Systems without a free PCIe slot or without a Wi-Fi 7 router will not benefit from the headline features.
Windows 11 64-Bit Driver Requirement
The single specification that decides compatibility is the operating-system requirement: only Windows 11 64-bit is supported. If the target PC runs any other OS the adapter will not function, regardless of available PCIe slots or router capabilities.
Highlights
- Tri-band Wi-Fi 7 reaches 5760 Mbps on 6 GHz
- Multi-Link Operation combines bands for 6452 Mbps throughput
- Two directional antennas with magnetic base optimise signal placement
- Bluetooth 5.4 improves security over Bluetooth 5.3
- Multicolor LED on antenna base shows connection status
Specifications
| Brand | TP-Link |
|---|---|
| Model | Archer TBE550E |
| Type | PCIE Wi-Fi Adapter |
| Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Wireless Data Rates | 6 GHz: 11be: Up to 5760 Mbps(dynamic) 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11be: Up to 2880 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WiFi Generation | Wi-Fi 7 |
| Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Interface | PCI Express |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| LEDs | Equipped with vibrant LED lighting effects, the base provides an intuitive indication of network status, enhancing both functionality and aesthetics. |
| Antenna | 2× High-Performance Tri-Band Antennas |
| Bluetooth | Bluetooth 5.4 |
| System Requirements | Windows 11(64-bit) only |
| Dimensions | 3.7 × 4.8 × 0.8 in |
| Weight | 1.32 LBS |
| Temperature | 0°C - 40°C (32°F - 104°F) |
| Humidity | 10% - 90%, Non-Condensing |
| Package Contents | Archer TBE550E Magnetized Antenna Base with 1m Braided RF Cable 2x High-Performance Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource USB Drive |
| Shipping weight | 0.59 kg |
| Package size | 246 × 221 × 38 mm |
Questions about this item
Should I pick the 6 GHz, 5 GHz, or 2.4 GHz band for the highest link rate?
The 6 GHz band reaches up to 5760 Mbps with Wi-Fi 7, the 5 GHz band up to 2880 Mbps, and the 2.4 GHz band up to 688 Mbps.
What does the BE9300 label mean for actual throughput on my desktop?
BE9300 sums the peak rates of all three bands — 5760 Mbps on 6 GHz, 2880 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz — but a single connection uses one band at a time unless Multi-Link Operation combines them.
Does the PCI Express interface limit the 6452 Mbps Multi-Link Operation speed?
The adapter installs in a standard PCI Express slot; the slot’s generation and lane count in your motherboard will determine the practical ceiling for combined 2.4 GHz, 5 GHz, and 6 GHz traffic.
