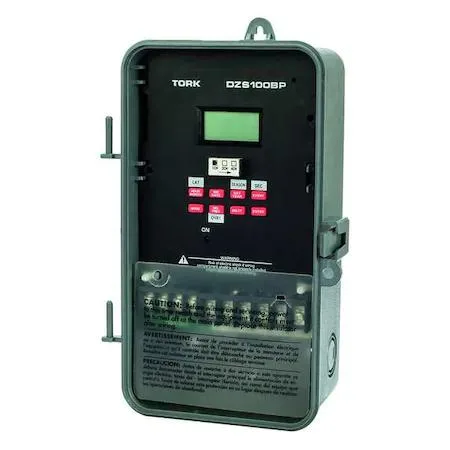

Tan plastic electronic timer with surface-mount enclosure

TORK nsi

TORK nsi DZS100BP Electronic Timer Astro 365 Days DPDT

SKU CH-N9Q9-BCG52

An electronic timer with astro-based 365-day scheduling, 99 events, DPDT contacts and 30 A switching for 120–277 V AC loads

  • TypeIndustrial Electrical Controls & Automation
  • ColorTan
  • Color MappingTan
  • Astro 365-day scheduling automates lighting year-round
  • 99 programmable events handle complex on/off and pulse sequences
  • DPDT 30 A contacts switch heavy loads directly
  • 120–277 V AC input suits commercial and industrial power
  • NEMA 3R plastic enclosure protects timer in outdoor installations

Industrial Astro Timer 365-Day

The TORK nsi DZS100BP is an electronic timer built for industrial electrical control and automation. It operates on a 120 to 277V AC supply with a 30 A rating and provides DPDT contact switching for connected loads. The tan plastic enclosure carries a NEMA 3R rating and is designed for surface mounting in commercial or municipal installations.

Sustained Scheduling Capacity

The timer manages up to 99 programmable events across a full 365-day astronomical cycle with a minimum setting of one minute. Each on/off action consumes two events while a pulse action consumes one, and pulse duration can be set from one to 99 seconds. This event budget supports complex seasonal lighting or irrigation schedules without daily manual intervention.

Single-Channel DPDT Switching

Only one independent load circuit can be controlled because the unit provides a single channel with double-pole double-throw contacts. Installations that require separate timing for multiple zones or independent circuits will need additional timers or a multi-channel controller.

Highlights

  • Astro 365-day scheduling automates lighting year-round
  • 99 programmable events handle complex on/off and pulse sequences
  • DPDT 30 A contacts switch heavy loads directly
  • 120–277 V AC input suits commercial and industrial power
  • NEMA 3R plastic enclosure protects timer in outdoor installations

Specifications

BrandNSI TORK
TypeIndustrial Electrical Controls & Automation
ColorTan
Color MappingTan

Questions about this item

How much heat or noise does the DZS100BP produce when running continuously?

The timer has no moving cooling parts and draws only the control-circuit current needed for its 30 A DPDT contacts, so it runs silently and adds negligible heat to the enclosure.

What supply voltage and wiring must already be in place for the DZS100BP to operate?

A 120 to 277 V AC circuit capable of 30 A, with two-pole wiring to match the DPDT contact form, is required before installation.

Will the DZS100BP control an older 1 HP motor at 120 V or a 2 HP motor at 240 V without extra relays?

Yes — the timer is rated for 1 HP at 120 V and 2 HP at 240 V, so it can directly switch those motor loads through its DPDT contacts.
