TOPWOLF

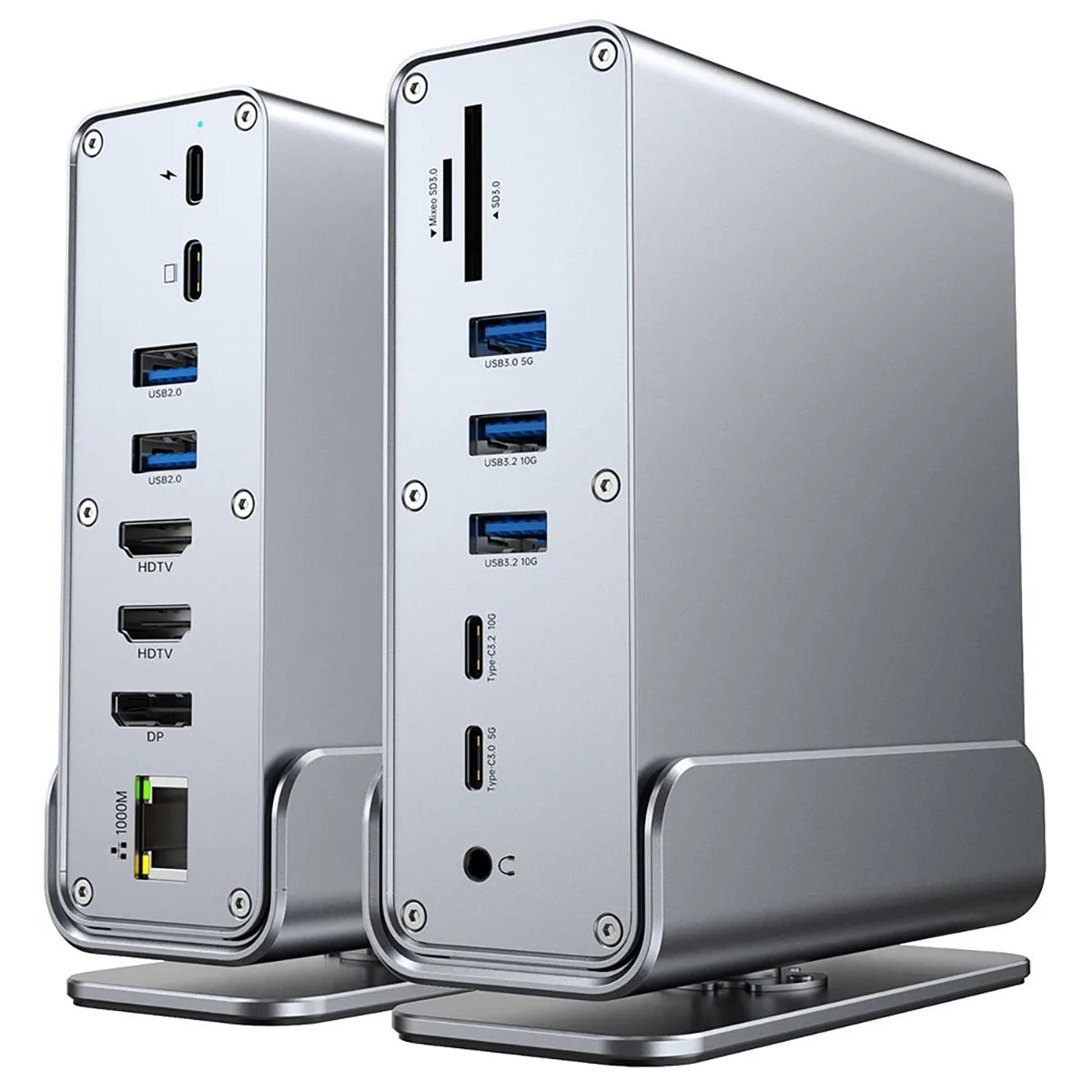

TOPWOLF 15-in-1 Vertical Docking Station Silver
A 15-in-1 vertical dock drives three 4K monitors, adds seven USB ports up to 10Gbps, gigabit Ethernet, card readers and 100W laptop charging
- ColorSilver
- Triple 4K displays boost productivity with 2 HDMI and 1 DP output
- 100 W PD charging powers laptop while docked via USB-C

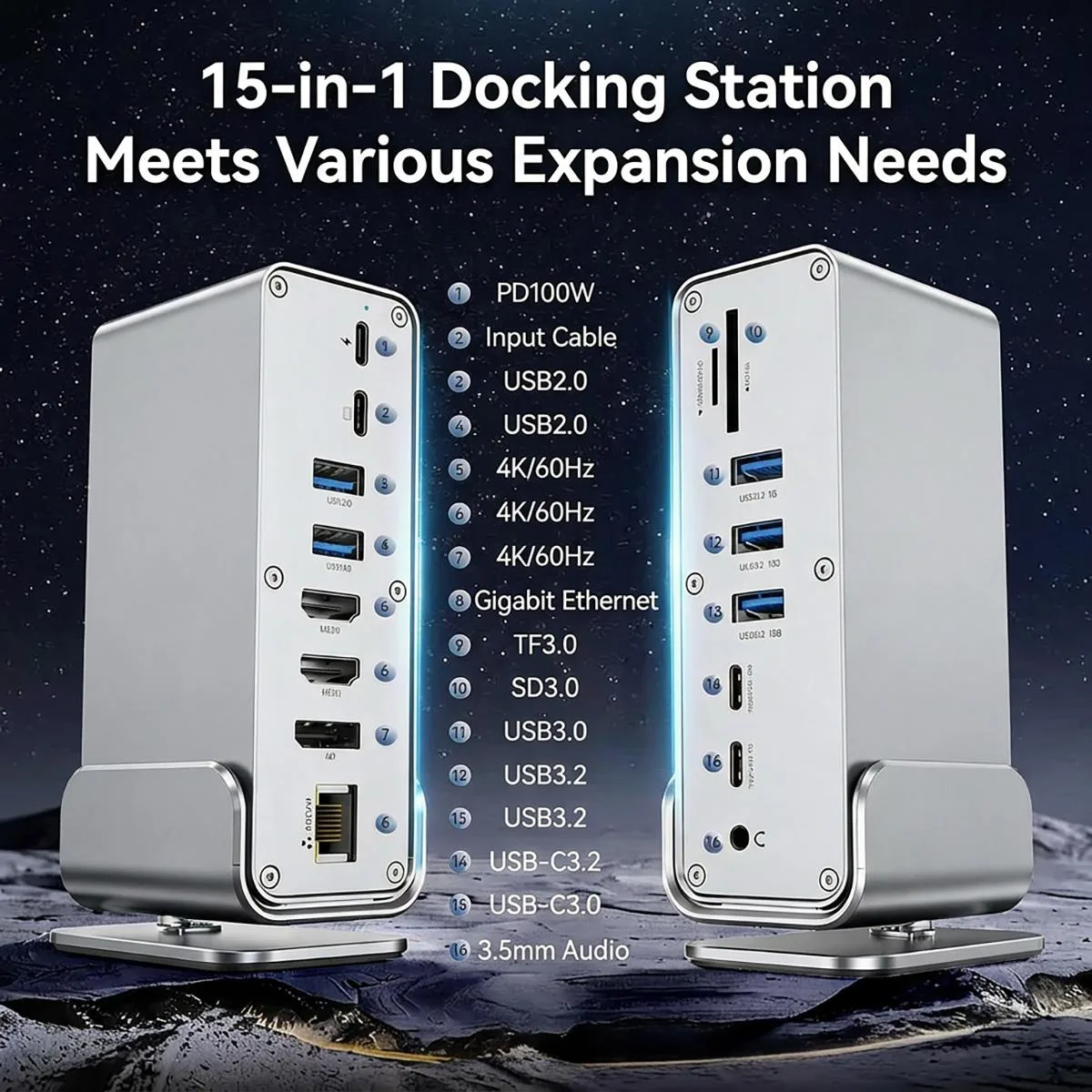

- 15 ports including 7 USB connections eliminate cable clutter
- 10 Gbps USB 3.2 data transfers move large files quickly
- Gigabit Ethernet plus SD/TF slots and 3.5 mm audio complete the workstation
Vertical 15-in-1 Docking Station
The TOPWOLF vertical docking station consolidates 15 connections into one compact silver hub. It targets Windows and Chrome OS laptop users who need triple-monitor output, high-speed data ports and 100 W pass-through charging from a single USB-C or Thunderbolt host link.
Triple-Display Bandwidth Limits
A single external monitor runs at up to 4K 60 Hz or 2K 60 Hz over HDMI or DisplayPort. Adding a second or third display drops the maximum refresh rate to 30 Hz, with typical combinations such as 4K 30 Hz plus 2K 30 Hz across the three video outputs.
Driver-Free Setup and Common Issues
The dock works without extra drivers on Windows 10, 11 and Chrome OS; macOS is limited to mirror-only SST mode and Linux is not supported. Install problems usually arise when the host USB-C port lacks video-alt mode or when the supplied 100 W PD adapter delivers only 87 W to the laptop under full load.
Highlights
- Triple 4K displays boost productivity with 2 HDMI and 1 DP output
- 100 W PD charging powers laptop while docked via USB-C
- 15 ports including 7 USB connections eliminate cable clutter
- 10 Gbps USB 3.2 data transfers move large files quickly
- Gigabit Ethernet plus SD/TF slots and 3.5 mm audio complete the workstation
Specifications
| Brand | TOPWOLF |
|---|---|
| Color | Silver |
Questions about this item
How do I pick between the two 10Gbps USB-C data ports and the 5Gbps one?
Use the 10Gbps USB-C port for fast SSDs or docks, the 5Gbps port for standard drives or peripherals. Both are downstream data ports; the 100W PD port is for laptop charging only.
What refresh rates will I see on three monitors attached to the two HDMI and one DP outputs?
On Windows, a single monitor reaches 4K at 60Hz. With two or three displays the dock delivers roughly 4K at 30Hz plus 2K at 30Hz across the HDMI and DP ports.
Does the USB-C host connection limit the 10Gbps USB-A ports to a lower speed?
The dock’s USB-C host link runs at 10Gbps, so the two 10Gbps USB-A ports can operate at their rated speed when the host also supports 10Gbps.
