Black rectangular power brick with 4.5 mm barrel tip and detachable mains lead

TOPRANK

TOPRANK 130W 4.5mm Dell AC Adapter

SKU CH-QZFZ-AJ1QV

130 W Dell charger with a 4.5 mm small tip, compatible with XPS 15, Precision 5520, 5530 and OptiPlex Micro 3050, 7050, 7060 models

  • TypeChargers & Adapters
  • 130W output powers demanding Dell XPS 15 and Precision workloads
  • 5 × 3.0 mm small tip fits exact Dell port requirement
  • 100-240V input enables worldwide use without a voltage converter

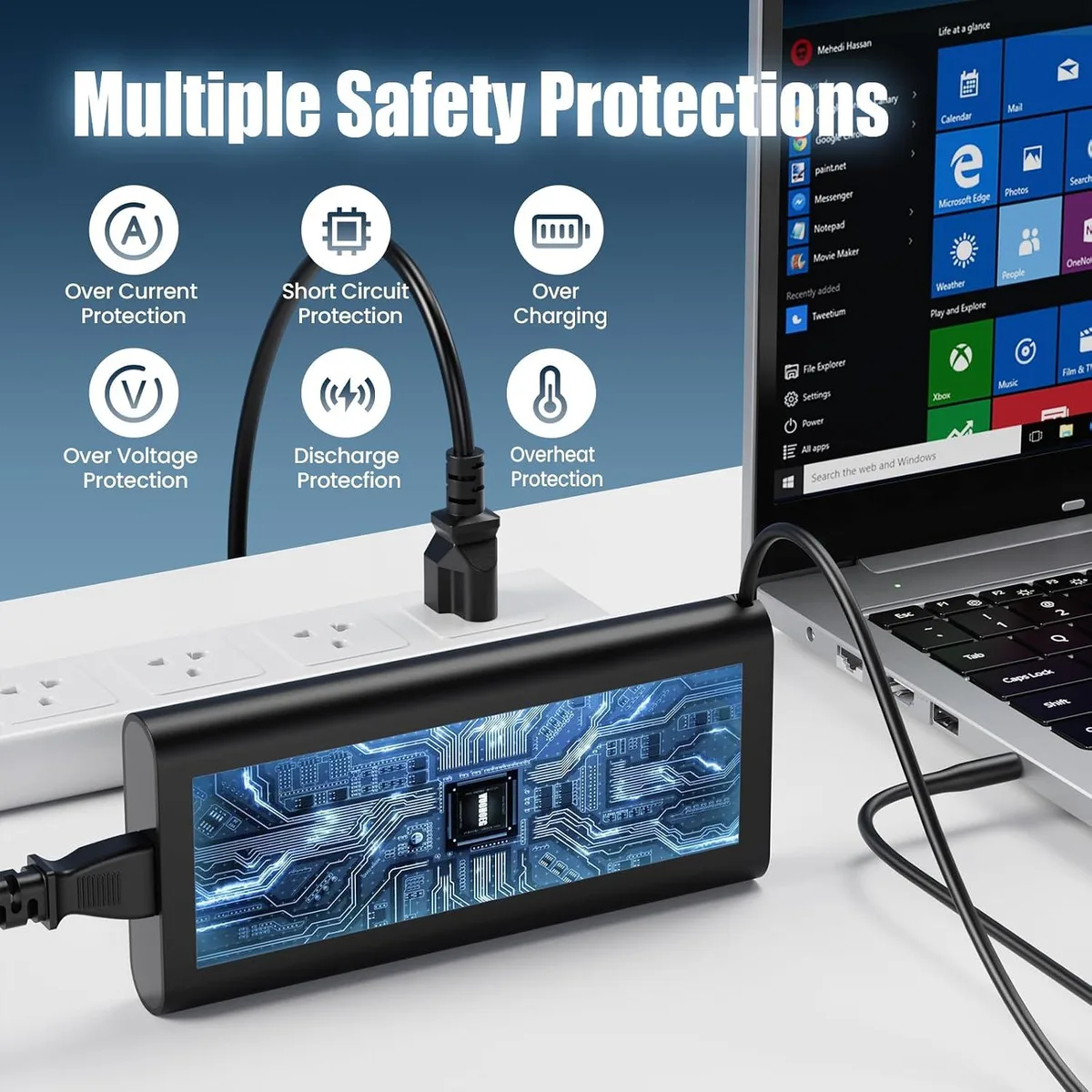

  • Built-in over-voltage, over-current, short-circuit and temperature protection safeguards hardware
  • Compatible with XPS 15 9550 9560 9570 7590 Precision 5520 5530 OptiPlex 3050 7050 7060

Exact-fit 4.5 mm connector

This 130 W AC adapter uses a 4.5 × 3.0 mm small tip built specifically for Dell laptops and micro desktops. It replaces original Dell adapters such as DA130PM130 and HA130PM130. The unit is not compatible with USB-C or 7.4 mm big-tip models. Check your original charger port before ordering.

Sustained 130 W delivery

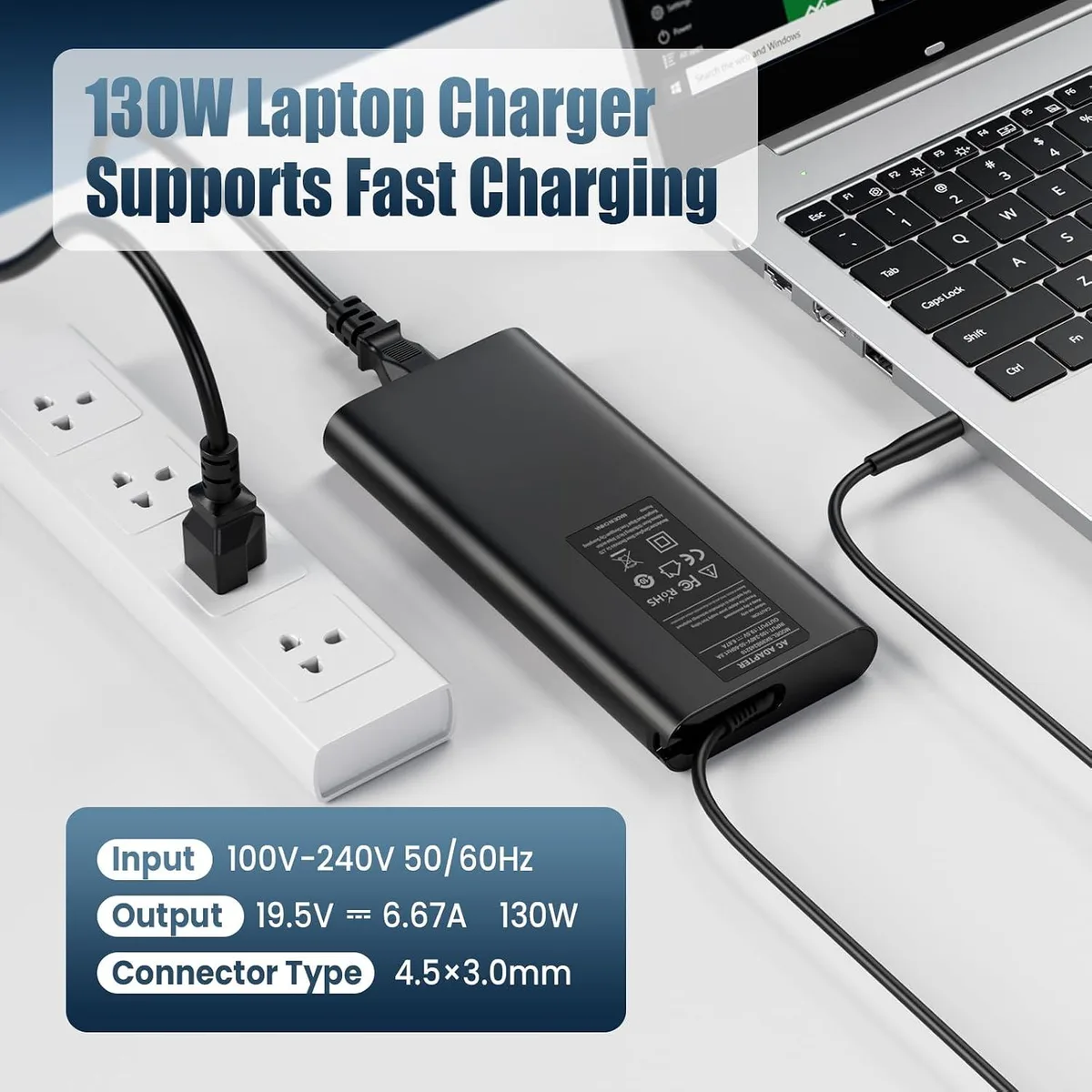

The adapter supplies 19.5 V at 6.67 A continuously across a 100–240 V input range. Built-in over-voltage, over-current, short-circuit and temperature protections keep output stable during heavy workloads on i7 or i9 systems. It also safely adjusts down for 90 W or 65 W devices without throttling.

Port and model verification

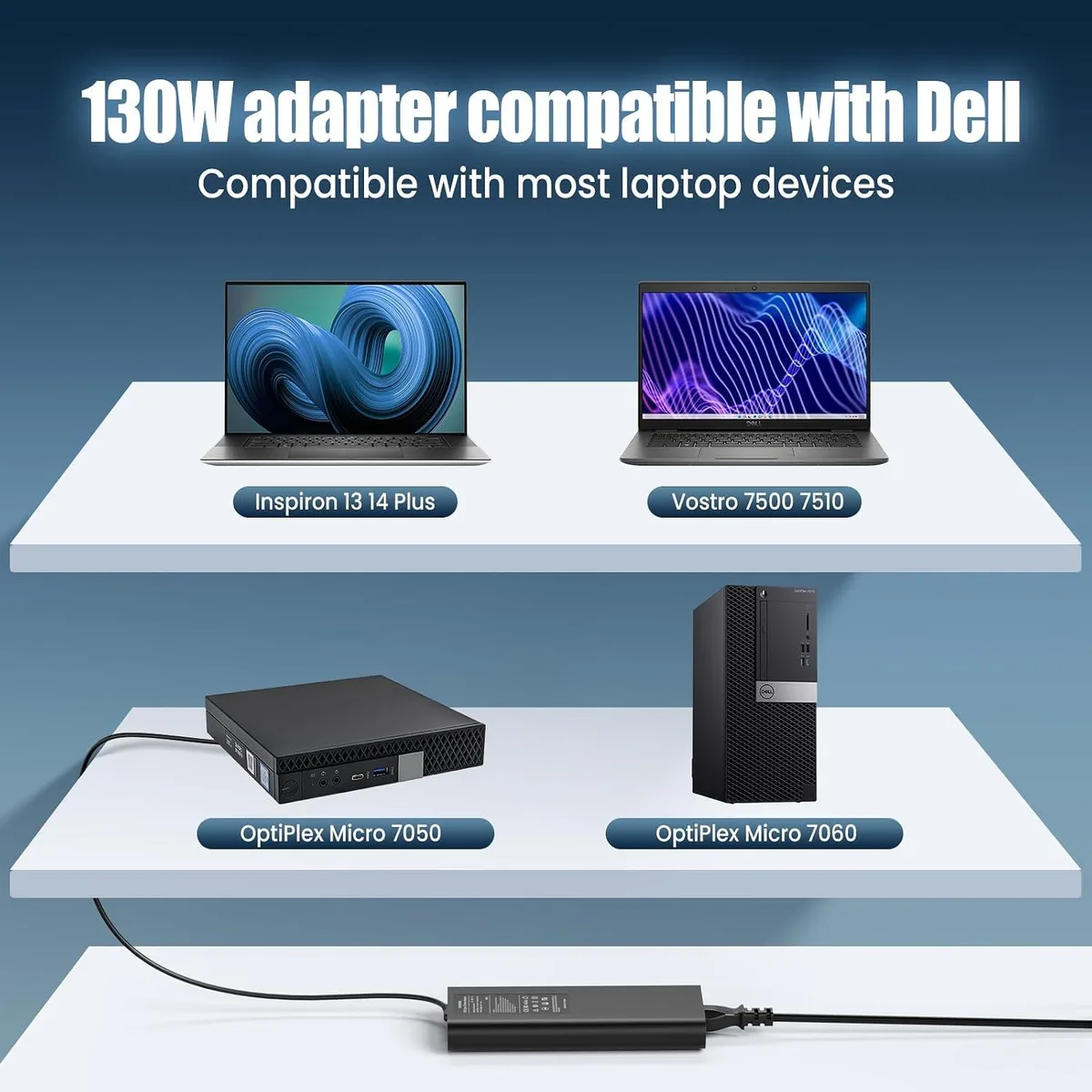

Confirm your device uses the 4.5 mm small tip; USB-C and 7.4 mm ports will not fit. Supported Dell models include XPS 15 9550 9560 9570 7590, Precision 5520 5530 and OptiPlex Micro 3050 7050 7060 series. No other connectors or voltage options are provided.

Highlights

  • 130W output powers demanding Dell XPS 15 and Precision workloads
  • 5 × 3.0 mm small tip fits exact Dell port requirement
  • 100-240V input enables worldwide use without a voltage converter
  • Built-in over-voltage, over-current, short-circuit and temperature protection safeguards hardware
  • Compatible with XPS 15 9550 9560 9570 7590 Precision 5520 5530 OptiPlex 3050 7050 7060

Specifications

TypeChargers & Adapters

Questions about this item

How hot or noisy does the 130W adapter get when powering an XPS 15 9570 all day?

The brick has no fan and relies on passive cooling; it warms under full 19.5V 6.67A load but stays within normal operating temperature for a sealed 130W unit.

Which cable do I need to already own for the 4.5 × 3.0 mm tip to work?

You need a standard IEC C5 “cloverleaf” mains lead; the adapter ships with the 4.5 mm DC cable permanently attached.

Will the 130W unit safely charge my older OptiPlex 3050 Micro that shipped with a 90W brick?

Yes — the adapter auto-negotiates down to 90W or 65W for earlier OptiPlex Micro models while keeping the same 4.5 mm connector.
