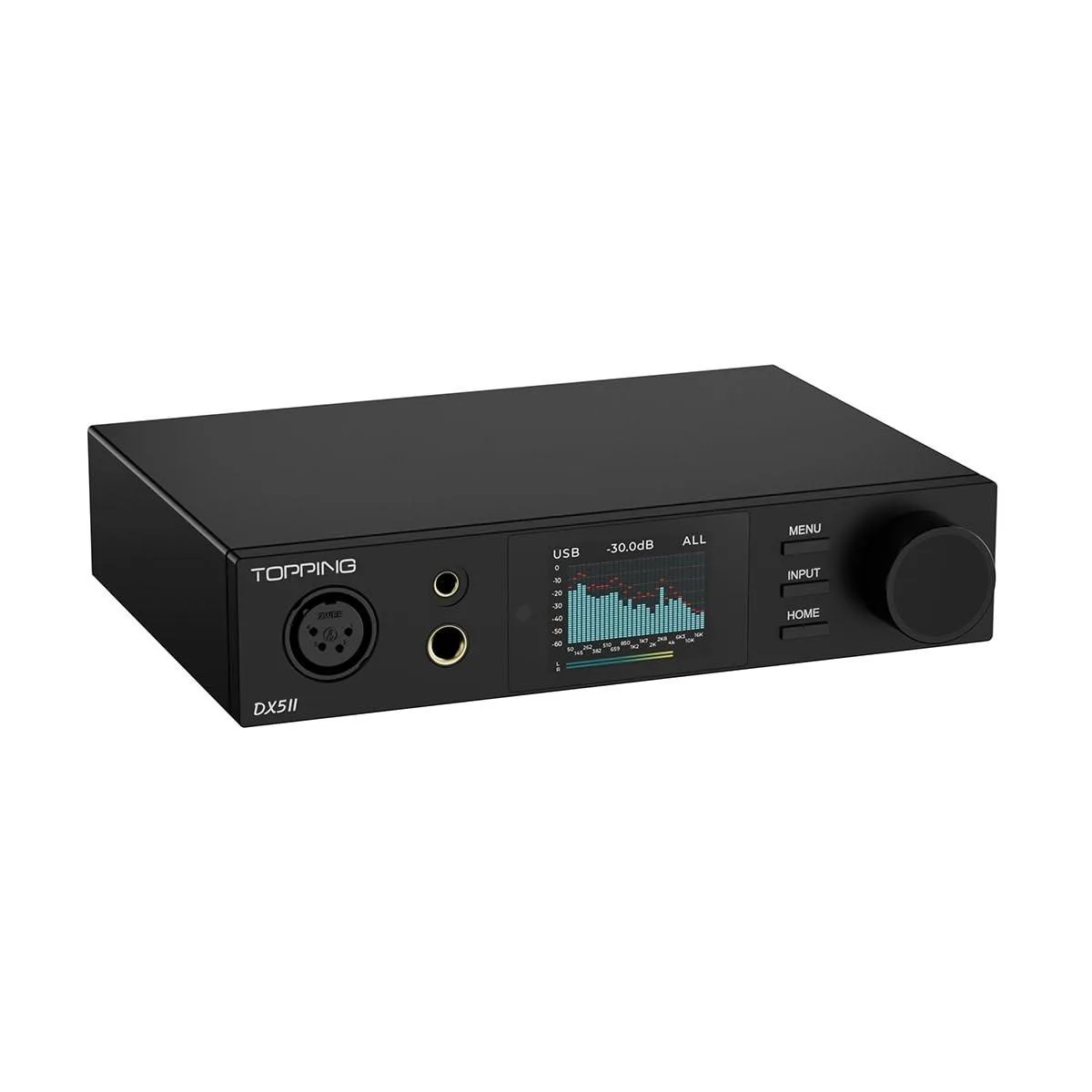

Black desktop DAC and headphone amplifier with colour screen and multiple output jacks

Topping Inc.

Topping DX5 II Fully Balanced DAC Headphone Amplifier 7600mW (Black) 2 in 1 Accessory

SKU CH-R94S-X0JDW

A fully balanced DAC and headphone amplifier delivering 7600 mW through 6.35 mm, 4.4 mm and 4-pin XLR outputs with a 1.8 µVrms noise floor

  • X-Hybrid circuit keeps distortion ultra-low while cutting heat
  • 7600 mW per channel drives almost any headphone via 6.35 mm, 4.4 mm or 4-pin XLR
  • Dual ES9039Q2M chips decode DSD 512 and 768 kHz PCM with 1.8 µV noise floor
  • 0 inch colour screen and three buttons give instant access to ten-band PEQ
  • Preamp mode lets you set volume and connect straight to active speakers

Fully Balanced DAC Headphone Amplifier

The Topping DX5 II combines a dual ES9039Q2M DAC with an X-Hybrid headphone amplifier in one desktop unit. It targets audiophiles and headphone enthusiasts who want a single device for digital-to-analogue conversion and high-power headphone driving.

Interface and format limits

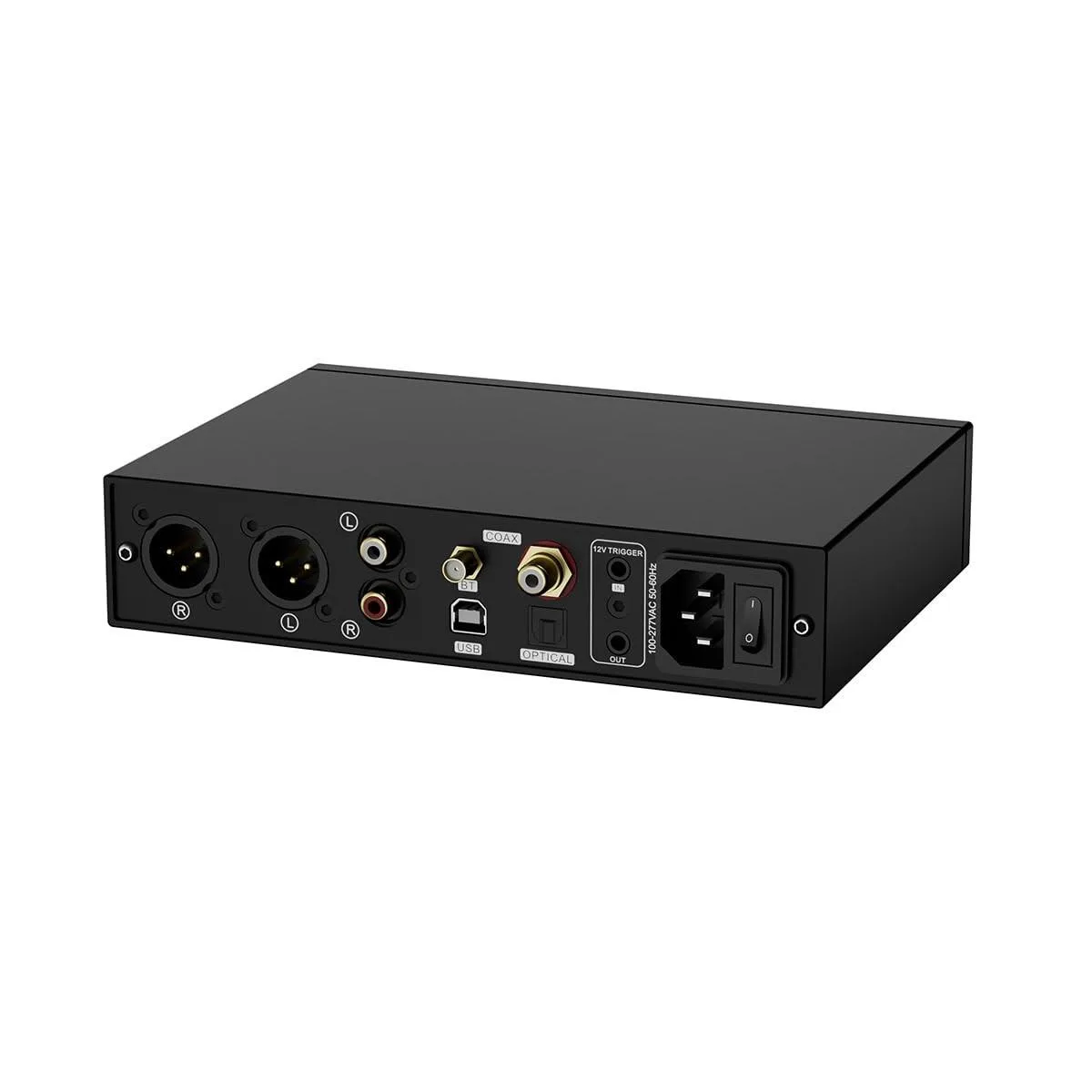

The unit accepts USB, optical, coaxial and Bluetooth inputs and provides RCA and XLR line outputs. Internal DAC processing supports DSD512 and PCM up to 768kHz. Output jacks include 6.35mm single-ended, 4.4mm balanced and 4-pin XLR for headphones.

Setup checks before ordering

Verify that your source device can send audio over USB, optical, coaxial or Bluetooth to match the available inputs. Confirm your headphones use a 6.35mm, 4.4mm or 4-pin XLR connector, or that your active speakers accept RCA or XLR line-level signals. Ensure you have mains power for the unit.

Highlights

  • X-Hybrid circuit keeps distortion ultra-low while cutting heat
  • 7600 mW per channel drives almost any headphone via 6.35 mm, 4.4 mm or 4-pin XLR
  • Dual ES9039Q2M chips decode DSD 512 and 768 kHz PCM with 1.8 µV noise floor
  • 0 inch colour screen and three buttons give instant access to ten-band PEQ
  • Preamp mode lets you set volume and connect straight to active speakers

Specifications

No published specifications for this item yet.

Questions about this item

Which headphone output should I use — 6.35 mm single-ended, 4.4 mm balanced or 4-pin XLR?

All three jacks are driven by the same X-Hybrid amplifier delivering 7600 mW per channel; choose 4.4 mm balanced or 4-pin XLR for balanced cables, 6.35 mm for single-ended cans.

What does the 7600 mW rating mean when I plug in my headphones?

It provides up to 7600 mW per channel into suitable loads, with a 1.8 µVrms noise floor that keeps even sensitive IEMs silent.

What digital inputs does the DAC accept and what sample rates are supported?

USB, optical and coaxial inputs handle PCM up to 768 kHz and DSD up to 512, while Bluetooth adds wireless convenience.
