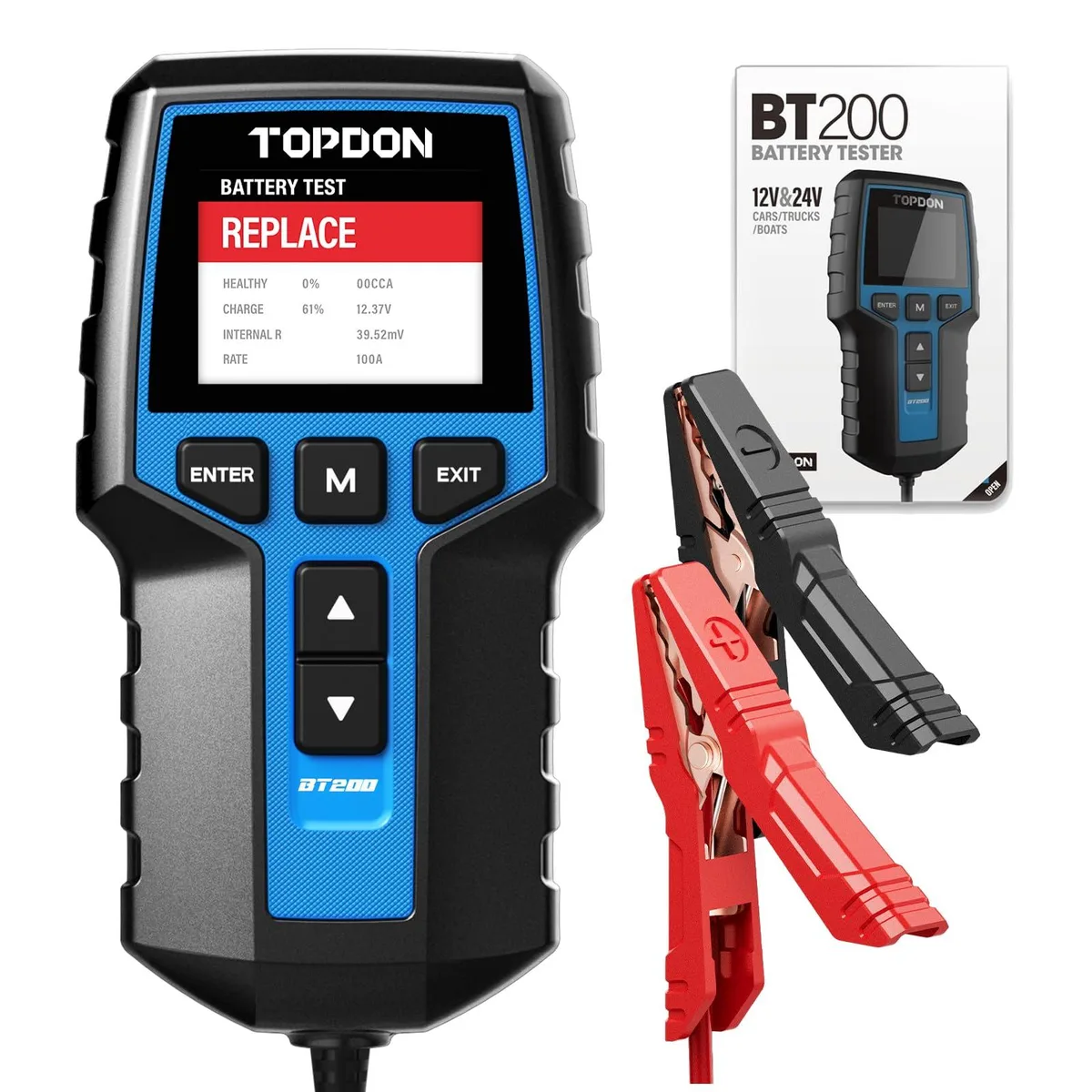

Compact rectangular battery tester with 2.4 inch color screen and attached clamps

TOPDON BT200 12V/24V 100-2000 CCA Battery Tester

SKU CH-7DJN-HNWM0 MPN BT200

Tests 12 V and 24 V batteries from 100 to 2000 CCA with 99.9 % accuracy and adds cranking and charging system checks on a 2.4 inch colour screen

  • FeaturesTOPDON BT200 Vehicle Battery Tester, User Manual, Cca, Din,
  • Height7 L x 3.72 W x 1.3 H inches
  • Width7 L x 3.72 W x 1.3 H inches
  • Length7 L x 3.72 W x 1.3 H inches
  • Weight0.97 pounds
  • Sports Team1 Piece
  • Tests 12 V and 24 V batteries from 100 to 2000 CCA
  • 9 % accuracy across flooded AGM GEL and deep-cycle types

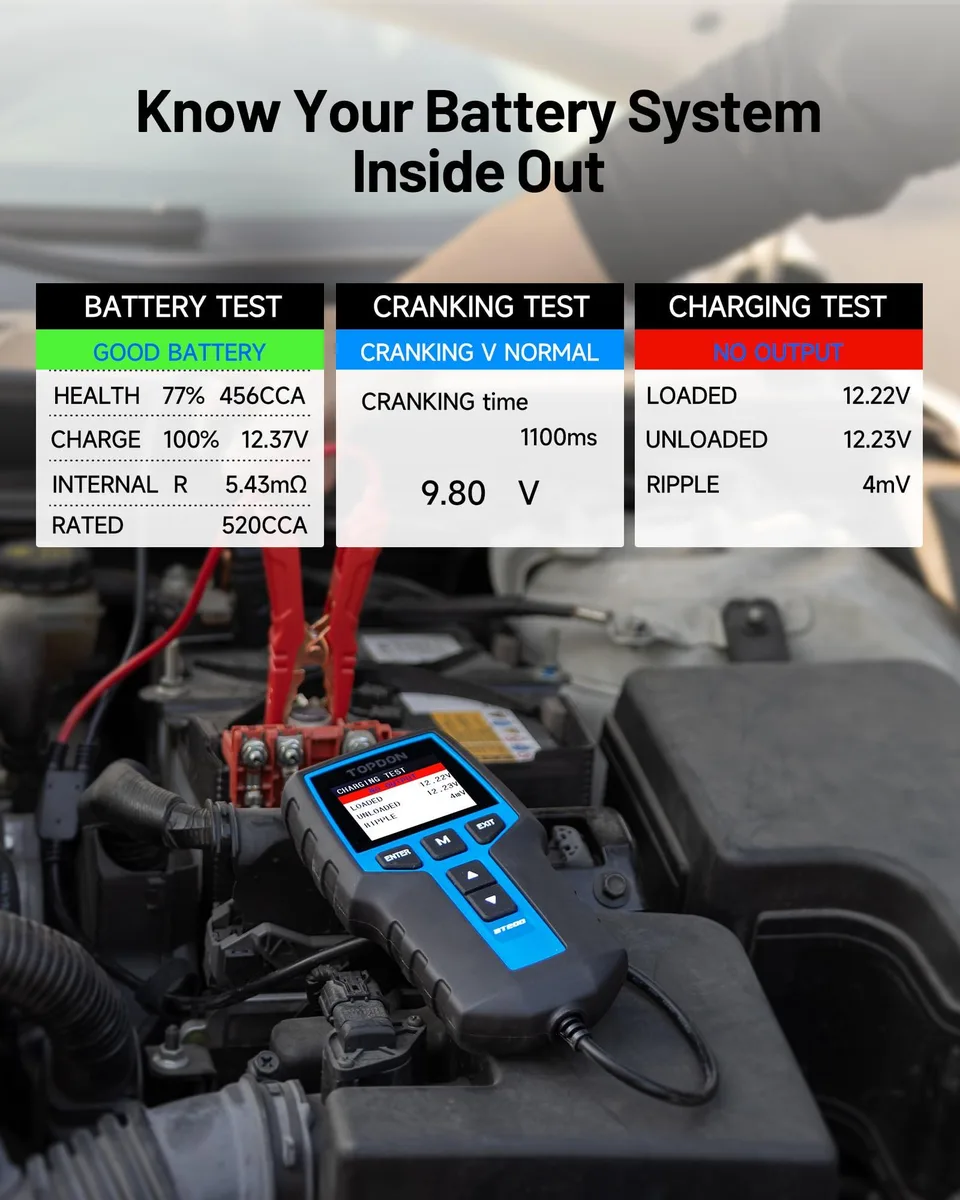

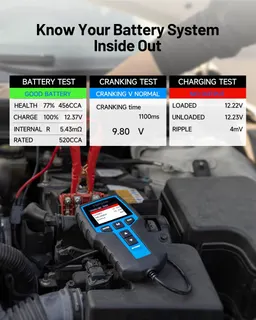

  • Performs cranking test charging test and battery health check in one tool
  • 4 inch colour screen shows results clearly in any light
  • Compact at 7 by 3.72 by 1.3 inches and only .97 pounds

12V/24V Battery & System Analyser

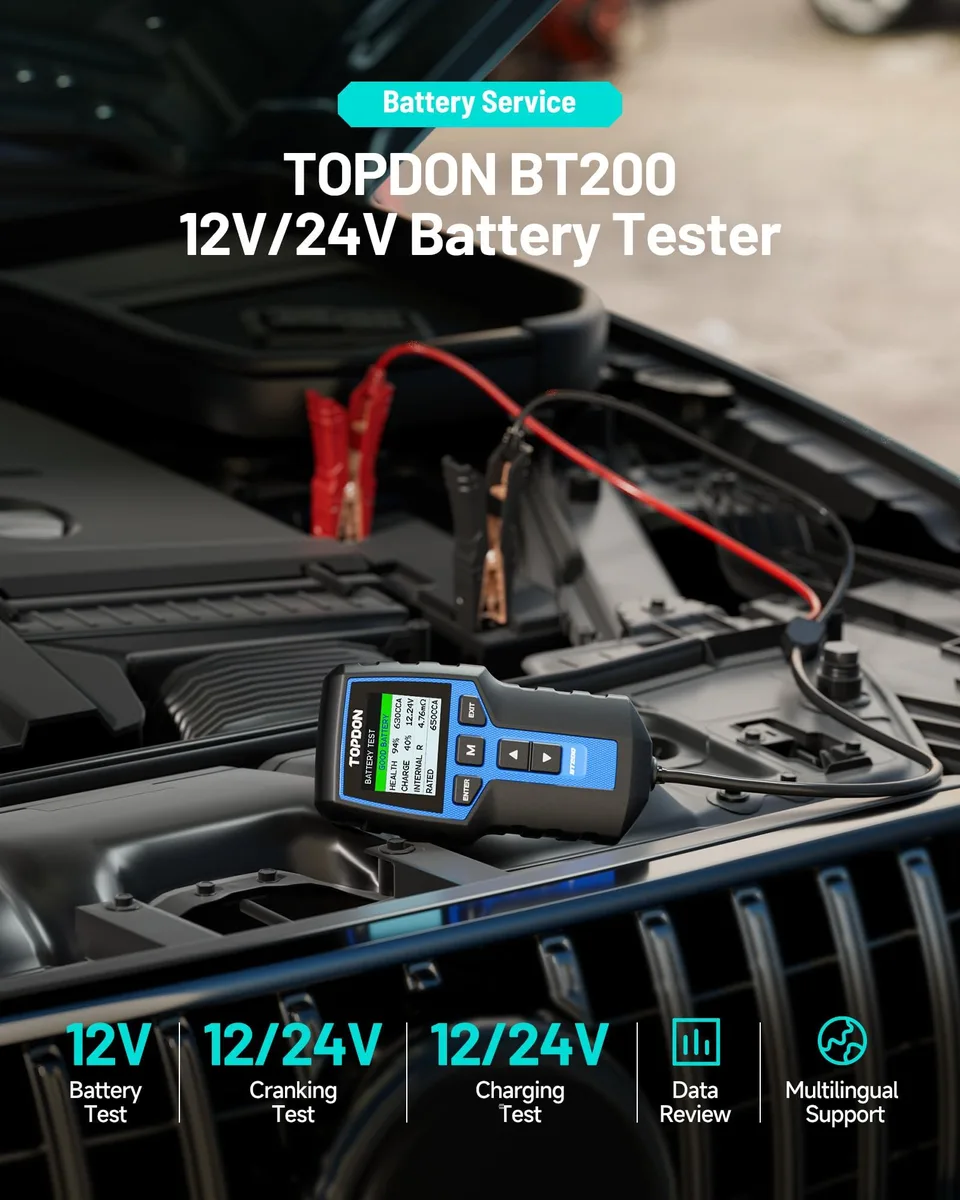

The TOPDON BT200 tests 12 V and 24 V lead-acid batteries from 100 to 2000 CCA. It covers flooded, AGM, gel and deep-cycle types. The analyser runs cranking and charging checks on-board or off-board. A 2.4-inch colour screen shows results in multiple languages.

Thermals Noise Power

The handheld unit weighs .97 lb and measures 7 x 3.72 x 1.3 inches. It draws power from the battery under test so no external supply is needed. Passive cooling keeps operation silent during normal use.

Replaces Basic Load Testers

This tool replaces simple voltmeters or fixed-load testers that cannot assess cranking health or charging regulation. The jump is worth it when a shop or owner needs one device for both 12 V and 24 V systems with 99.9 % conductance accuracy. Not for lithium chemistries or capacities outside the 100-2000 CCA range.

Highlights

  • Tests 12 V and 24 V batteries from 100 to 2000 CCA
  • 9 % accuracy across flooded AGM GEL and deep-cycle types
  • Performs cranking test charging test and battery health check in one tool
  • 4 inch colour screen shows results clearly in any light
  • Compact at 7 by 3.72 by 1.3 inches and only .97 pounds

Specifications

BrandTOPDON, TT TOPDON
FeaturesTOPDON BT200 Vehicle Battery Tester, User Manual, Cca, Din, Jis, En, Iec, Gb, Sae, Mca, Bci, Ca, Battery Powered, false
Height7 L x 3.72 W x 1.3 H inches
Width7 L x 3.72 W x 1.3 H inches
Length7 L x 3.72 W x 1.3 H inches
Weight0.97 pounds
Sports Team1 Piece
TypeVoltmeter, Ammeter

Questions about this item

How do I connect the TOPDON BT200 to the battery terminals for a cranking test, and what step do users often miss?

Clamp the red lead to positive and black to negative on the 12V or 24V battery, then select the correct standard such as SAE or EN before starting; the step often missed is confirming the rating matches the 100-2000 CCA range.

What maintenance or replacement will the BT200 need after repeated use?

The tester draws power from the battery under test so it has no internal cells to replace; keep the clamps clean and store the unit within the specified working temperature range to maintain the 99.9% accuracy.

What limit appears first during continuous testing sessions with the BT200?

The 2.4-inch colour screen remains readable in normal conditions, but prolonged exposure to extreme heat or cold beyond the rated working temperature can affect display response before any internal circuit limit is reached.
