TOMOTOP F-970 7 inch LCD monitor matte black with sun hood and battery plate

TOMOTOP

TOMOTOP F-970 camera dock 7" 800x400 HDMI YPbPr DC12V

SKU CH-TNRW-70Q3E MPN F-970

A 7-inch 800×400 LCD camera monitor with HDMI and YPbPr inputs, DC 12V power, and an F-970 battery plate for Sony DV batteries

  • FeaturesThis delicately designed 7" LCD camera monitor is perfect fo
  • 7" 800×400 panel gives clear on-set framing
  • HDMI and YPbPr inputs connect professional video gear
  • 450 cd/m² brightness with sun shade keeps image visible outdoors
  • F-970 battery plate powers monitor from Sony DV packs
  • DC 12V via 2.1 mm or 4-pin XLR for flexible rig power

Purpose-built field monitor

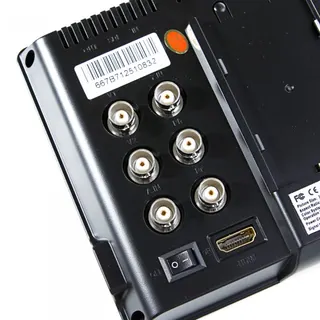

The TOMOTOP F-970 is a seven-inch LCD dock designed for camera operators who need a larger, brighter view than a built-in screen provides. It accepts HDMI, YPbPr and composite sources, making it compatible with a wide range of professional and prosumer camcorders. The 16:9 panel displays 800 by 400 pixels while accepting 1920 by 1080 input signals. Centre-marker, underscan and frame-view aids help with composition and focus.

Mounting and power flexibility

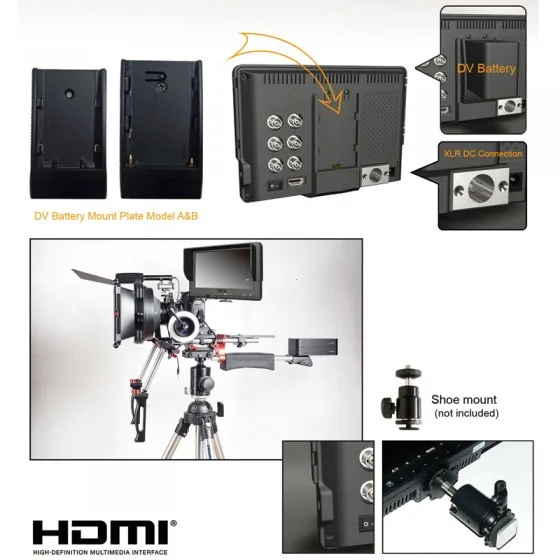

A supplied sun shade keeps the 450 cd/m² screen readable in direct sunlight, and the 120 by 140 degree viewing angle allows several people to monitor simultaneously. Power enters through a DC 2.1 mm jack or a four-pin XLR connector at 12 volts, drawing under eight watts. An F-970 battery plate on the rear accepts Sony DV-series packs so the unit can run without cables. Multiple mounting points let you position the monitor at different angles on rigs or stands.

Upgrade from built-in finders

The jump is worthwhile when the camera’s own display is too small, too dim or fixed in one position for comfortable critical focusing. Operators moving from a flip-out LCD to this dock gain a 500:1 contrast ratio, dedicated exposure tools and the ability to power the monitor from the same battery system as the camera. It is less suited for users who need a higher native resolution panel or built-in recording functions.

Highlights

  • 7" 800×400 panel gives clear on-set framing
  • HDMI and YPbPr inputs connect professional video gear
  • 450 cd/m² brightness with sun shade keeps image visible outdoors
  • F-970 battery plate powers monitor from Sony DV packs
  • DC 12V via 2.1 mm or 4-pin XLR for flexible rig power

Specifications

BrandLILLIPUT
Model667GL-70NP/H/Y
FeaturesThis delicately designed 7" LCD camera monitor is perfect for your indoor and outdoor shooting. It provides you better visual and allows multiple viewers at the same time in a remote distance.

Questions about this item

What input interfaces does the F-970 dock support and what resolution do they cap at?

The dock accepts HDMI, YPbPr and AV1/AV2 signals. The panel resolution is 800 x 400 while the inputs support up to 1920 x 1080.

What physical mounting options and power connections does the 7" monitor require?

It offers multi-angle mounting and a DV battery plate for Sony F-970 or QM91D packs. Power input is DC 12 V via a 2.1 mm jack or 4-pin XLR connector.

How is the F-970 monitor installed and which step is often missed?

Connect the DC 12 V supply or attach a compatible Sony battery plate, then plug in HDMI, YPbPr or AV cables. Users frequently forget to select the correct input source after powering on.
