Compact metal desktop switch with five RJ45 ports and PoE passthrough labels

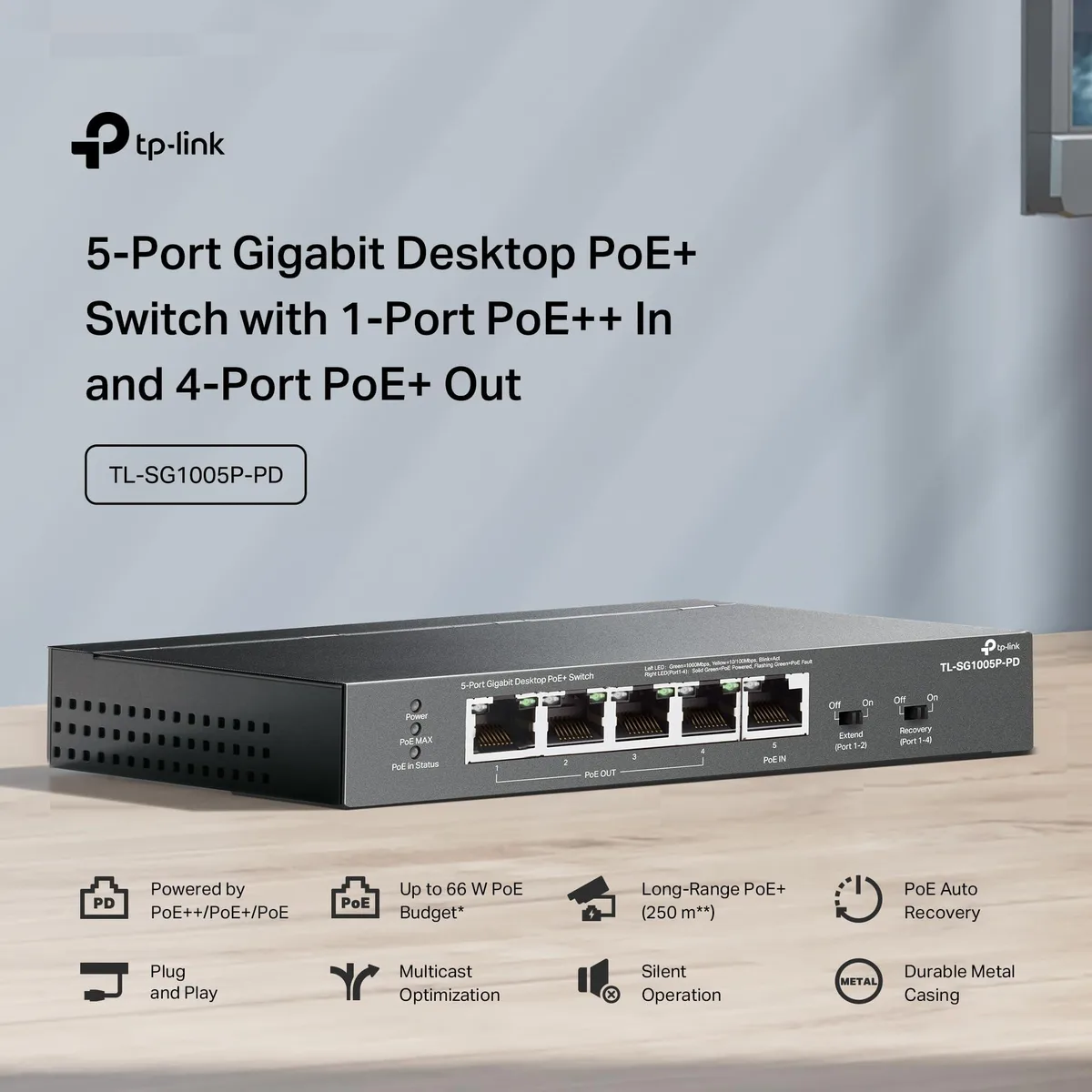

TL-SG1005P-PD 5-Port PoE++ Passthrough Gigabit Switch

SKU CH-SE02-ENTF3

A 5-port Gigabit switch powered by a single 90 W PoE++ input and delivering up to 66 W across four PoE+ output ports with extend mode to 250 m and auto-recovery

  • StandardsPassive PoE
  • Network MediaRJ45
  • Uplink Ports8
  • Uplink InterfaceRJ45
  • Uplink Speed10/100 Mbps
  • Uplink Speed/TypeRJ45
  • Powers four PoE+ devices with up to 66 W total from a single 90 W PoE++ uplink
  • Extends PoE reach to 250 metres on ports one and two for distant cameras
  • Automatically reboots unresponsive PoE devices without manual intervention
  • Plug-and-play operation requires no software or configuration
  • Metal fanless chassis enables silent desktop or wall mounting

PoE++ Passthrough Switch

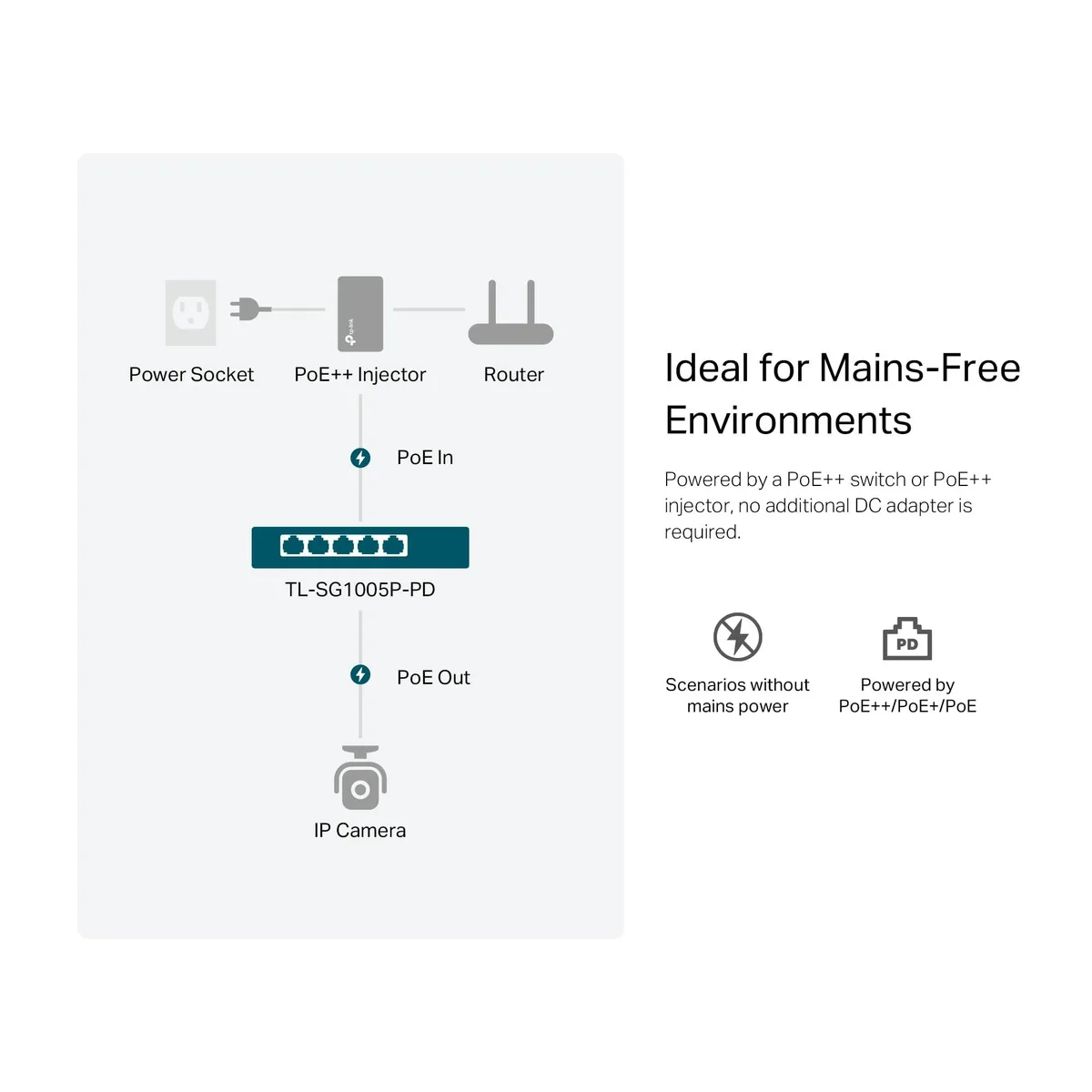

This five-port Gigabit switch receives power through a single PoE++ input and delivers up to 66 W across four PoE+ output ports. It suits installers who need to extend wired networks and power cameras or access points without a local mains socket.

Check Your PoE Source

The unit draws power only from an 802.3bt Type 4 (90 W), Type 3 (60 W), 802.3at or 802.3af source, so verify your upstream injector or switch can supply the required class. Ports one and two support 250 m (820 ft) runs at 10 Mbps in Extend Mode, while all ports auto-negotiate up to 1000 Mbps on standard distances.

Replaces Separate Injector and Switch

It consolidates a PoE injector and a small desktop switch into one fanless metal box, cutting cabling and power outlets. The jump is worth it when you have a single high-power PoE feed and need multiple powered devices with automatic recovery for unresponsive endpoints.

Highlights

  • Powers four PoE+ devices with up to 66 W total from a single 90 W PoE++ uplink
  • Extends PoE reach to 250 metres on ports one and two for distant cameras
  • Automatically reboots unresponsive PoE devices without manual intervention
  • Plug-and-play operation requires no software or configuration
  • Metal fanless chassis enables silent desktop or wall mounting

Specifications

BrandNETGEAR
SeriesProSafe
Part NumberTL-SG1005P-PD
StandardsPassive PoE
Network MediaRJ45
Uplink Ports8
Uplink InterfaceRJ45
Uplink Speed10/100 Mbps
Uplink Speed/TypeRJ45
Primary Port Count5
Primary Ports16 x SFP + 8 x RJ45
Primary Port Speed10/100Mbps + 1000Mbps
Primary Port TypeRJ45
Management InterfaceRJ45
Jumbo Frames9216 bytes
Packet Forwarding Rate1 gigabits_per_second
Buffer Memory768KB
IPv4 Features5 Port / 1 PoE++ In / PoE Powered
PoENo
SNMPNo
Layer 2 FeaturesRJ45, 1 gigabits_per_second, 5
Layer 3 FeaturesTL-SG1005P-PD
CablingRJ45
PoE Power Budget5 Port / 1 PoE++ In / PoE Powered
Max Power Consumption2 amps
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.77 pounds
Certificationnot_applicable
Max Heat Dissipation2.68 watts
Features5, RJ45, 1 gigabits_per_second, Metal, Information Not Available

Questions about this item

Does the TL-SG1005P-PD include a power adapter or must I supply a PoE++ injector?

The switch is powered only by PoE; no power adapter is included. You need a PoE++ (802.3bt Type 4, 90 W) source or a compatible injector to operate it.

Which uplink standard gives the full 66 W PoE budget for the four output ports?

Connecting the uplink to an 802.3bt Type 4 (90 W) source enables the maximum 66 W budget; Type 3 (60 W) yields 47 W, 802.3at gives 21 W, and 802.3af provides 9 W.

What happens to port speed when I enable Extend Mode for a 250 m camera run?

Extend Mode pushes PoE and data to 250 m (820 feet) on ports 1-2, but the link speed drops to 10 Mbps on those ports.
