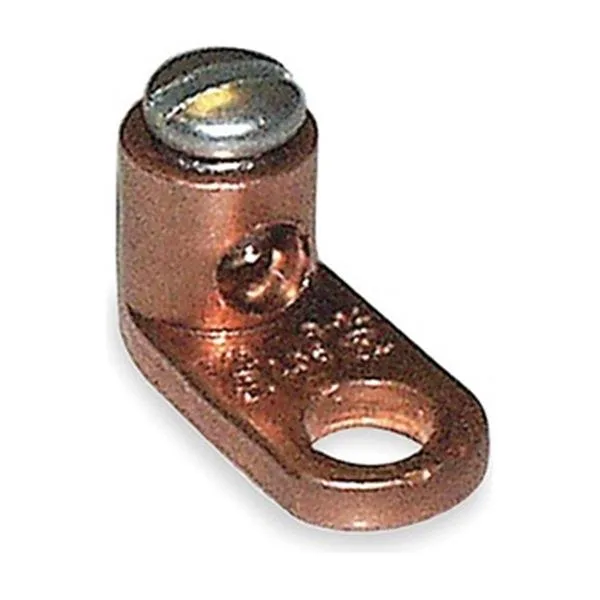

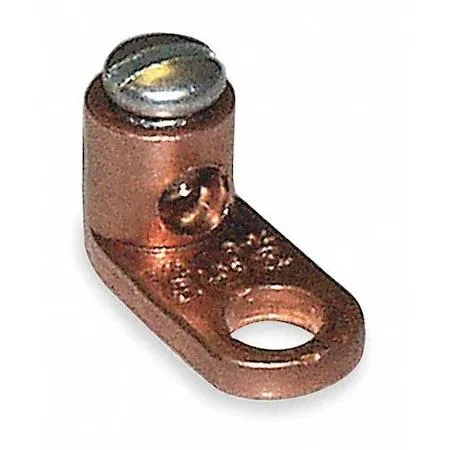

Small copper lug with a slotted set screw and single mounting hole

Thomas & Betts

Thomas & Betts Blackburn L35 Compact Connector 8-14 AWG

SKU CH-BKSF-7E4YW

Connects 8-14 AWG stranded copper wire with a single compact copper lug rated 1,000 V

  • TypeCompact
  • Electrolytic copper body ensures high conductivity
  • Compact design fits 8 to 14 AWG stranded copper wire
  • Single-hole tongue accepts 13/64 in stud securely
  • Rated for 1000 V and 194 °F maximum operating temperature
  • Slotted head allows quick installation with standard tools

Compact Mechanical Connector for 8-14 AWG Copper

This Thomas & Betts Blackburn L35 connector accepts a single stranded copper conductor from 14 AWG to 8 AWG. The compact body is made from electrolytic copper and rated for up to 1,000 volts at 194 degrees Fahrenheit. It provides one termination point with a slotted head style for straightforward installation.

Verify Wire Gauge and Stud Clearance

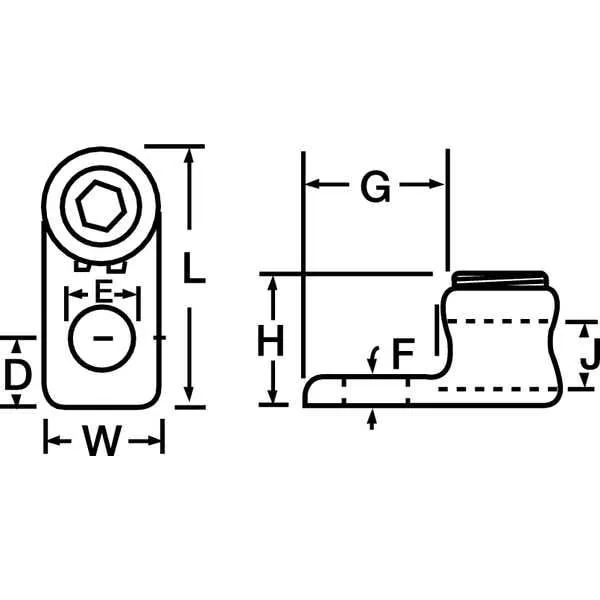

Confirm that your existing conductor falls within the 14 to 8 AWG stranded copper range before ordering. The tongue measures 0.5 inches long by 0.38 inches wide by 0.09 inches thick and has a single 0.2 inch mounting hole for a 13/64 inch stud. Ensure the available space accommodates these dimensions and the single-hole pattern.

Single-Hole Tongue Simplifies Termination

The one-hole tongue design reduces hardware to a single mounting fastener per connection. Slotted head style allows use of a standard screwdriver without specialised tooling. Electrolytic copper construction delivers reliable conductivity for the rated voltage and temperature limits in a compact form factor.

Highlights

  • Electrolytic copper body ensures high conductivity
  • Compact design fits 8 to 14 AWG stranded copper wire
  • Single-hole tongue accepts 13/64 in stud securely
  • Rated for 1000 V and 194 °F maximum operating temperature
  • Slotted head allows quick installation with standard tools

Specifications

BrandThomas & Betts
TypeCompact

Questions about this item

Does the connector arrive as a single piece or do I need to buy the screw separately?

The Blackburn L35 is supplied as one compact connector with a slotted head and a single 0.2 in hole; no separate screw is included.

Which wire gauge should I select for a 10 AWG stranded copper run?

The L35 accepts stranded copper from 14 AWG up to 8 AWG, so 10 AWG falls within the approved range.

What does the 1,000 V rating mean when the connector is installed in a panel?

It indicates the maximum voltage the copper body and single termination can withstand at up to 194 °F operating temperature.
