Thomas & Betts Blackburn ADR2 Mechanical Connector Lug 2-14 AWG

Mechanical Connector Lug 2-14 AWG

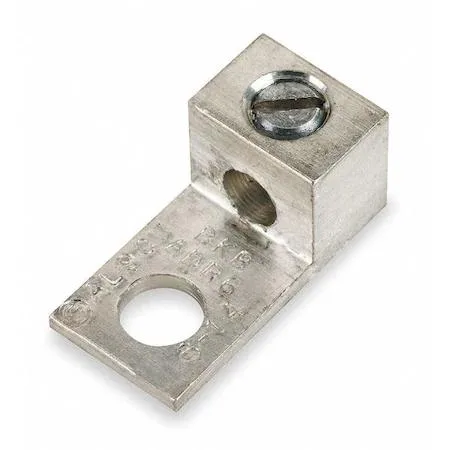

The Thomas & Betts Blackburn ADR2 is a mechanical connector lug designed for electrical and industrial wiring. It accepts a single conductor ranging from 14 AWG to 2 AWG stranded copper or aluminum wire. The lug is constructed from aluminum and features a slotted head style for installation. It is rated for a maximum operating temperature of 194 degrees Fahrenheit and a maximum voltage of 1,000 V.

Single Conductor Range 14-2 AWG

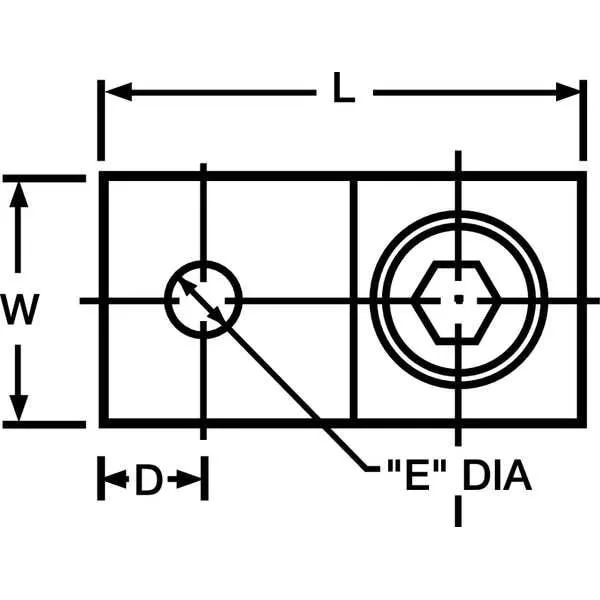

The critical specification is the conductor range of 14 AWG minimum to 2 AWG maximum for a single conductor. This determines whether the lug fits the wire gauge used in the application. The lug provides one termination with a 1/4 inch stud size and a hole diameter of 0.25 inch. Tongue dimensions are 0.69 inch length, 0.5 inch width and 0.11 inch thickness.

Installers Using 14-2 AWG Single Wire

This lug suits installers terminating a single aluminum or copper conductor within the 14 to 2 AWG range on a 1/4 inch stud. It is not for applications requiring multiple conductors per lug or wire sizes outside the stated range. Buyers needing a different stud size, a multi-hole tongue or a higher conductor count should look at other connector types.
