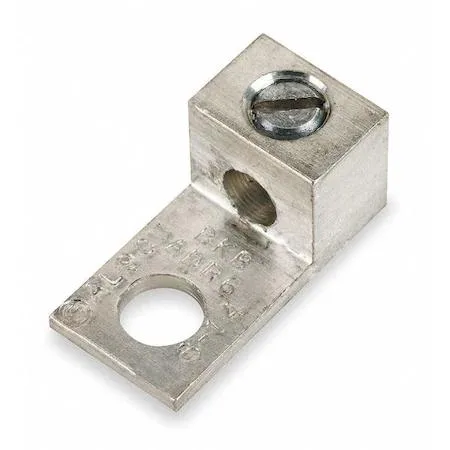

Aluminum mechanical connector lug with slotted head, single hole and visible set screw

Thomas & Betts

Thomas & Betts Blackburn ADR11 Mechanical Connector Lug 1/0-14 AWG

SKU CH-1N3C-FZKW8

Aluminium mechanical lug accepts 1/0 to 14 AWG stranded copper or aluminium conductors, rated 1 000 V at 194 °F

  • Length0.750
  • MaterialAluminum
  • Type1/0STR-14AWG TERMINL LUG
  • Aluminium body resists corrosion for long service life
  • Accepts 14 AWG to 1/0 AWG stranded copper or aluminium conductors
  • Single-hole 1/4 in stud mounting simplifies panel installation
  • Slotted head allows quick tightening with a standard screwdriver
  • Rated 1000 V and 194 °F for demanding electrical environments

Mechanical Connector Lug 1/0-14 AWG

The Thomas & Betts Blackburn ADR11 is a mechanical connector lug designed for electrical installations. It accepts a single conductor ranging from 14 AWG up to 1/0 AWG. The lug body is constructed from aluminium and suits both aluminium and copper conductors. It provides a single termination point for power distribution.

Slotted Head for 1/4 In Stud

The lug features a slotted head style that mounts on a 1/4 in stud with a 0.25 in hole diameter. Tongue dimensions are 0.44 in length, 0.63 in width and 0.19 in thickness. Overall length measures 0.750 in. The single-hole design simplifies attachment to busbars or terminal blocks without needing specialised tooling.

Rated 1000 V at 194 Degrees F

Maximum operating voltage is 1,000 V and the maximum operating temperature is 194 Degrees F. The aluminium body conducts current while resisting corrosion in normal environments. No forced cooling is required for typical indoor applications. The connector is not suited for multi-conductor terminations or stud sizes other than 1/4 in.

Highlights

  • Aluminium body resists corrosion for long service life
  • Accepts 14 AWG to 1/0 AWG stranded copper or aluminium conductors
  • Single-hole 1/4 in stud mounting simplifies panel installation
  • Slotted head allows quick tightening with a standard screwdriver
  • Rated 1000 V and 194 °F for demanding electrical environments

Specifications

BrandThomas & Betts
Length0.750
MaterialAluminum
Type1/0STR-14AWG TERMINL LUG

Questions about this item

At what temperature does this lug reach its 194 °F limit under continuous load?

The lug is rated for a maximum operating temperature of 194 °F; sustained current that pushes the conductor above this temperature exceeds the design limit.

How much heat does the aluminum body dissipate when carrying full-rated current all day?

The aluminum body and single-hole tongue (0.63 in wide, 0.19 in thick) conduct heat away from the connection, but no thermal-resistance or wattage figure is published for continuous operation.

What conductor preparation and tools are required before installing this lug?

Strip the stranded copper or aluminum wire (14 AWG to 1/0 AWG) to fit the 0.44 in tongue length, then tighten the slotted set-screw with a flat-blade screwdriver and secure the 1/4 in stud hole with a matching bolt.
