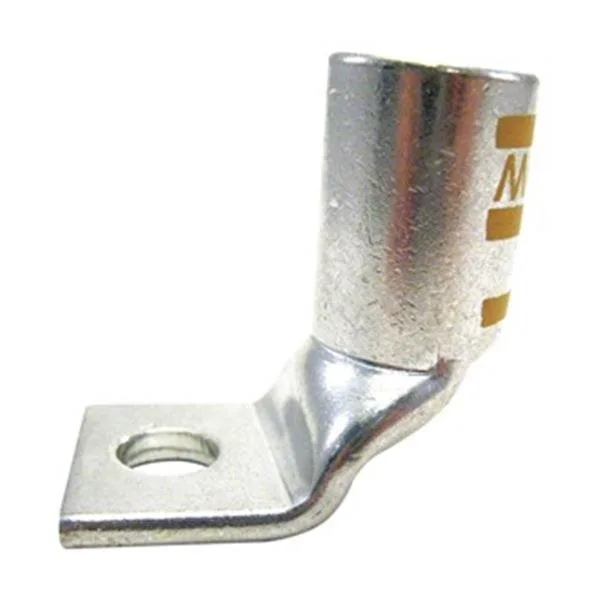

Copper 90-degree compression lug, yellow barrel, single 3/8 stud hole

Thomas & Betts

Thomas & Betts 90° Compression Lug 250 kcmil 3/8 Stud Yellow

SKU CH-VS2E-NWKE8

A 90-degree copper compression lug for 250 kcmil wire with a 3/8-inch stud, yellow colour code and 35 kV rating

  • Type90 Degree Standard Lug
  • 90° angled tongue simplifies routing in tight panels
  • Yellow colour code and die code 62 enable quick size identification
  • Rated for 250 kcmil copper conductors up to 35 kV AC
  • Inspection hole allows visual verification of full cable insertion
  • CSA certified and UL E9809 listed for code compliance

90° Copper Lug for 250 kcmil Cable

This Thomas & Betts compression lug accepts stranded copper conductors up to 250 kcmil and terminates them with a single 3/8 in stud hole. The barrel carries a yellow colour code and die code 62 for quick identification during installation.

Fits Standard Crimp Tools and Panel Layouts

The 90° tongue angle routes the conductor parallel to the mounting surface, saving space in tight enclosures or wireways. A 1.09 in tongue width and one-hole pattern suit standard bus-bar or equipment-pad drilling, while the inspection hole lets you verify full conductor insertion before energising.

Rated for Continuous 194 °F Operation at 35 kV

Copper construction and CSA / UL E9809 certification support sustained loads at the full 35 kV AC rating and a maximum operating temperature of 194 °F. The standard barrel diameter of .2 in maintains consistent crimp performance cycle after cycle without derating.

Highlights

  • 90° angled tongue simplifies routing in tight panels
  • Yellow colour code and die code 62 enable quick size identification
  • Rated for 250 kcmil copper conductors up to 35 kV AC
  • Inspection hole allows visual verification of full cable insertion
  • CSA certified and UL E9809 listed for code compliance

Specifications

BrandThomas & Betts
Type90 Degree Standard Lug

Questions about this item

What maximum temperature can this lug withstand before it degrades?

The lug is rated for a maximum operating temperature of 194 degrees Fahrenheit.

How much heat does this connector generate when carrying full load continuously?

As a passive copper compression lug it produces no heat of its own; temperature rise depends entirely on the conductor current and installation quality.

What size crimping die must I already own to install this lug?

The lug uses die code 62, so a matching 62-series compression die is required for a proper crimp.
