Compact metal network switch with eight front RJ45 ports and two uplink ports on the side

Thinkstar

Thinkstar PS-82-96 8-port PoE network switch 120W

SKU CH-EZWX-7NYN4 MPN PS-82-96

An 8-port 10/100 Mbps unmanaged PoE switch with two uplink ports, delivering up to 30 W per port and a 120 W total power budget, plus a 250 m long-range mode

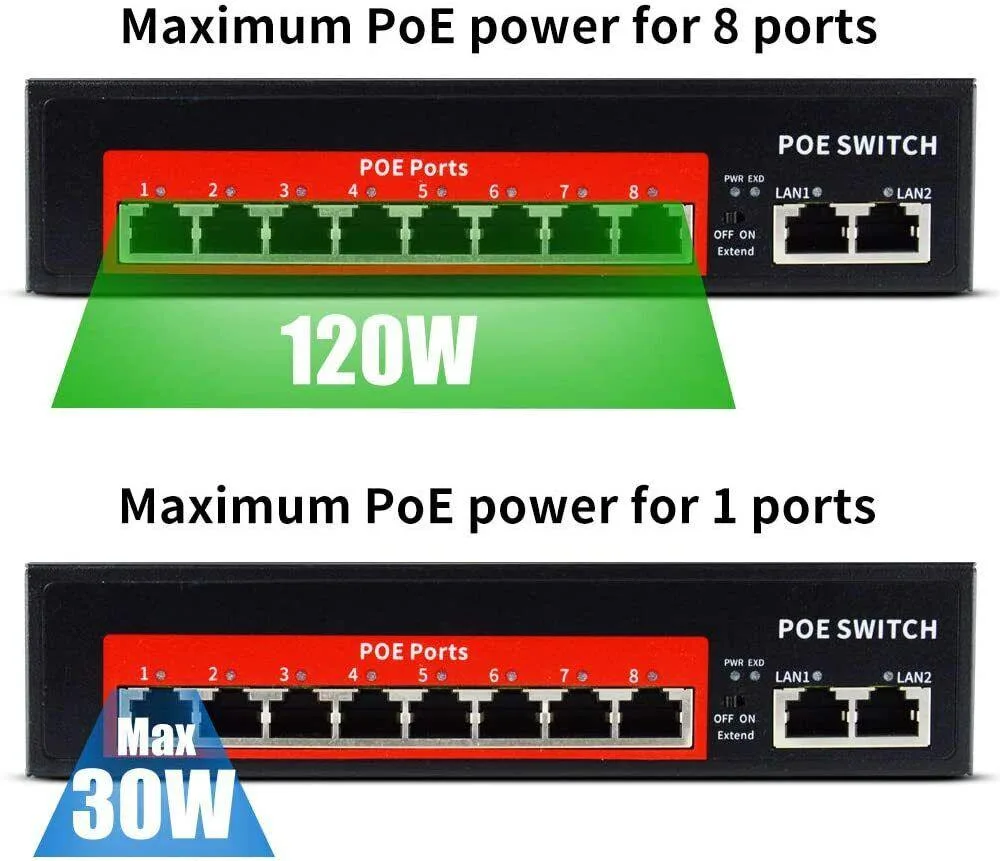

  • Powers up to 8 PoE devices with 120 W total budget
  • Single port delivers up to 30 W for demanding endpoints
  • Extends reach to 250 m at 10 Mbps via long-range mode
  • Dual uplink ports add flexible backbone connections
  • Automatically detects PoE gear to protect non-PoE equipment

Eight-port PoE switch for security deployments

This unmanaged 10/100 Mbps switch delivers power and data to eight IEEE 802.3 af/at devices such as IP cameras or wireless access points. Each PoE port supplies up to 30 W while the total PoE budget reaches 120 W. The unit is built for installers who need a simple, fanless solution for small surveillance networks.

Dual uplink ports and long-range mode

Two additional 10/100 Mbps RJ45 uplink ports connect the switch to a core switch or router without consuming a PoE port. When the extend function is enabled, ports 1-8 drop to 10 Mbps but can transmit up to 250 meters over existing twisted-pair cabling, overcoming cable-age limitations. Non-PoE devices attached to any port are detected automatically and receive data only.

Sustained load behaviour under full PoE budget

With all eight ports drawing near their 30 W limit the switch operates within its 120 W power envelope without active cooling. Wire-speed, non-blocking forwarding ensures consistent frame delivery during continuous video streams. The extend mode trades bandwidth for distance, so sustained throughput on ports 1-8 is limited to 10 Mbps when the 250-meter reach is active.

Highlights

  • Powers up to 8 PoE devices with 120 W total budget
  • Single port delivers up to 30 W for demanding endpoints
  • Extends reach to 250 m at 10 Mbps via long-range mode
  • Dual uplink ports add flexible backbone connections
  • Automatically detects PoE gear to protect non-PoE equipment

Specifications

No published specifications for this item yet.

Questions about this item

How many PoE devices can run at full 30 W each before the 120 W budget is exhausted?

Up to four ports can deliver 30 W simultaneously; adding a fifth device would exceed the 120 W total budget.

Does the switch use a fan, and how much heat should I expect in a closed cabinet?

The unit is fanless and silent; heat output scales with the actual PoE load up to 120 W.

What cabling and powered devices are needed to use the 250 m long-range mode?

Standard Cat5e or better twisted-pair cable plus IEEE 802.3af/at compliant cameras or access points.
