White fully modular ATX power supply with 140mm fan and flat white cables

Thermaltake

Thermaltake PS-TPD-0850FNFAGU-W 850 W power supply

SKU CH-VH43-SDBWA MPN PS-TPD-0850FNFAGU-W

Delivers 850 W through a fully modular ATX 12V v2.4 design with 80 PLUS Gold efficiency and a 140 mm hydraulic bearing fan

  • ColorWhite
  • TypeATX 12V v2.4 / EPS v2.92
  • Maximum Power850 W
  • Fans1 x 140mm Hydraulic Bearing Fan
  • PFCActive
  • Main Connector24Pin

Options ATX 80+ Gold (850W) White

  • Delivers 850 W continuous power for demanding builds
  • 80 PLUS Gold certification reduces wasted energy and heat
  • Fully modular design lets you connect only the cables you need
  • 140 mm hydraulic bearing fan runs quietly under load
  • 100 % Japanese 105 °C capacitors ensure long-term reliability

Toughpower GF1 850 W White

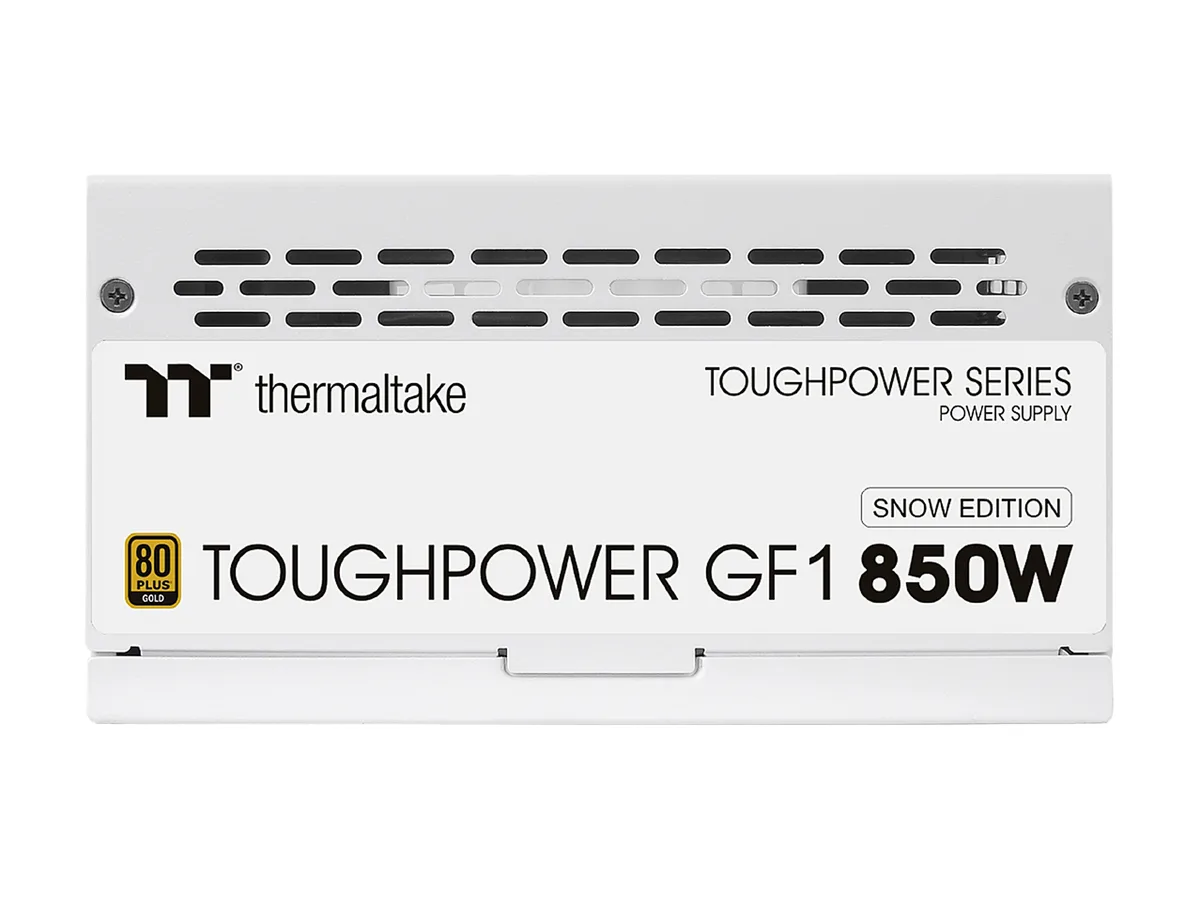

The Thermaltake Toughpower GF1 Series PS-TPD-0850FNFAGU-W is an 850 W ATX 12V v2.4 power supply finished in white. It targets PC builders who want a fully modular unit with 80 PLUS Gold efficiency for a clean, high-performance system.

80 PLUS Gold Certified Efficiency

This unit carries 80 PLUS Gold certification and uses 100% Japanese 105°C capacitors. A single +12V rail and DC-to-DC design deliver stable output up to 50 °C ambient temperature. Protections include OCP, OVP, UVP, OPP, SCP and OTP.

White-Theme Full-Modular Builds

The flat white cables and 140 mm hydraulic bearing fan suit all-white enthusiast builds that value cable management and quiet operation. Builders needing higher wattage or a different colour scheme should consider other models.

Highlights

  • Delivers 850 W continuous power for demanding builds
  • 80 PLUS Gold certification reduces wasted energy and heat
  • Fully modular design lets you connect only the cables you need
  • 140 mm hydraulic bearing fan runs quietly under load
  • 100 % Japanese 105 °C capacitors ensure long-term reliability

Specifications

BrandThermaltake
SeriesToughpower GF1 Series
ModelPS-TPD-0850FNFAGU-W
ColorWhite
TypeATX 12V v2.4 / EPS v2.92
Maximum Power850 W
Fans1 x 140mm Hydraulic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector12
Haswell SupportYes
Max PSU Length160 mm
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time> 16msec at 100% of full load
Energy-Efficient80 PLUS GOLD Certified
ProtectionOCP, OVP, UVP, OPP, SCP, OTP
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current12A max
Output+3.3V@22A, +5V@22A, [email protected] , [email protected] , +5VSB@3A
MTBF>120,000 Hours
ApprovalsCE / cTUVus / TÜV / FCC / BSMI / CCC / EAC

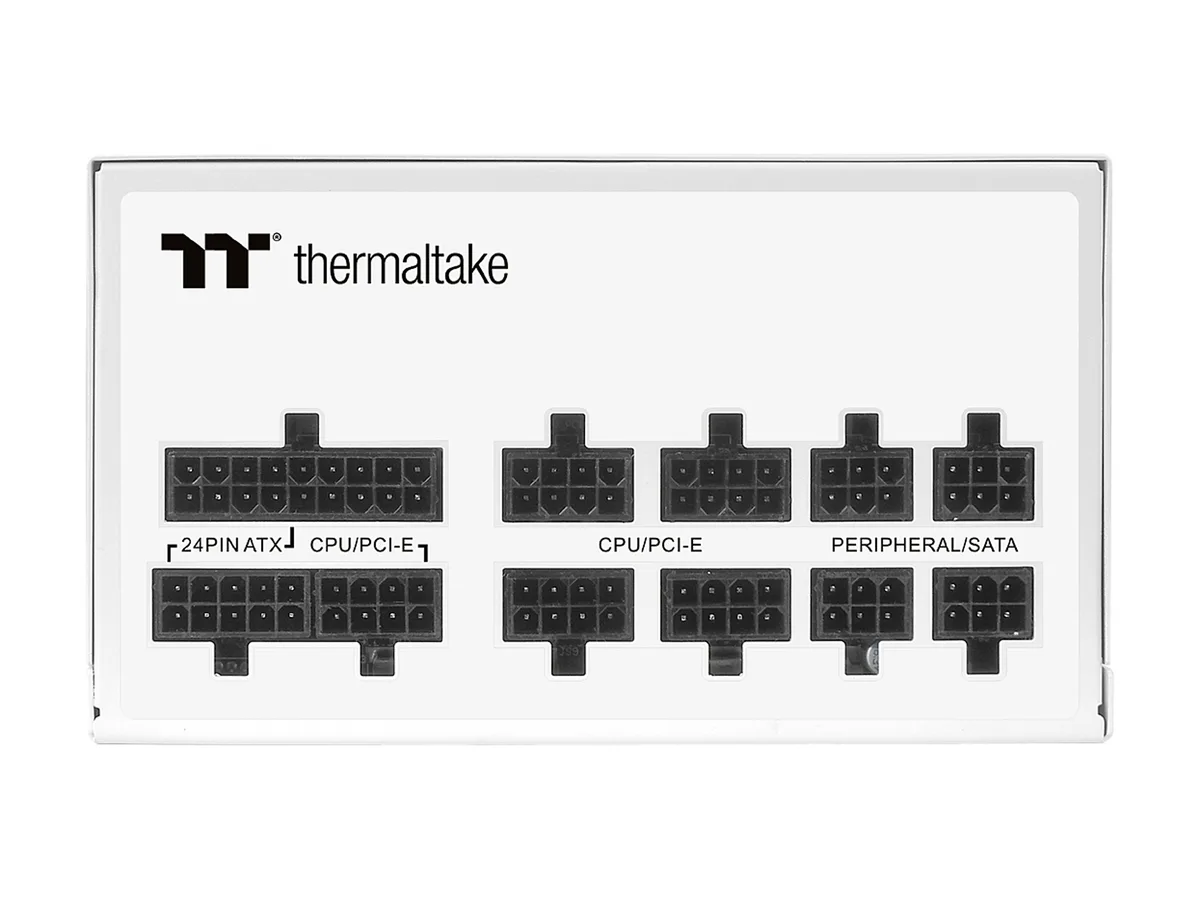

Connectors1 x 24 pin ATX
1 x 8 pin (4+4) EPS (CPU)
1 x 8 pin CPU
6 x 8 pin (6+2) PCIe
12 x SATA
4 x 4 pin Peripheral
1 x Floppy
Cable Spec24Pin MB: One cable (600mm)
8Pin CPU: One cable (650mm)
4+4Pin CPU: One cable (650mm)
2 x PCI-E 6+2Pin: Three cables (500+150mm)
3 x SATA: Four cables (500+150+150mm)
4 x Peripheral: One cable (500+150+150+150mm)
FDD Adapter: One cable (150mm)
Features850W continuous output at 80Plus Gold efficiency
100% high quality Japanese 105°C/221°F capacitor

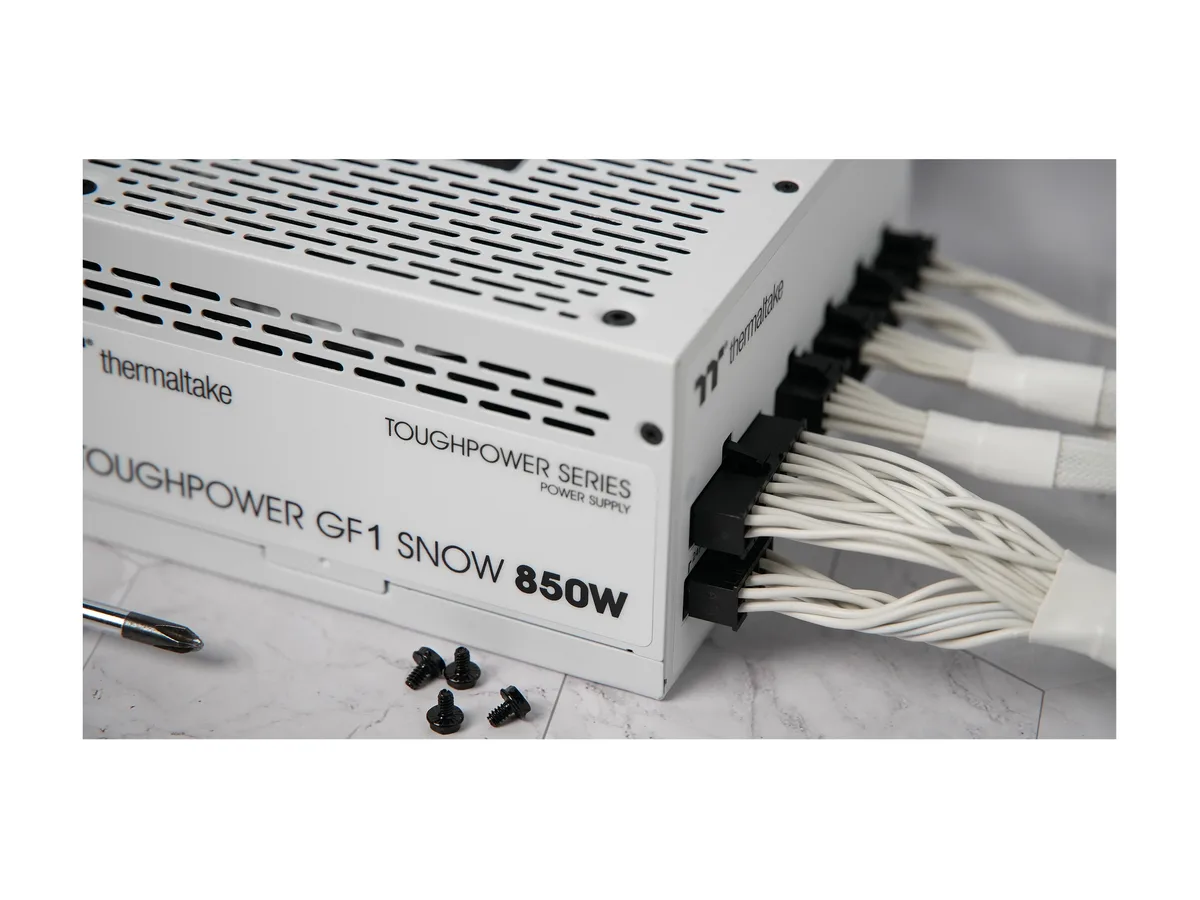

Fully modular with low-profile flat White cables
<30mV low ripple noise design & strict voltage regulation < +/-2%
Upgraded CPU/PCI-E main cables (16AWG wires)
Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
Ultra quiet 140mm hydraulic bearing fan
High amperage single +12V rail design
Intel C6/C7 states & ErP ready

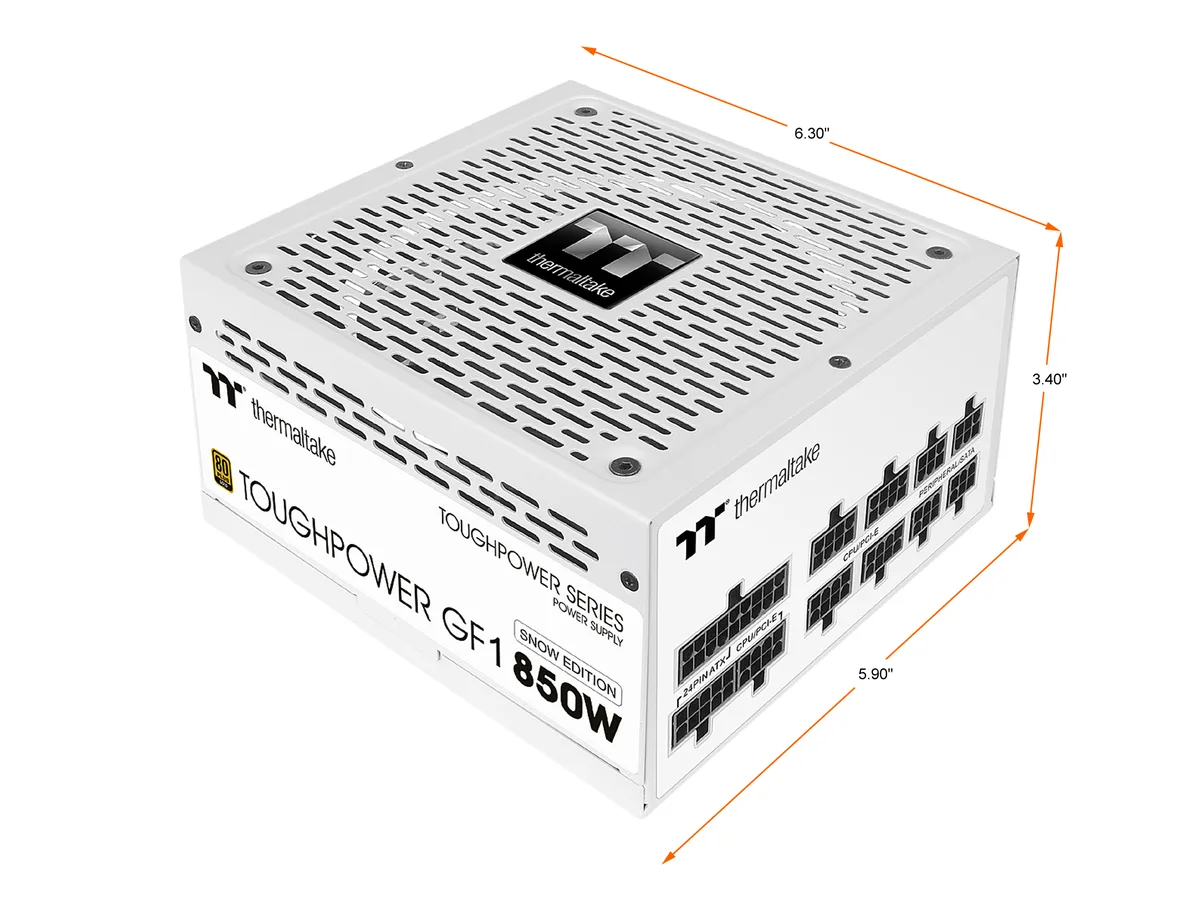

Dimensions3.40" x 5.90" x 6.30"
Shipping weight3.36 kg
Package size320 × 231 × 157 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 850 W rating deliver in a built system?

The single +12 V rail can supply the full 850 W to graphics cards and CPU, while +3.3 V and +5 V rails each provide 22 A for drives and peripherals.

How does the ATX 12V v2.4 and EPS v2.92 specification limit what I can connect?

These standards define the 24-pin main connector and the six 6+2-pin PCIe plugs, so the unit fits modern motherboards and high-end GPUs without adapters.

Will the 160 mm depth fit my case and how does the fan mount?

At 160 mm long it suits most mid-tower cases, and the 140 mm hydraulic bearing fan uses an anti-vibration mounting system for quiet intake.
