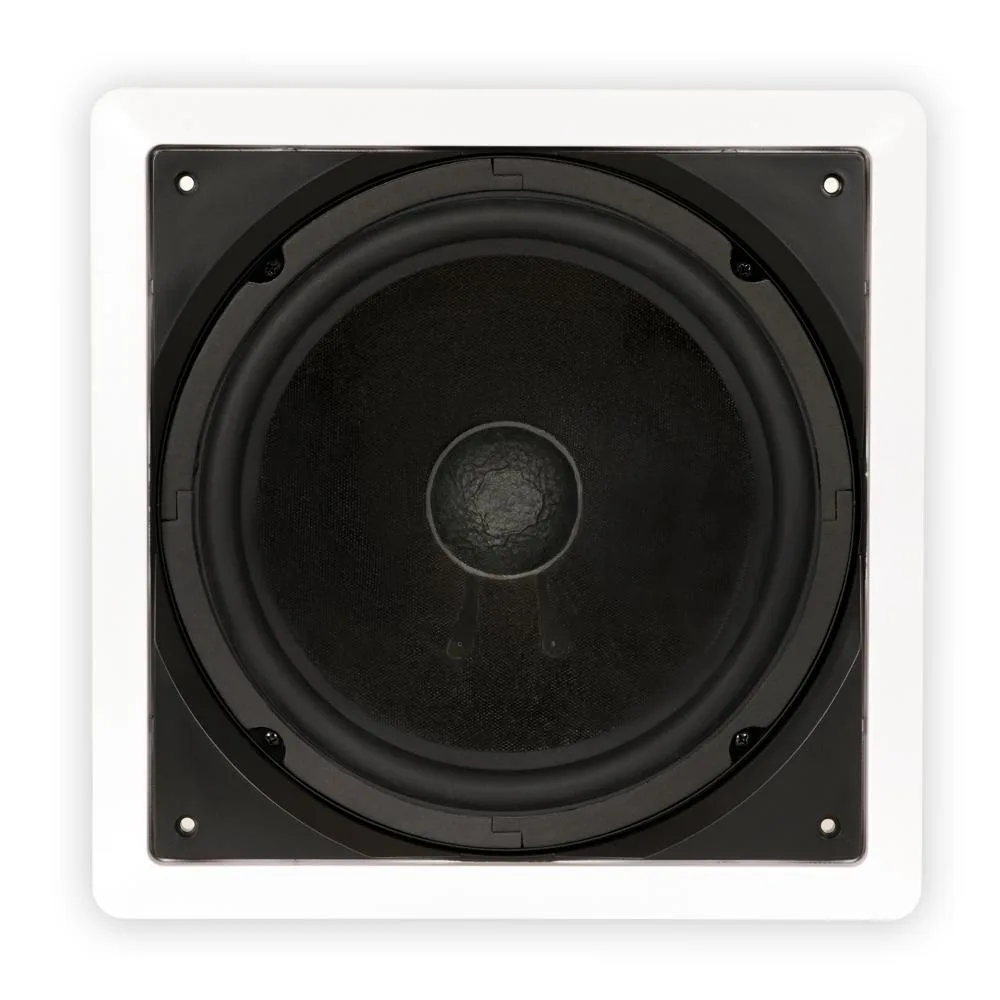

White square in-wall subwoofer with removable grille, flush-mount frame and 10-inch driver visible

Theater Solutions

Theater Solutions TS1000 Flush Mount Passive 10" In-Wall Subwoofer

SKU CH-08AE-XFP6G

A passive 10-inch in-wall subwoofer that mounts flush with a pressure-lock system and requires a separate amplifier

  • TypeSubwoofer
  • Flush-mount design saves floor space with 10.625" square cut-out
  • 10" poly-treated woofer delivers deep bass down to 22 Hz
  • 92 dB sensitivity at 8 ohms reduces amplifier power needs
  • Pressure Lock system clamps to drywall without extra hardware
  • Paintable ABS housing and grill blend into any décor

Flush-Mount Passive Subwoofer

The Theater Solutions TS1000 is a 10-inch passive subwoofer designed for in-wall installation. Its low-profile housing and Pressure Lock Mounting System clamp directly to drywall without extra hardware. The unit suits home-theatre or surround-sound systems that want deep bass without a bulky floor-standing cabinet. A separate subwoofer amplifier is mandatory because the speaker has no built-in power stage.

Sustained Low-Frequency Output

The poly-treated woofer with butyl rubber surround handles continuous low-frequency signals through a second-order 12 dB per octave crossover. Frequency response spans 22 Hz to 200 Hz at a sensitivity of 92 dB measured at 8 ohms. This passive design relies on an external amplifier to maintain consistent output during extended movie scenes or music passages without thermal compression from an internal amp.

Pre-Installation Checks

Verify that your wall cavity can accommodate a 10.625-inch square cut-out and at least 3.625 inches of mounting depth. Confirm your receiver provides an RCA passive subwoofer output to feed a compatible sub amplifier such as the Goldwood WS1005 or SA200. Use CL3-rated in-wall speaker wire for the amplifier-to-speaker run, and note that the removable grille can be painted to match the surrounding decor.

Highlights

  • Flush-mount design saves floor space with 10.625" square cut-out
  • 10" poly-treated woofer delivers deep bass down to 22 Hz
  • 92 dB sensitivity at 8 ohms reduces amplifier power needs
  • Pressure Lock system clamps to drywall without extra hardware
  • Paintable ABS housing and grill blend into any décor

Specifications

BrandTheater Solutions by Goldwood
TypeSubwoofer

Questions about this item

How much heat or power does the TS1000 generate when running all day?

The TS1000 is a passive subwoofer with no built-in amplifier, so it produces no heat and draws no power itself; all power consumption and heat come from the external sub amplifier you connect.

What extra equipment must I already own for this subwoofer to work?

You need a home audio receiver with an RCA passive sub output, a separate sub amplifier such as the Goldwood WS1005 or SA200, and CL3-rated in-wall speaker wire to link the amp to the speaker.

Will the TS1000 integrate with my older receiver and amp?

Yes, any receiver that provides an RCA passive sub output can drive the TS1000 through a compatible sub amplifier, and the speaker presents an 8-ohm load with 92 dB sensitivity.
