Compact metal VGA splitter box, four output ports, one input, 150MHz bandwidth

The Wires Zone

The Wires Zone VGA Splitter 4 Port 150MHz CG15VS4

SKU CH-0E4Q-PBD9F

Splits one VGA signal to four monitors at up to 1600 x 1200 resolution with 150 MHz bandwidth and 165 ft reach

  • Splitter TypeVGA
  • Drives four monitors from one VGA source
  • 150 MHz bandwidth supports 1600 x 1200 resolution
  • Amplifies signal for up to 165 ft cable runs
  • Metal housing in compact 13 x 7.5 x 4.2 cm form
  • Daisy-chain capable with DDC support on port 1

Four-port VGA signal splitter

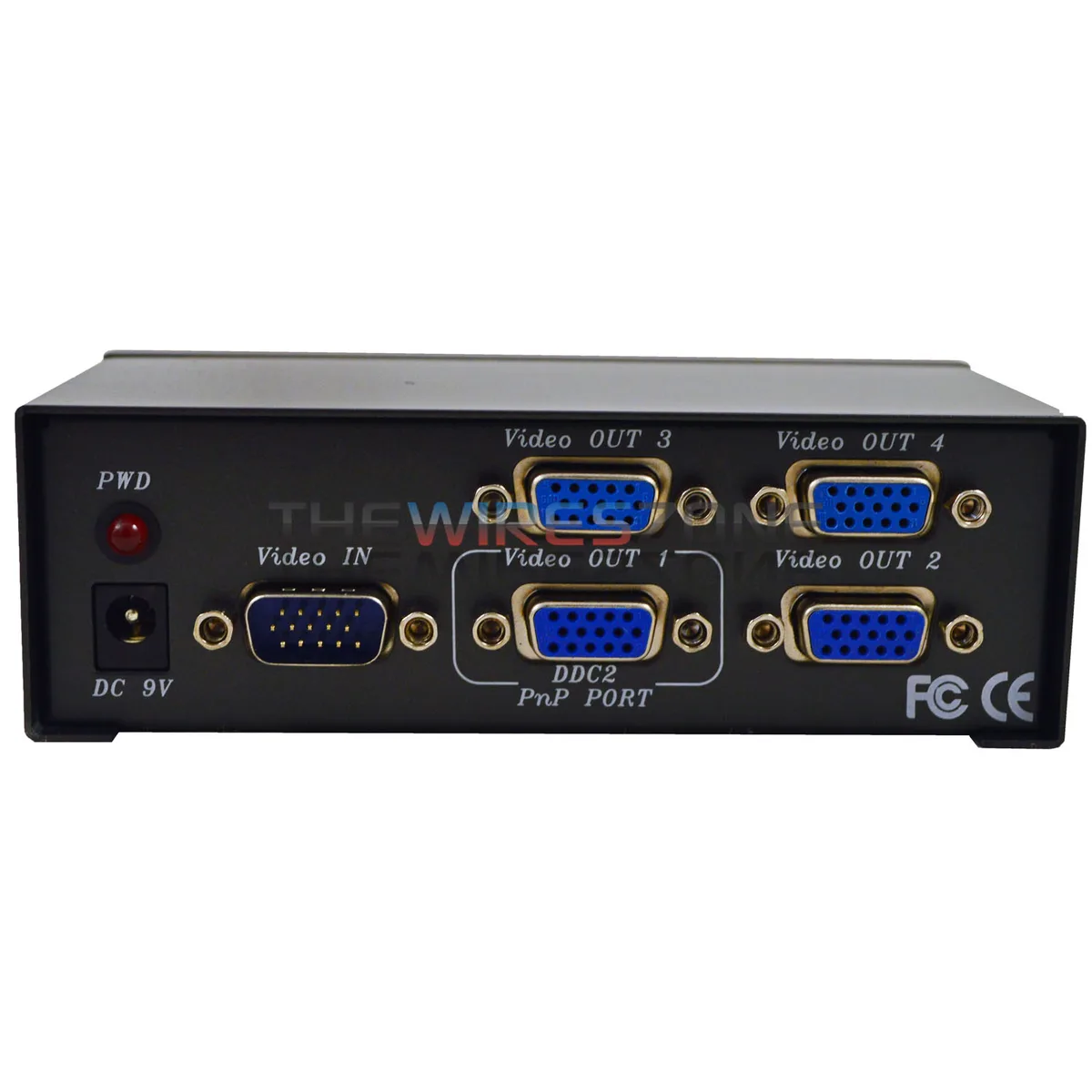

The Wires Zone CG15VS4 takes a single VGA source and distributes it to four HDB-15 displays. It supports VGA, SVGA, XGA and Multi Sync signals at resolutions up to 1600 x 1200. The metal housing measures 13 cm by 7.5 cm by 4.2 cm and weighs .49 kg. The unit operates from 0 to 40 degrees Celsius and is RoHS compliant.

Passive cooling and low power draw

The all-metal enclosure acts as a heatsink so the splitter runs silently without a fan. Power comes from an external 9 V DC adapter included in the box. Typical consumption is minimal, leaving the adapter cool during continuous operation. Daisy-chaining is supported for larger installations.

Included accessories enable immediate setup

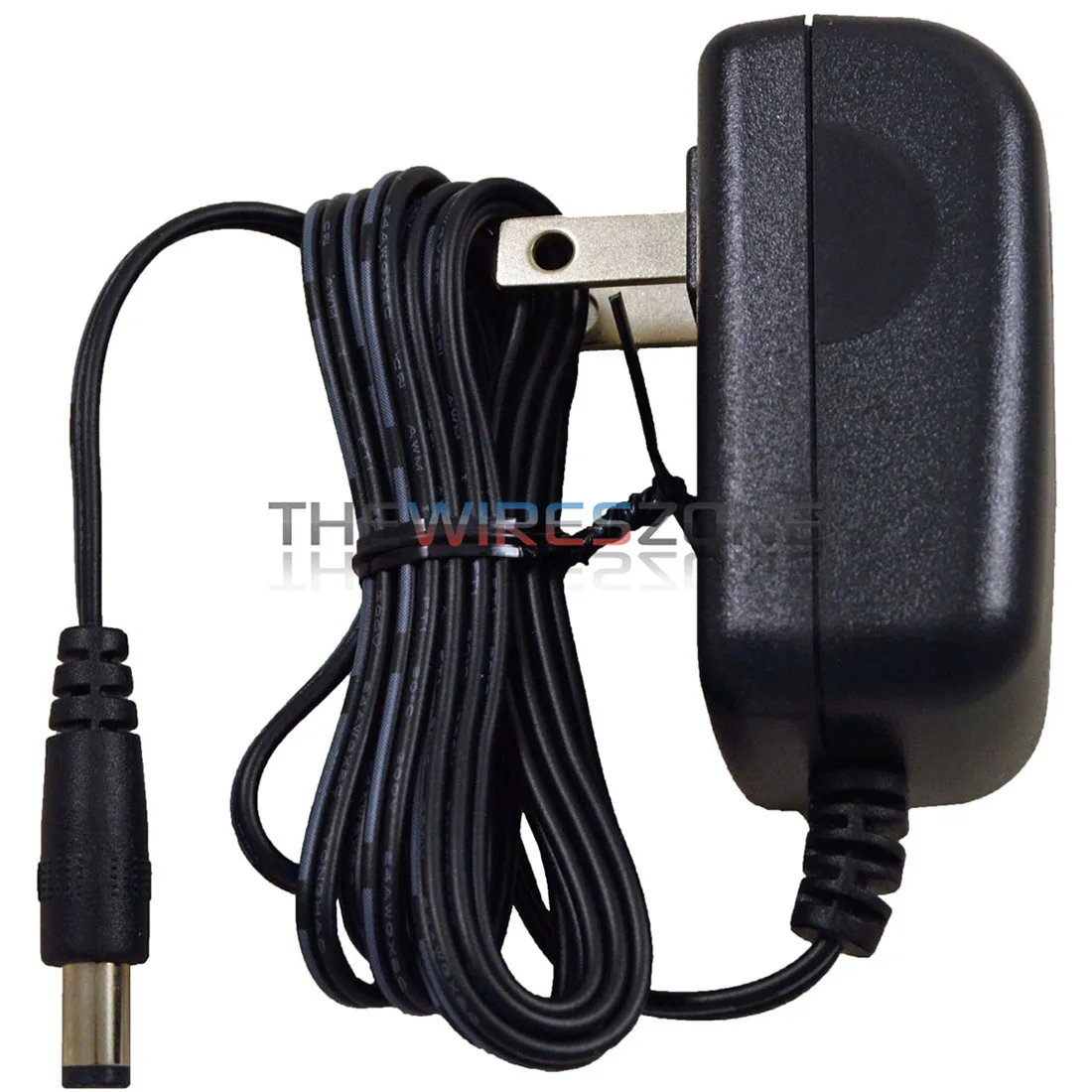

A 9 V power adapter and a printed user manual ship with the splitter. The adapter provides the required DC supply so no separate purchase is needed. DDC and DDC2 support on output port one preserves EDID communication for plug-and-play configuration. The manual covers wiring and daisy-chain topology.

Highlights

  • Drives four monitors from one VGA source
  • 150 MHz bandwidth supports 1600 x 1200 resolution
  • Amplifies signal for up to 165 ft cable runs
  • Metal housing in compact 13 x 7.5 x 4.2 cm form
  • Daisy-chain capable with DDC support on port 1

Specifications

Splitter TypeVGA

Questions about this item

How do I connect the power adapter and the video cables, and what step is often missed?

Plug the 9V DC adapter into the splitter first, then connect the source to the single HDB-15 male input and up to four monitors to the female outputs; the step often missed is confirming that DDC communication works only on output port one for EDID handshake.

What part will need replacement first if the unit runs continuously in a warm rack?

The external 9V DC power adapter is the most likely component to require replacement before the passive metal-housed splitter itself fails.

At what cable length does the 150MHz bandwidth limit signal quality on a 1600 x 1200 image?

The 150MHz bandwidth supports the full 1600 x 1200 resolution up to the rated 165 feet (50 m) maximum cable distance; beyond that distance signal degradation appears first.
