Red handheld insulation tester YF-510 with analog pointer display and test leads

TENMARS ELECTRONICS

TENMARS ELECTRONICS YF-510 Pointer Insulation Tester 0-600V electrician tool

SKU CH-8JNV-X4K2R MPN YF-510

Pointer insulation tester measures up to 2000 MΩ at 1000 V and 600 V AC with low-resistance range to 2 kΩ

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Insulation testing up to 2000 MΩ at 1000 V
  • AC voltage measurement up to 600 V
  • Low resistance range up to 2 kΩ
  • Pointer display with high sensitivity and fast response
  • Low current consumption extends battery life

Insulation testing up to 2000 MΩ

The Tenmars YF-510 is a pointer-type insulation tester built for electricians who verify wiring integrity on installations rated up to 600 V AC. It provides three test-voltage ranges — 250 V, 500 V and 1000 V DC — covering insulation resistance from 50 MΩ up to 2000 MΩ. A low-resistance range of 2 kΩ and a battery-check function complete the measurement set. The analog movement gives an immediate visual response for go/no-go decisions on site.

For mains-voltage installation work — not

Electricians certifying new circuits or troubleshooting insulation breakdown on 250–1000 V DC test voltages will find the ranges match standard verification procedures. The 600 V AC range supports live-line checks. Technicians working mainly on extra-low-voltage control gear, data cabling or component-level repair need a different instrument with lower test voltages and higher resolution.

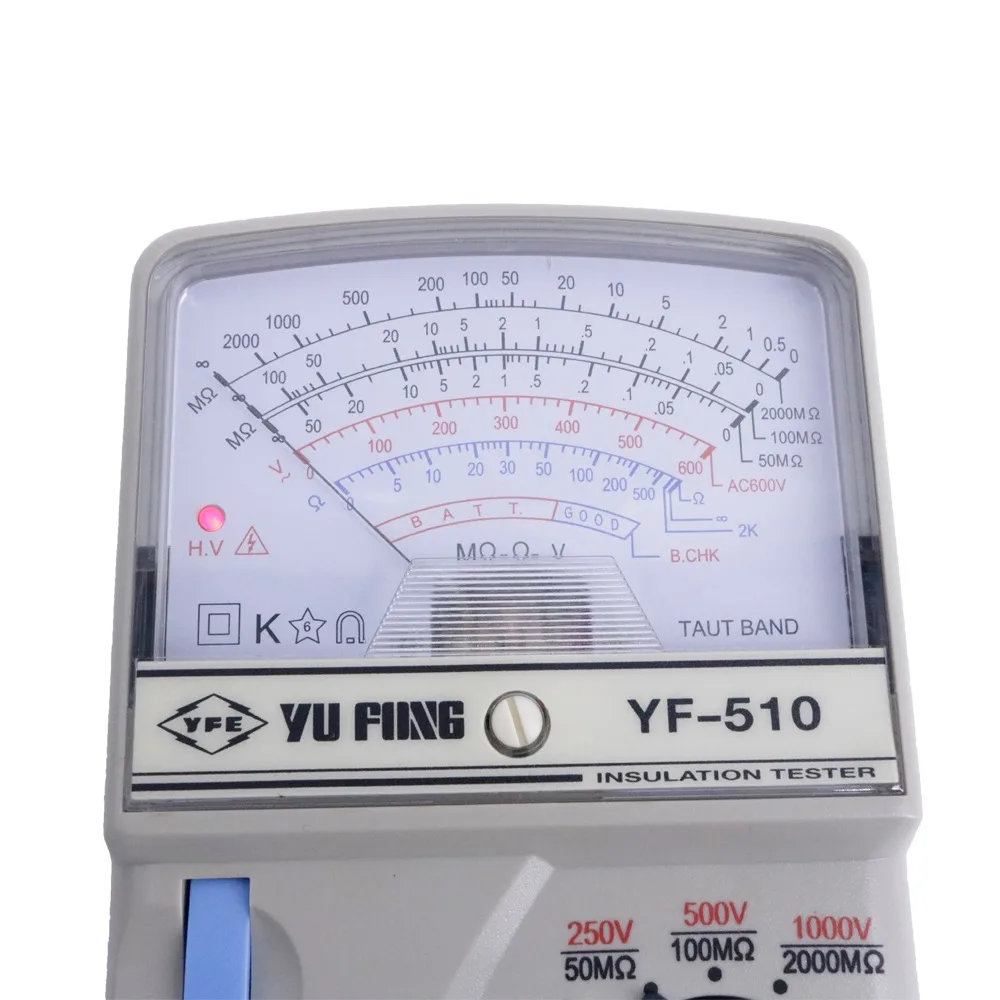

Analog pointer display with three DC test voltages

The needle movement shows insulation resistance directly without waiting for a digital sample-and-hold cycle. Three fixed DC test voltages — 250 V, 500 V and 1000 V — select the appropriate stress level for the installation class under test. This single characteristic determines whether the YF-510 fits the verification standard the job requires.

Highlights

  • Insulation testing up to 2000 MΩ at 1000 V
  • AC voltage measurement up to 600 V
  • Low resistance range up to 2 kΩ
  • Pointer display with high sensitivity and fast response
  • Low current consumption extends battery life

Specifications

BrandTENMARS
ModelYF-510
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What does the 2000 MΩ insulation range at 1000 V mean when I am testing cables on site?

It lets you verify insulation integrity up to 2 GΩ using a 1000 V test voltage, suitable for high-voltage cable and motor winding checks.

Which test voltages does the insulation function actually apply, and what is the maximum AC voltage the meter can measure?

The insulation tester applies 250 V, 500 V or 1000 V DC depending on the range selected, and the AC voltage function measures up to 600 V.

Will the 156 × 100 × 54 mm case fit in my standard tool bag and how is it carried?

The unit measures 156 mm long, 100 mm wide and 54 mm deep and is designed as a hanging wire type meter for belt or strap mounting.
