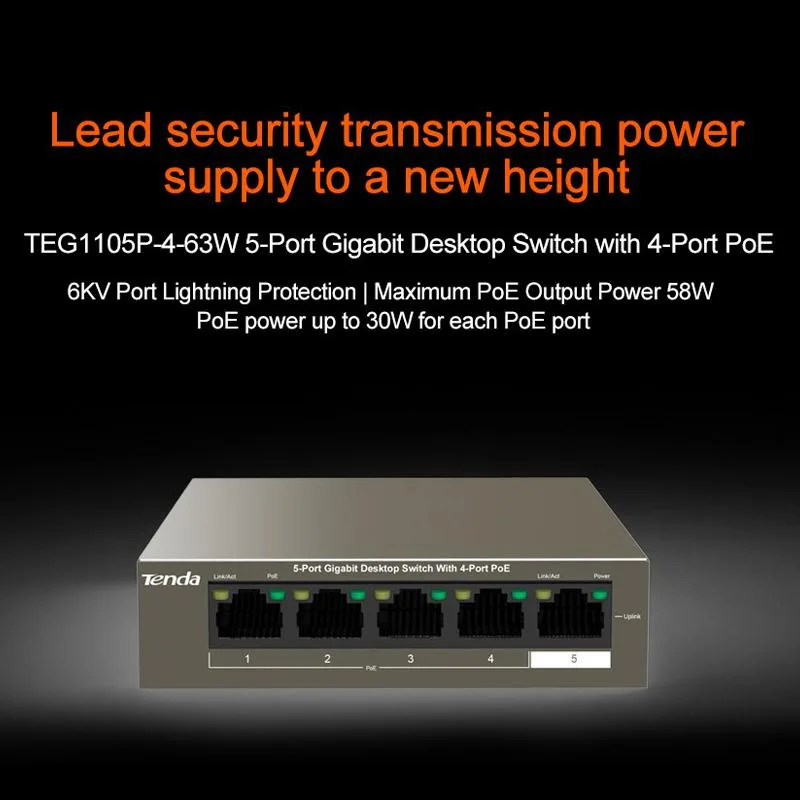

Small square metal network switch with five RJ45 ports and LED indicators

Tenda

Tenda TEG1105P-4-63W 5-port Gigabit PoE network switch

SKU CH-4CP6-YYE9S MPN TEG1105P-4-63W

Desktop 5-port Gigabit unmanaged switch with PoE on four ports delivering up to 58W total power

  • Switch TypeGigabit
  • FormatDesktop
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Powers four devices through network cables using 58 W PoE budget
  • Delivers gigabit speeds on all five RJ45 ports for fast wired links
  • Operates silently with no fan in a compact 3.94 x 3.94 x 1.02 inch desktop case
  • Requires no configuration thanks to unmanaged plug-and-play design
  • Handles traffic bursts with 1 MB buffer and 2K MAC address table

Desktop Gigabit PoE Switch

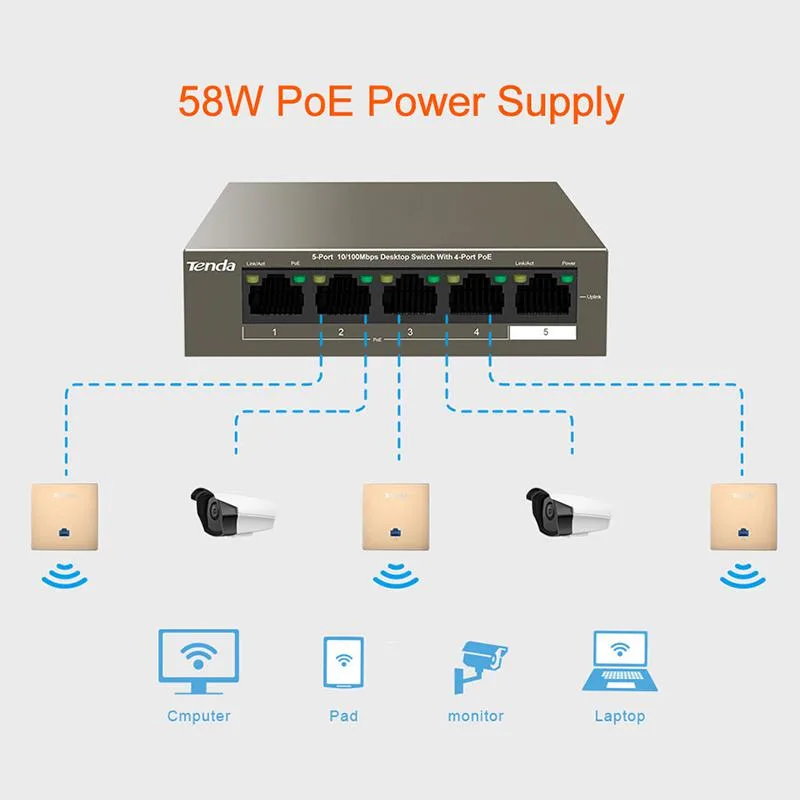

The Tenda TEG1105P-4-63W is a five-port unmanaged switch with four IEEE 802.3af/at PoE ports. It suits small offices or home networks that need to power access points, IP cameras or VoIP phones without separate injectors. Plug-and-play operation requires no configuration.

Silent Passive Cooling Under 63 W

The unit has no fan and draws under 63 W from a 100-240 V supply when all ports are active. PoE budget is 58 W across ports one to four. Silent operation makes it suitable for desk or shelf placement in quiet rooms. Operating temperature range is 0–40 °C.

Sustained Load Within PoE Budget

Under continuous full-port utilisation the switch stays within its 58 W PoE limit and 63 W total power envelope. The 1 MB buffer and 2 K MAC table handle steady traffic without management overhead. It is not for installations needing more than four powered devices or a managed feature set.

Highlights

  • Powers four devices through network cables using 58 W PoE budget
  • Delivers gigabit speeds on all five RJ45 ports for fast wired links
  • Operates silently with no fan in a compact 3.94 x 3.94 x 1.02 inch desktop case
  • Requires no configuration thanks to unmanaged plug-and-play design
  • Handles traffic bursts with 1 MB buffer and 2K MAC address table

Specifications

BrandTenda
ModelTEG1105P-4-63W
Switch TypeGigabit
FormatDesktop
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table2K
Buffer Memory1MB
PoEPort 1 to Port 4 support IEEE802.3at/af PoE standard
LEDs5 x Link/Act per device
4 x PoE per device
1 x Power per device
PowerAC: 100-240V ~ 50/60Hz
in full configuration: <63W
PoE Max Power Supply: 58W
Dimensions3.94" x 3.94" x 1.02"
TemperatureOperating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Shipping weight0.73 kg
Package size241 × 152 × 76 mm

Questions about this item

How do I install the Tenda TEG1105P-4-63W and which step is often missed?

Connect the AC power cord to a 100-240V outlet, then plug devices into ports one to four for PoE or port five for data only; the step often missed is verifying the PoE LED lights for each powered device to confirm 802.3af/at negotiation.

What maintenance or replacement will the TEG1105P-4-63W need later?

The fanless desktop switch has no user-serviceable parts; keep ventilation clear so the operating temperature stays within 0 to 40°C and dust the vents periodically to maintain the 58W PoE budget.

What limit appears first on the TEG1105P-4-63W under sustained full load?

The 58W PoE power budget is the first hard limit; if all four PoE ports draw maximum power the switch will deny new PoE connections while data switching continues on the 1MB buffer.
