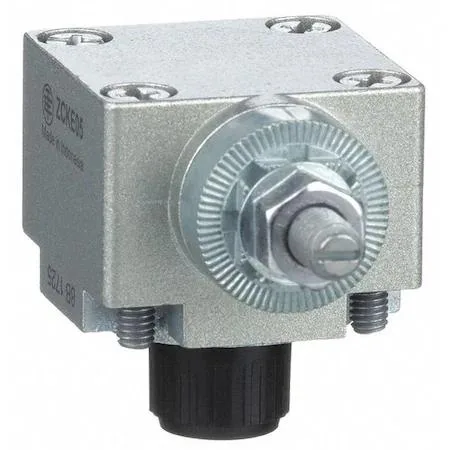

Telemecanique Sensors ZCKE05 Limit Switch Head Rotary Lever Side Momentary
Rotary lever limit switch head with side actuator, 90-degree travel, 3A at 0.27A rating, operates from -25 to 70 degrees F, NEMA 1, 2, 3, 4, 12, CCC, CSA, IEC, UL listed, for use with XCKJ
- Side rotary lever enables flexible mounting
- 90-degree travel covers wide detection range
- Operates from -25 to 70 degrees Fahrenheit
- NEMA 1, 2, 3, 4 and 12 ratings suit harsh environments
- CCC, CSA, IEC and UL listed for compliance
Purpose & fit
The Telemecanique Sensors ZCKE05 is a rotary-lever limit-switch head designed for side-mounted, momentary actuation on XCKJ-series bodies. It suits machine-shop equipment and automotive-tool installations where a 90-degree lever swing must signal left or right travel.
Build & connections
The head carries NEMA 1, 2, 3, 4 and 12 ratings and meets CCC, CSA, IEC and UL standards, indicating a robust enclosure for indoor and outdoor industrial use. An operating force of 2.21 in-lb gives positive engagement without excessive lever effort, and the side-entry actuator simplifies mounting on vertical surfaces.
Thermals, noise & power
Rated for 3 A at the lower voltage and 0.27 A at the higher voltage, the contacts handle typical control-circuit loads with minimal heating. The operating range of -25 to 70 degrees F ensures reliable switching in cold storage or warm machine environments, and the momentary action produces no continuous coil dissipation.
Highlights
- Side rotary lever enables flexible mounting
- 90-degree travel covers wide detection range
- Operates from -25 to 70 degrees Fahrenheit
- NEMA 1, 2, 3, 4 and 12 ratings suit harsh environments
- CCC, CSA, IEC and UL listed for compliance
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What NEMA ratings does the ZCKE05 limit switch head carry?
The head is rated NEMA 1, 2, 3, 4 and 12 for indoor and outdoor protection against dirt, water and oil.
Which actuator length and mounting style suit the ZCKE05 head?
It uses a side-mounted rotary lever; actuator length is not applicable and it fits XCKJ series bodies.
How is the ZCKE05 head installed on an XCKJ body and what step is often missed?
Align the head with the body, tighten the four screws evenly, then verify the 90-degree travel left and right before wiring.
