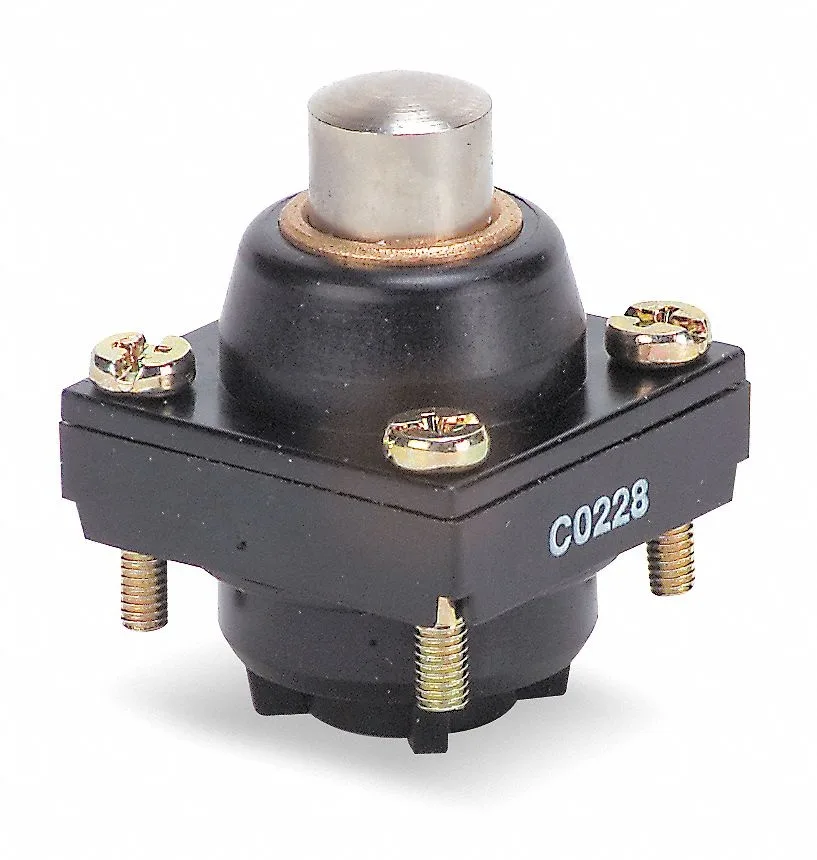

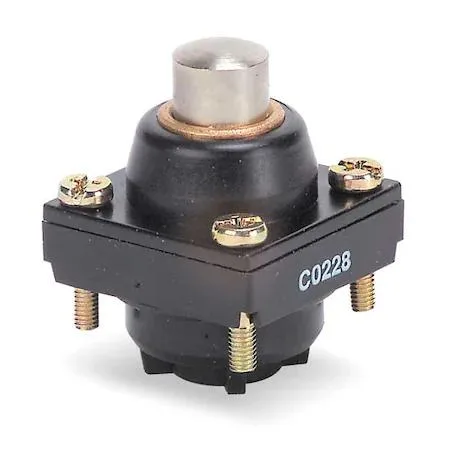

Telemecanique Sensors ZCKD10 Limit Switch Head, Plunger, Top, Momentary
Plunger limit-switch head with top actuation, 0.93 in travel, 3.4 in-lb force, and NEMA 1, 2, 3, 4, 12 ratings
- Top-mounted plunger gives direct actuation
- 93 in actuator length fits tight spaces
- Momentary action resets automatically after use
- Operates from -25 to 70 degrees F
- NEMA 1, 2, 3, 4, 12 ratings suit industrial environments
Top-Plunger Limit Switch Head
The Telemecanique Sensors ZCKD10 is a limit switch head designed for position sensing in industrial machinery. It suits engineers and maintenance teams who need a top-mounted plunger actuator with momentary action for automated equipment controls.
Plunger Travel 0.22 in
The critical specification is the 0.22 in plunger travel, which determines the exact actuation distance required for reliable switching. This travel distance, combined with a 3.4 in-lb operating force, defines whether the head matches the mechanical stroke of the target application.
Mounts on XCKL or XCKM Bodies
The head mounts directly onto compatible Telemecanique Sensors XCKL or XCKM limit switch bodies, completing the switch assembly without additional adapters. It operates from -25 to 70 degrees F and carries NEMA 1, 2, 3, 4 and 12 ratings for use in protected indoor and outdoor environments.
Highlights
- Top-mounted plunger gives direct actuation
- 93 in actuator length fits tight spaces
- Momentary action resets automatically after use
- Operates from -25 to 70 degrees F
- NEMA 1, 2, 3, 4, 12 ratings suit industrial environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How does the 3.4 in-lb operating force feel when the plunger is pressed in a real machine?
The plunger requires 3.4 in-lb of torque to actuate, giving a firm but manageable resistance that suits light-duty positioning tasks on conveyors or guards.
What does the NEMA 1, 2, 3, 4 and 12 rating actually limit in an installation?
Those ratings confirm the head is protected against falling dirt, dripping water, windblown dust and splashing water, so it can mount indoors or in covered outdoor areas without extra sealing.
What physical space and mounting pattern does the 0.93 in top plunger need?
The plunger extends 0.93 in above the head and travels 0.22 in, and the head bolts directly to XCKL or XCKM bodies using their standard four-hole mounting pattern.
