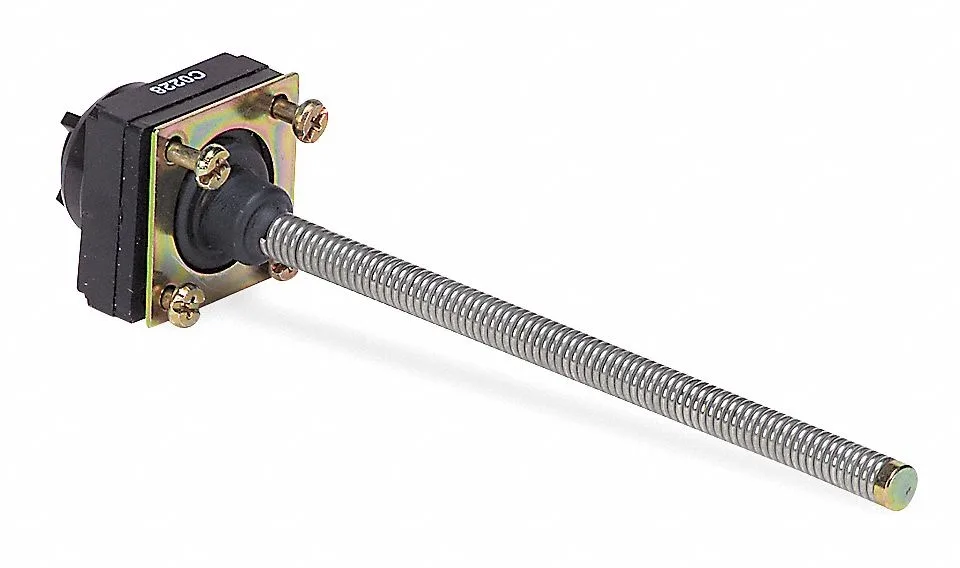

Telemecanique Sensors ZCKD08 limit switch head 5.06 in top rod
Top-mounted 5.06 in rod actuator with 90° omnidirectional travel and 1.15 in-lb operating force for XCKL and XCKM bodies
- Omnidirectional movement enables flexible positioning
- 90-degree travel provides wide detection range
- 06-inch actuator length suits extended reach
- Operates from -25 to 70 degrees Fahrenheit
- NEMA 1, 2, 3, 4, 12 ratings protect against ingress
Actuator rod length 5.06 in
The Telemecanique Sensors ZCKD08 is a limit switch head with a top-mounted wobble stick actuator measuring 5.06 in. It suits machine builders and maintenance teams who need omnidirectional actuation for position sensing on conveyors, lifts or guarding equipment.
Operating force 1.15 in-lb
The head trips at 1.15 in-lb and provides 90 degrees of total travel, so the single decisive specification is the low operating force combined with full omnidirectional movement. If the application demands a higher force or a fixed-direction plunger, this head will not suit.
Temperature range -25 to 70 Degrees F
Rated for -25 to 70 Degrees F and carrying NEMA 1, 2, 3, 4 and 12 ratings, it handles indoor and outdoor industrial environments comfortably. It runs out of headroom where IP-rated sealing is required or where contact blocks must switch loads beyond the 3 A / 0.27 A pilot-duty rating.
Highlights
- Omnidirectional movement enables flexible positioning
- 90-degree travel provides wide detection range
- 06-inch actuator length suits extended reach
- Operates from -25 to 70 degrees Fahrenheit
- NEMA 1, 2, 3, 4, 12 ratings protect against ingress
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What does the 5.06 in rod length mean for the actuation point on my machine?
The 5.06 in rod places the actuation point that distance above the mounting surface, giving a long reach for targets that cannot sit close to the switch body.
What does the 3A/0.27A rating cap in a real circuit?
The 3A rating applies to lower-voltage loads while the 0.27A figure is the limit at higher voltages; the contact set handles either value but not both simultaneously.
What mounting pattern does the head need to fit an XCKL or XCKM body?
The head mounts directly to XCKL or XCKM switch bodies using the standard four-screw pattern built into those series; no adapter plate is required.
